7" TFT Touch resistive stand bracket 4wire HDMI AV AHD lcd cctv monitor with VGA input

Share on (60322642173):


Price:RUB 15,011.97

Quantity:


Product Overview

Description

7" TFT Touch resistive stand bracket 4wire HDMI AV AHD lcd cctv monitor with VGA input

small vga monitor.jpg

7" TFT Touch resistive stand bracket 4wire HDMI AV AHD lcd cctv monitor with VGA input

 Introduction:

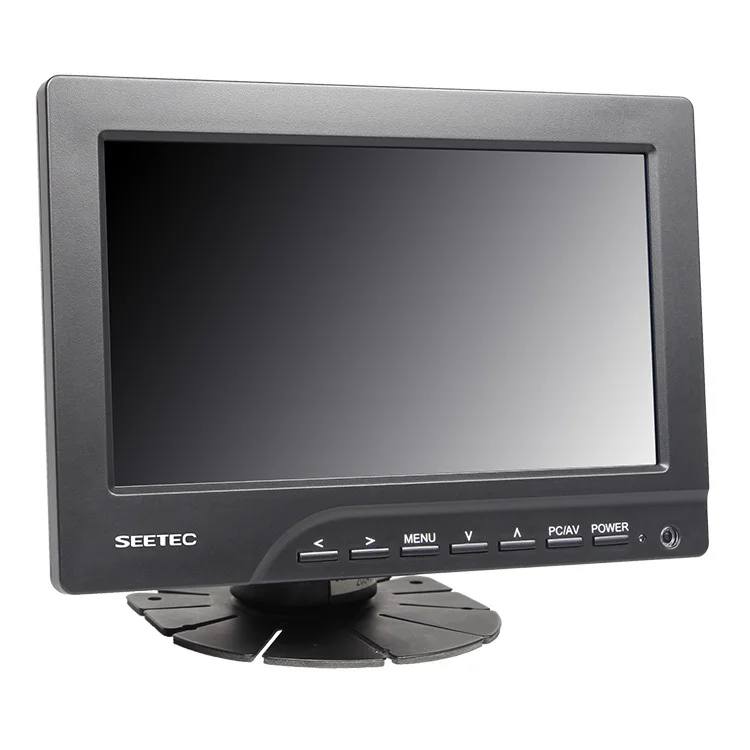

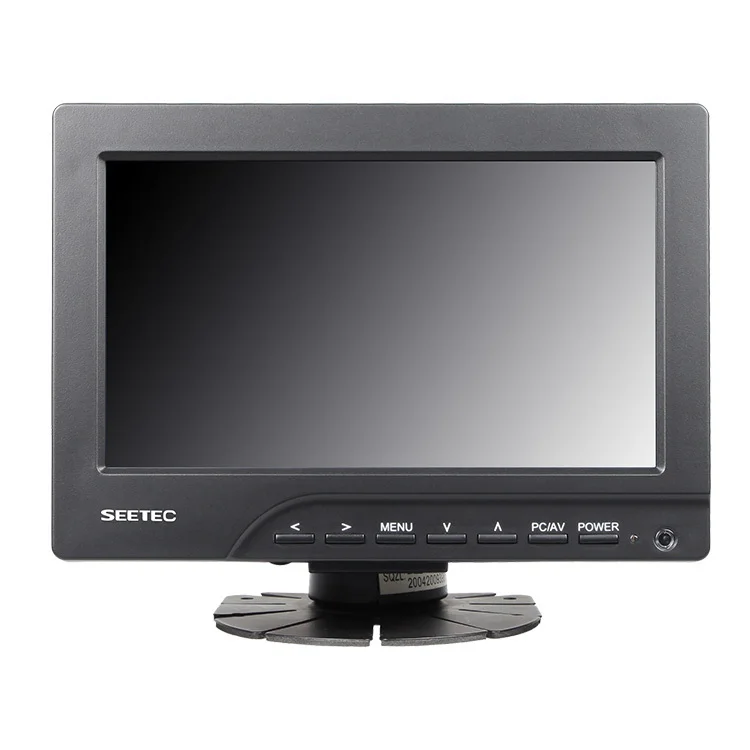

> ST-669AHT is a 7 inch TFT LCD monitor.

> It uses a high quality new LCD Panel,with 800x480 resolution, 300/400cd/m² high brightness and 70°/70°(L/R) 50°/60°(U/D) wide angle, which can display clear images.

> It uses LED backlight,which has advantage like Energy-Saving, Long life and environmental protection.



Parameters
Description 7" TFT Touch resistive stand bracket 4wire HDMI AV AHD lcd cctv monitor with VGA input
Model ST-669AHT ST669AHT-400
ST-669AH   W/O Touch ST669AH-400  W/O Touch
Brightness 300cd/m² 400cd/m²
Touch  Screen 4-Wire Resistive Touch(5-Wire for Optional)
Touch Interface USB (RS232 for Optional)
Dot Resolution 800*480 pixels (max to1920*1440)
Aspect Ratio 16:9
Contrast Ratio: 500:1
Backlight: LED
Viewing Angle: 70°/70°(L/R) 50°/60°U/D
Input Signal: VGA,Video1,Video2,Audio,HDMI (DVI Input for Optional)
HDMI Format: 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)
Mounting Process Stand Bracket
VESA 75*75mm
1/4-20 Hole in the bottom
Input Voltage DC12V±10%
Power Consumption ≤8W
workingTemperature -20℃~55℃
storage Temperature -30℃~65℃
Unit Size 182.7L × 127.7W × 29.6H(mm)
Unit Weight 400g



Product Description

 industrial lcd monitor.jpg

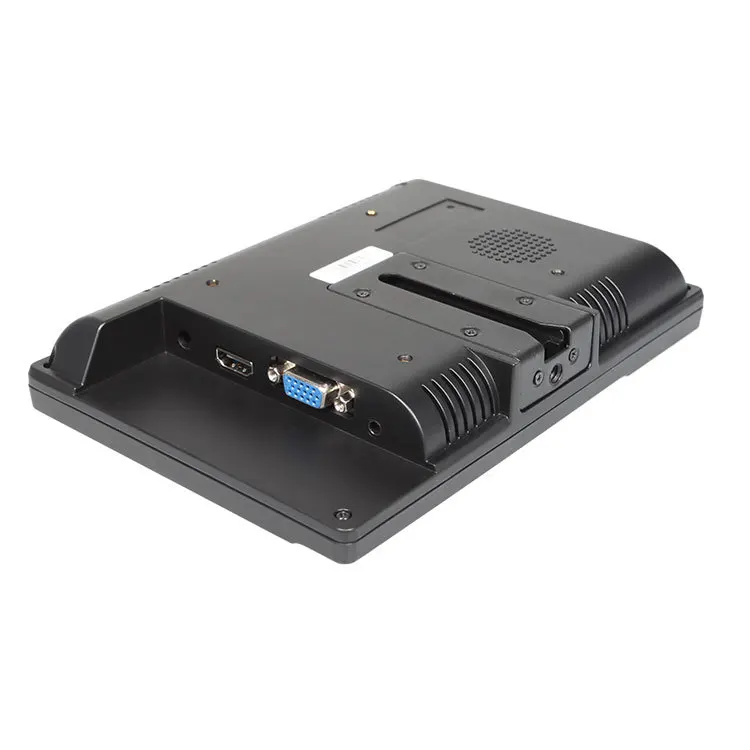

 Abundant interface:

Even small size as 7 inch,ST-669AHT also has HDMI,DVI-D,VGA,Audio (1 RCA)&Video (2 RCA)input, which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on. >On HDMI Mode,using under scan function,it is possible to display Full HD videos.

7 tft display monitor.jpg

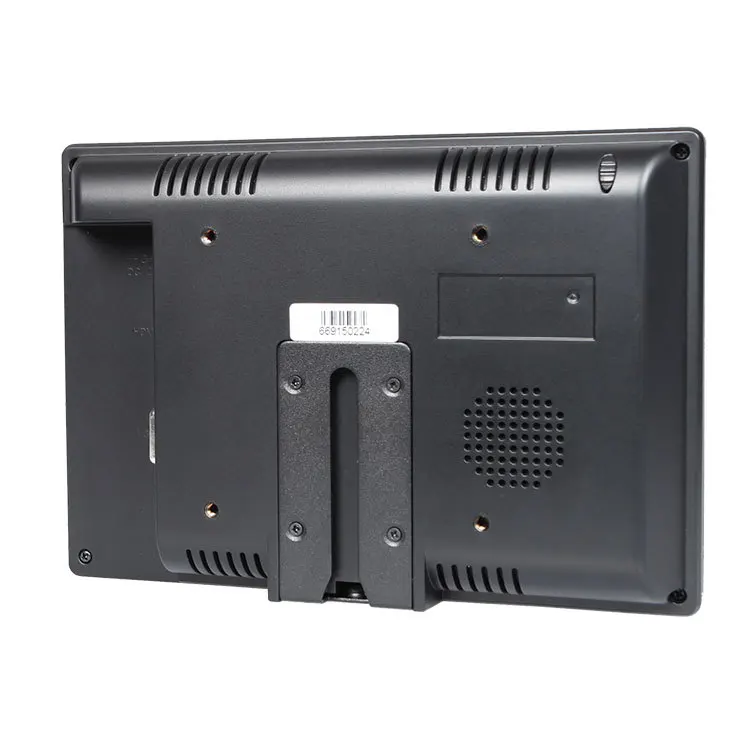

VESA 75mm Mount Holes:

There are VESA 75 mm Mount holes (FPMPMI) On rear side of the monitor.So it can be used with wall mount arm which support VESA 75mm.

Speaker Built-in:

As the built-in speaker,if there is audio output it does not need to connect external speaker equipment

car lcd monitor with hdmi input.jpg



Standard Bracket:



Portable Bracket . It is convenient to adjust the monitor as 360-degree horizontal and 90 degree vertical.

monitor with vga input.jpg

Support System for Touch:



MAC

Vista

Linux

Win CE

MS-DOS

Window XP

Window NT4

Window 9X/ME



Image Flip Function

ST-619AHT has Image Flip(Horizontally & Vertically) function.Using this function.it is convenient to watch the display even the monitor is reverse installation.

Mode Shift between 16:9 to 4:3

Base on different signal input or Practical purposes, you can change the display mode between 16:9 to 4:3.

multi touch screen monitor.jpg

Application:

This product employs new integrate circuits and high quality TFT LCD Screen. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Microscope,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.

desktop monitor.jpg





Accessories

 669AHT package list.jpg
