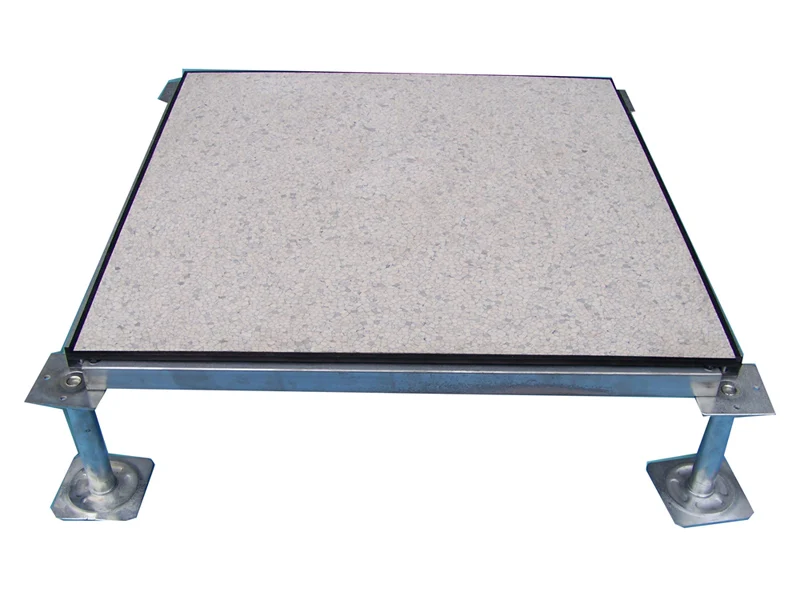

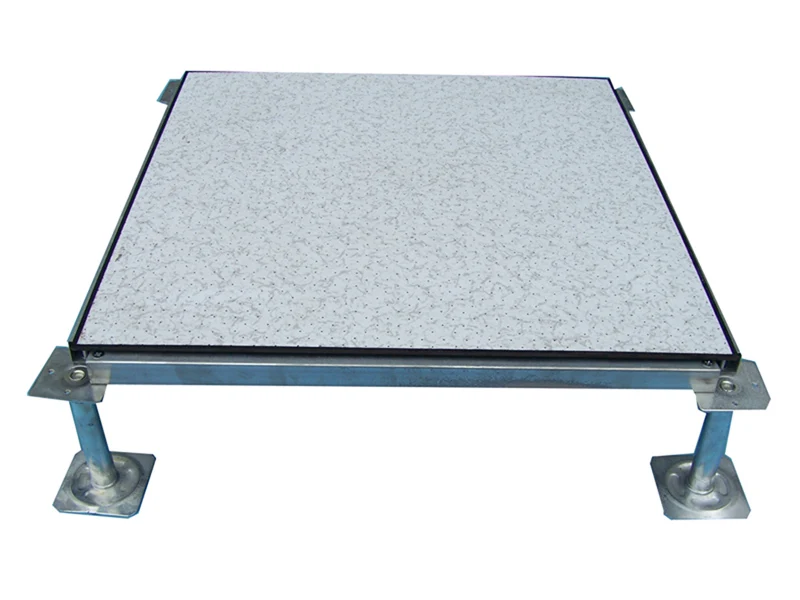

Anti static steel raised access floor with HPL PVC Ceramic Finish tile

Product Overview

Description

Steel raised floor,Anti-static steel raised access floor,HPL/PVC Anti-static steel raised access floor system



Product description

Xiangli raised floor has developed to a new grade after 20years’ hardworking for the patent design”cross strengthening rib” and marginal load.The marginal load of Xiangli floor is equal to the concentrated load.For the infilled materials,we use high grade cement.The whole system is smart for office and data center for the stable bearing and static-proofing.

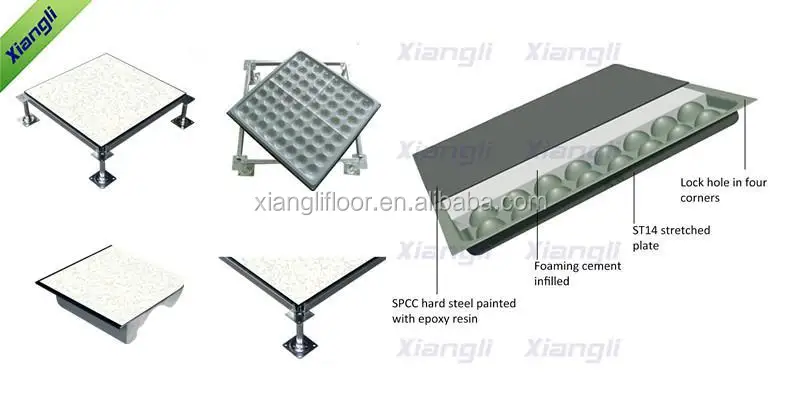

1. Full steel,cementitious infull steel raised access floor system


2. Bottom plate is ST14 stretched plate, top plate is SPCC hard steel painted with epoxy resin;


3. Foaming cement infilled;


4. Top tile:HPL,PVC,Ceramic,Granite.


5. Adjustable height for pedestal, assembly agility, large wire, good exchange ability

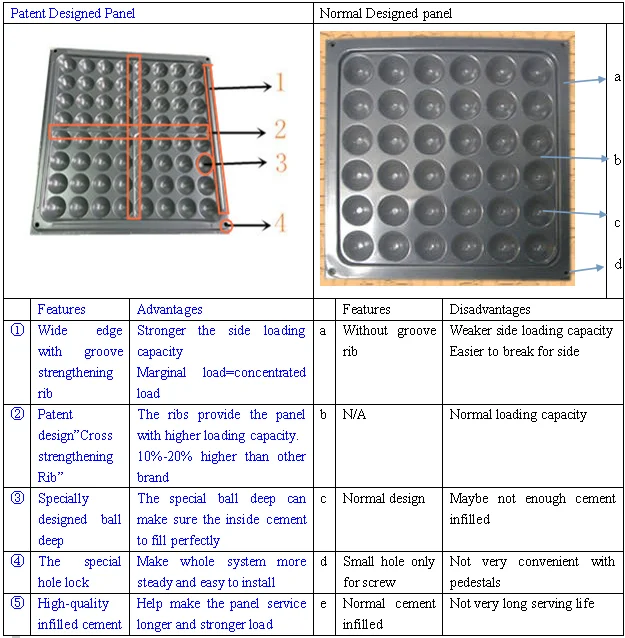

Compared with other brand products







Type and technology parameter





Type	International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
				LB	N	KG				10 times	100000 times
AT-1001	FS440	600x600x35	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1958	1566
AT-1002	FS662	600x600x35	A	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
AT-1003	FS800	600x600x35	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
AT-1004	FS1000	600x600x35	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
AT-1005	FS1250	600x600x35	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
AT-1006	FS1500	600x600x35	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
AT-1007	FS2000	600x600x35	A	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	7120





Applications

1.Monitor control center,

2.Electronic workshop,

3.Clean room,

4.5A class office Security Union Plaza

5.Futures Trading Building

6.Place demanded cabling and wiring.

Packaging and delivery

Packaging:Pallet for floors and carton for accessory

Delivery time:15days after payment down



Finish tiles & Carpets
