Односторонний подшипник CSK45PP sprag, муфта сцепления свободного колеса
- Category: Other Ball Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (60322690874):
Product Overview
Description

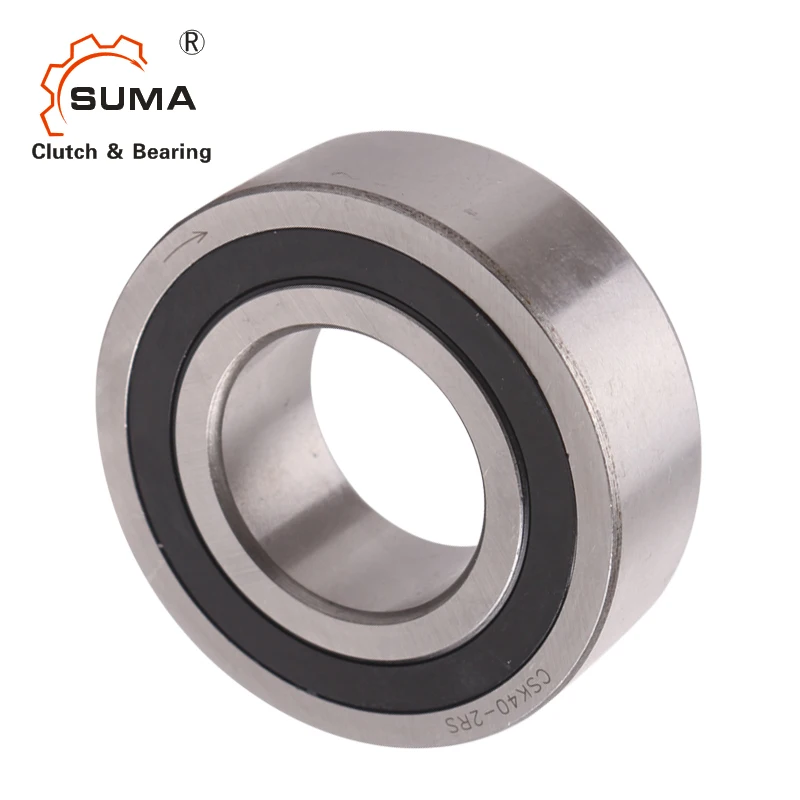

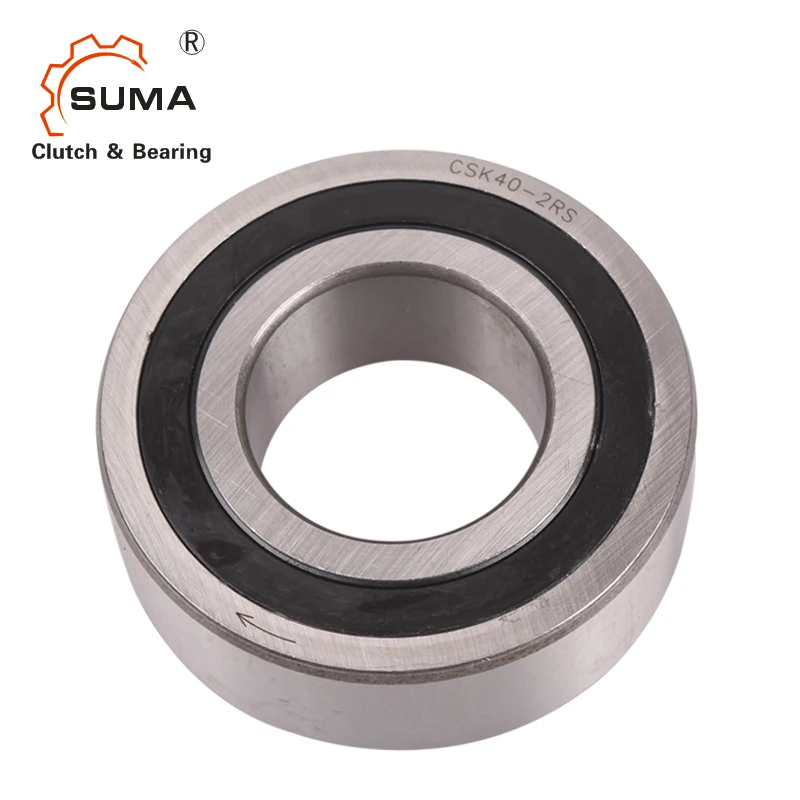

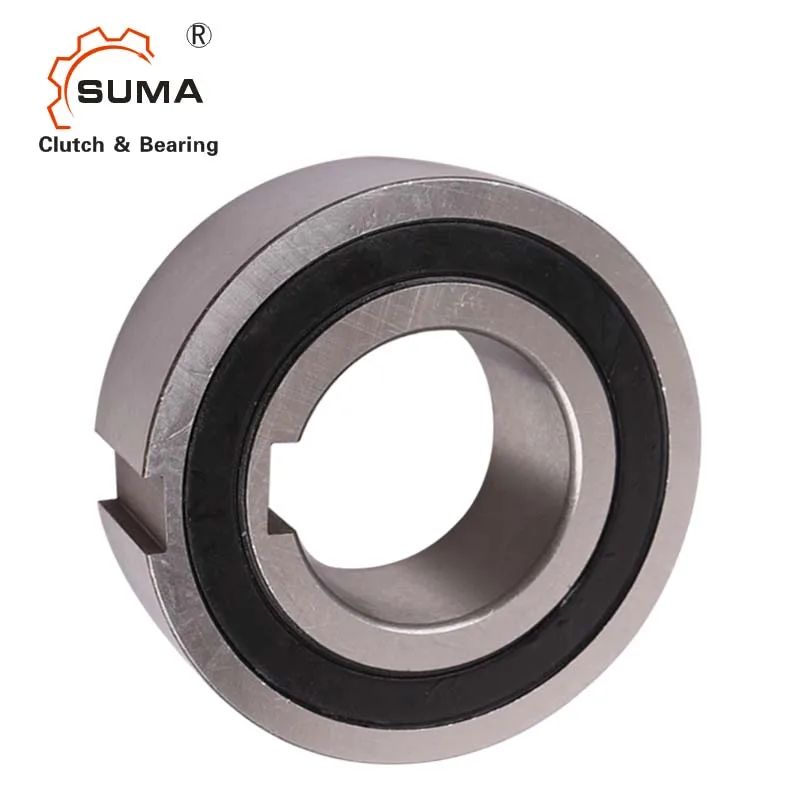

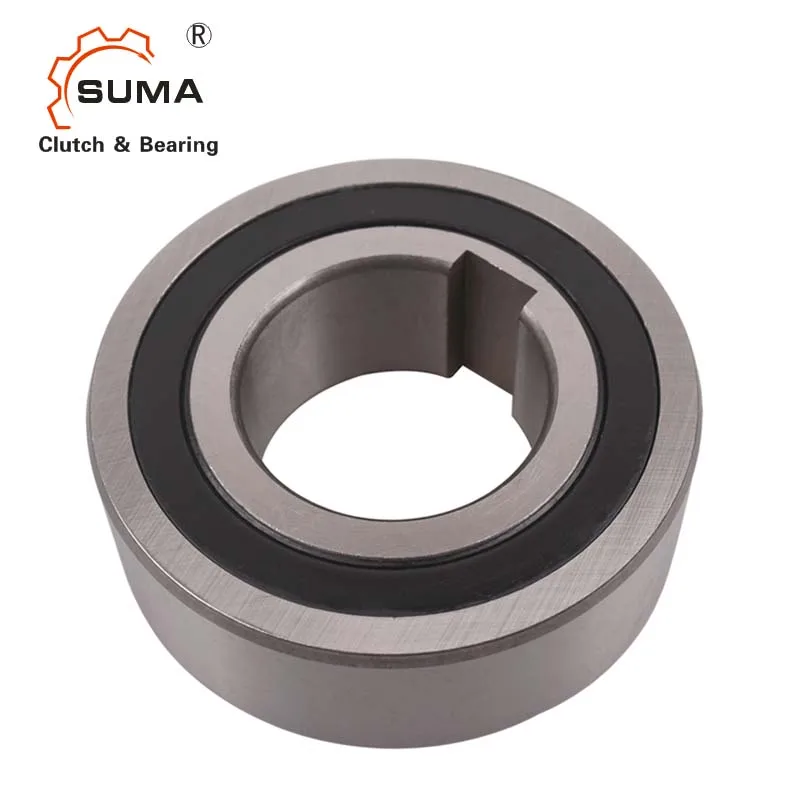

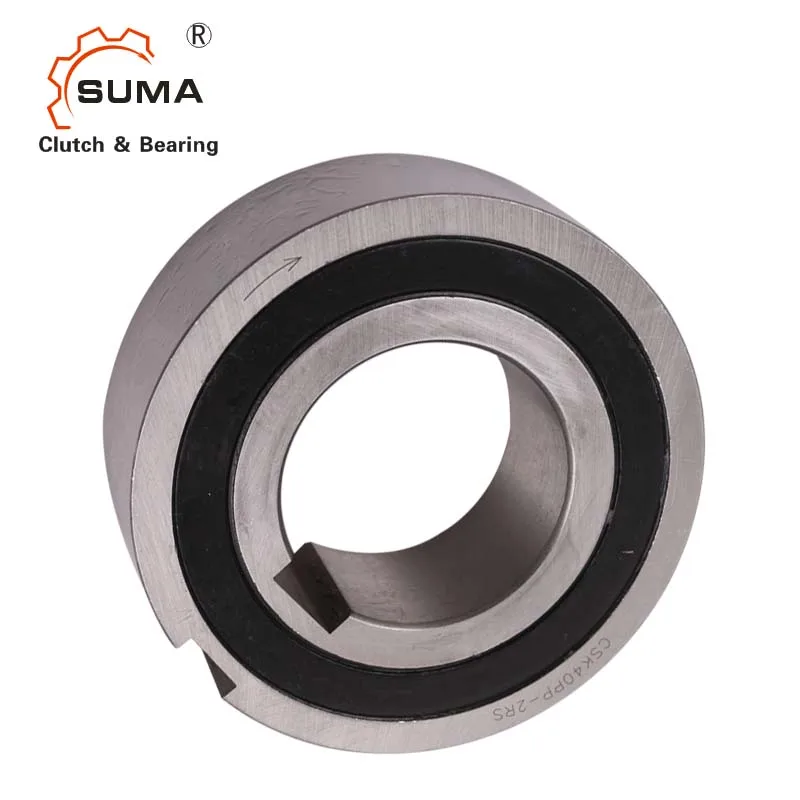

One way bearing CSK45PP sprag clutch freewheel clutch
Product Description
Features of sprag clutch freewheel clutch: One way bearing CSKPP is a sparg type freewheel integrated into a 62series ball bearing
Packing details: bearing supported, delivered grease lubricated and protected against dust of more than 0.3mm.
Product name | sprag clutch freewheel clutch |
Model | CSK45pp |
Material | GCr15 |
Inner diameter | 45mm |
Outer diameter | 85mm |
Overrunning speed | 1600r/min |
Torque capacity | 535Nm |
Weight | 0.7kg |
Package | Carton Box / Wooden box |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |

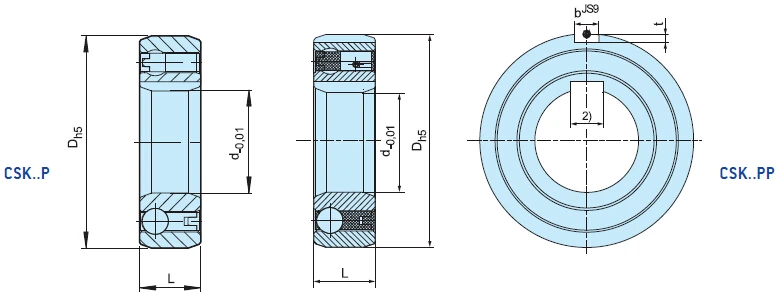

Catalogue of one way bearing with dual keyway for your choice
Tips: All the CSK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.
Type | Size | Bearing series |
| Weight | Drag torque | |||||
| d |
| TKN1) | nmax | D | L | b | t | TR | |
[mm] |
| [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 0.06 | 0.9 |
17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 0.07 | 1.1 | |
20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 0.11 | 1.3 | |
25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 0.14 | 2 | |
30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 0.21 | 4.4 | |
35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 0.3 | 5.8 | |
40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 0.5 | 7 | |
45 | _ | 218 | 1600 | 85 | 19 | 12 | 2.5 | 0.44 | 11 | |
50 | _ | 230 | 1500 | 90 | 20 | 12 | 2.5 | 0.49 | 13 | |
Detailed Images
Production flow
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Certifications
Clients Visit
FAQ
Q: How do you pack the goods?
- Small Items:
Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet
- Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet
- Heavy Items: Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
