Concrete vibration leveling ruler screed floor leveling machine

Product Overview

Description

Portable Concrete Vibratory Leveling Ruler Honda Power



Prduct Description:





The usage of vibratory screed is discharging air from concrete, smooth concrete surface, enhanced density

concrete, 2.5m vibratory screed is a small machine simply according to length of scree to type, mainly is 2.5m

gasoline vibratory screed.



The Characteristics:





1.The machine is portable, easy operation, safety, height of handle can be adjusted, suitable for different operators.





2.Aluminlum alloy blade abrasion resistant, high flatness.





3.Blade length 1-3meters, easy to change, floor 1-6 meters length can be customized.





4.High speed and efficiency, portable to move





5.Operator can adjust vibration power any time.

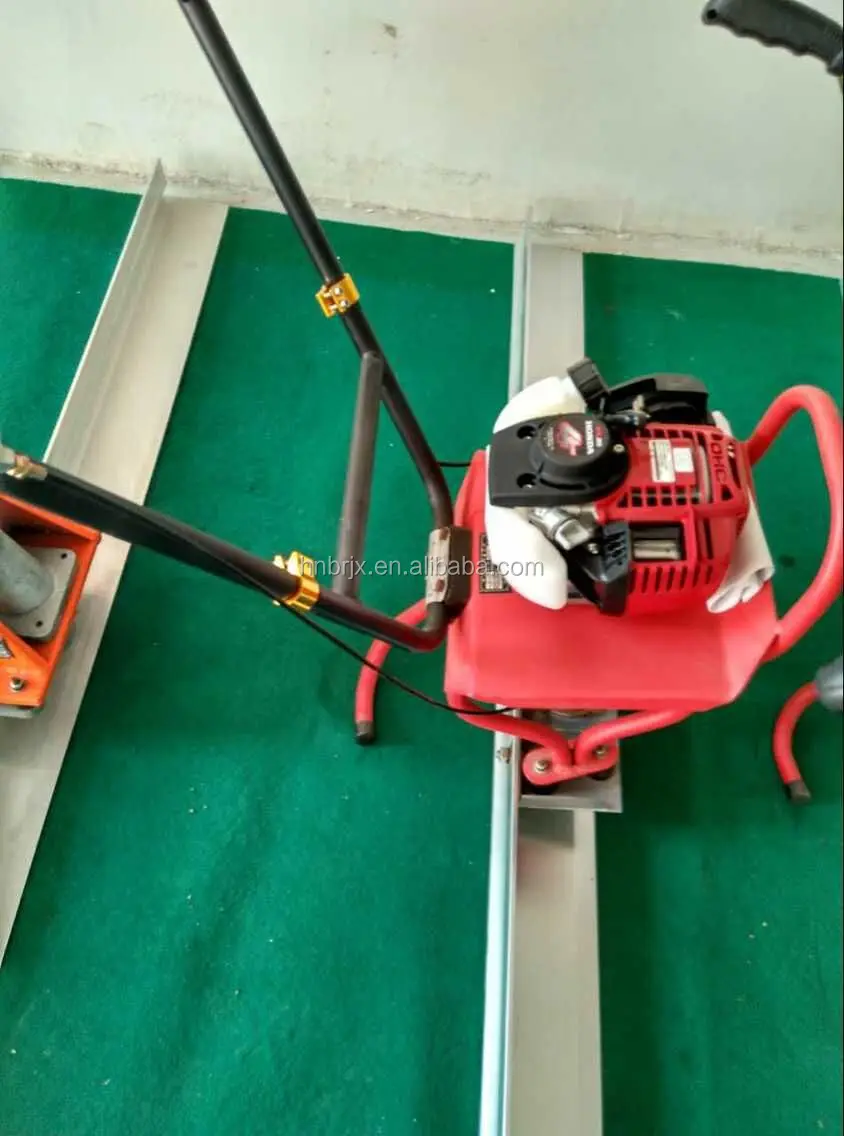

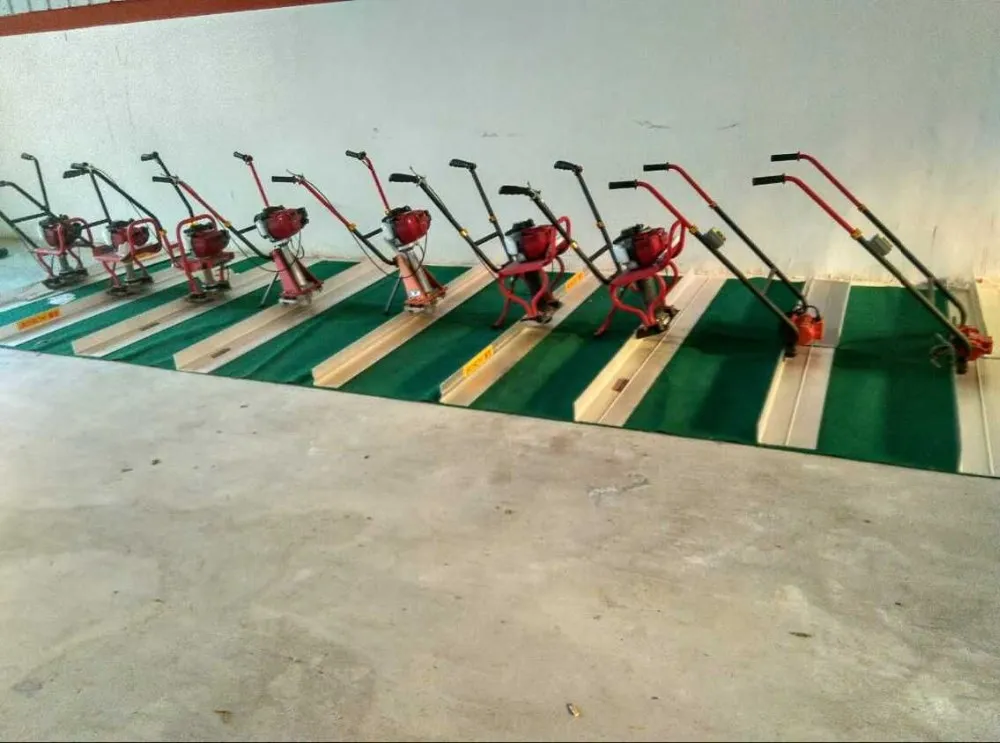

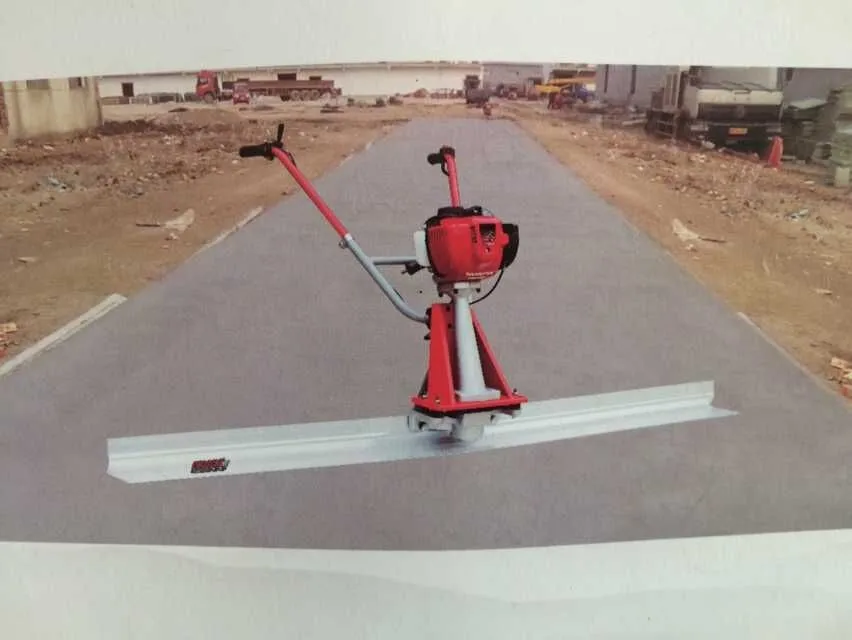

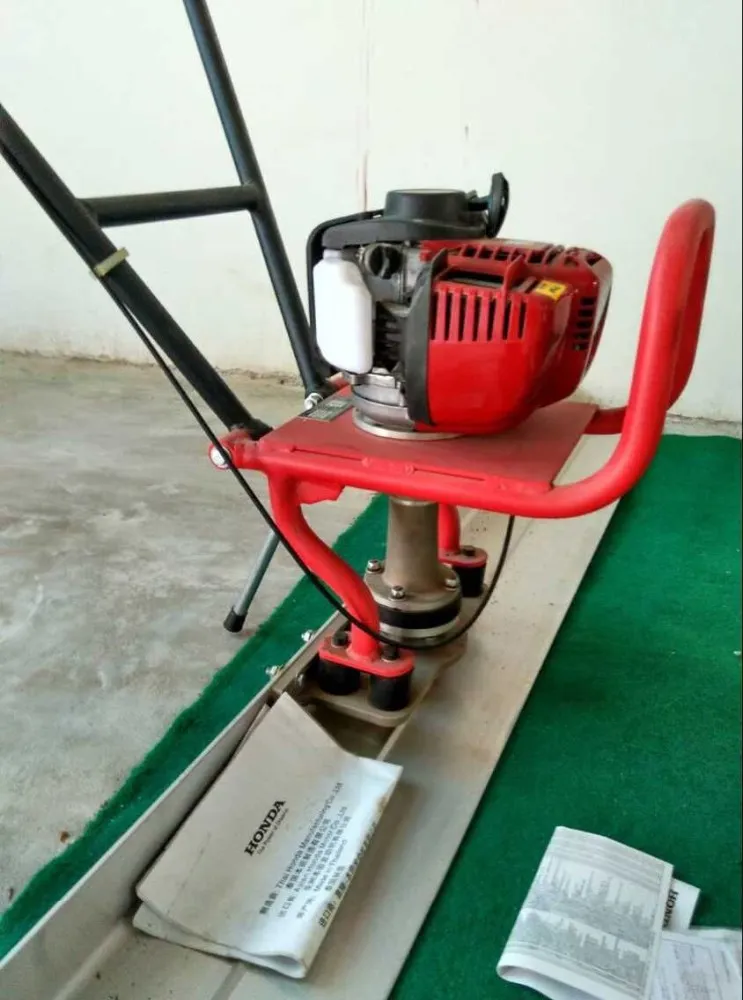

Product Show:

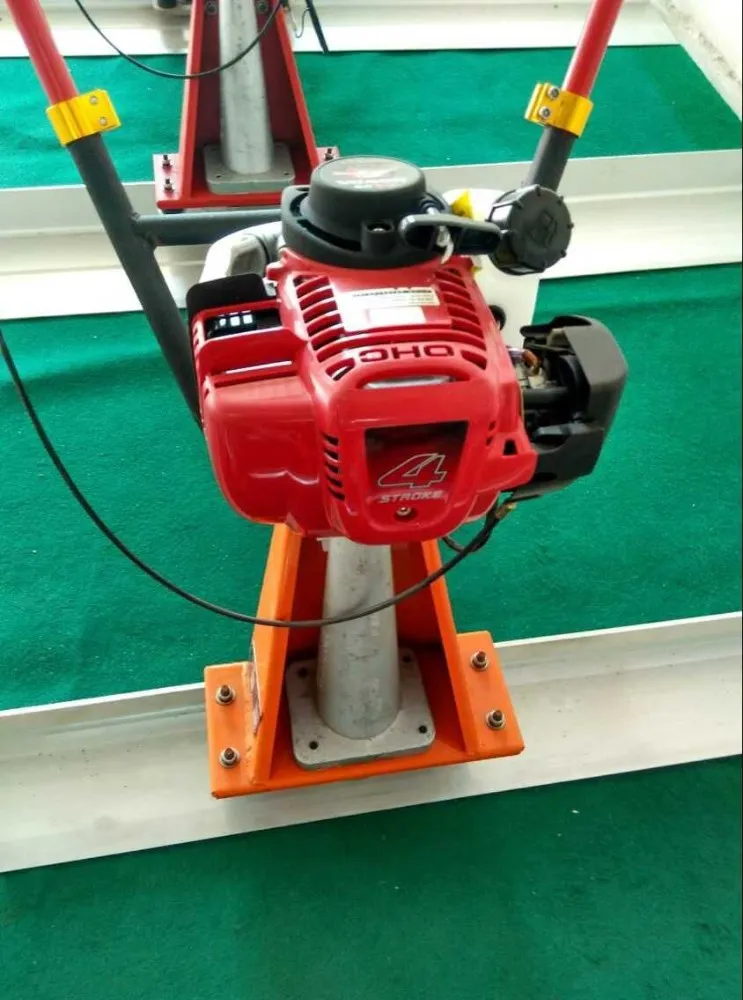

Honda Engine Show:



Technical Parameter:





Model number	BR-1/-2/-3	BR-4A/4B
Weight(kg)	25	20.5
Dimension(mm)	L2000*W1400*H960	L2000*W1400*H960
Ruler length(mm)	2000	2000-6000
Driving system	hard axis	Flexible axis
Engine type	HondaGX35/HUASHENG140F1	HondaGX35/HUASHENG140F1
Max power(kw(hp))	1.2(1.6)	1.2(1.6)
Max speed(rpm)	10000	10000
Engine oil volume	120	120
Gaoline box volume(ml)	650	650
Packing dimension(cm)	75*70*40/65*40*30	75*70*40/65*40*30





Model number	BRD-1
Voltage(v)	220/380
Weight(kg)	10-20
Dimension(mm)	L200*W1400*H960
Ruler length(mm)	2000
Power(w)	250
Frequency(rpm)	6600-2900
Exciting force(N)	1000



Factory Show:







Packaing Show:





Packing & Shipping & Delivery:



Package: wooden case



MOQ:1 set can be acceptable for trail order



QC: Third party inspection is acceptable



Delivery:15 days after confirmation



Payment terms:30% deposit ,70% before shipment.



                      L/C at sight (high bank charge,not suggest,but acceptable)



                      100%TT in advance(specially for air shipment or small amount)



Port :SHANGHAI/NINGBO/QINGDAO



Service we can provide:

1, Promp ShipmentL By reputed shipping line and professional documents.

2, Cargo Photo: Before and after loading into container.



3, Packing: New and strong sea worth packing: as buyer's special request.

4, Best Service after shipment with email.

5, Feedback email after endusers received the cargo.
