Hydraulic fittings double Variable Vane Pump made in China
- Category: >>>
- Supplier: Guangdong Juntai Hydraulic Technology Co. Ltd.
Share on (60323067375):
Product Overview
Description
Product Description

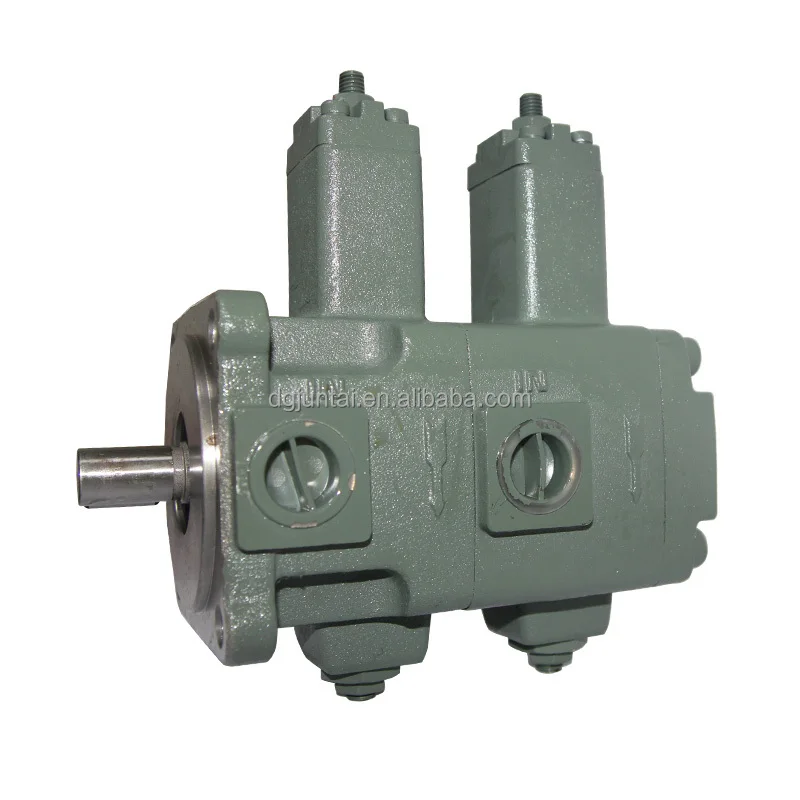

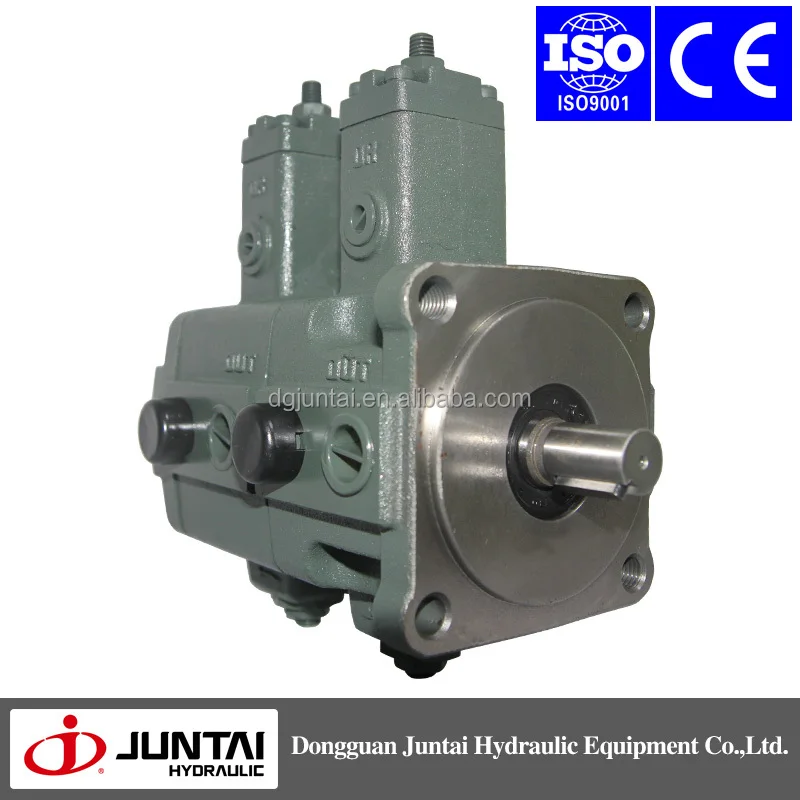

Hydraulic fittings double Variable Vane Pump made in China
Characteristic:
1, use two variable displacement vane pump to connect together, use communal drive shaft.
2, sauction port and delivery port separately, displacement and pressure can be adjusted randomly, widely apply for lathe machine and shoe making machine,etc.
3,simple operation, can connect with motor directly, save space, durability and so on.
VP type single pump model description:
Allowed rotating speed:minimum:800r/min,maxmum:1800r/min
Drain oil pipe: Pressure of inner pipe should be setted as <0.05MPa; Pipe length should be shorter than 1M, don’t mix with other oil return pipe.
Mounting.dimension
VP variable displacement vane pump
Installation drawing
Packaging & Shipping
Packaging: pack one pump in one plastic bag,then put it in one thick paper carton,then heap up them on the plastic pallet, wrap the plastic pallet and cartons with plastic membrane then bind the cartons with plastic packing belt.
Delivery date:about 10-20 days after receipt your 30%T/T for deposit
Trade term: FOB SHENZHEN,or FCA or C&F or CIF
Shipping for sample and bulk productions:
send sample by international Express(Fedex or UPS or TNT or DHL),sample freight paid by collect.
For bulk production, shipped as per customer's instruction,shipping process all fllow INCOTERM regulations.
Product packing details:
| style# | carton dimension of each item | net weight | gross weight | quantity | ||
| VP-SF-40-40-D | refer to spec. sheet | 19 kg | 20 kg | 1 pc/ carton | ||
Our Services
Warranty period: ONE YEAR
1,Within one week after receipt of the goods, if customer use the products in correct method,and find any problem of performance or construction with obvious evidence,we will be responsible for replacement or other discussing solution between us.
2,But if customer using method are not correct, or customer disassemble our products privately,we will not responsible for any problem or defective points of products.
3, If you meet any questions of installation or debugging, please inquiry us anytime, our Engineer will provide technical support in time, or we will help you to resolve the technical failure through online video.
4, Any damage from transportion, we will slove the problem according to the responsibility standard of INCOTERMS.
Company Information
We are Dongguan Juntai Hydraulic Equipments Co.,Ltd., which located in Dongguan City, Guangdong Province, China.
We have R&D department with about 5-10 engineers and designers. Our factory have over 200 skilled employees, our production facility have many advanced manufacturing equipments and testing equipments, such as numerical control lathe, the processing center, CNC milling machine, special CNC grinding machine, double grinding machine, automatic 3D measuring instrument, etc.
Our company received ISO9001:2008 quality management system certification, CCC certification and Europe CE certification.
Our main products are hydraulic variable displacement vane pump, double pump, HVP high pressure variable displacement vane pump, Japanese type PV2R1 & PV2R2 series of fixed displacement vane pump and electrical motors for hydraulic application.
Our products are widely used for industrial machinery, NC lathe machine, shoe machinery, wood working machines, plastic machines, construction machines and various hydraulic system machinery.
We can also supply the customized products and services as per your spec. ,we are looking forward to cooperating with your company sincerely.
Summary:
1, OEM and ODM manufacturer
2, R&D department with about 5-10 engineers and designers
3,more than 200 skilled workers
4,have many advanced processing machines and advanced testing equipments
5,passed ISO9001:2008 , CCC and CE certification
6,production with good quality but competitive prices
7,products series:hydraulic variable displacement vane pump, double pump, HVP high pressure pump, YUKE style PV2R1 & PV2R2 series fixed displacement vane pump and electrical motors for hydraulic equipment.
Our partners and our hydraulic parts application area:
Our certifications
FAQ
Frequently Asked Questions (FAQ) :
1, What's the standard hydraulic oil and its working temperature ?
Under 70 bar pressure, use hydraulic oil viscosity 30-50CST(ISO VG-46) in temperature 40℃. Working temperature 15-16℃ .
2, How to adjust the pressure through the pressure adjustment screw ?
clockwise rotation, increase pressure; counter-clockwise rotation, decrease pressure.
3,How to adjust the displacement through the displacement adjustment screw ?
clockwise rotation, decrease the displacement ; counter-clockwise rotation, increase displacement.
4, What's the possible reason if there is no oil output from delivery port ?
1),the shaft rotating direction is wrong.
2), sauction oil pipe was jamed.
3), vane was locked in the rotor,can't slip out from rotor.
5)what's our contact information:
Guangdong Juntai Hydraulic Technology Co.,Ltd.
Add.:No.2,Jiannan 2nd Road,Xiaoxiang Industrial Zone,Wanjiang District,Dongguan city,Guangdong Province,China 523048
Tel.:+86-769-22773551(ext.8036)
Fax: +86-769-22773561
Mobile :+86-13662813492
Wechat#:13662813492
