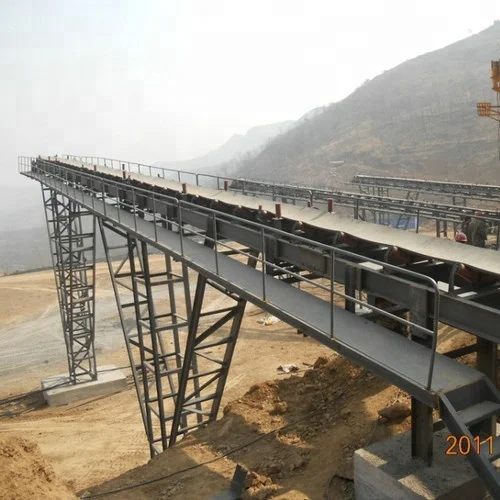

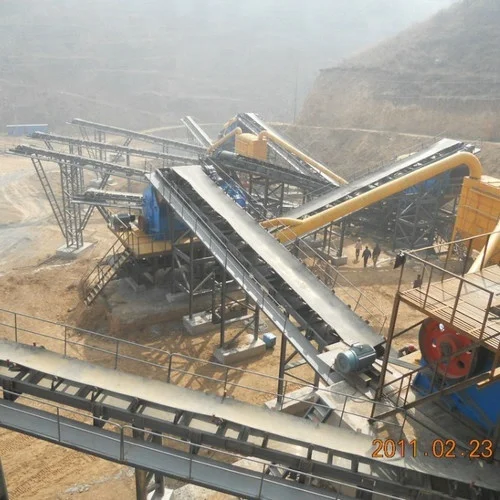

long distance belt conveyor for sale with competitive price

Share on (60323384776):


Price:$1,500.00

Quantity:


Product Overview

Description


 Contact us to get more information whatsapp & wechat: +86 137 2141 9876


Product Description


Belt conveyor introduction




A belt conveyor system is one of many types of conveyor systems. A belt conveyor system consists of two or more pulleys (sometimes referred to as drums), with an endless loop of carrying medium—the conveyor belt—that rotates about them. One or both of the pulleys are powered, moving the belt and the material on the belt forward. The powered pulley is called the drive pulley while the unpowered pulley is called the idler pulley. There are two main industrial classes of belt conveyors; Those in general material handling such as those moving boxes along inside a factory and bulk material handling such as those used to transport large volumes of resources and agricultural materials, such as grain, salt, coal, ore, sand, overburden and more.





Belt conveyors are the most commonly used powered conveyors because they are the most versatile and the least expensive. Product is conveyed directly on the belt so both regular and irregular shaped objects, large or small, light and heavy, can be transported successfully. These conveyors should use only the highest quality premium belting products, which reduces belt stretch and results in less maintenance for tension adjustments. Belt conveyors can be used to transport product in a straight line or through changes in elevation or direction.





Belt conveyor technical parameters




































































Belt width
(mm)



Conveyor length(m)
Motor(kw)



Speed
(m/s)



Capacity
(t/h)



500



≤12
3



12-20
4-5.5



20-30
5.5-7.5



1.3-1.6



78-191



650



≤12
4



12-20
5.5



20-30
7.5-11



1.3-1.6



131-323



800



≤6
4



6-15
5.5



15-30
7.5-15



1.3-1.6



278-546



1000



≤10
5.5



10-20
7.5-11



20-40
11-22



1.3-2.0



435-853



1200



≤10
7.5



10-20
11



20-40
15-30



1.3-2.0



655-1284



1400



≤10
11



<10-20
18.5



<20-40
22-37



1.3-2.0



893-1745



1600



≤10
15



<10-20
22



<20-40
30-45



1.3-2.0



1069-2195




Belt conveyor produced by deya machinery

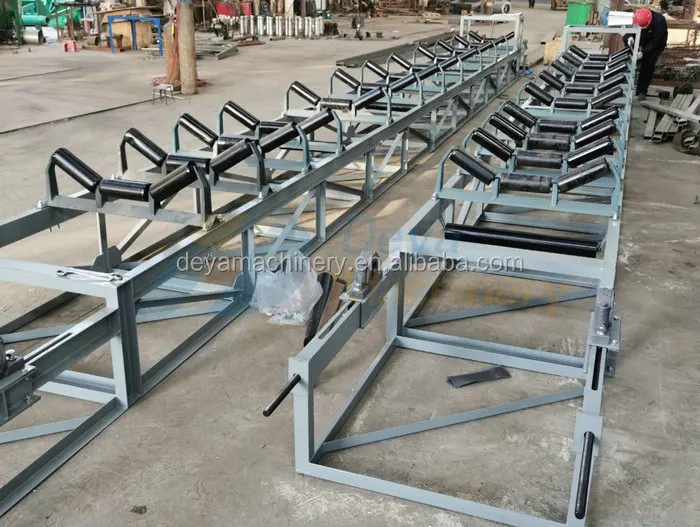

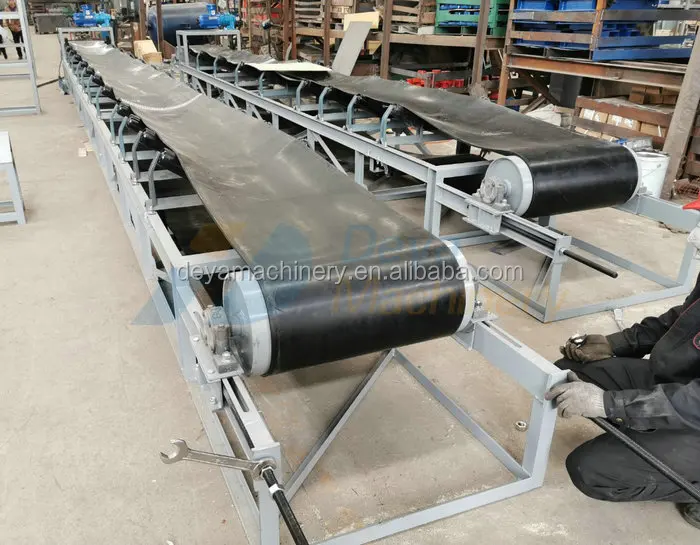

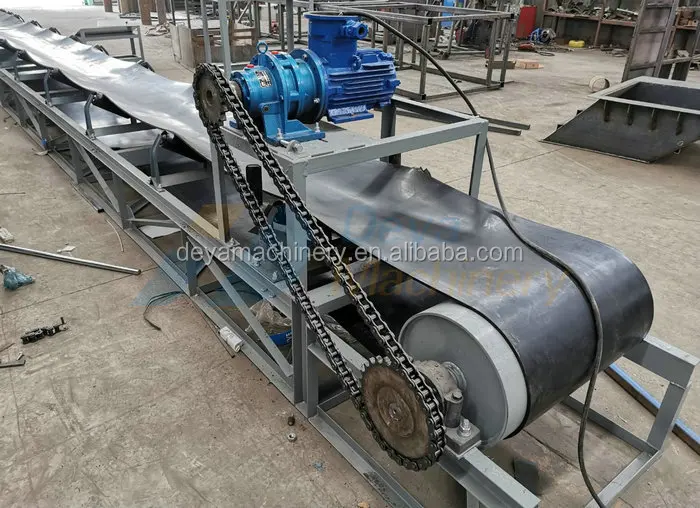

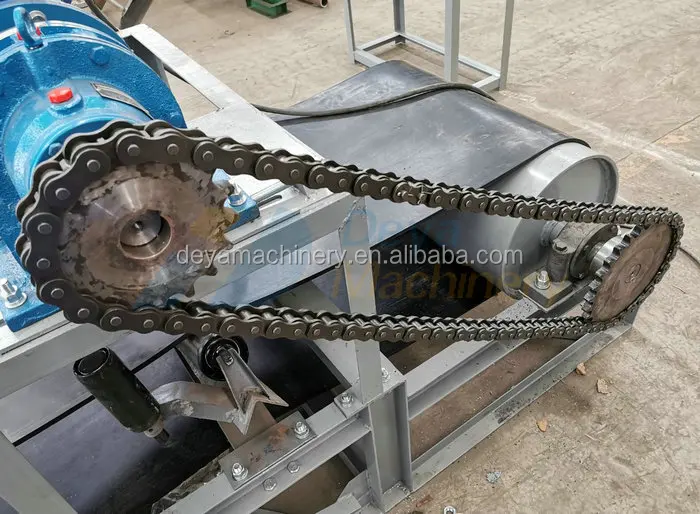

2019-12-05_1026572019-12-05_1026122019-12-05_1025522019-12-05_102510




Packaging & Shipping


Deya Machinery offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Deya workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.

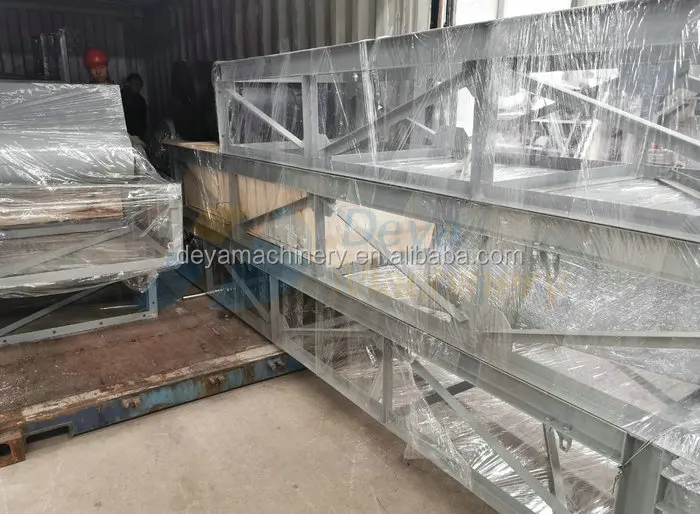

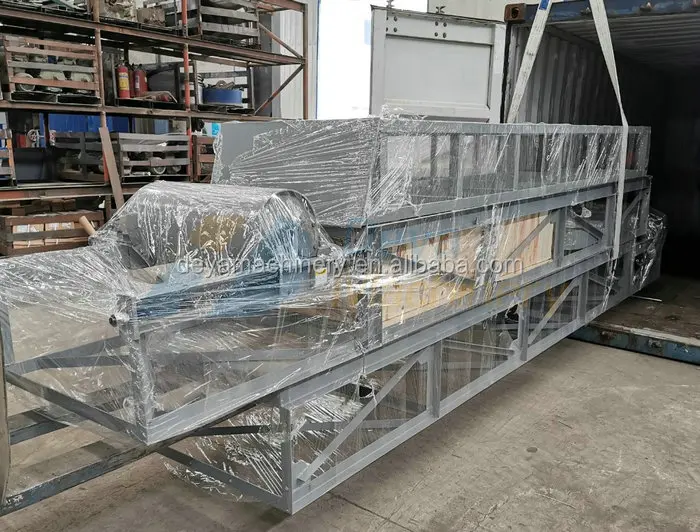

 2019-12-05_1028142019-12-05_102832





Our Services


-Pre-sale services


Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.

-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.

-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as the clients’ request. Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.





Company Information


Henan Deya Machinery Co., Ltd. is a professional manufacturer of crushing equipment, mineral processing equipment, construction machinery equipment and their spares; the company was established in early 1990’s with an area of one hundred and twenty thousand square meters which includes forty thousand square meters of standard industrial workshop.





Deya Machinery lays much emphasis on quality and service; the company has acquired ISO 9001: 2008 certificate, and it has independent quality control department and after sale service department. Main equipment includes Sand making machine, Cone crusher, Jaw Crusher, Vibrating screen, Ball Mill, complete crusher plant and mineral process plant. Main processing equipment includes φ8.0m, φ5.0m hobbing, φ6.3m, φ5.0m heavy vertical lathe, φ3.5m, φ2.5m CNC vertical lathe, φ6.0m × 18.0m barrel sleeper, φ220mm, φ160mm boring, φ160mm boring and milling machine, CNC cutting machine, milling machine, automatic welding center, 60mm × 3m Bending and other NTU, fine processing equipment.





As a customer oriented company, Deya People with high level of professionalism, and responsibility; total satisfaction from clients becomes the top priority, and long-term cooperation is what we always sought and cherished for. The products have exported to over 50 countries like Indonesia, Philippines, Vietnam, India, Pakistan, Turkey, Tanzania, Zambia, South Africa, Ghana, Peru, Bolivia, Mexico, Chile, etc. We sincerely hope can establish business cooperation with your esteemed company in the long run.deya factory new





Contact Deya


Bruce Ma/International Sales Director
Henan Deya Machinery Co., Ltd.
Email: bruce.ma AT deyamachinery.com
Tel: +86-371-6030 5814, 6030 5824
Mobile/Whatsapp/Wechat: +86 137 2141 9876
Web: www.deyamachinery.com
Factory address: NO. 1691, Yuxi Road, New & High-tech Zone, Jiaozuo, Henan, P. R. China
