whole tyre shredder/waste tyre recycling machinery with CE ISO9001 New Price
Product Description

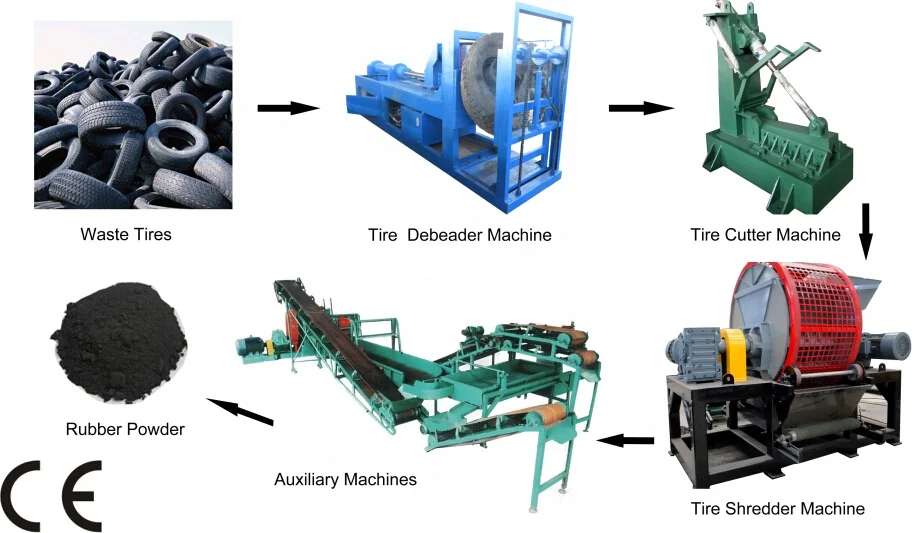

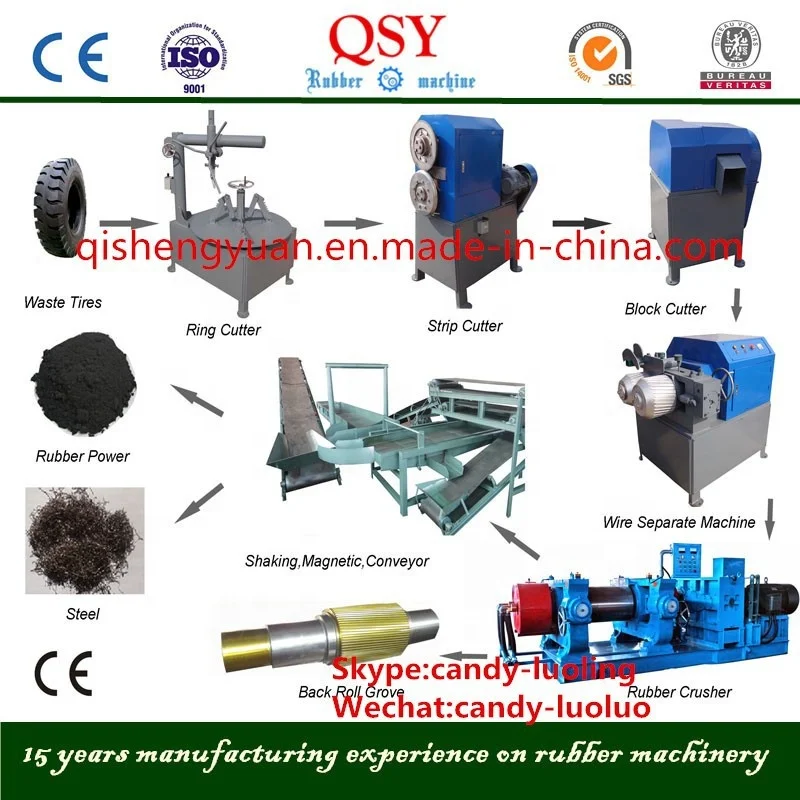

1.Processing flow of full automatic rubber powder making machine from waste tyres:
Waste tire/rubber -- tyre wire removing machine -- tyre cutting machine -- tyre shredder -- 50x50mm blocks -- rubber crusher -- big shaking screen -- magnetic separating filtering -- finished products--rubber powder/steel wire/nylon
Production Flow
2. the complete machine is including the following equipment:
Name of product | Quantity | Instruction | ||||
Waste tyre processing rubber powder making machine | ||||||
Main frame | tyre shredder rubber crusher | 1 | ZPS-900/ZPS-1200 Model:XKP400/XKP450/XKP560 | |||
Auxiliary engine | tyre debeader | 1 | pull the bead wire from waste tyre | |||
tyre cutter | 1 | cut moret than 750mm tire/rubber to big pieces | ||||
tyre conveyor | 1 | feed the whole tire/rubber blocks into shredder | ||||
Vibrating screen | 1 | The powder for the first time separation (5-10 mesh) | ||||
conveyor | 1 | Mesh used for transportation does not meet the requirements to return the host to break powder | ||||
Magnet screen | 1 | The powder in the extraction and separation of metal wire | ||||
Notice |
| More equipment for the whole set of Waste Rubber Equipment | ||||
Steel separator |
| Private and extraction of tire wire ring in the mouth | ||||
Fine milling machine |
| The powder for further processing to 40-100 mesh | ||||
| ||||||
Tyre debeader---separate the steel wire from tyre:
It is mainly use to extract the bead wire from tyre rim
1-Capacity:40-60 tires/hour
2-Pulling force(T): 13 Tons
3-Max.tire diameter:550mm-1200mm
4-Power(KW): 11 KW
5-Operation way: hydraulic system
Tyre cutter:
Tire cutter is designed to cut car, truck and rear tractor tires. Range is up to 2000 mm truck tires.
Raw material: 900-1200mm tire
Finished material: 2-4PCS of tire blocks
Production Capacity: 40-60 tire/hour
Pulling force: 13T
Max. Tyre diameter: ≤1200mm
Main motor (kw): 5.5

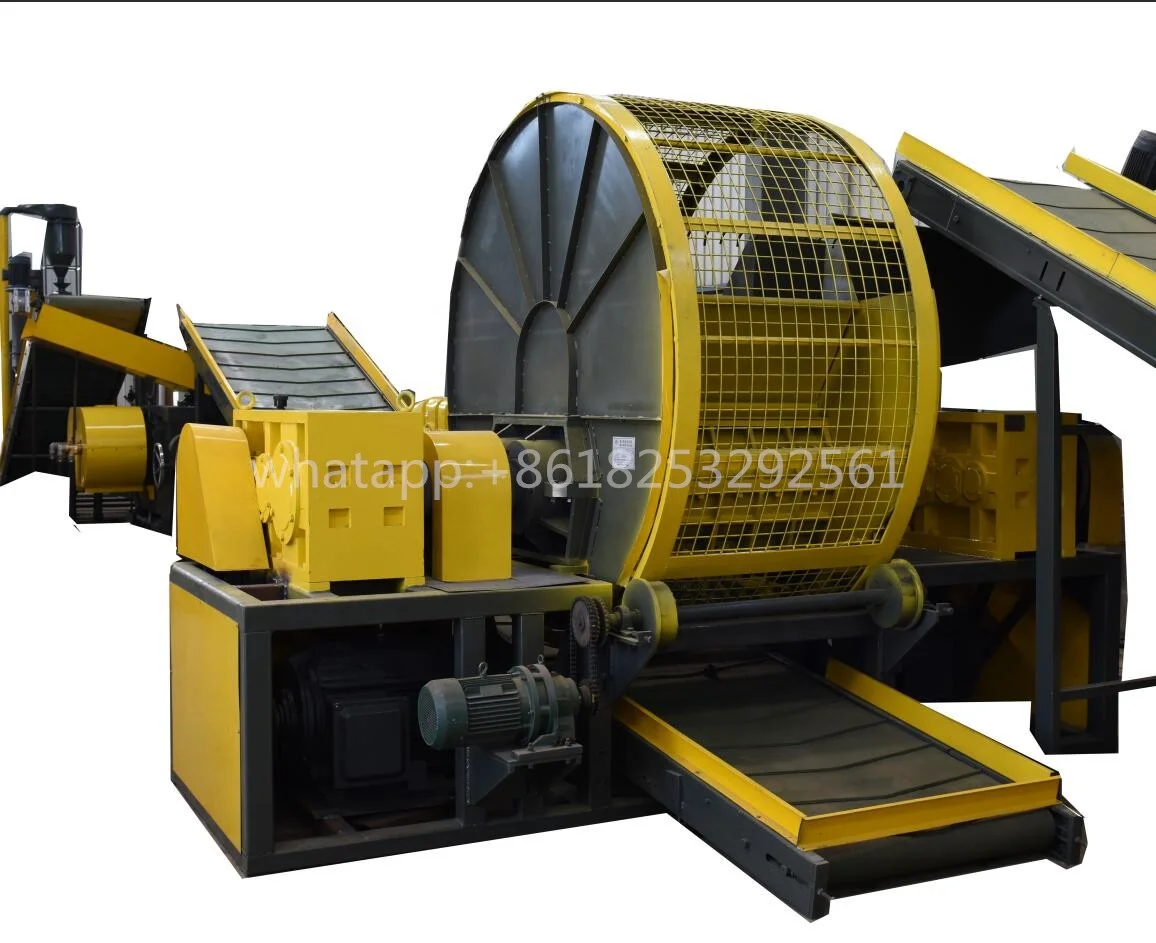

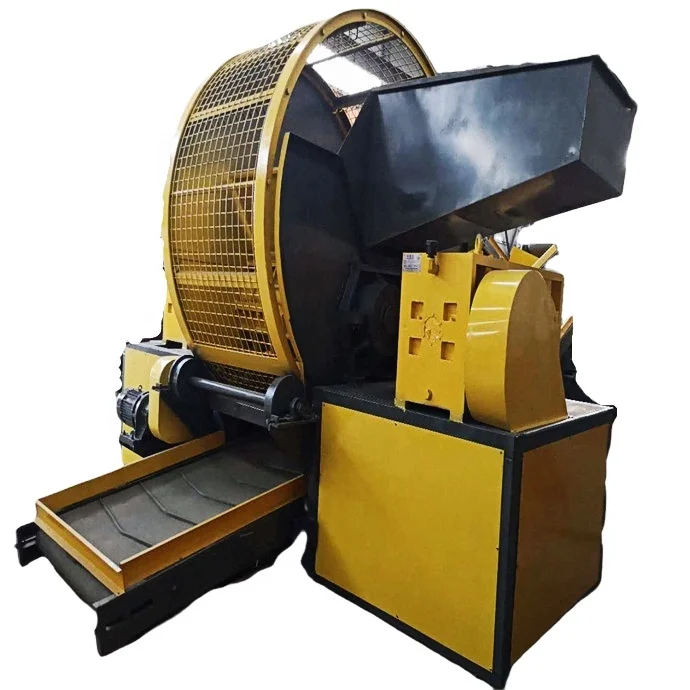

Pictures of shredder machine:
Model | TS-900 | TS-1200 |
Production capacity | 0.8-2ton/h | 1.5-3ton/h |
Size of feeding | ≤900mm whole tyre | ≤1200mm whole tyre |
Specification of the slice | ≤50*50mm | ≤50*50mm |
Motor power | 74kw(37*2) | 150kw(75*2) |
Cutter rotate speed | 16r/min | 31r/min |
Screener rotate speed | 6r/min | 8r/min |
Dimension | 2.8*2.1*2.4m | 5.2*2.8*3.5m |
Weight | 11T | 20T |

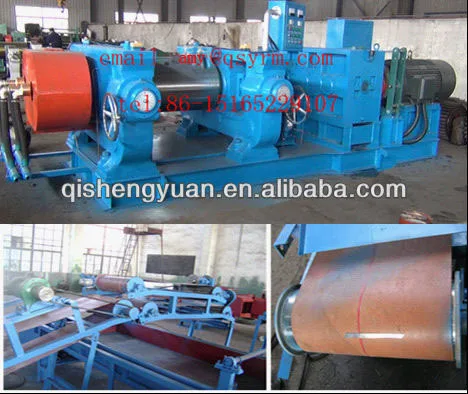

Rubber cracking crusher:
Type&Specification | XKP-400 | XKP-450 | XKP-560 |
Feeding size | 3.5CM | 3.5CM | 3.5CM |
Discharging size | 10—30 mesh powder | 10--30 mesh powder | 10--30 mesh powder |
Rubber crusher throughput(kg/h) | 260-300kg/h | 350-400kg/h | 400-500kg/h |
Motor power(kw) | 45 | 60 | 75 |
Outside measurement(m) | 4.1×1.8×1.9 | 4.4×1.9×1.9 | 5.5×2.2×2.1 |
Weight(t) | 7.5 | 11 | 19 |
fiber separator machine
rubber powder
reclaimed rubber production line machine:
![]5BMPKJWFHY`%E9S8](8O9](http://g02.s.alicdn.com/kf/HTB19SC8IFXXXXbIXXXXq6xXFXXXd/201407936/HTB19SC8IFXXXXbIXXXXq6xXFXXXd.jpg)
