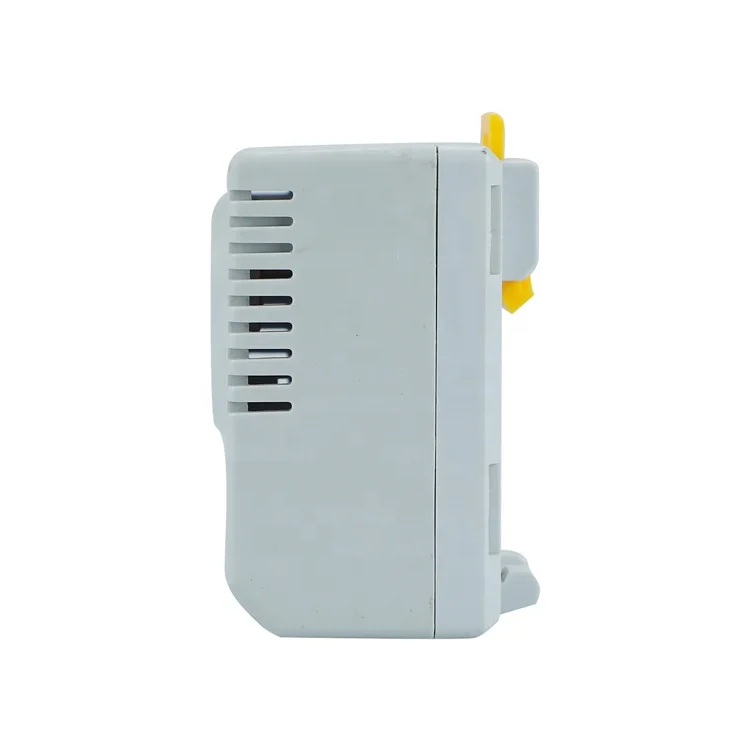

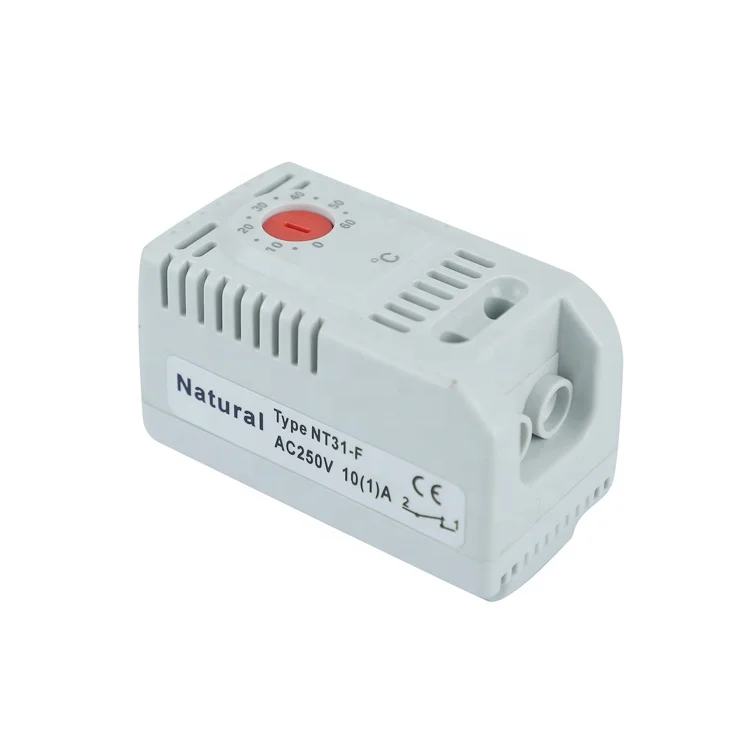

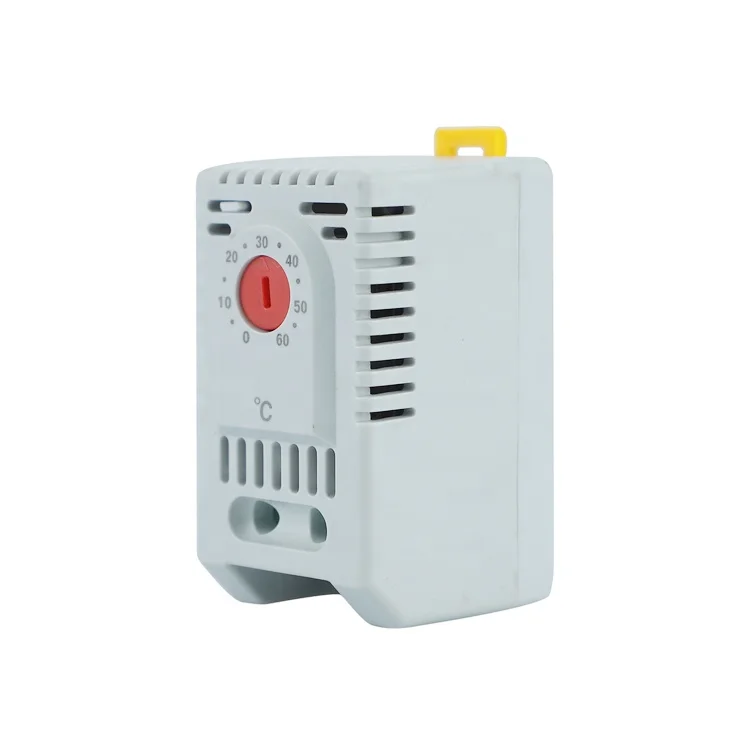

Natural NT 31Temperature switch Adjustable Thermostat bimetal thermostat , 0 60 Degree Industrial Thermostat
- Category: Other Home Appliance Parts >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (60323447240):
Product Overview
Description
Products Description
NT 31-F / NT 32-F | ||
Switch temperature difference | +/-5°C | |
Sensor element | thermostatic bimetal | |
Contact type | snap-action contact | |
Service life | >100,000 cycles | |
Max. switching capacity | 250VAC, 10 (2) A / 120VAC, 15 (2) A DC 30W at 24VDC to 72VDC | |
Max. inrush current | AC 16A for 10 sec. | |
Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14) stranded wire¹ 1.5mm² (AWG 16) | |
Mounting | clip for 35mm DIN rail, EN 60715 | |
Casing | plastic according to UL94 V-0, light grey | |
Dimensions | 60 x 33 x 43mm | |
Weight | approx. 40g | |
Fitting position | variable | |
Operating/Storage temperature | -45 to +80°C (-49 to +176°F) | |
Operating/Storage humidity | max. 90% RH (non-condensing) | |
Protection type | IP20 | |
• Large setting range
• Small size
• Simple to mount
• High switching performance
is rising.
NT 32-F: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching
signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
• Small size
• Simple to mount
• High switching performance
NT 31-F: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature
is rising.
NT 32-F: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching
signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
