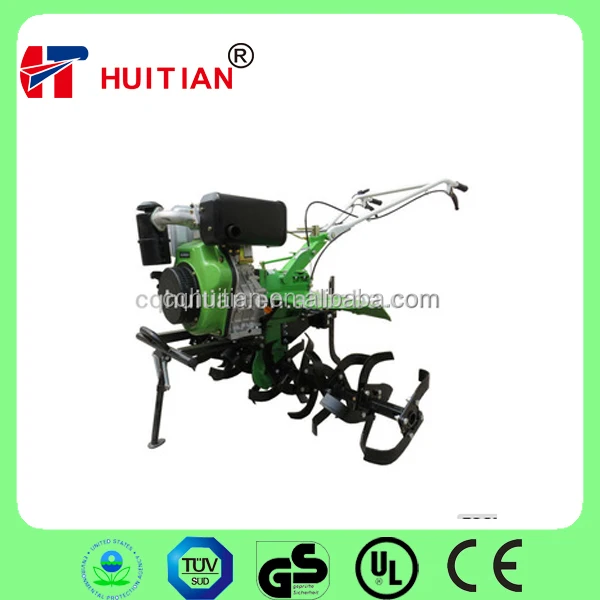

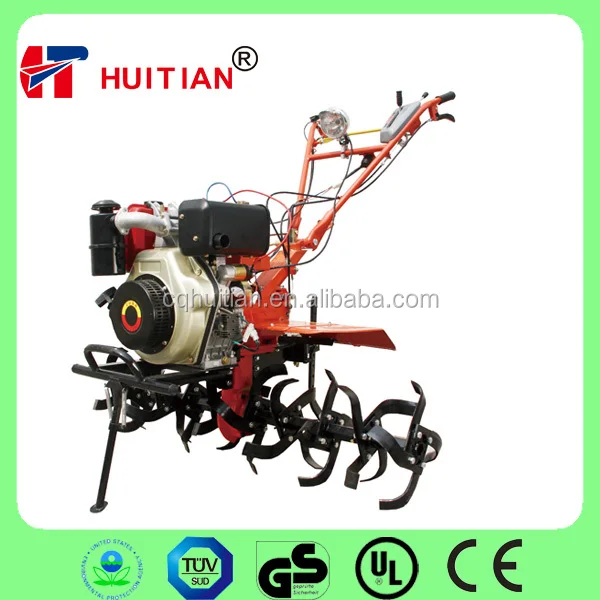

HT135F 9HP Kama 186F Engine Farm Rotavator
- Category: >>>
- Supplier: Chongqing Huitian Machinery Manufacturing Co. Ltd.
Share on (60323782570):
Product Overview
Description
YOU MAY LIKE
HT135F 9HP China Original Kama Engine Motoblok Tiller HT135FJE 10HP Electric Farm Tractor for Hardened Dry Land Use
HT135F 9HP Kama 186F Engine Farm Rotavator
Product Applications
Our motor hoe is available for various of farming management with accessories below.
Product Description
Specifications
| Model | HT135 | HT135E | |
| Tiller | Transmission | Gear Driving,Straight Connection | |
| Clutch | Wet Friction Plate | ||
| Gear Shifting | -1,0,1,2 | ||
| Tilling Depth(mm) | 150~300 | ||
| Tilling Width(mm) | 1350 | ||
| Productivity(m^2/h) | ≥800 | ||
| N.W./G.W.(kg) | 156/167 | 171/182 | |
| Dimension(mm) | 1750×1350×1100 | ||
| Tyre&Blade | Tyre Size | 4.00-8(standard);4.00-10/5.00-12(optional) | |
| Blade | HT-4(standard);optional refer to blades series | ||
| Engine | Engine Model | KM186F | |
| Engine Type | single cylinder,vertical 4-stroke,air-cooled diesel | ||
| Bore × Stroke(mm) | 86 × 70 | ||
| Fuel Tank Capacity(L) | 5.5 | ||
| Displacement(ML) | 418 | ||
| Max. Power HP(kw)/rpm | 9(6.3)/3600 | ||
| Starting | Manual Start;Electric Start | ||
| Packing | 20'GP/40'HQ Capacity(sets) | 48/144 | |
| Packing Dimension | 980×560×840 | ||
| Package Material | Carton Box with Iron Frame/Wooden Box | ||
1 Oil Switch
2 Reverse Gear Grip
3 Shift Lever
4 Glutch Grip
5 Emergency Stop Switch
6 360° rotatable handle bar holder
7 Dust Cover&Lambdoidal Wheel
8 KAMA Diesel Engine
Our Services
Why Choose HUITIAN
Application Extension
We have diverse installable equipment for your choice to expand application with the Farm Rotavator
Aiming at Farm Rotavator for 21 years !
Technical Patents
Certificate
Trade Assurance Supplier(US$29,000)
Company Information
About Us
Founded in 1994,Huitian company has developed into an enterprise with a workshop of 40,000 square meters,which is equipped with 11 assembing lines,6high pressure stamp beds,and 30sets testing Farm Rotavator,We have more than 300 staff,18 of them are profession engineers,and 27of them are titled management staff.
Our annual output surpassed 100,000sets mini tillers,50,000 square meters green house,and 200,000sets general machines.Our company has passed the ISO9001 quality system attestation,and carries CE,GS, and EPA certificates.Products are exported to over 60countries in Europe,South America,Africa,Middle East,and Asia,and are famous in both domestic and overseas brand in Chongqing,and Customer Satisfed enterprise.
Concept Maps of the New Factory
Packaging & Shipping
FAQ
You May Concern
1.If there are some trouble with the Farm Rotavator,how can I get help from you?
Our technician is always at the position to solve your problems,please picture the wrong part and sent it to us,we will contact you ASAP.
2.What is the material of the blade?
The blade is made by Steel Type SC.
3.What is the payment term?
Usually, we accept T/T or L/C. 30% deposit first,70% balance against the copy of B/L.
4.What is the MOQ?
The MOQ is 1pc.
5.How long is the delivery time?
Generally,it takes 15-30days after depositing,it depends on your order.
