Electric Vibratory hammer DZJ-90 is suitable to drive and extract piles for different geological situation except the hard rock layer. For example, pre-made concrete pile, cast-in-place concrete pile, ?concrete expanded bore pile, lime pile, stone column.


Beside, it's widely used in cofferdam, trestle work, offshore working platform, and also wind mill single pile or group pile.
Technical Data



















































Pile hammer DZJ-90
Motor power90 KW
Eccentric Moment573 NM
Driving force0-579 KN
Speed0-960 R/MIN
Amplitude0-6.6 MM
Max Line Pull254 KN
Size(L*W*H)1.85*1.3*2.5M
weight5700 KGS
Clamping scope530-1500 MM
Suitable generator250 KW
Suitable crane50 T

Main Features

1) Equipped with spare parts of good quality, shock-proof motor, reducer casing, FAG bearing, Siemens, Schnider electric elements. Hydraulic pump adopts Italian brands.



2) Eccentricity is overall a molding CNC mechining center, ensure the stability of equipment. Case is improved and can be used under heavy load for a long time.



3)?Magnetic oil precipitation and filtration system, wireless export configuration + cable control system.


4) Zero current start mode, it solves the problem of load start, lower requirement for the power generator. Frequency change model could adjust frequency according to different soil layer. It can save time energy and cost.


Product application

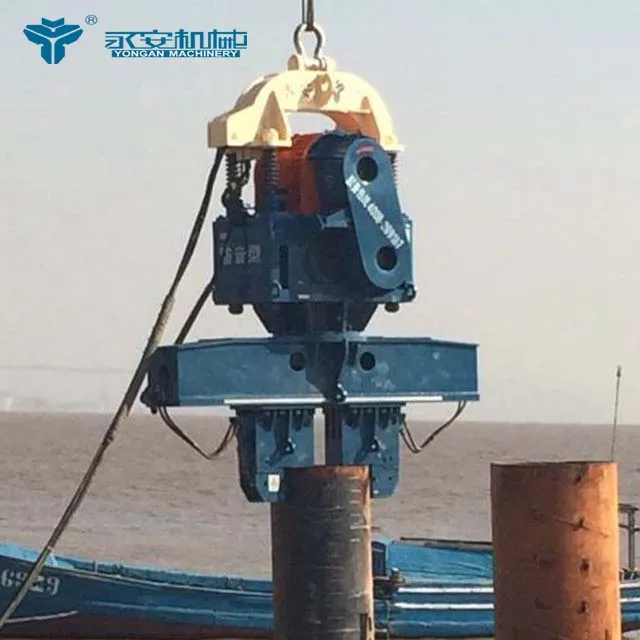

 DZ6

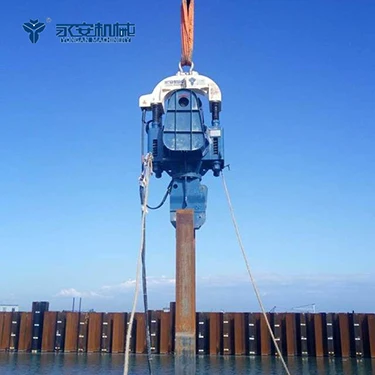

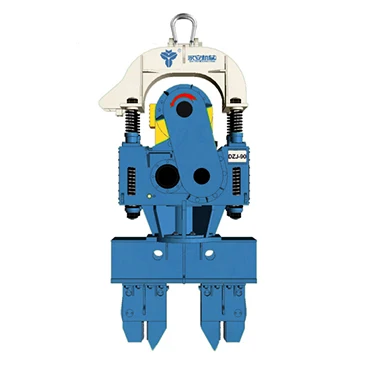

 2017 DZJ90 5 DZJ-90


Certicifications


 CERTIFICATE


Company Profile
 -2
 COMPANYPROFILE
COMPANY PROFILE 2


Exhibition


 EXHIBITION
 _20180109140936



Our Service



 EXHIBITION_01 EXHIBITION_02

Pre-Sales ServiceAfter-Sales Service
* Inquiry and consulting support.*Suggest how to instal the machine, and how to use the machine.
* View our factory.* Engineers available to service machinery overseas.


Packing & Delivery



 _20180109164040

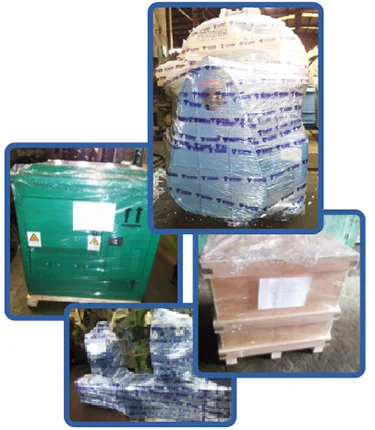

Packaging for Electric Vibratory hammer
Size13 cbm
Weight10000 kgs

Packaging


Details



1) 1 set of vibratory hammer,
2) 1 set of control cabin,
3) 1 set of clamp,
4) electric cable, 30m length, 1pc,
5) hydraulic hose, 30m*2pcs
6) 1 box of spare parts.


Hammer and vice arm are packed in shrink film, accessories in wooden box.
