Wide angle mini pinhole usb camera Type A B C micro B Mini USB ports optional usb security camera indoor fixed distortionless
- Category: >>>
- Supplier: Shenzhen Hdv Electronics Co. Ltd.
Share on (60324016412):
Product Overview
Description
2.0MP Ex view 0.01Lux 2.8mm wide angle Pinhole USB Camera for ATM Machine
0.01 Lux
UVC
USB 2.0 & 1.1
YUY2
30fps
Cable Length and Audio Optional
This USB camera design for Intelligent machines,special Koisk, VTM, CRS, ATM machine, mini shell, easy for install in all of models ATM, USB cable length optional, Provide driver for shooting and recording under MS Windows XP system, USB connector can be connected with PC directly, megapixel Sony CMOS chipset, metal casing, support long time non-stop working, available with wide angle board lens or lens (more than 130 degrees) to get wide angle view.
Order Symbol:
- HDV-USB200MP-P3.7 2.0MP USB Camera with 3.7mm Pinhole lens
- HDV-USB200MP-P2.8 2.0MP USB Camera with 2.8mm Pinhole lens
Features:
- Image sensor 1/3" CMOS, 0.01Lux, 2.0MP image
- Free Driver USB 2.0 (UVC)
- Audio optional
- USB2.0 HIGH SPEED, USB 1.1 compression
- Default setting (30fps@640x480) or (60fps@640x480 optional)
- Manual focus lens
- Angle of view around 90 degrees (some distortion)
- Compression YUY2 & MJPEG
- Support Windows 2000; Windows XP; Windows VISTA; Windows 7 or later;
- Linux(In 2.6.18 above the kernel version);Mac ps3 or later; Android system
- Can be connected through 10 meters USB cable
- Dimension:34*34mm
- USB Power: 5V±10%DC,50mA
- Used:intelligent machine,especially Banks'ATM
- Can be customized by your requirements
Support System:

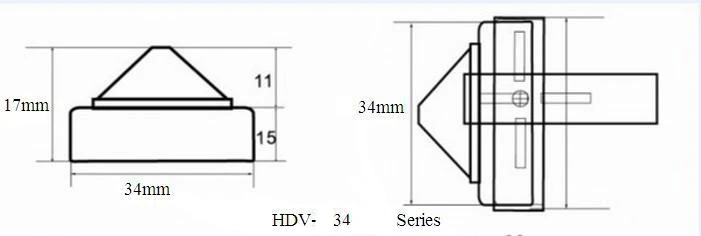

Dimension:
Product Description
| Pixels | Resolution | MJPEG(Optional) | YUY2 |
| 2.0MP | 640(H) x 480 (V) | 30fps | 30fps |
| 2.0MP | 480(H) x 480 (V) | 30fps | 30fps |
| 2.0MP | 450(H) x 450 (V) | 30fps | 30fps |
| 2.0MP | 352(H) x 288 (V) | 30fps | 30fps |
| 2.0MP | 320(H) x 240 (V) | 30fps | 30fps |
| 2.0MP | 288(H) x 288 (V) | 30fps | 30fps |
| 2.0MP | 240(H) x 240 (V) | 30fps | 30fps |
The Sensor is 2.0MP CMOS, the Pixel is 2.0MP, in order to make sure of best frame and ex-view, the max resolution can be 1280*720, and default Output 640*480, if you need 1920*1080 or 1600*1200, we recommend our HDV-USB1080MP.
USB Series | Model | HDV-USB200MP-P3.7 |
| Name | USB Mini Camera | |
| Camera | Image sensor | 1/3" Sony Sensor |
| Resolution | 2.0MP (Best Resolution 640*480 pixels) , 30fps no smear | |
| Min.Illumination | 0.01Lux | |
| Lens Standard | 3.7mm Pinhole lens F1.2/90° | |
| Effective Pixels | 640×480 pixels(VGA); 320×240 pixels(QVGA); | |
| Syetem | Windows 2000; Windows XP; Windows VISTA; Windows 7; Linux(In 2.6.18 above the kernel version);Mac ps3; | |
| S/N ratio | More then 48 dB (AGC Off) | |
| Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
| White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
| Gamma Characteristic | Auto r>=0.45 | |
| Manual Function | White Balance, Brightness,Contrast,Hue,Saturation,Gain | |
| Miscellaneous | Mirror / Flip / Back Light / Flickerless | |
| Cable Length: | 1.8m; 2-10m for optional purchase-USD0.5/m | |
| Industrial Standard | Power source | DC 5V (3.6-5V) / 80mA (USB Power) |
| Operating current | 85mA / regulated 5.7VC in | |
| Operating Temperature | -20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing) | |
| Interface Type | USB format(Complies with USB 2.0) | |
| Measurement (mm) | 34*34*26mm | |
| Weight (Approx.g) | 110g | |
| Accessories | Free | Brackets *1,Screw *2,Cable *1,Manul book *1 |
Lenses Optional
Packaging & Shipping
Packing List:
1pc cctv camera
1set screws
1pc manual
1pc color box
Single Size: 95*65*55mm(LXWXH)
Shipping information:
1. We ship most packages within 48 hours by DHL, UPS ,TNT or EMS(3-7 Day). This allows them to be tracked and insured for loss or damage. If you would like us to ship by a faster method, you can select this option when you finish your order. DHL, UPS ,TNT or EMS don't ship or deliver on weekends or holidays.
2.Transportation by sea be the mode ( of transportation ) we usually adopt for our export. And COSCO, SITC, PIL, SINOKOR and other major shipping companies established a good and close relations of cooperation.Low Lux,Uvc,3.7mm Pinhole Lens MINI Pinhole USB Camera for ATM Machine HDV-USB200MP-P3.7 , Find Complete Details about MINI Pinhole USB Camera for ATM Machine HDV-USB200MP-P3.7 ,MINI Pinhole USB Camera , mini pinhole usb camera for atm , usb pinhole camera from CCTV Camera Supplier or Manufacturer-Shenzhen HDV Electronics Co., Ltd.
