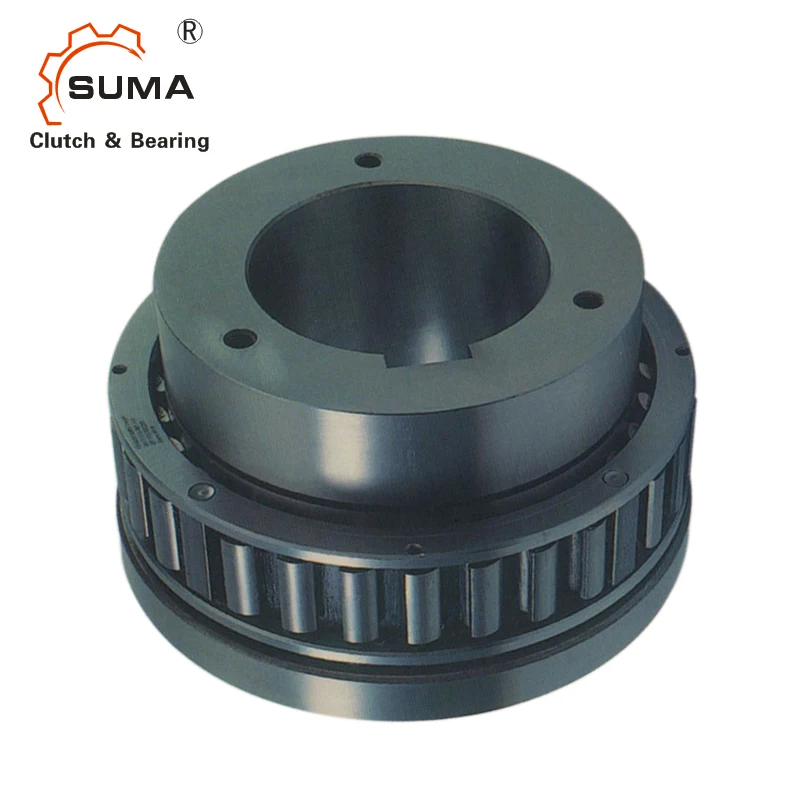

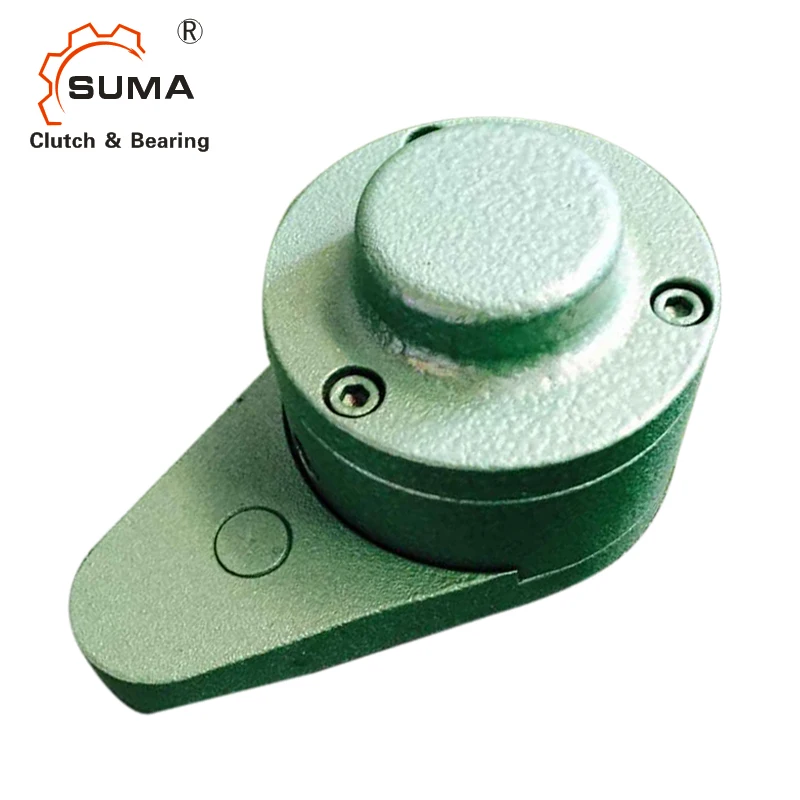

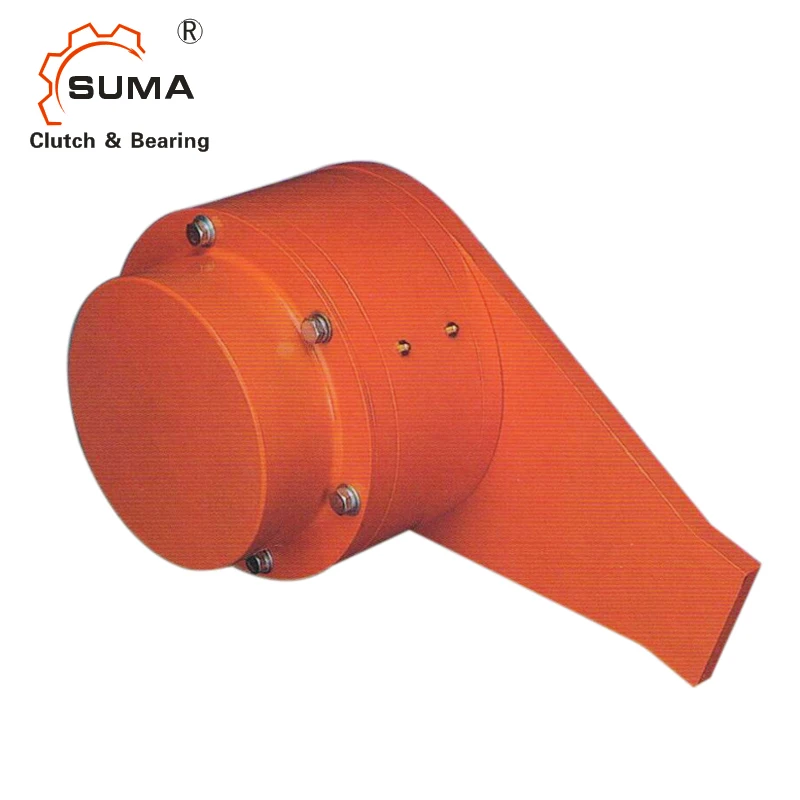

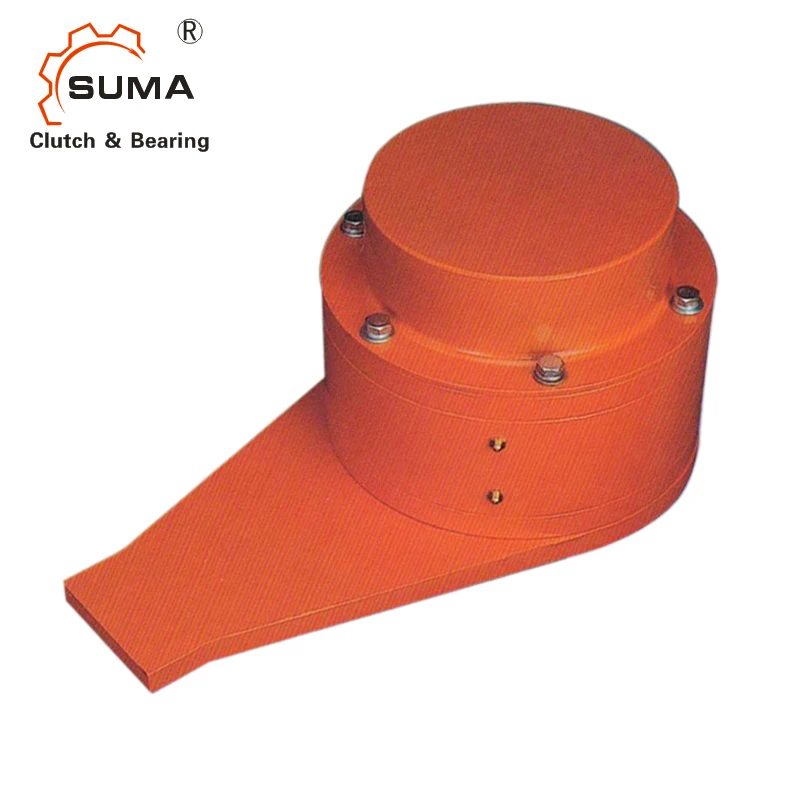

One direction Bearing Sprag Backstop for Belt Conveyor CKNZ- I- 39
Product Description
Features of backstop for belt conveyor
1.Imported sprag and cage can ensure the reliable backstop, and high torque .
2.CKNZ-I sprag backstop can function well both in high speed and low speed condition.
3.Seals are specially designed to prevent from dust and water.
4.Flexible installation occasions, it fits well on high speed shaft, medium speed shaft, or low speed shaft on reducer.
Product name
backstop for belt conveyor
Model
CKNZ-I -39
Material
GCr15
Inner diameter
60-95mm
Outer diameter
210mm
Torque arm length
270mm
Torque capacity
3900Nm
Width
152mm
Package
Carton Box / Wooden box
Payment terms
TT. L/C, D/A,D/P,Western Union,Paypal
Delivery time
7-10 days

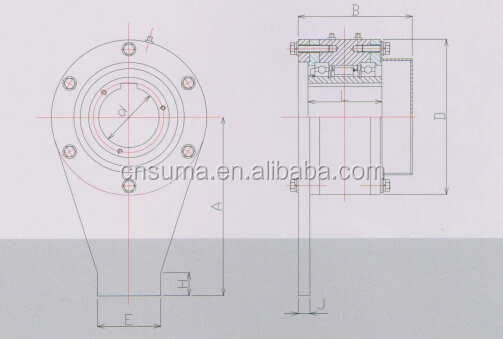

Catalogue of clutch cam for your choice
No.
Model
Bore Range
Torque
A
B
D
E
H
J
L
D(mm)
N.m
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
1
CKNZ-I-3.2
20-25
320
120
92
100
40
15
5
66
2
CKNZ-I-7.5
25-35
750
140
100
113
45
15
6
76.9
3
CKNZ-I-15.5
35-50
1550
160
100
125
50
20
6
76.9
4
CKNZ-I-18.5
45-60
1850
180
114
140
55
25
10
74.4
5
CKNZ-I-27
55-75
2700
220
135
178
60
30
15
89.4
6
CKNZ-I-39
60-95
3900
270
152
210
80
35
15
91.4
7
CKNZ-I-122
65-110
12200
320
206
260
100
40
20
132.4
8
CKNZ-I-150
70-130
15000
360
218
280
110
45
20
132.4
9
CKNZ-I-255
130-160
25500
430
236
332
120
50
20
151.4
10
CKNZ-I-390
150-200
39000
560
254
420
140
60
20
159.4
11
CKNZ-I-445
200-250
44500
660
262
500
160
80
20
174.4
12
CKNZ-I-815
250-320
81500
760
351
630
180
100
20
213

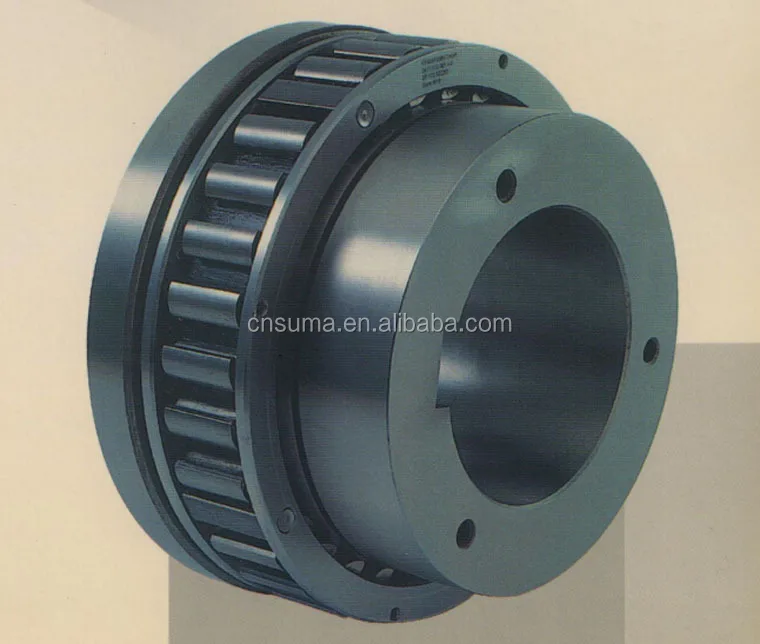

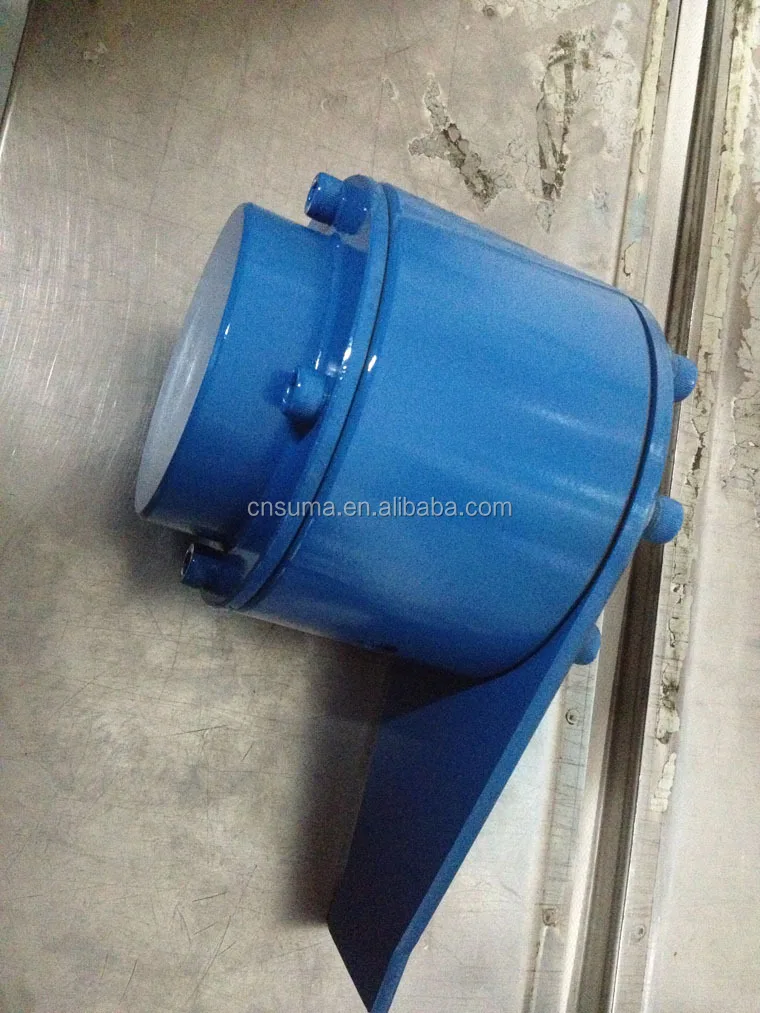

Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Certifications
Clients Visit
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
