120W 150W 200W 250W 300W 400W phase change housing led high bay light
- Category: LED High Bay Lights >>>
- Supplier: Shenzhen Tianhong Optoelectronics Co. Ltd.
Share on (60324394712):
Product Overview
Description
120W 150W 200W 250W 300W 400W phase change housing led high bay light
Vacuum phase change heatsink of 200w led high bay light
Waterproof LED driver of 200w led high bay light
CREE chip XTE of 200w led high bay light
CE,PSE,ROHS certification & IP65
200W high bay led lights specification:
| Item NO. | TH-GK415-200W | Color Temperature | Warm white (WW) | 2800-3000K/3000-3200K | ||
| Natural white (NW) | 3500-4500K | |||||
| Input Voltage | AC 95-295V | Pure white (PW) | 5500-6500K | |||
| Frequency Range | 50/60HZ | Color Rendering Index | WW | Ra>75 | ||
| Total Harmonic Distortion | ≤ 9% | NW / PW | Ra>80 | |||
| Power Factor | >0.95 | Average Luminance | Beam Angle | Height 7M | Height 8M | Height 9M |
| LED Quantity | 200PCS | (Accord to PW:5500-6500K) | 85° | 232.51lx | 178.26lx | 140.87lx |
| Working Voltage | DC 45-50V | 120° | 145.06lx | 111.22lx | 87.89lx | |
| LED Consumption | 200W | working temperature | -30 ~ +50°C | |||
| System Consumption | 200±5W | Ambient temperature | -30 ~ +65°C | |||
| Lens | Optical glass lens | IP Grade | IP54/IP65 | |||
| Beam Angle | 85° / 120° | LED working Life-span | >50,000H | |||
| Luminous Efficiency | 120±5% LM/W | Color of lamp shell | Silver/Black | |||
| Luminous | 20000±5% LM | Certificates | CE, RoHS, PSE | |||
If you are not sure whether it is what you need,you need our support

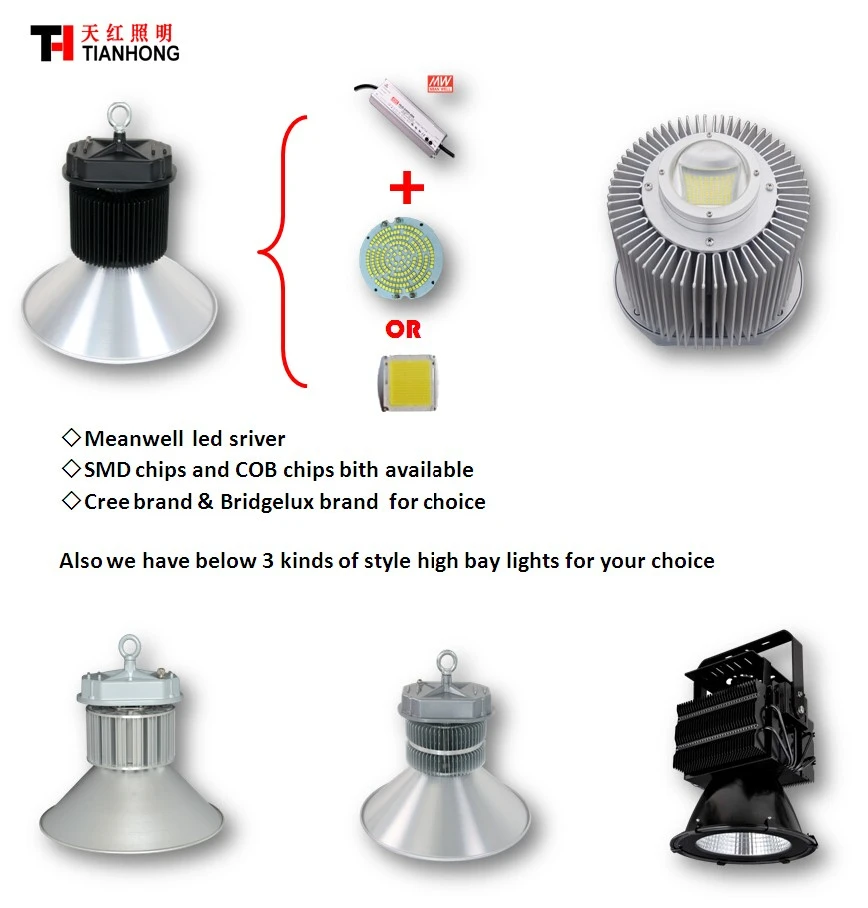

Other hot sale led high bay light:
Application
Widely use in workshop,warehouse,highway toll stations,supermarkets, exhibition center, gymnasium, large logistics center and other places of lighting required.
Features:
updated high bay lamp
1. Using excellence inport semiconductor chip CREE chips, have high heat dissipassio performance, low luminous decay, pure color, no heavy shade etc, especiall light source can up to 120 lm/w of LED high bay light
2. Die cast allumum fixture with Vacuum phase-change radiator, has oustanding performance in thermel coductivity, samller and lightter than normal heat sink
3. Taiwan MEANWELL Driver, best quality stabel performance, waterproof.
4. Die cast fixture: Perfect die cast trearment process, beautiful appearance .
5. High purity aluminum reflector by anodic oxidation and polishing processing, the optimization of lighting performance at the same time, effectively reduce excessive light and glare
6. Certification: CE, PSE, ROHS ip65

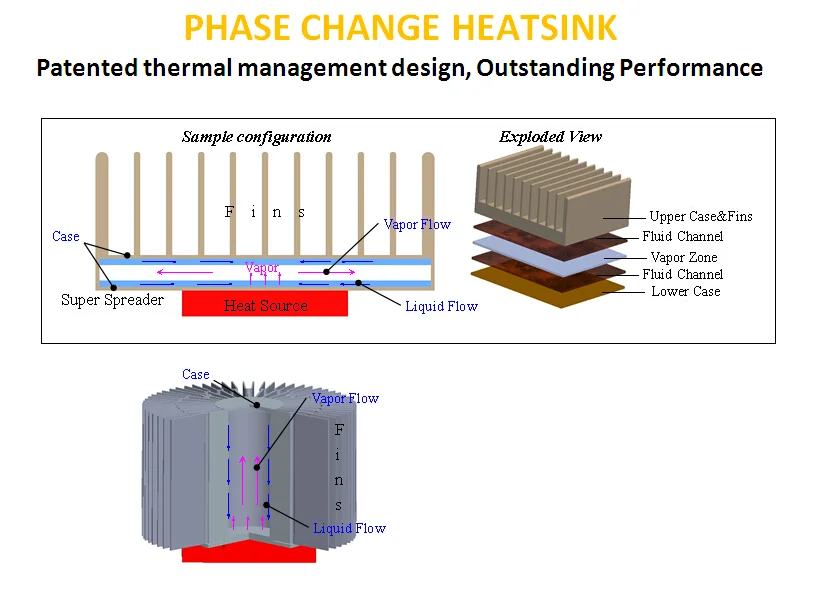

Patented thermal management design: PHASE CHANGE HEATSINK
This kind of aluminum housing is a heat sink with Vapor Chamber studded inside, perfectly combined the vapor chamber technology together with the traditional heat sink housing.
Structure of the temperature equilibrium cavity of this new housing is consisted of the heat sink's baseboard, heat plate, infused vacuum purification liquid, and the cavity's inner structure.
How does this system working?
>The Liquid evaporating at the heat source inside the cavity, then diffuse in the whole space of the cavity, and congealed on the inner surface of the cavity, finally, the congealed liquid will flow back to the source by the structure of cavity and evaporation again. this system greatly improveds the heat dissipation efficiency.

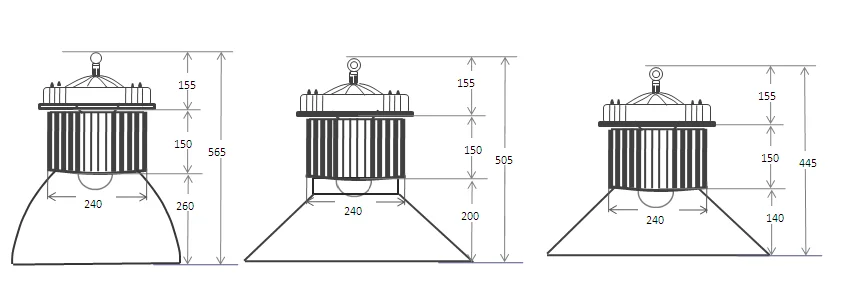

Dimension: 200W low bay led lights
Packing:
1.Normal Packing with canton(export packing), goods can be packed under the customer's requirement.
2.If it is fragile, we will provide wooden case to protect them, if ship by sea, shipping trays can be offered for customers.
1 Set = 2 Boxes (Lamp Base + Reflector). We will pack the reflector by wooden box outside to prevent damage and deformation in the transportation.
Lamp Base Packing | ||
CTN Size(1pc/box) | 275*275*305mm | |
Weight(N.W/G.W) | 5.6/6.3Kg | |
CTN Size(4pcs/box) | 575*575*365mm | |
Reflector Packing | ||
Beam Angle | 85° | 120° |
CTN Size(10pcs/box) | 440*440*350mm | 530*530*270mm |
Shipping:
1. Express: By DHL/FEDEX/UPS it takes 3- 7 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements.
Compnay Iinformation
Shenzhen Tianhong Optoelectronics Co., Ltd, manufactures LED lighting solution for indoor /outdoor application and both residential and commercial uses. We have a wide range of LED lighting products, also offer its clients the option of customizing products for specific need. We produce LED lighting for most application.
With more than 3 years experience we have developed a rapidly grow up on the LED lighting field, we have been the good partners for some of the international in West, East and Central Europe and provide the OEM service for them. We are looking to start another partnership maybe even with you and create value for your business and boost your LED sales quality, affordability and immense product variety, your requirment will reply within 4 hours, welcome your feed back!
Why choose TH
1. Strict QC system
Material
1). Inspect lamp shell with out any defective item, good heat dissipation
2). LED chips with Correct color temperature, CRI, lumen efficiency etc.
3). Driver with strict &long time test before application
Assembling
1). Strict QC system.5 tests/checks during their assembly in the lamps production and all product
2). Inspect again when the product be package
Ageing testing
1). Over 48 hours before shipment, confirm all quality well.
Shipping
1). Strong and professional package for safety transportation
2). Clear label Item show what is product in the cartons, include watts, CCT,
Dimming or not and quantity.
2. Professional service
1). Dialux solution for project with in 24hours(5 engineer for this job)
2). professional document and datasheet, nice picture for your market activities
3). Short leadtime, for you to get the lamps and show it to your clients easily
4).Excellent logistics service include the Strong package, fast delivery time, clear label. update tracking news in time
3. 5 years& 3 years warranty
1).long exact warranty, not just a word, it is from our quality confidence and responsibility to our customers,
2). the warranty is base on proof-document, don't need return the product
Contacts details:
Phone:+86-136 9161 0969(whatsapp)
Email:sales01(@)hitechleds.com
WeChat:hitechleds
Skype:topleds(Michael)
Shenzhen Tianhong Optoelectronics Co., Ltd.
5/F, Building A, Hanhaida Science Park, No. 7004, Songbai Road, Songgang Town, Bao'an District, Shenzhen, Guangdong, China
