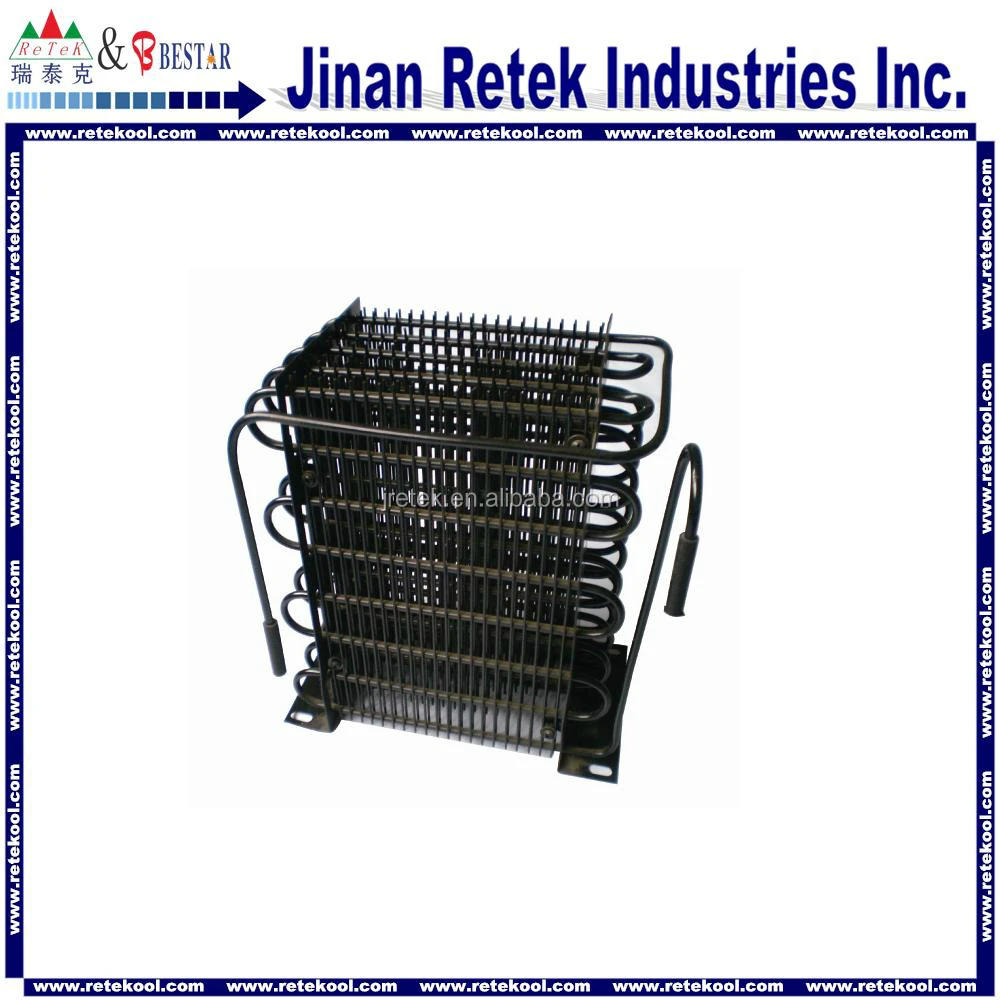

Wire tube Condenser as Wine Refrigerator Parts

Product Overview

Description

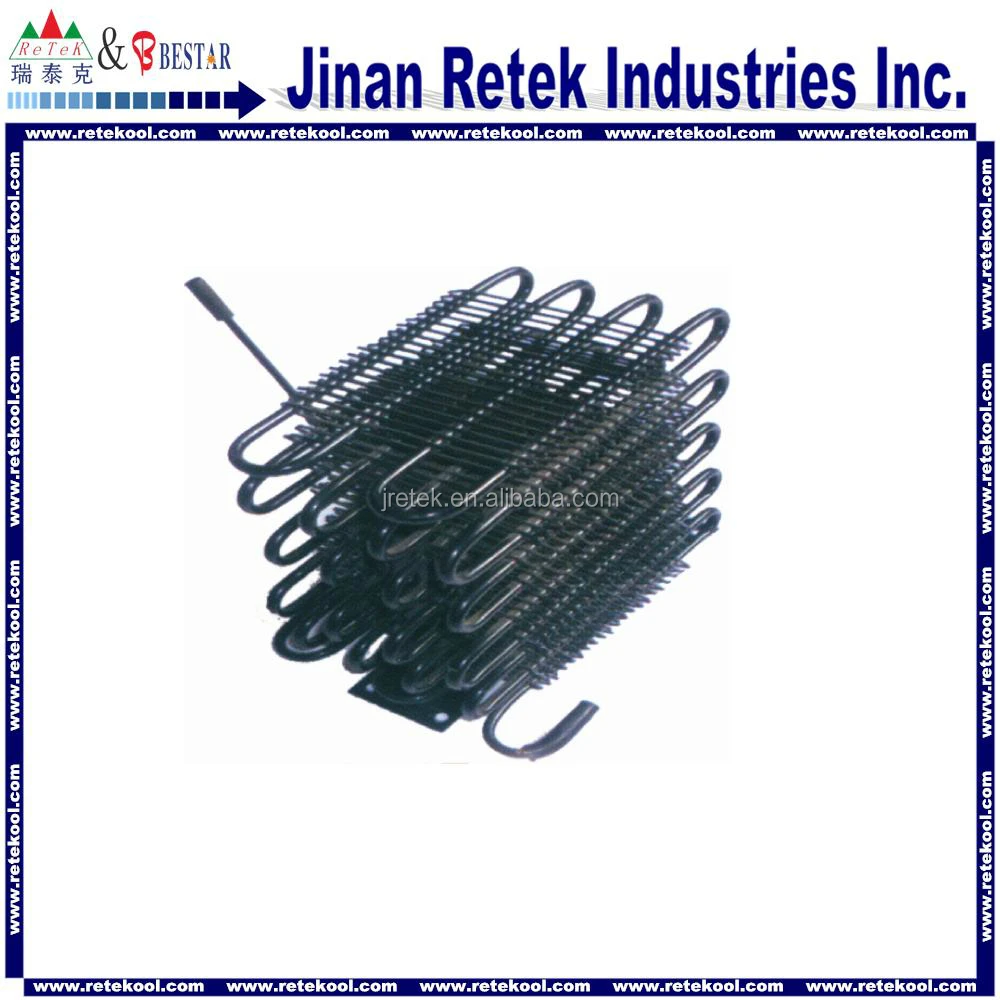

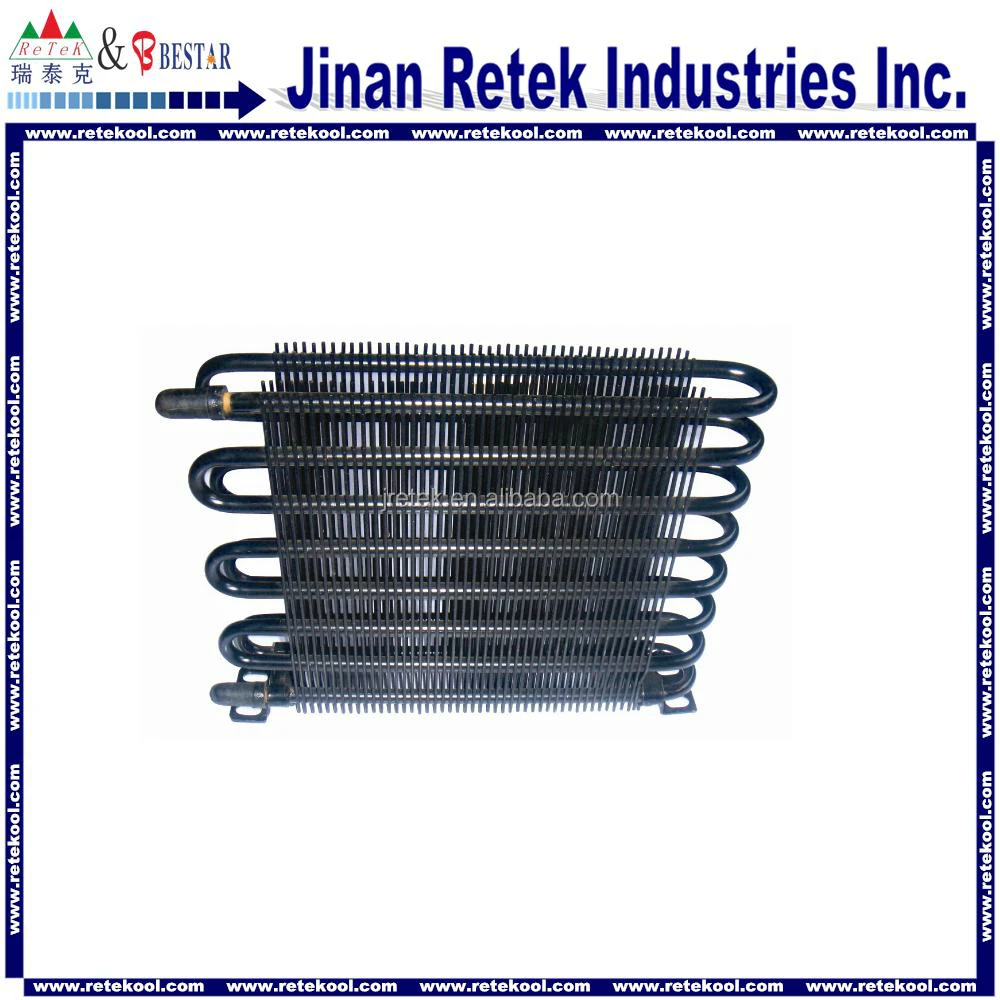

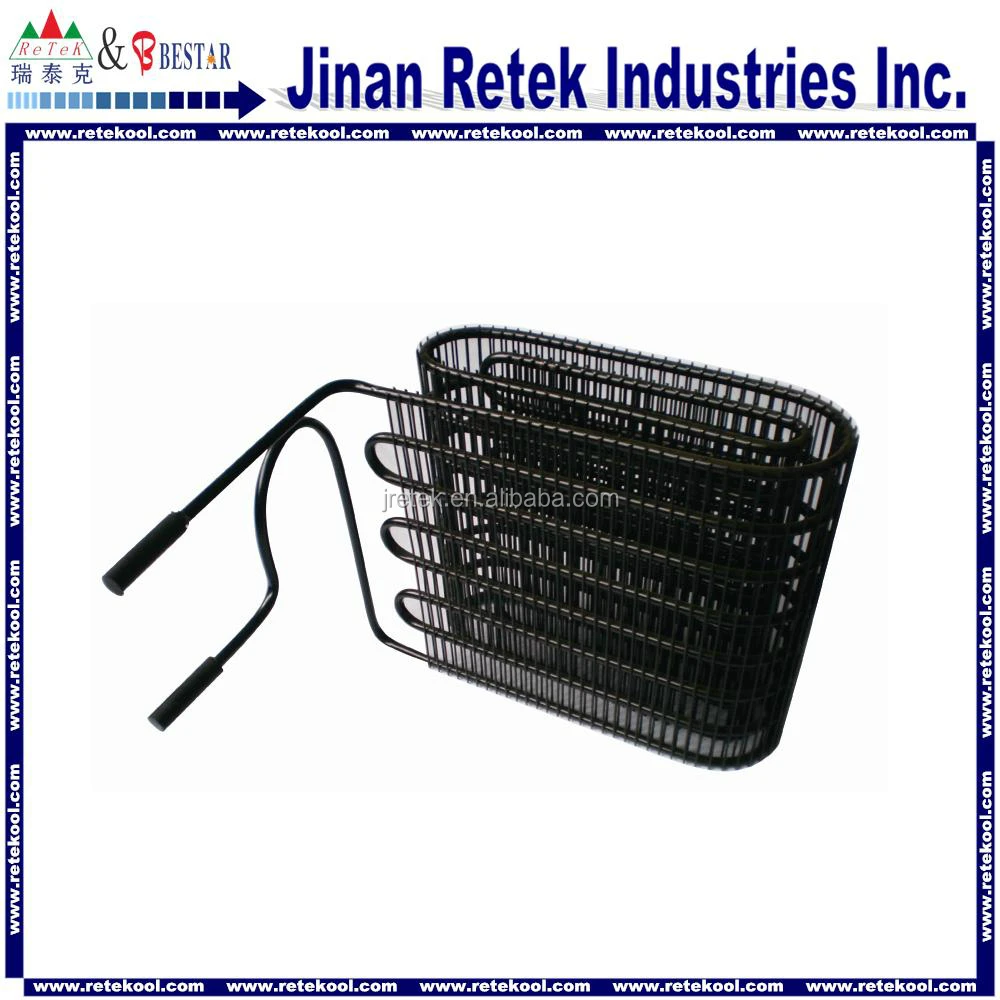

Wire tube Condenser as Wine Refrigerator Parts



We can supply many kinds of Wire tube Condenser as Wine Refrigerator Parts , Wine Refrigerator condenser ,Wine Refrigerator Wire condenser , Wine Refrigerator wire tube condenser ,Wire tube Wine Cooler Condenser ,Wine Condenser ,Wine Cooler Condenser ,condenser, Wire tube Condenser for Wine Cooler Parts ,Wine Cooler condenser ,Wine Cooler wire condenser , Wine Cooler Wire Tube condenser ,MINI Refrigerator Condenser ,Refrigerator Condenser ,Refrigerator Wire Tube Condenser , condenser, wire tube condenser, wire condenser, Refrigerator Wire Tube Condenser Refrigeratory Parts ,



PRODUCT DETAILS



This is our Commonly condenser, it is universal type in Bangladesh,pakistan,DubaiSri Lanka etc market.

and the Main Meaterial as follows:

1:Diameter of Bundy tube: 4.76,6,6.35,8,9.52mm

2: Low carbo steel wire: 1.0-1.6

3: Bracket:steel plate(SPCC),thickness 0.6-1.5

4: Steel Plate:SPCC thickness 0.3-0.4



PRODUCT NAME:	Refrigerator Condenser
APPLICATION:	REFRIGERATOR,FREEZER,SHOWCASE,WATER COOLER
REFRIGENT:	R134a
MAIN MATERIAL:	1,BUNDY TUBE:Ø4.76/6/6.35/8/9.52,WALL THICKNESS 0.7MM. 2,LOW CARBON STEEL WIRE Ø1.0-1.6MM. 3,BRACKET:STEEL PLATE(SPCC),THICKNESS 0.6-1.5MM. 4,STEEL PLATE:SPCC THICKNESS 0.3-0.4MM

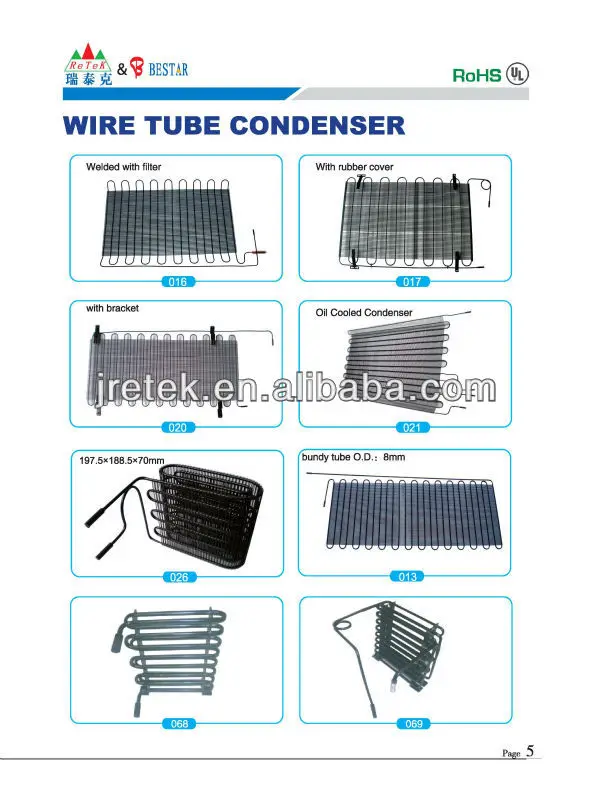

STRUCTURE:	1,FLAT TYPE OF WIRE ON TUBE CONDENSER USED AT THE BACK. 2,BENDED OR SPIRAL TYPE OF WIRE ON TUBE CONDENSER USED AT THE BOTTOM. 3,WRAPPED TYPE OF TUBE EMBED ON PLATE.
MAIN PRODUCTION PROCESS:	TUBE BENDING->WELDING->FIX THE BRACKET->WELD THE SUCTION TUBE->LEAKAGE TEST->COATING->FOLDING OR BENDING SHAPING->INSPECTION->PAKAGE.
PERFORMANCE:	1,SUEFACE WITH ELECTROPHORESIS COATING TO PREVENT THE CORROSION. 2,INNER CLEANESS CAN MEET THE REQUIREMENT OF CFC & R134A COOLING SYSTEM 3,CAB SATIFY DIFFERENT COOLING CAPABILITY REQUIREMENTS.





APPLIED INDUSTRY



For refrigeration parts.





ADVANTAGES



we also can according to your drawing and samples to do it.

our price are very competitive in the market.



PHOTOS

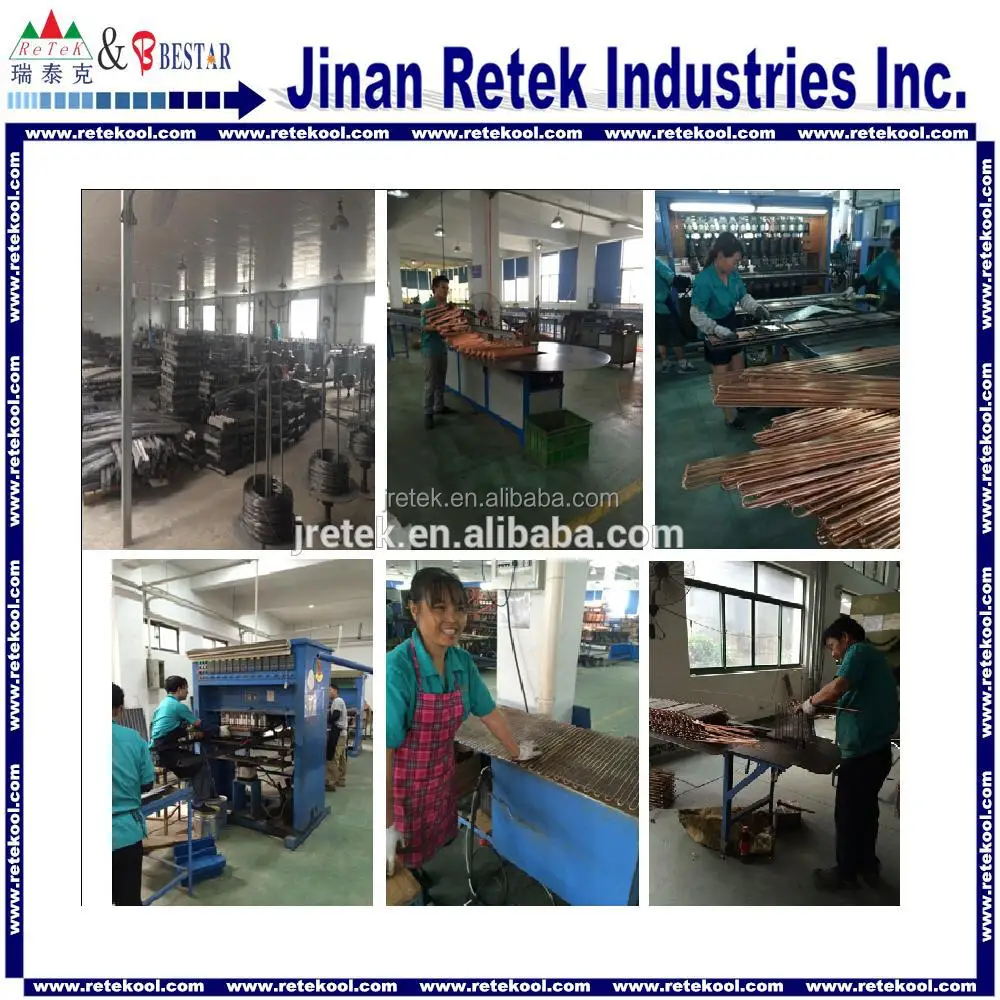

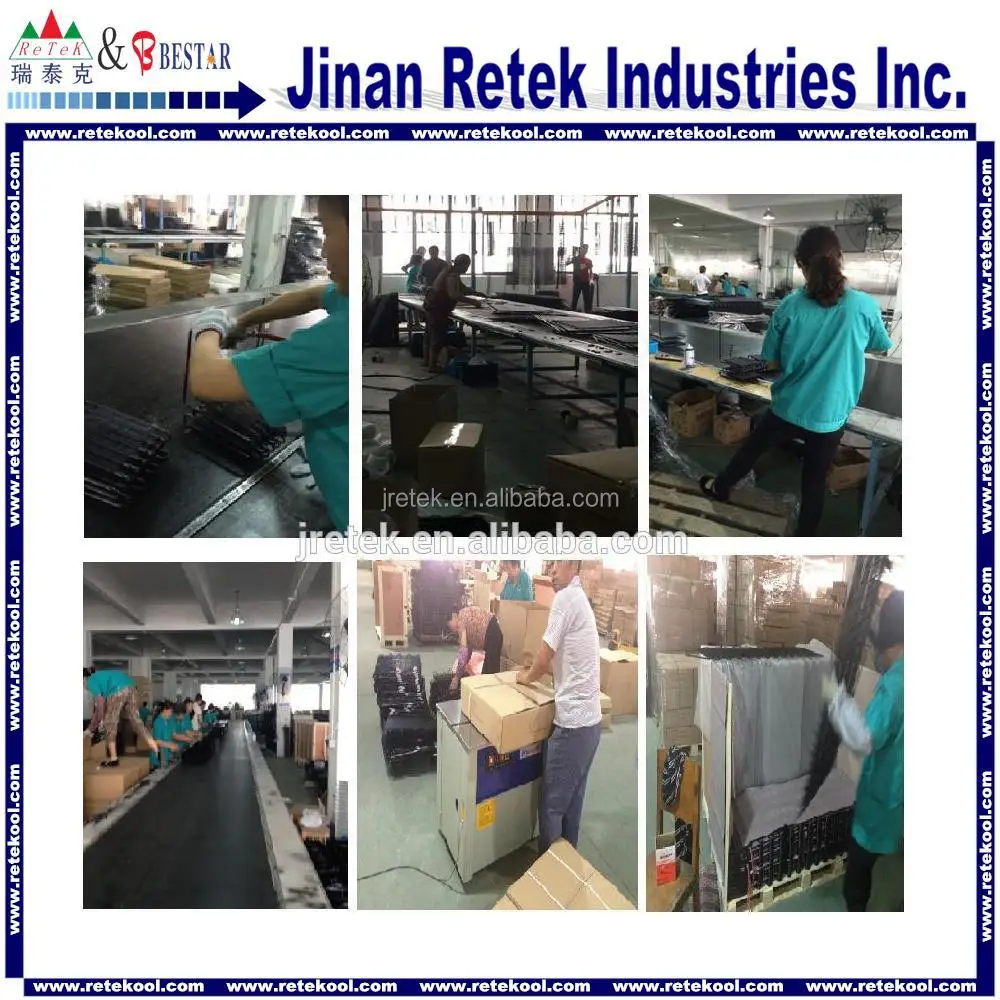

wire tube condenser processing





PACKAGE and DELIVERY









COMPANY PROFILE











Jinan Bestar Inc. is a professional refrigeration supplier in China, now we have two factories manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing filter driers, accumulators and access valves. Our factories are carrying out ISO standard, and we already got Rohs certificate for these products.

With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.

Now we are not only exporting our own products, we are also exporting some other refrigerator parts, freezer parts, water cooler parts ,air conditioner parts, auto air conditioner parts from China to all over the world. Our customers are all over 60 countries and areas, including China, Pakistan, Italy, Korea, Spain, India, Serbia, USA, Russia., Canada, Syria, Lebanon, Sri Lanka, Panama, and Brazil.

We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.













ATTENDING EXHIBITION











OTHER PRODUCTS:

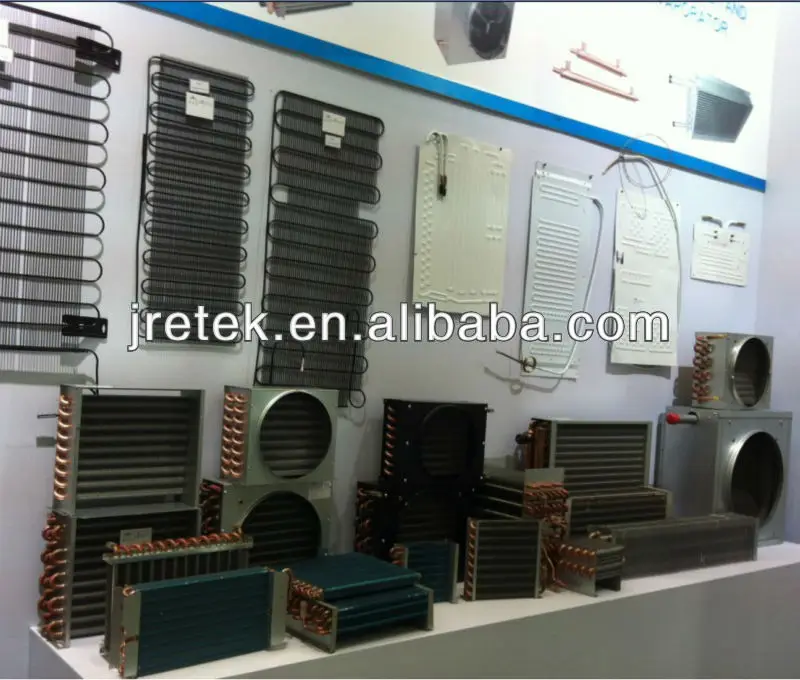

Refrigeration condenser,regrigeration compressor,regrigeration evaporators, filter driers, accumulators and access valves and so on.
