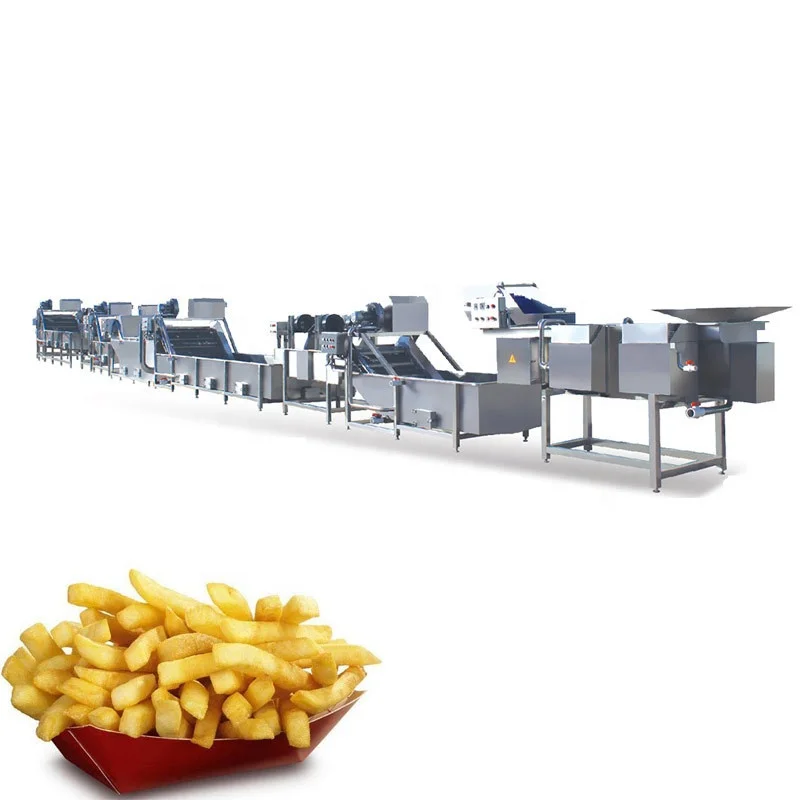

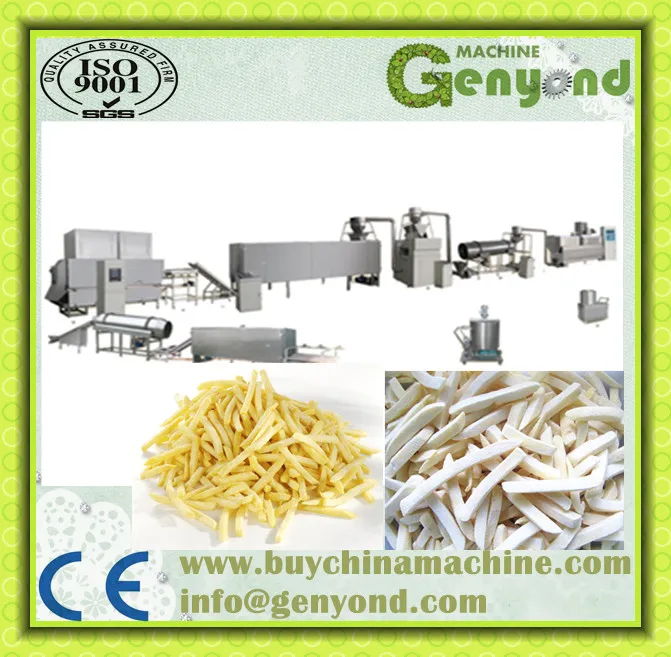

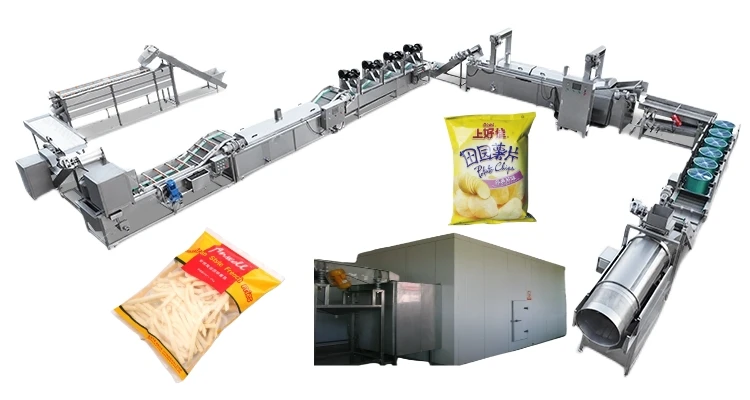

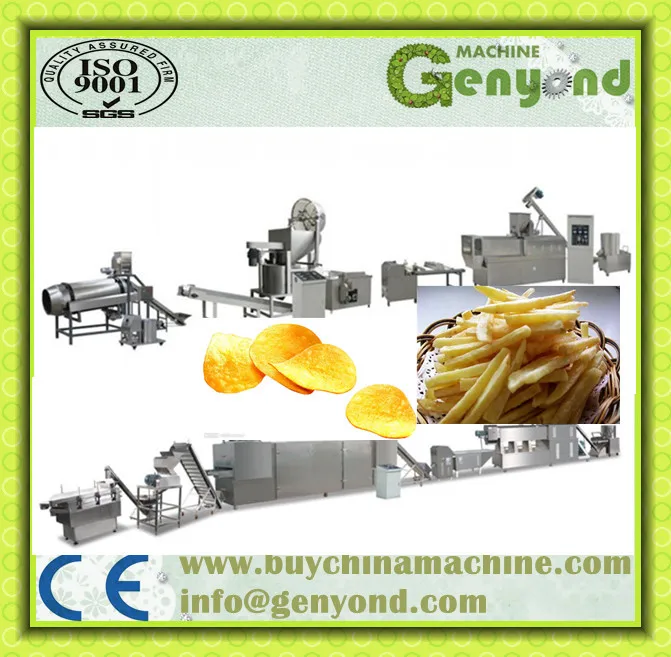

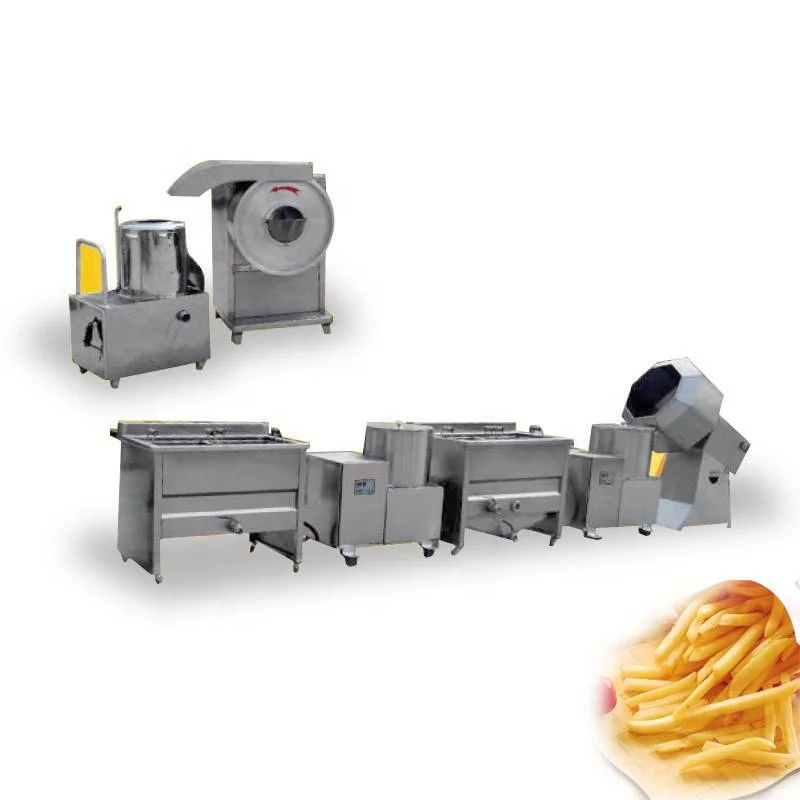

Semi automatic Potato Chips Making Machine/ Frozen French Fries Production Line
- Category: >>>
- Supplier: Shanghai Genyond Technology Co. Ltd.
Share on (60324597888):
Product Overview
Description
Product Description
1.Process capacity (finished capacity 100kg/h to 2000kg/h) and work flow can be customized.
2.All equipment are made of SUS304, electrical apparatus element are Schneider brand or CHINT brand.
3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
4. The size of French fries and the thickness of potato chips are adjustable. french fry production line
5. For French fries line, we have special equipment to remove the unqualified fries. french fry production line
6. With special designed fryer, quick heating and energy saving, enabled good performance. french fry production line
3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
4. The size of French fries and the thickness of potato chips are adjustable. french fry production line
5. For French fries line, we have special equipment to remove the unqualified fries. french fry production line
6. With special designed fryer, quick heating and energy saving, enabled good performance. french fry production line

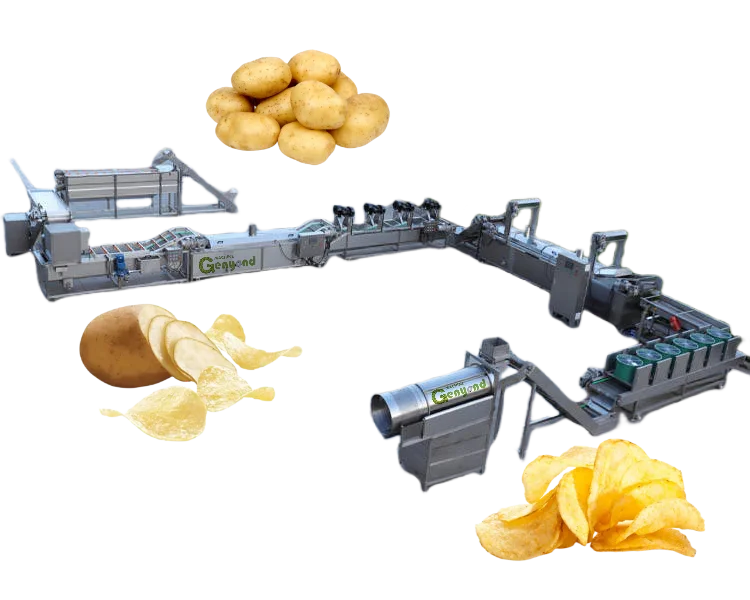

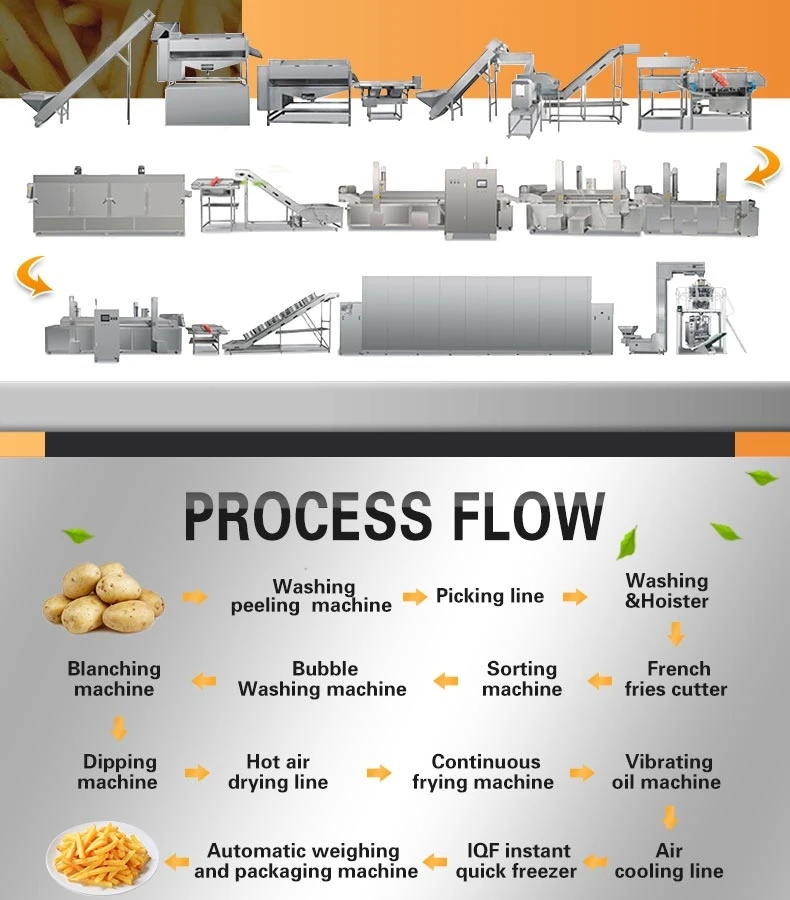

Processing flow
Detail Pictures
Elevator
For elevating and conveying fresh potatoes into the next washing peeling machine

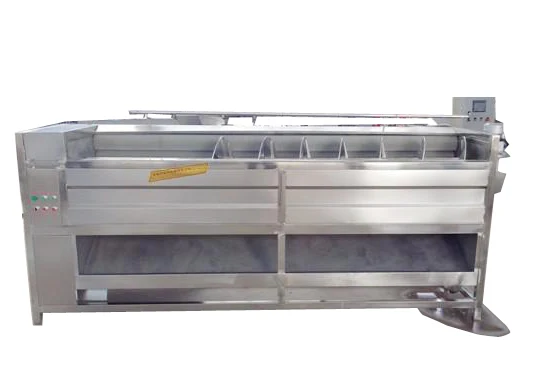

Potato Washing and Peeling Machine
Continuous potato brush pealing machine

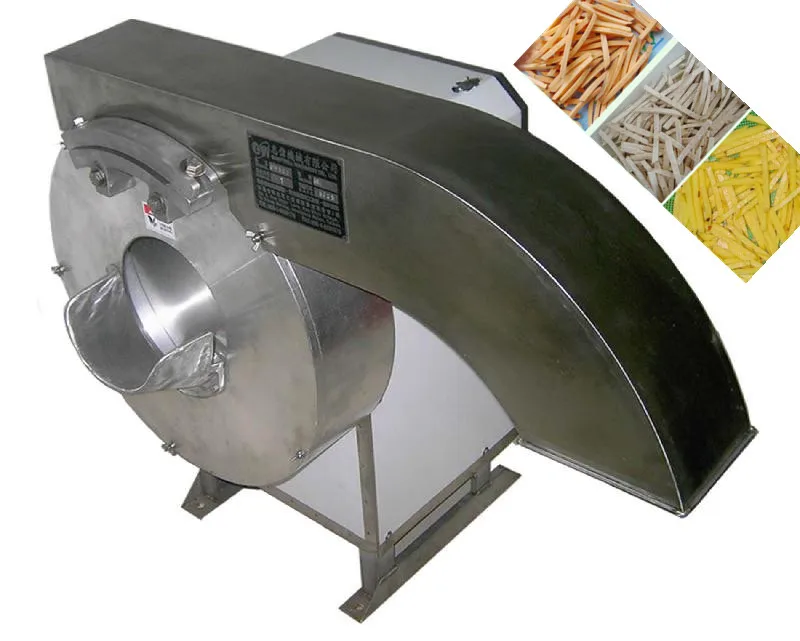

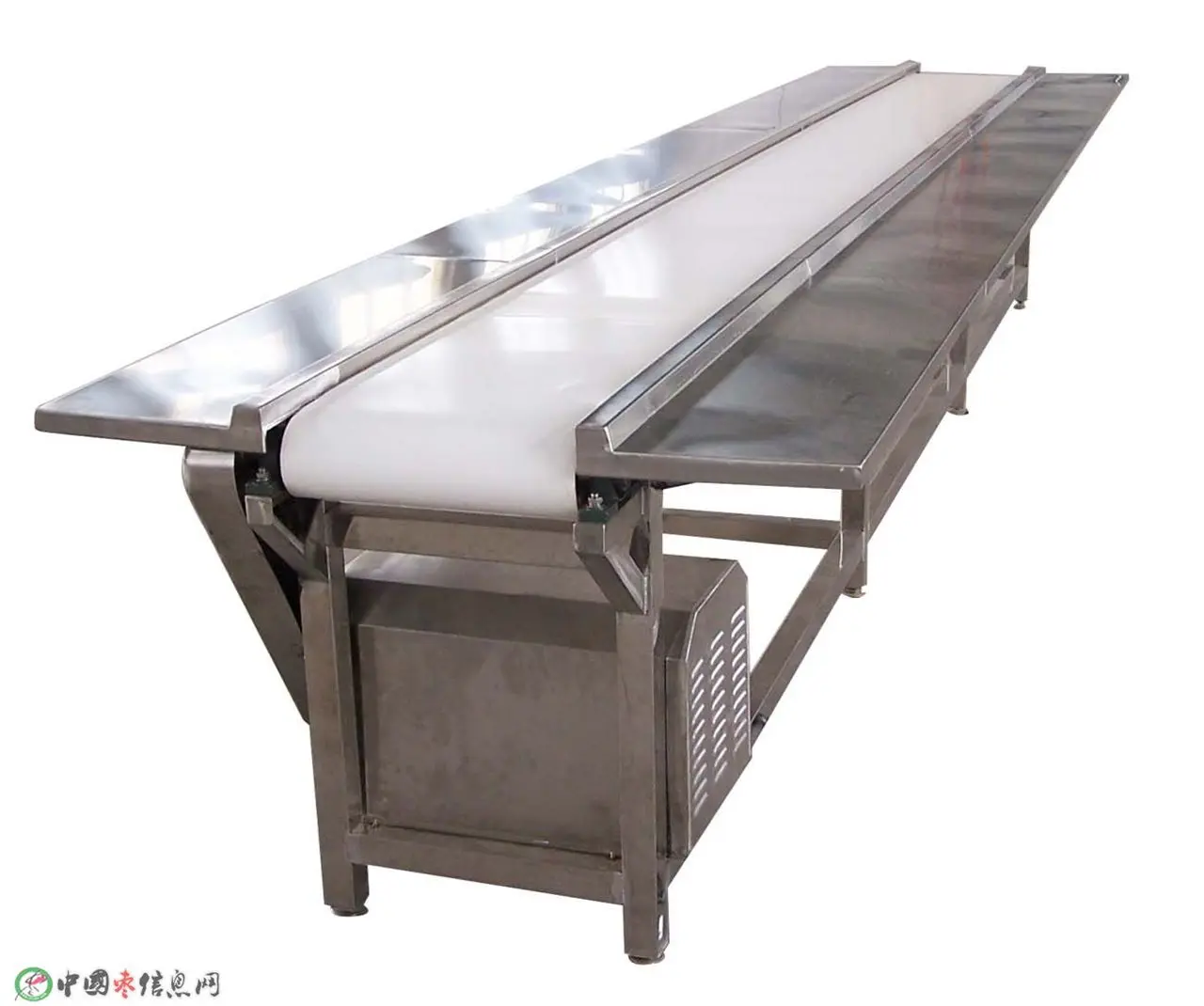

Sorting Conveyor Fries Cutting Machine
For manually disposing the uncleaned places and selecting the defective potatoes
Cutting the potatoes into fries, sizes adjustable from 7*7 to 12*12mm or customized size
Washing machine
Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch
Blanching machine
Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries
Fries Sorting Machine
Automatically picking up the small pieces fries

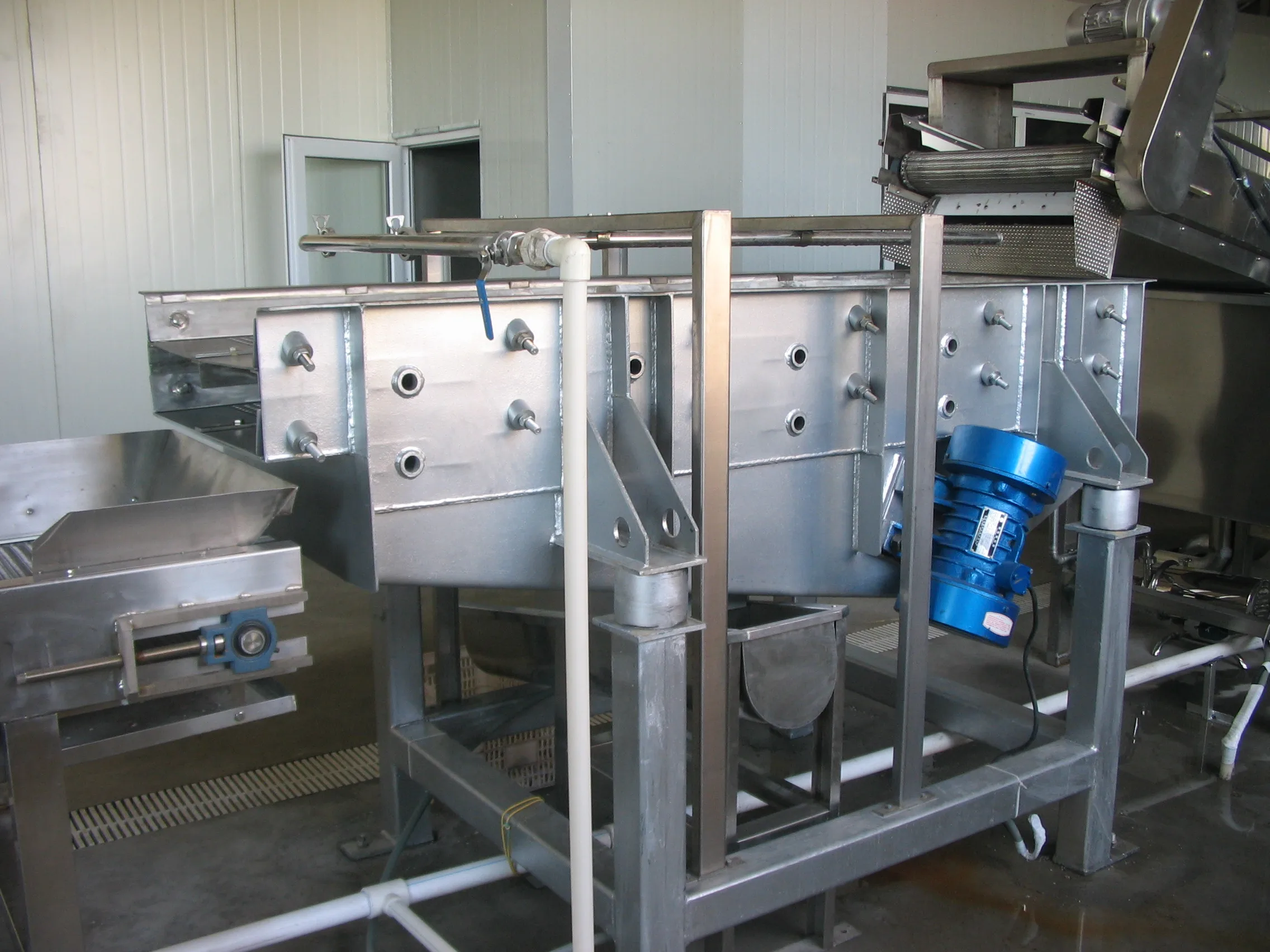

Vibration Dewatering Machine
Through vibration to remove the surface water and also to transport the fries uniformly to the next machine

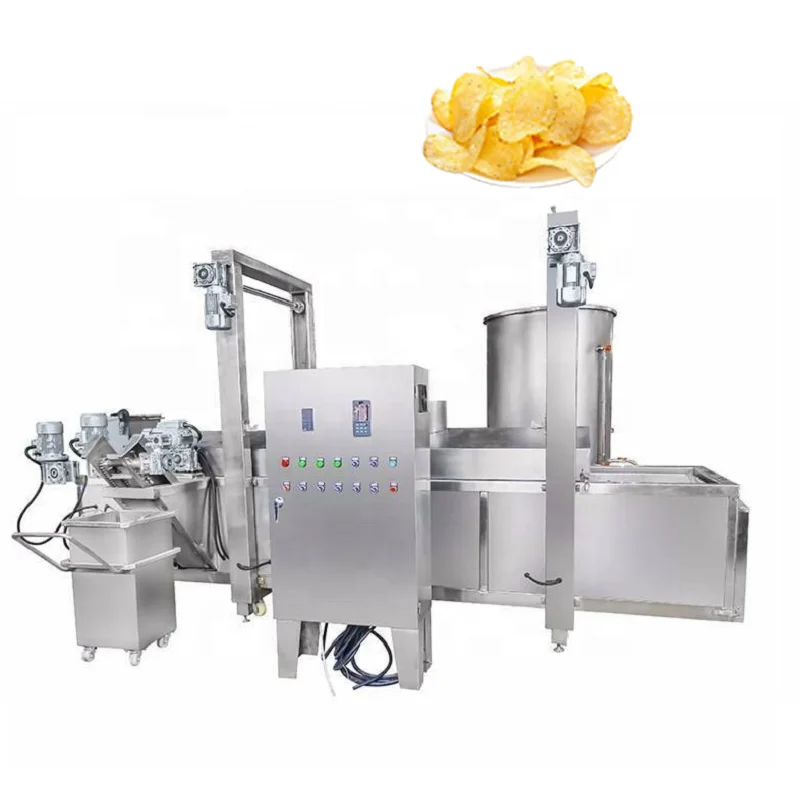

Continuous fryer
For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life

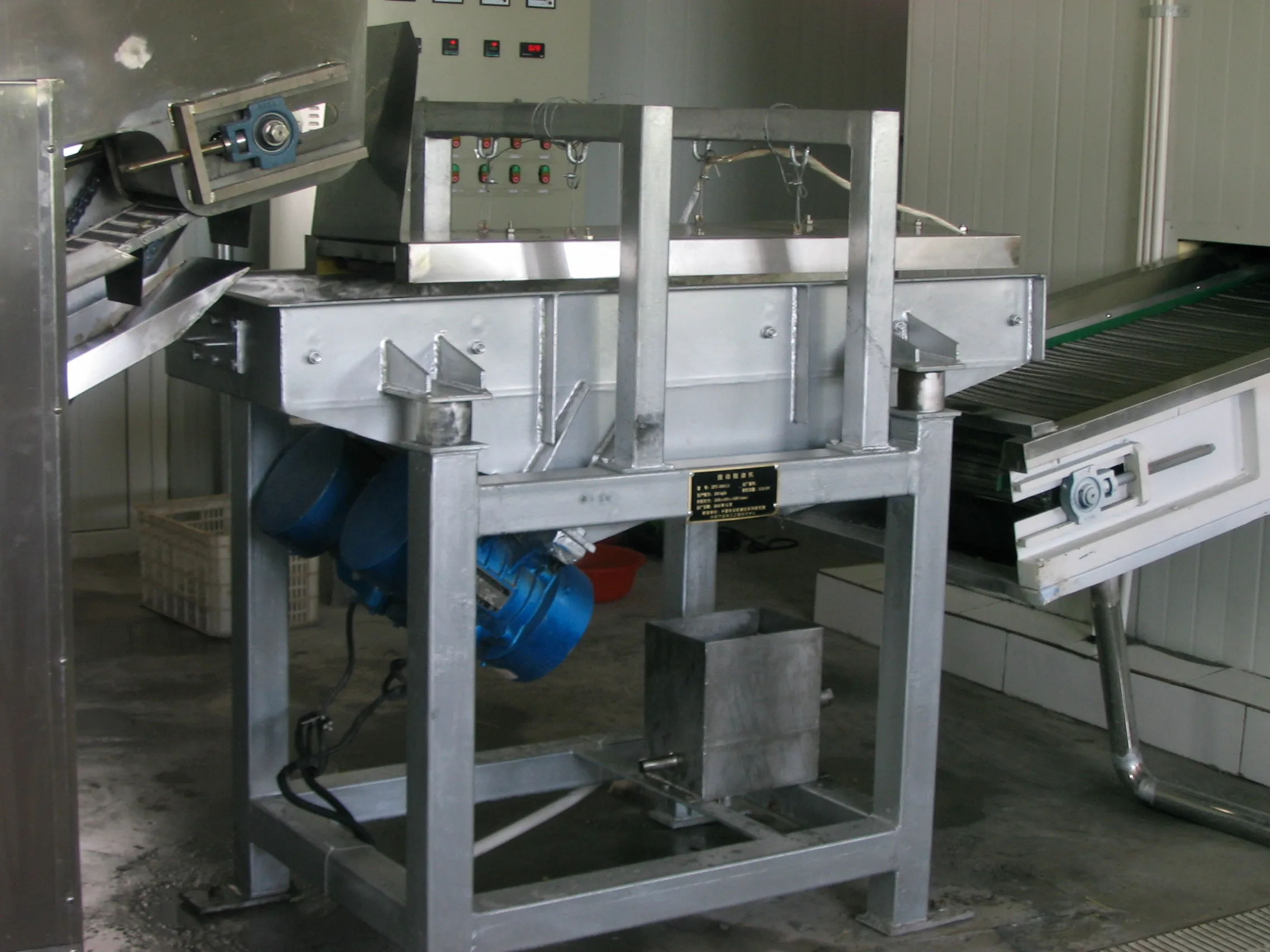

De-oiling machine
Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine
Pre-cooling tunnel
Cool the pre-fried french fries to about 30-40 degrees

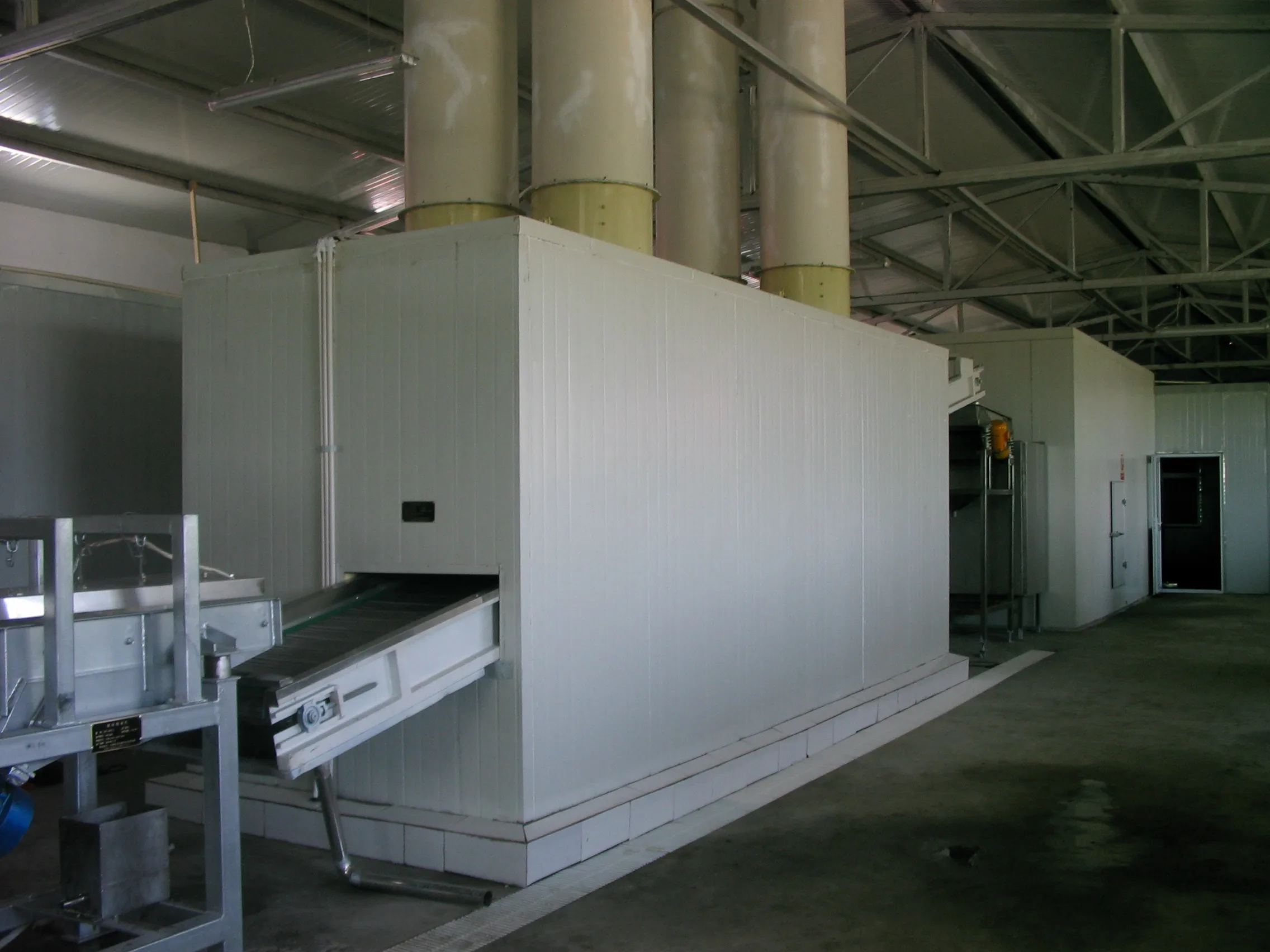

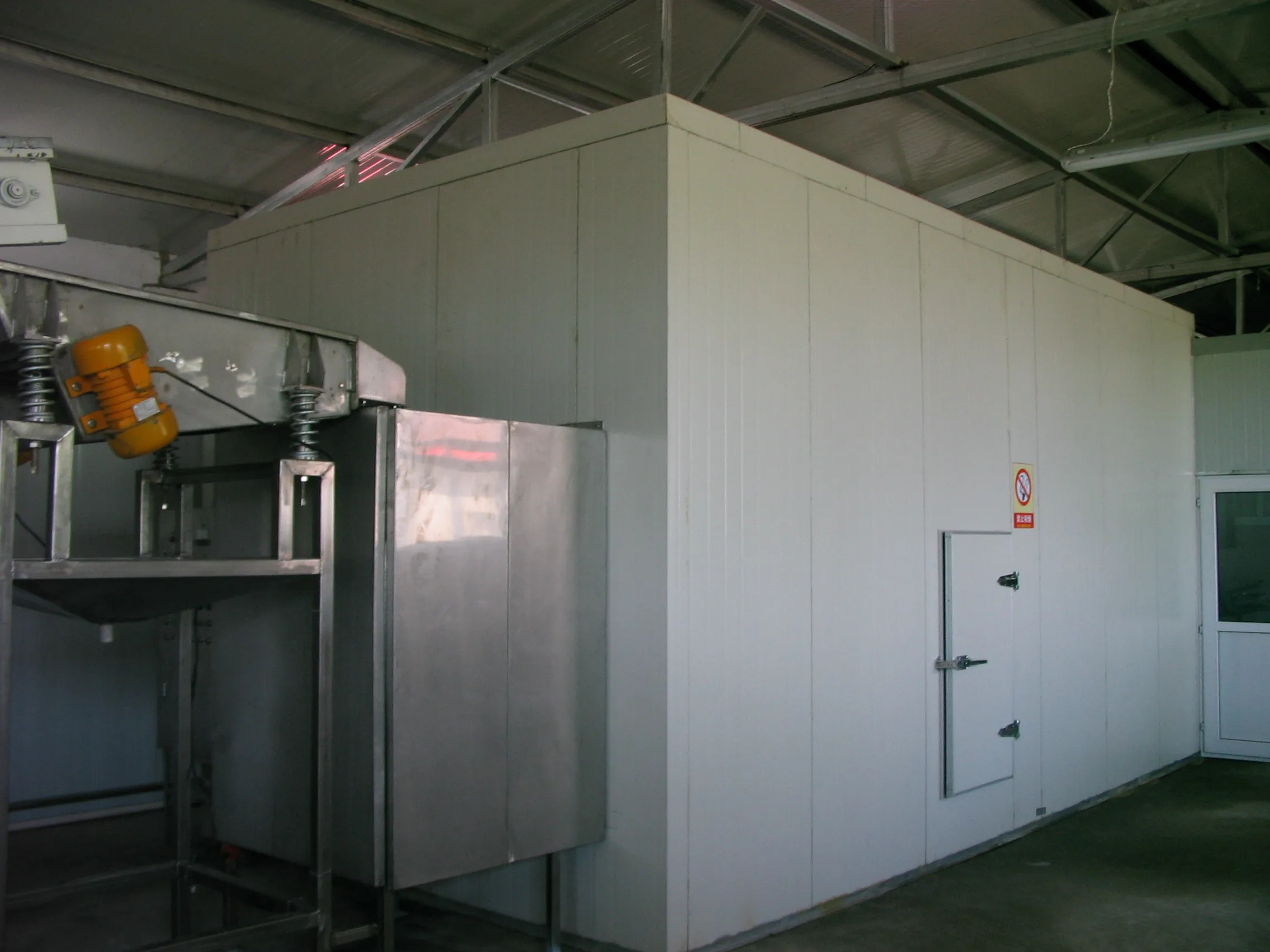

Quick freezer machine
Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF, freeze the product to -18 degrees.

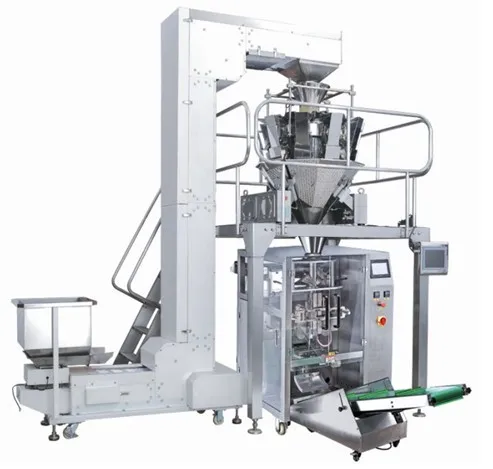

Multi head weighting packing machine
For packing the finished frozen french fries
Finished frozen french fries
Specification
No. | Machine Name | Function |
1 | PVC Elevator | For elevating and conveying fresh potatoes into the next washing peeling machine |
2 | Potato Washing and Peeling Machine | Thoroughly washing and peeling the potatoes |
3 | Sorting Conveyor | For manually disposing the uncleaned places and selecting the defective potatoes |
4 | Fries Cutting Machine | Cutting the potatoes into fries, sizes adjustable from 7*7 to 12*12mm |
5 | Water Tank Elevator | water as buffer to prevent fries breakage, and simply removing starch, meanwhile elevating fries into next step |
6 | Fries Sorting Machine | Automatically picking up the small pieces fries |
7 | Bubble Washing Machine | Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch |
8 | Blanching Machine | Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries |
9 | Vibration Dewatering Machine | Through vibration to remove the surface water and also to transport the fries uniformly to the next machine |

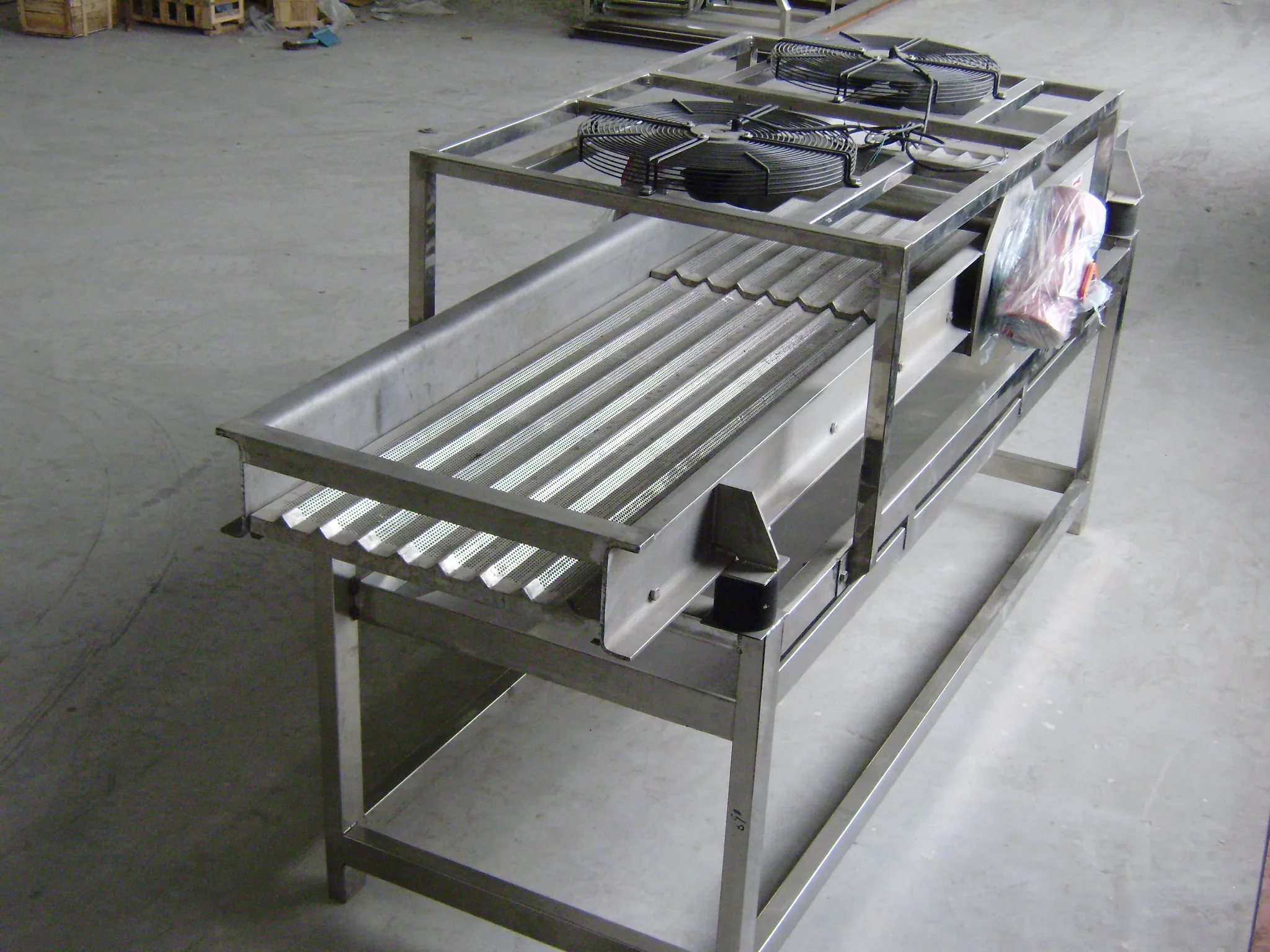

10 | Air Drying Machine | Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon |
11 | Elevating Conveyor | For elevating and conveying the fries into next fryer machine |
12 | Continuous Frying Machine | For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life |
13 | Vibration Deoiling Machine | Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine |
14 | Pre-cooling Machine | Through high pressure wind blowing for pre-cooling and deoiling the fries |
15 | Freezing Machine | Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF |
16 | Automatic Packing Machine | For packing the finished frozen french fries |

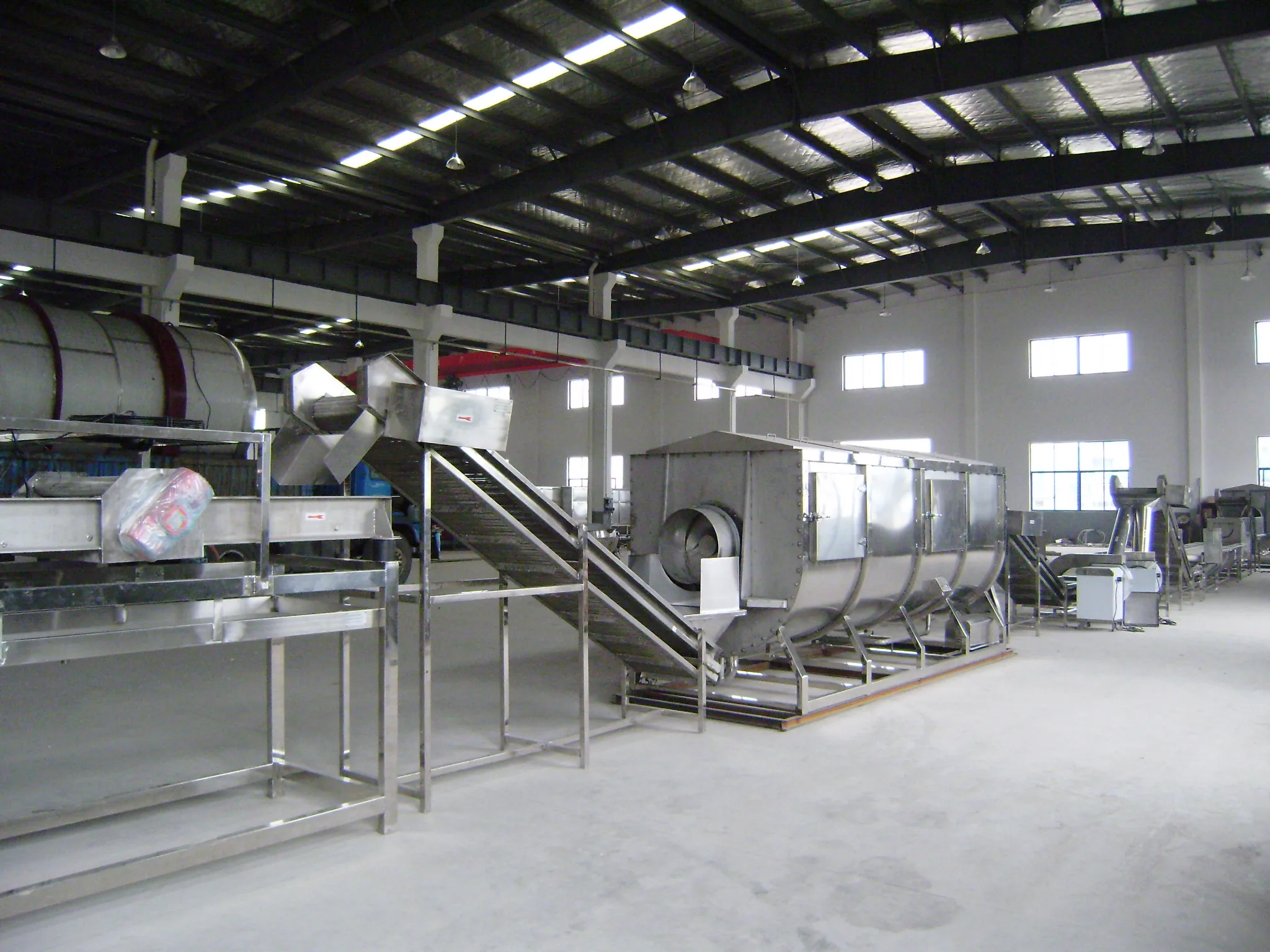

GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
