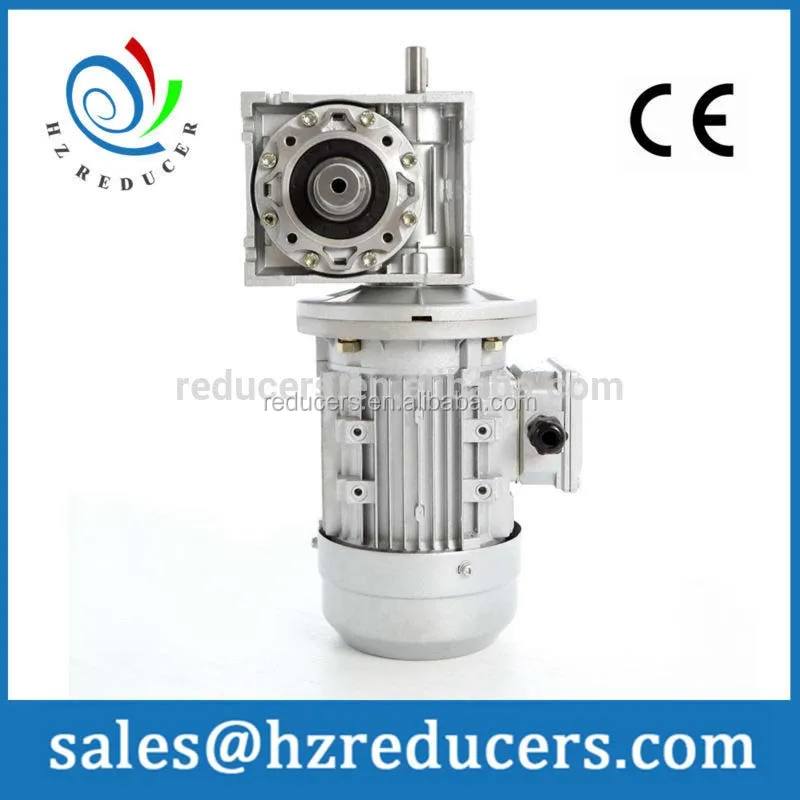

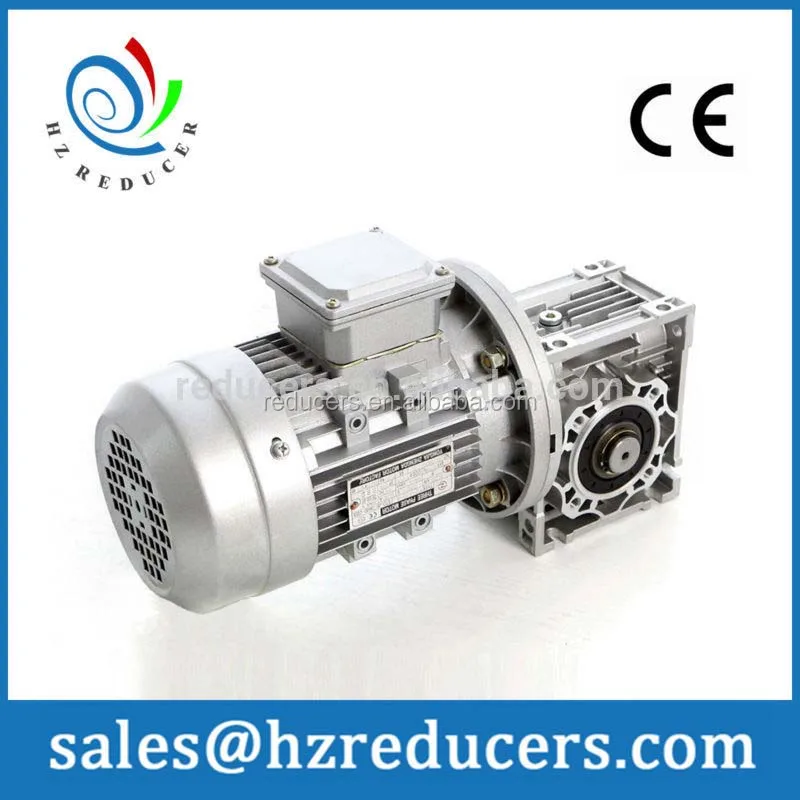

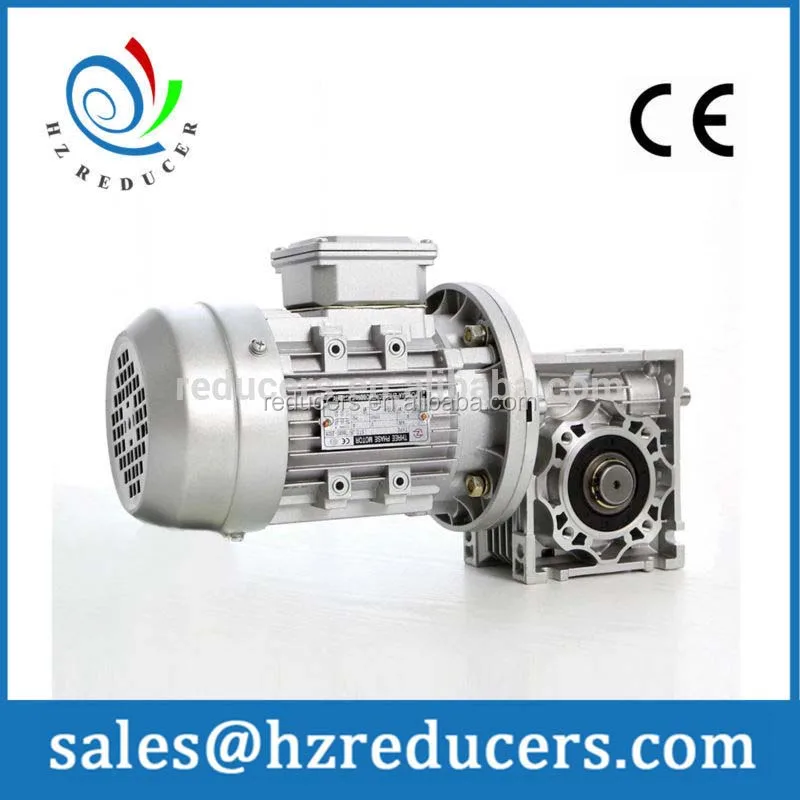

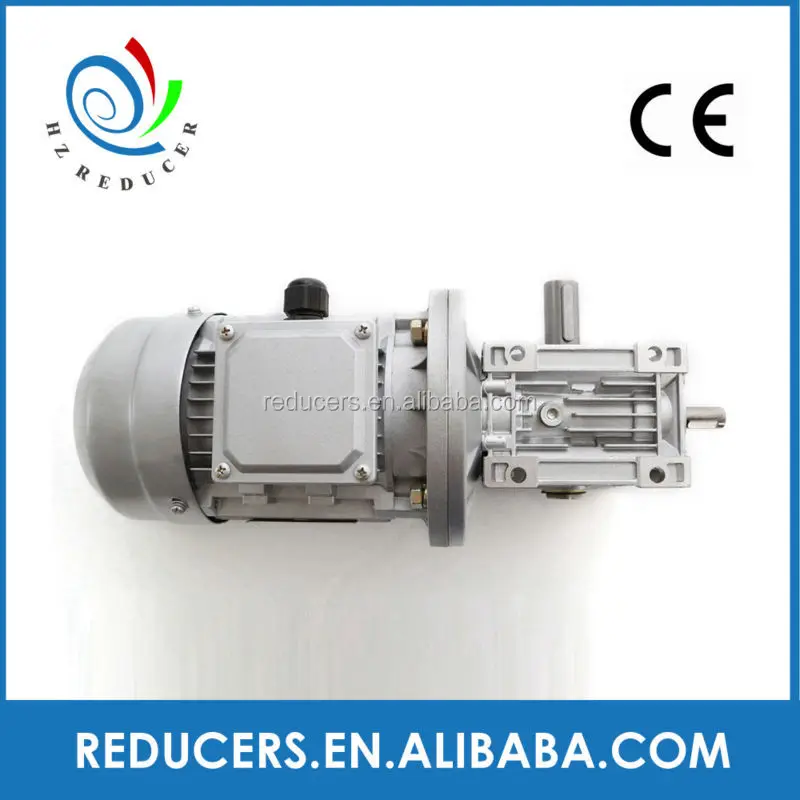

NMRV WORM GEARBOX WITH MOTOR
- Category: >>>
- Supplier: Hangzhou Reducer Equipment Co. Ltd.
Share on (60324623699):
Product Overview
Description
NMRV050 worm gearbox
Main features:
1.large SPEED RATIO range:5/7.5/10/15/20/25/30/40/50/60/80/100
2.small volume,low weight ,saving space for mounting.
3.high efficiency,high mechanical strength and high quality aluminum alloy housing
4.LONG LIFE service,large output torque,low noise and little vibration

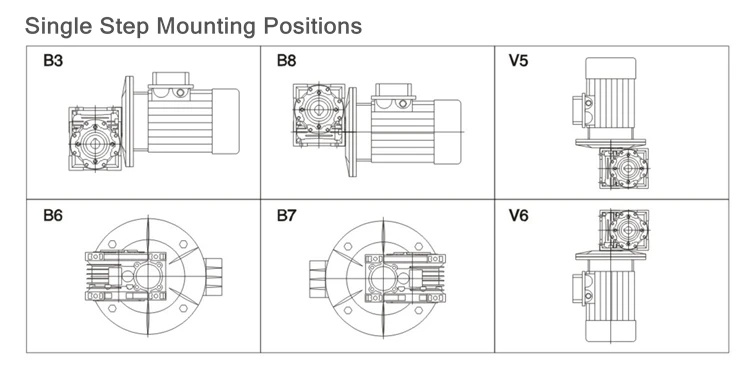

5.low temperature rise,omnibearing installation ,easy to connect with other machinery.
6.high carry ability,elegant apperance.
7.CE standard,input power can be 0.18KW-0.75KW
8.stable transmission
Specifications:
Type: | NMRV Worm Gear Speed Reducer |
Model: | NMRV050 |
Ratio: | 5/7.5/10/15/20/30/40/50/60/80/100 |
Color: | Blue/Silver/Grey/Customised |
Material: | Housing/Flange:Aluminum Alloy |
Worm Gear:Copper 9-4&nodular iron | |
Worm:20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |
Shaft:chromium steel-45# | |
Bearing: C&U HCH | |
Oil Seal: NAK SKF | |
Packing: | Carton and Wooden Case |
Warranty: | 1 Year |

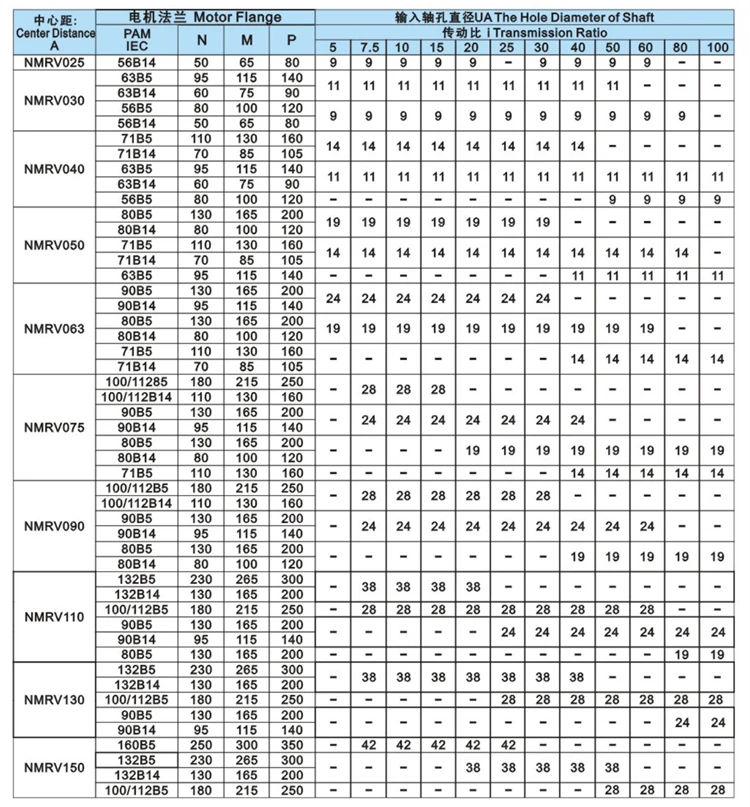

IEC Flange: | 63B5 63B14 71B5 71B14 80B5 80B14 |
Lubricant: | Synthetic&Mineral |
*Parts of the reducer(e.g:flange&gear) can be customised with additional cost, you are welcome to seek quote

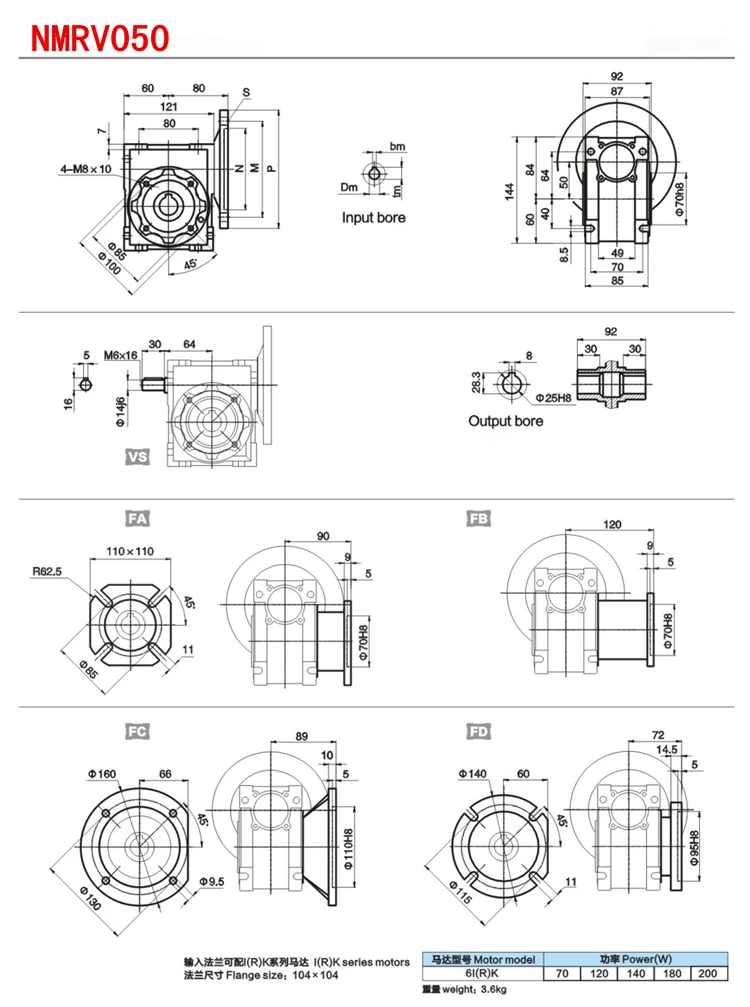

Dimensions

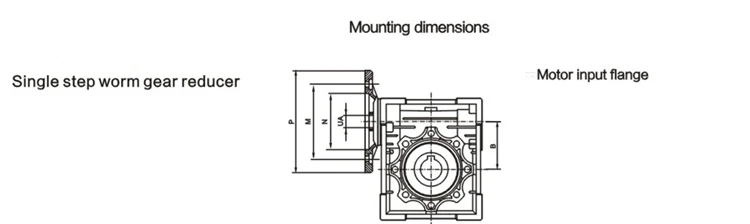

Mounting Dimensions
Our Services
We are top WORM GEAR reducer factory
Sell directly to clients from over 20 COUNTRIES including India, Turkey, Spain, Brazil, Russia etc.
Our total sales revenue for 2014 was $10.5 MILLION USD.
Our products have CONSISTENT HIGH QUALITY and LOW PRICE. We have our own Aluminum Casting factory which guarantees the quality of the products and allow us to offer competitive price.
We do CUSTOMISED products.
Also, we are very nice people to deal with.
Welcome to VISIT OUR FACTORY!
Company Information
Sufficient Stock

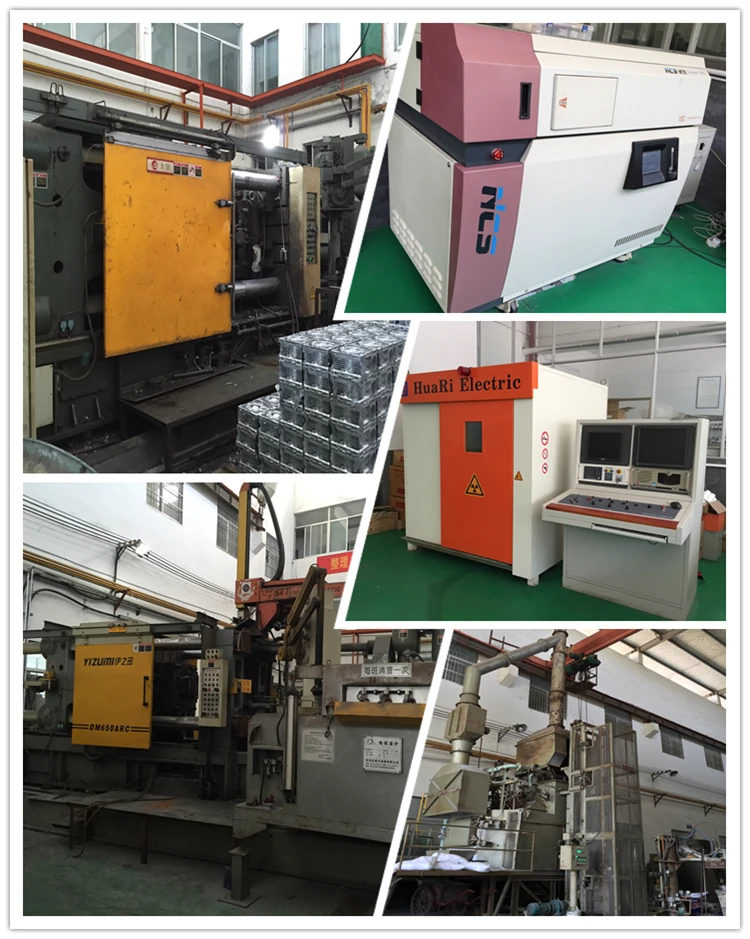

Best Machines in China
Alluminium Casting Machines & Test Facilities
