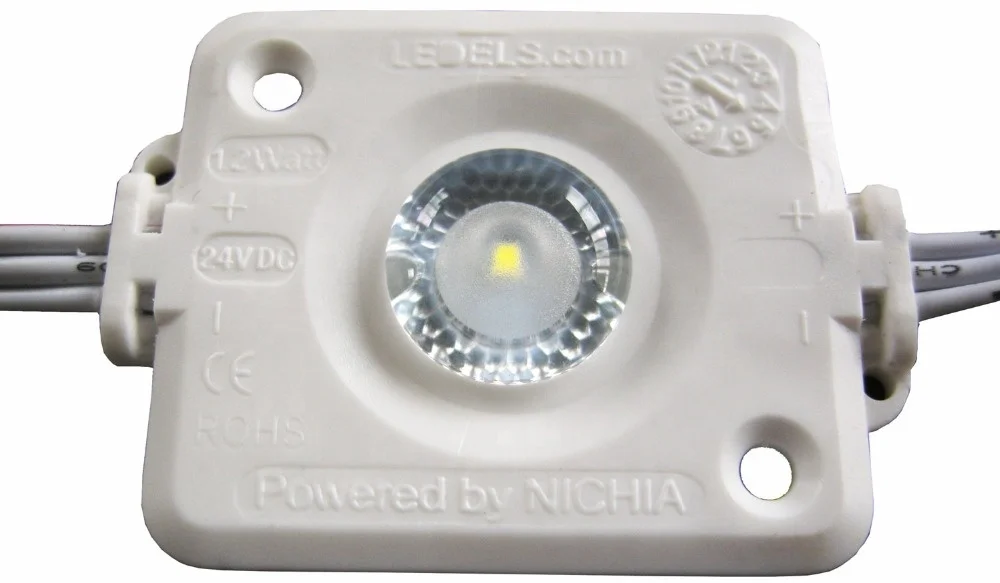

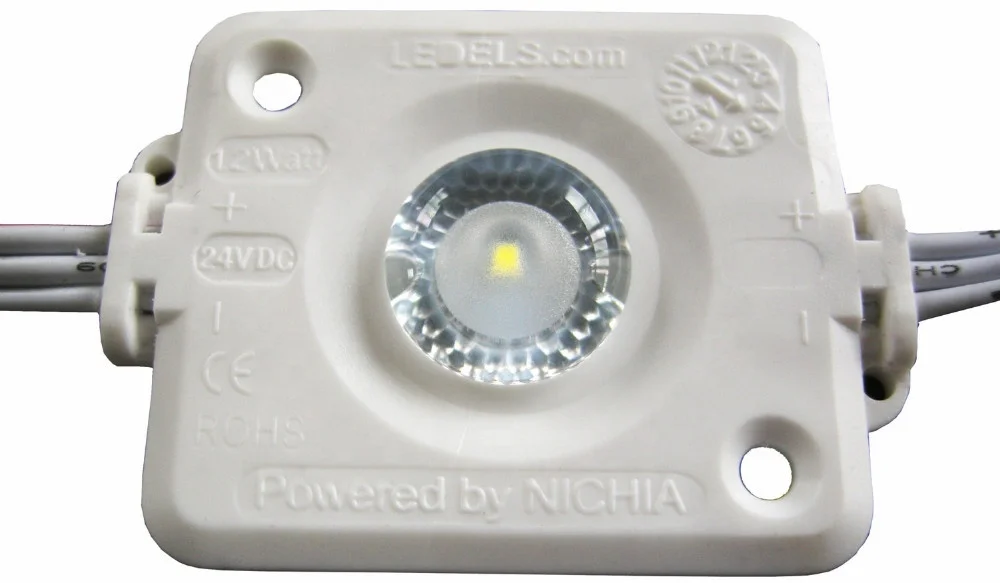

led module for light box

Product Overview

Description

led module for light box

24V 1.2Watt 160 degreesled back lights for sign cul approved

 Applications:



Back emitting to light boxes, outdoor, signage, display case, shadow boxes, vending machines and box signs



 Product Feature:



1  Powered by original Osram or Nichia 1.0Watt LED
2   Wide viewing angle with even light output:160 degrees
3  Backlighting to light boxes whose depth is more than120mm.
4   Energy saving on lightbox illumination: 12.6Watt per sqt

5    Cost effective on lightbox illumination: less thanUSD18.0per sqt
6    Fire retardant (V0 class), waterproof, IP65, ideal for outdoor use



Specification:

Product name: 24V,1.2W 100 lm/Watt 160º UL listed	Application:Box sign lighting, ceiling lighting, C/UL approved
LED type: Osram/Nichia 1.0Watt led	LED quantity: 1 piece
Physical dimension: 40*35*7.5mm	Operating voltage: 24VDC
Power consumption: 1.2Watt	Operating temperature:  -20℃~60℃
Emitting color: Cold White, Warm White	Luminous output each color:Cold White:120 lm; Warm white: 90~100 lm
Beam angle: 160°	Life span: 35000 hours
Defend grade: IP65	Driven mode: Constant current
Weight: 15.0kg/1000	Package: 20 pcs per chain/1000pcs per carton





  Characteristics of Backlights Light Box Module:

·Highest Brightness: 120~130Lm



·Easy Installation LED Modules can be easily installed with blue double-sided sticking tape and connectors.



·Extended Life LED Modules have a life time of more than 50,000 hours.



·Totally waterproofLED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool. The LEDs are totally covered by resin.



·Friendly environmentPb free. With CE/RoHScertificate andUL Listed,  Waterproof LED Modules are up to 60% more energy efficient than neon.



·Safe Application Low voltage DC12V, safety and stable. Free maintenance

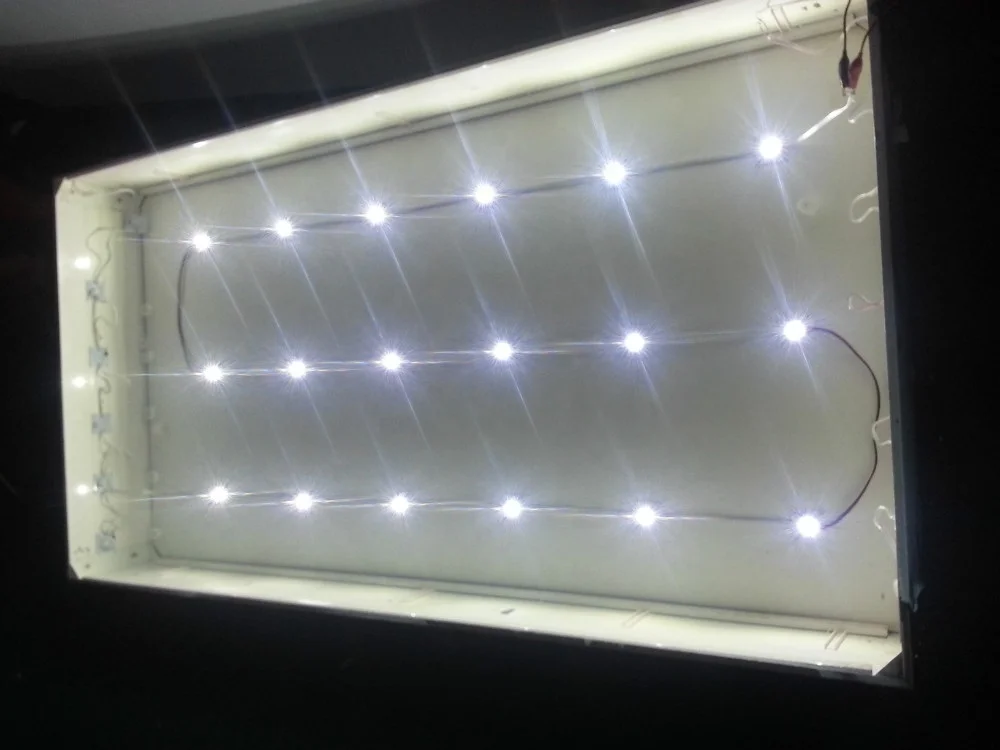

Installation of Back lighting Lightbox Led Module:

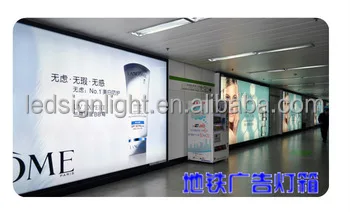

Application case of lightbox led module



Application case 1



Application case 2



Application case 3
