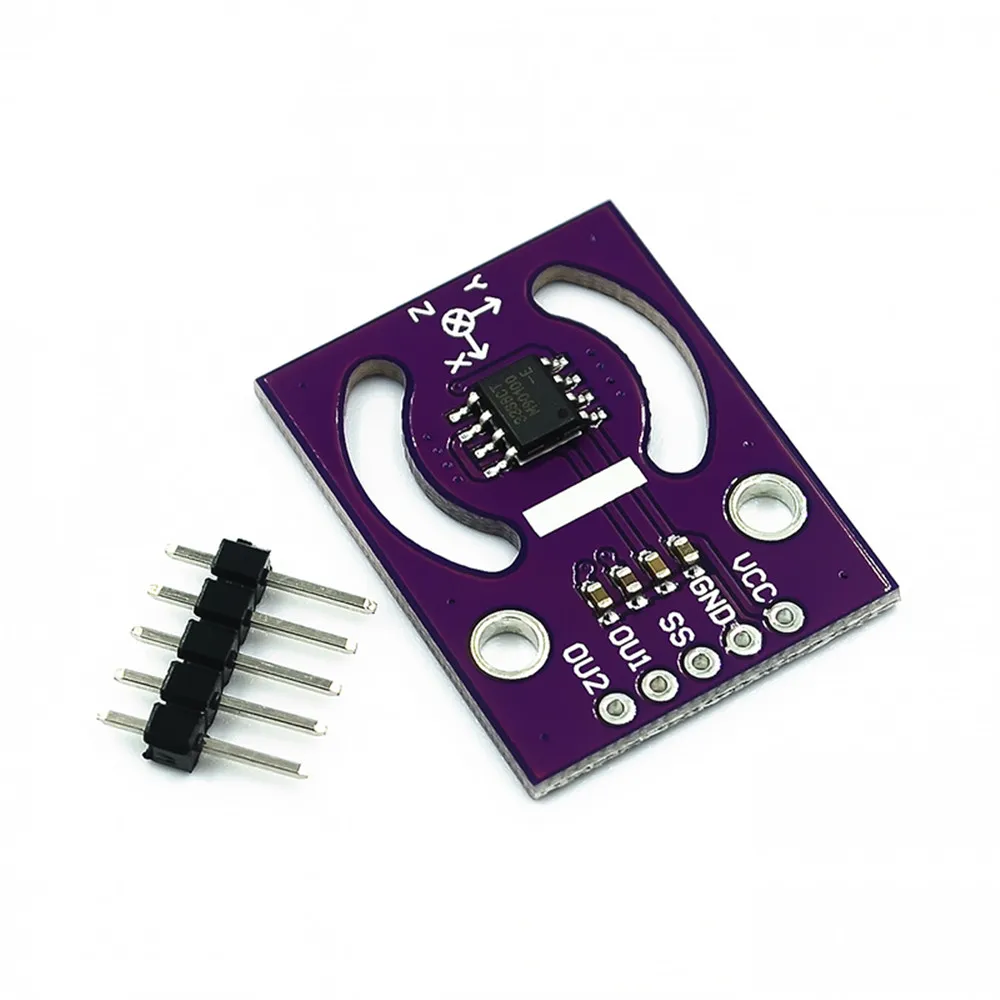

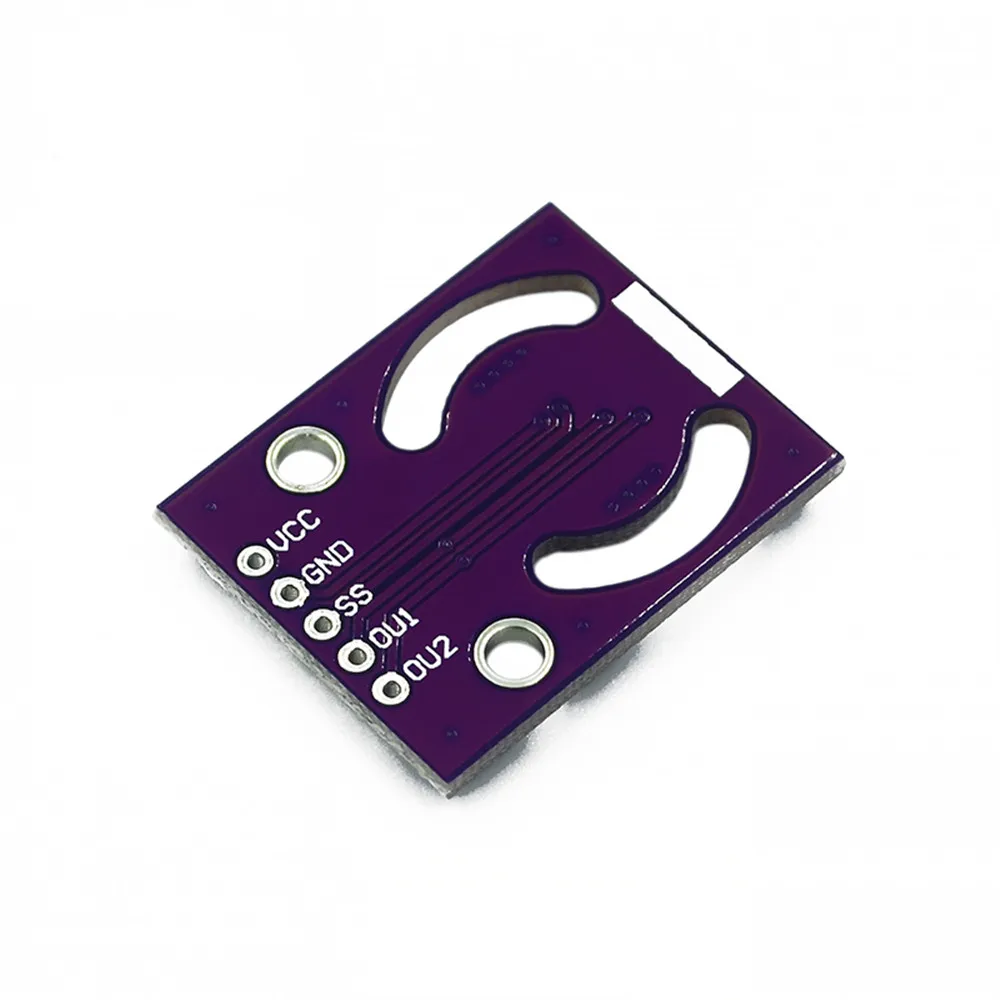

Taidacent Digital Three Dimensional Angle Handle Joystick Hall Effect Sensor Absolute 3D Position Sensor Module MLX90333
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60324692472):
Product Overview
Description
Taidacent Digital Three-Dimensional Angle Handle Joystick Hall Effect Sensor Absolute 3D Position Sensor Module MLX90333

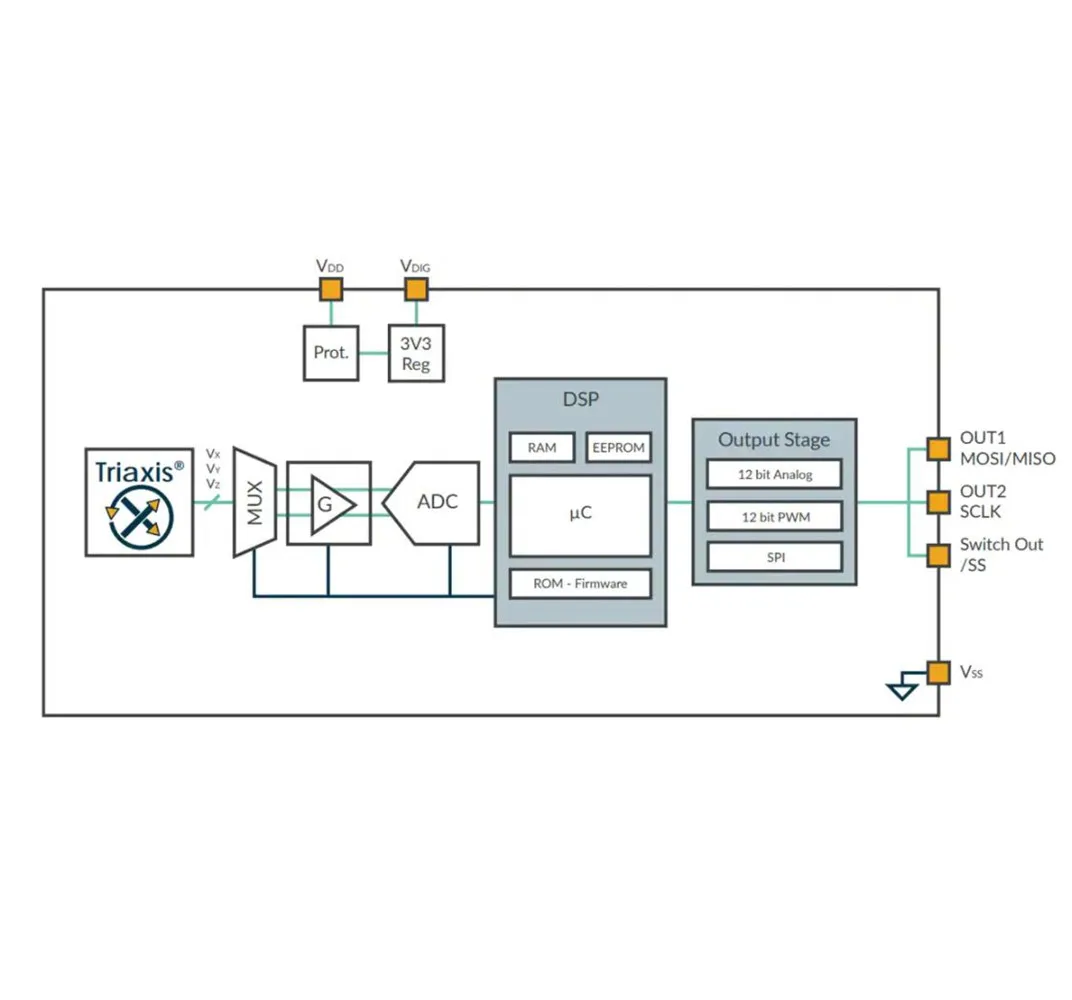

MLX90333 is a TriaxisR position sensor that can sense any magnet moving around it by measuring and processing the 3 spatial components of the magnetic flux density vector (namely Bx, By and Bz).
The horizontal component (Bx and By) can be sensed by the magnetic collector (IMC), and the vertical component (Bz) can be sensed by the traditional Hall plate.
MLX90333 has a 3D magnetometer mode, in which 3D information of magnetic flux density can be output via SPI.
MLX90333 also has a non-contact position sensor mode, suitable for rotary position sensors (through-axis magnets) linear stroke position sensors (magnet displacement parallel to the device surface) and 3D/"joystick" position sensors.
The processed position information will eventually be reported in the form of a proportional analog output or PWM (pulse width modulation) signal. In 3D/"joystick" mode, the device has: Independent output. The 3-pin SPI (serial interface) mode can also be used to transmit position information to the host controller. The output transmission characteristics are fully programmable (for example, offset, gain, clamp level, linearity, thermal drift, filtering, range...), so that any specified requirements can be met through end-of-line calibration.
Suitable for absolute position sensor, rotation (through shaft), linear travel, 3D/"joystick"
The horizontal component (Bx and By) can be sensed by the magnetic collector (IMC), and the vertical component (Bz) can be sensed by the traditional Hall plate.
MLX90333 has a 3D magnetometer mode, in which 3D information of magnetic flux density can be output via SPI.
MLX90333 also has a non-contact position sensor mode, suitable for rotary position sensors (through-axis magnets) linear stroke position sensors (magnet displacement parallel to the device surface) and 3D/"joystick" position sensors.
The processed position information will eventually be reported in the form of a proportional analog output or PWM (pulse width modulation) signal. In 3D/"joystick" mode, the device has: Independent output. The 3-pin SPI (serial interface) mode can also be used to transmit position information to the host controller. The output transmission characteristics are fully programmable (for example, offset, gain, clamp level, linearity, thermal drift, filtering, range...), so that any specified requirements can be met through end-of-line calibration.
Suitable for absolute position sensor, rotation (through shaft), linear travel, 3D/"joystick"
Parameters
Working voltage: 4.5V-5.5V-3D magnetometer mode (SPI)
-40°C-+85°C ambient temperature range
Main clock frequency: fast mode 20MHz, slow mode 7MHz
-40°C-+85°C ambient temperature range
Main clock frequency: fast mode 20MHz, slow mode 7MHz
Sampling rate: fast mode 200us, slow mode 600us
Single output (rotary/linear) and dual output (3D/"joystick")
Single output (rotary/linear) and dual output (3D/"joystick")
Programmable linear transmission characteristics
·Optional output mode: analog (proportional), PWM and serial protocol (SPI) 16 bits · analog input ADC precision: fast mode 14 bits, slow mode 15 bits
PWM output frequency: 100-1000Hz, PWM output precision 12-bit 0.025%DC/LSB· 12-bit angular resolution, 10-bit angular precision, 40-bit ID number
Magnetic flux density: Bx and By: 20-70mT, Bz: 24-140mT
Internal 16-bit RISC DSP: 256B-RAM, 10KB-ROM, 128B-EEPROM, 5MIPS at 20MHz
·Optional output mode: analog (proportional), PWM and serial protocol (SPI) 16 bits · analog input ADC precision: fast mode 14 bits, slow mode 15 bits
PWM output frequency: 100-1000Hz, PWM output precision 12-bit 0.025%DC/LSB· 12-bit angular resolution, 10-bit angular precision, 40-bit ID number
Magnetic flux density: Bx and By: 20-70mT, Bz: 24-140mT
Internal 16-bit RISC DSP: 256B-RAM, 10KB-ROM, 128B-EEPROM, 5MIPS at 20MHz
Magnetic temperature coefficient: -2400～0 ppm/ c
Broken wire diagnosis (Vdd open circuit, Vss open circuit)
Broken wire diagnosis (Vdd open circuit, Vss open circuit)
On-chip diagnosis
Overvoltage protection, undervoltage detection

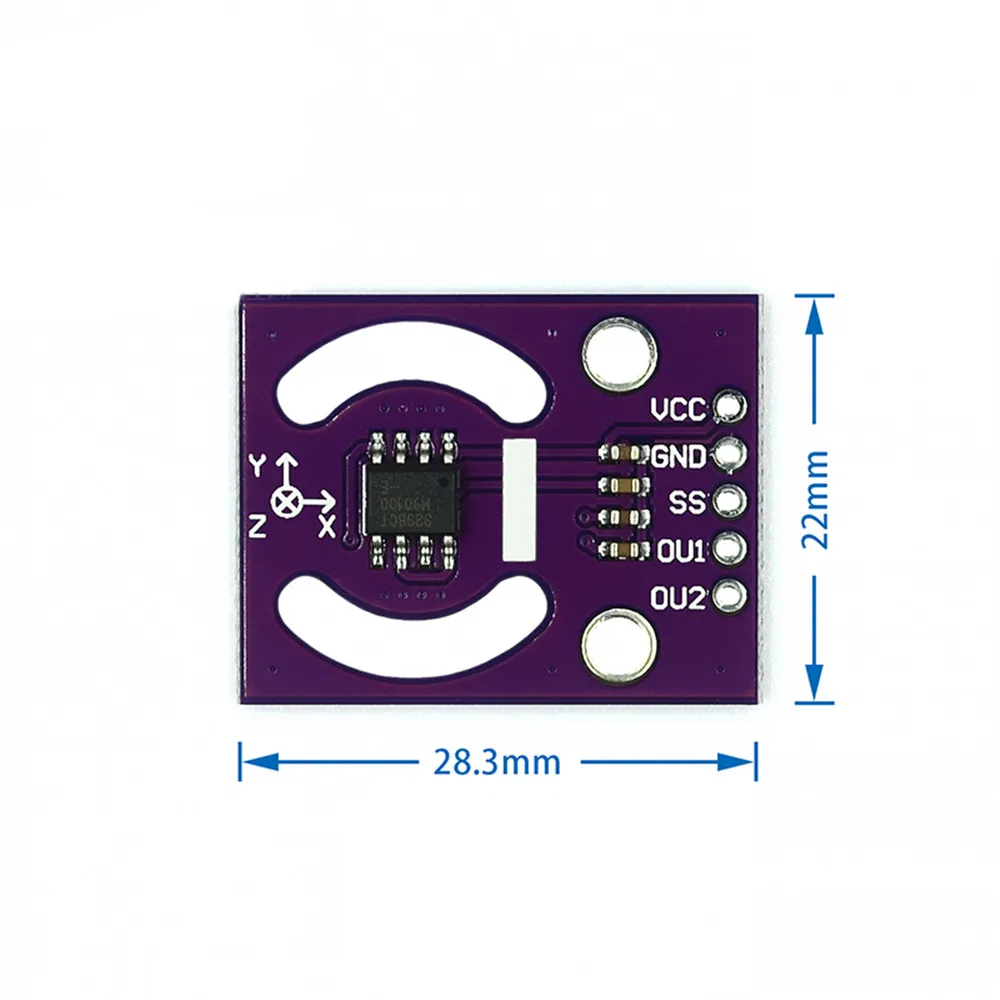

Module size 28.5mm*22.1*3.3mm, with two M3 mounting holes
Overvoltage protection, undervoltage detection
Module size 28.5mm*22.1*3.3mm, with two M3 mounting holes
Product Description
Specification
item | value |
Model Number | TDJLMLX90333 |
Type | Motion & Position Sensor |
Place of Origin | China |
Guangdong | |
Brand Name | Taidacent |
Usage | Linear Position Sensor |
Theory | linear position transducer |
Output | Analog |
Description | MLX90333 Position Sensor |
