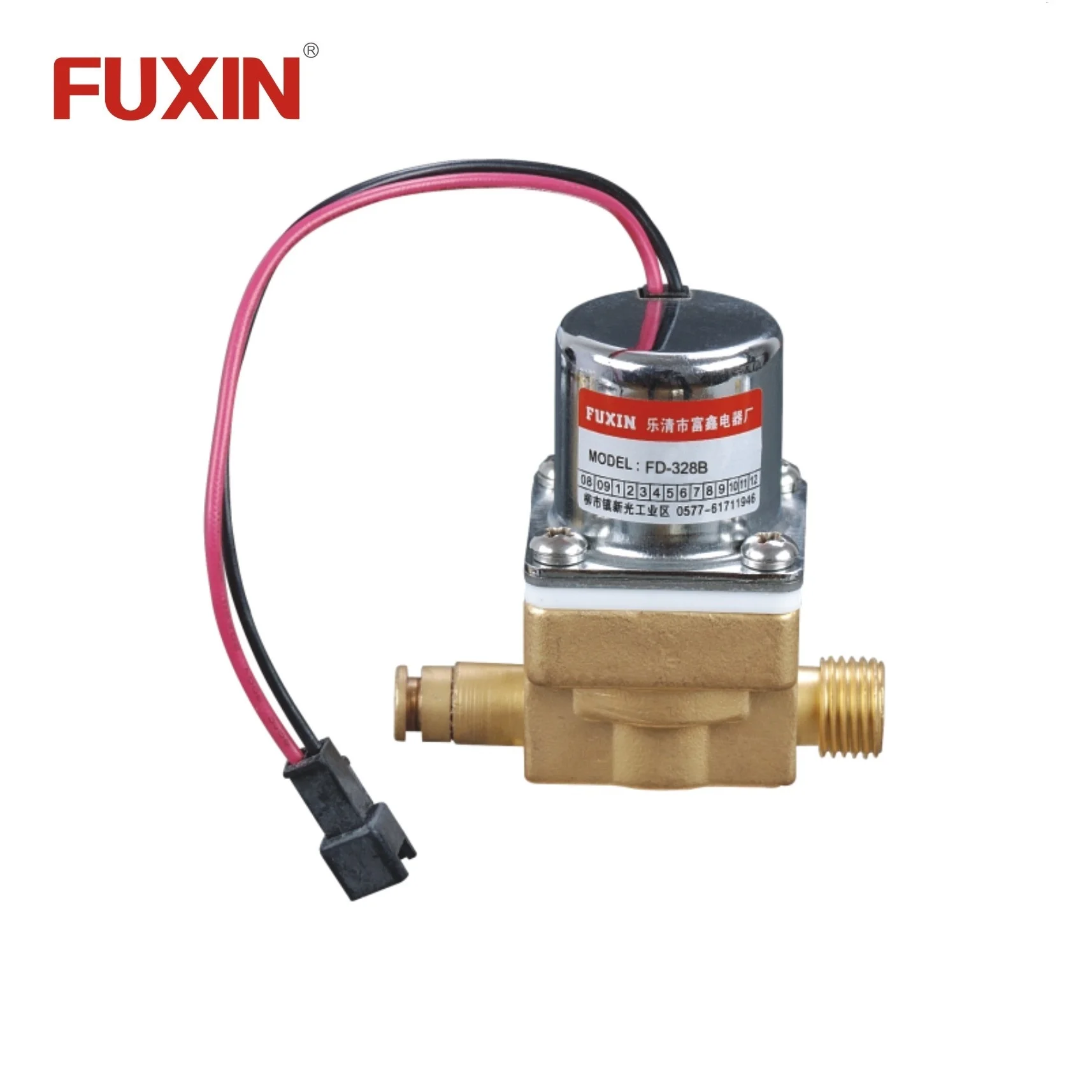

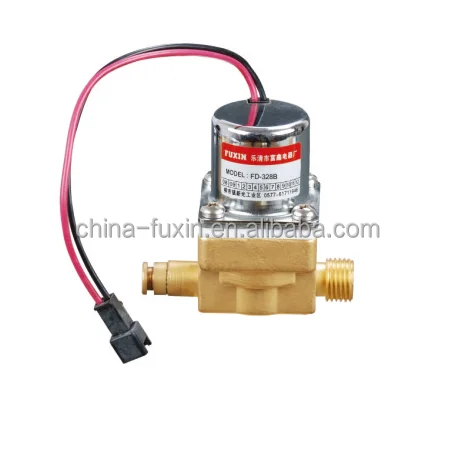

12V dish washing bistable pulse water latch solenoid valve
- Category: >>>
- Supplier: Yueqing Fuxin Electric Factory
Share on (60324799655):
Product Overview
Description
Product Description
Sensor sanitary water solenoid valve
12V solenoid valve
Sensor sanitary ware
urinal water solenoid valve
hand-washing water solenoid valve
smart toilet water solenoid valve
shower irrigation water solenoid valve
solar water solenoid valve
sensor sanitary wc pan water solenoid valve
6V pulse solenoid valve
The valves are apllied in the automatic system for Infrared faradic sanitary of faucet,Urinal flusher and so on.There are three cavities in the valve body to adjust the pressure,reduce the resistance when the valve core is moving in the cavity ,also absorb the impact of medium to valve body while switching. Which improve the stability of valve and extend the service life, narrow the pulse width upon the max or min pressure . Special self-clean feature makes the easy anti-blocking ability .
Rated voltage: 6VDC/12VDC/24VDC/12VAC/24VAC
Coil Resistance: 17Ω±0.5Ω(20℃)
Switch Mode: DC Pulse
Pulse Width ≥30ms
Working Pressure 0.02Mpa-0.8Mpa
Medium Temperature: 1~75℃
Responding Time: Open≤0.15s Close≤0.5s
Flux Performance: 0.02Mpa≥3L/min 0.1Mpa≥16L/min 0.8Mpa≥40L/min
Service Life ≥1000000times
Technical Feature
Instruction
Rate voltage | DC 6V | AC12V | DC 12V | AC24V | DC 24V | ||||||||
Coil resistance | 17.5Ω±0.5Ω(20℃) | 17.5Ω±2Ω(20℃) | 36Ω±2Ω(20℃) | 40Ω±2Ω(20℃) | 130Ω±5Ω(20℃) | ||||||||
Min current | 228mA | 480mA | 300mA | 250mA | 166mA | ||||||||
Switch mode | DC pulse | AC and DC continuous | |||||||||||
Pulse wide | ≥30ms | ||||||||||||
Operating pressure | 0.02Mpa—0.8Mpa | ||||||||||||
Media temperature | 1℃--75℃ | ||||||||||||
Responding time | Open ≤0.15s close≤0.5s | ||||||||||||
Pressure and flow rate diagram:
| |||||||||||||
Pressure (MPa) | 0.02 | 0.05 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | |||
Flow rate L/min | 3 | 9 | 14 | 18 | 23 | 27 | 30 | 32 | 34 | 36 | |||
Performance test
Strength test | Static pressure 1.6MPa | Withstand voltage pressure 1.2MPa/5min | |||
No-load test | Voltage 3.6V pulse width 30ms | Permissible limiting voltage V*1.15 | |||
High water pressure start and close | At water pressure 0.8MPa,voltage DC 4.5V,pulse width 30ms,the solenoid valve can be started and closed normally | ||||
low water pressure start and close | At water pressure 0.02MPa,voltage DC 4.5V,pulse width 30ms,the solenoid valve can be started and closed normally | ||||
Leakage upon high water pressure | 1.2MPa without leakage | ||||
Leakage upon low water pressure | 0.02Mpa leakage≤0.1ml/min | ||||
Electric strength | Among conductive part, mounting hole and nonconductive metal, it can withstand 500V/50Hz,leakage current 0.75mA for 1 min without the breakdown | ||||
Insulation resistance | The resistance between the charged part and nonconductive metal part tested by megohmmeter of 500V ≥20MΩ | ||||
Sealing test |
Static pressure | Air | High pressure | 1MPa | |
Low pressure | 0.02MPa | ||||
Cold water | High pressure | 1.2MPa | |||
Low pressure | 0.02MPa | ||||
Hot cold | High pressure | 0.8MPa | |||
Low pressure | 0.02MPa | ||||
Service life | ≥1000000 cycles | ||||
Requirements of working environment
Temp of working environment | 1℃--60℃ | Permissible limiting pressure(water) | ≤1.2MPa |
Humidity of working environment | 35%-90% RH | Mounting direction | It is mounted in vertical. The inclination do not exceed 15 degrees |
Storage temp | -5--80℃ no freezing state | Storage humidity | 25%--95% RH |
Packaging & Shipping
Our Services
1)Our advantage:
We are the manufacturer with more than 15 years experience in sensor sanitary solenoid valves. Best price, quality and service, Also we can control the production status.
Fuxin team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai/Ningbo ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose Fuxin’s products , we are always ready!
Company Information
FAQ
Q: Do you have factory?
A: Yes, Our factory is located in Taiwan- Taichung, covering a land area of 6,000 square meters.
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed the ISO9001:2008,CE,ROHS,NSF,ANSI
Q: What is the delivery date?
A: 20 days after order confirmation
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order.
Q: What are your terms of payment?
A: T/T and Bank Transfer
