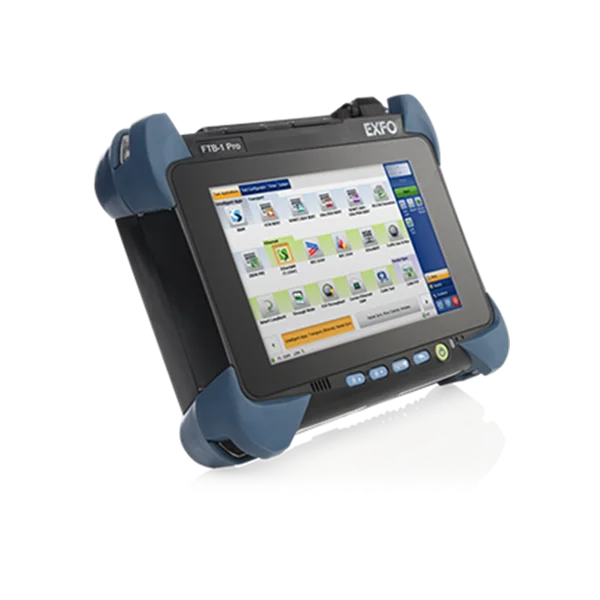

Fiber optic equipment SM OTDR exfo ftb 1v2 720c 12cd sm1 1310/1550nm with 36/34dB EXFO OTDR
- Category: >>>
- Supplier: Beijing W&f Technology Co. Ltd.
Share on (60325032133):
Product Overview
Description

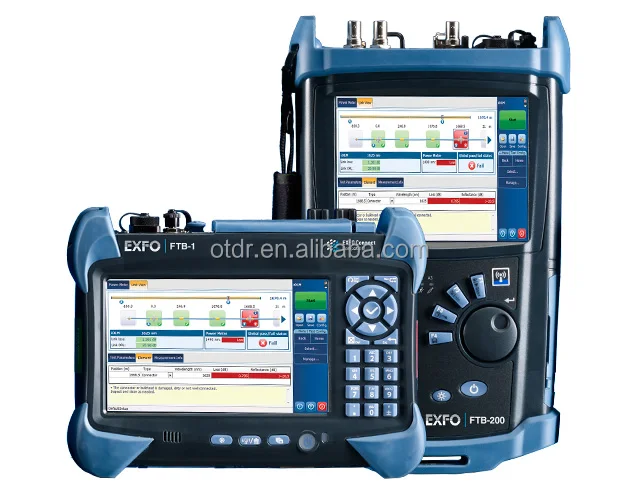

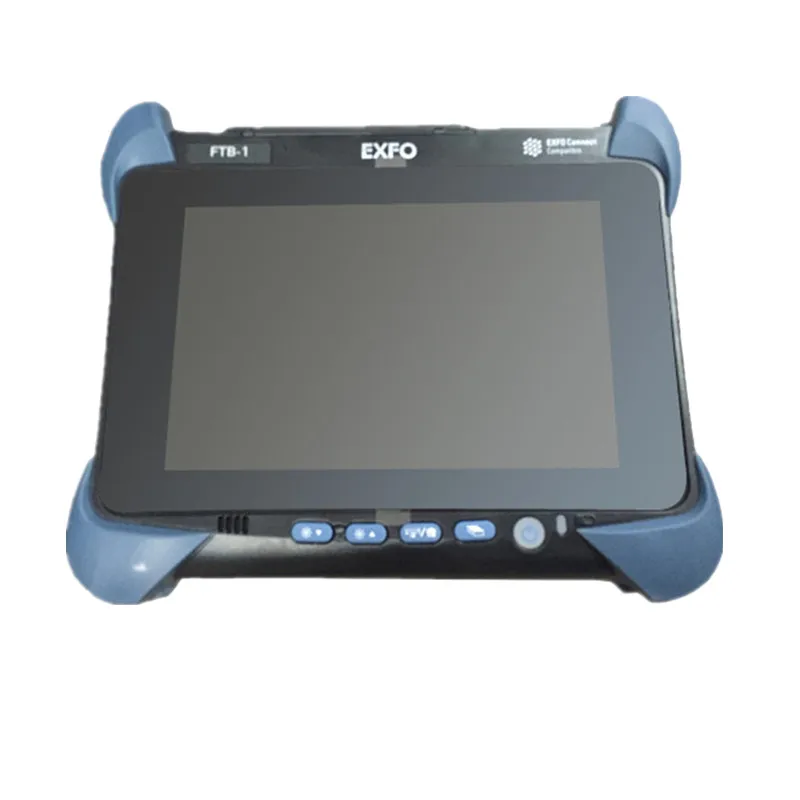

Fiber optic equipment SM OTDR exfo ftb-1v2-720c-12cd-sm1 1310/1550nm with 36/34dB EXFO OTDR
EXFO FTB1 platform multifunction tester is specializing in FTTH and Ethernet test applications and optimization of the mode of the fast and powerful institutionalized.
1.Flexible connection: USB
2.Practical tools: support the third party applications and tools that allow technical personnel able to quickly complete the task is testing
3.Test management/report: use EXFO connection function monitoring site operation (local and remote)
4.To PC as the guidance: use Intel Atom processor and Windows embedded operating system, improve work efficiency and many purposes
5.Power Management:The latest battery technology provides unmatched operation autonomy

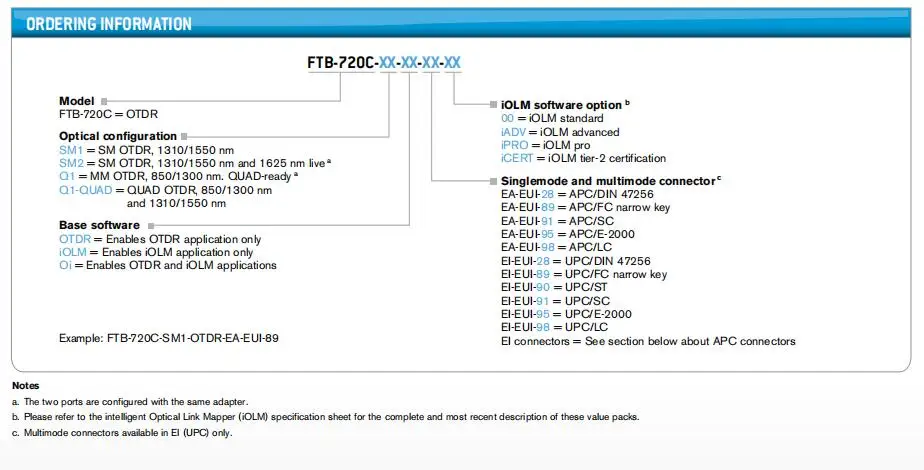

Model | FTB1v2-720C-023B
|
Wavelength (nm) a | 1310 ± 20/1550 ± 20 ( option :850 ± 20/1300 ± 20/1625 ± 10) |
SM live-port built-in filter (option) | 1625 nm: highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm |
Dynamic range (dB) b | 36/35 (27, 29, 35) |
Event dead zone (m) c | Singlemode: 0.7 Multimode: 0.5 |
Attenuation dead zone (m) | Singlemode: 3 d Multimode: 2.5 e |
PON dead zone (m) f | 35 |
Distance range (km) | Multimode: 0.1 to 40 Singlemode: 0.1 to 260 |
Pulse width (ns) | Multimode: 3 to 1000 Singlemode: 3 to 20 000 |
Launch conditions g | EF-compliant |
Linearity (dB/dB) | ±0.03 |
Loss threshold (dB) | 0.01 |
Loss resolution (dB) | 0.001 |
Sampling resolution (m) | Multimode: 0.04 to 5 Singlemode: 0.04 to 10 |
Sampling points | Up to 256 000 |
Distance uncertainty (m) h | ±(0.75 + 0.0025 % x distance + sampling resolution) |
Measurement time | User-defined (maximum: 60 minutes) |
Reflectance accuracy (dB) a | ±2 |
Typical real-time refresh (Hz) | 4 |
Display | Touch screen, color, 800 x 480 TFT, 178 mm (7 in) | |
Interfaces | Two USB 2.0 ports RJ-45 LAN 10/100/1000 Mbit/s Fiber inspection probe connector port (video) | |
Storage | 8 GB internal memory (flash) ; 16 GB internal memory (flash), optional | |
Batteries | Rechargeable lithium-ion batteries 8 hours of operation as per Telcordia* (Bellcore) TR-NWT-001138 | |
Power Supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output 24 VDC, 90 W | |
Computer | Intel ATOM processor Windows Embedded Standard operating system | |
GENERAL SPECIFICATIONS | ||
Size(H x W x D) | 190 mm x 252 mm x 66 mm (7 1/2 in x 9 15/16 in x 2 5/8 in) | |
Weight (with battery) | 1.5 kg (3.3 lb) | |
Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) | |
Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) | |
Relative humidity | 0 % to 95 % non-condensing | |
Related Products:

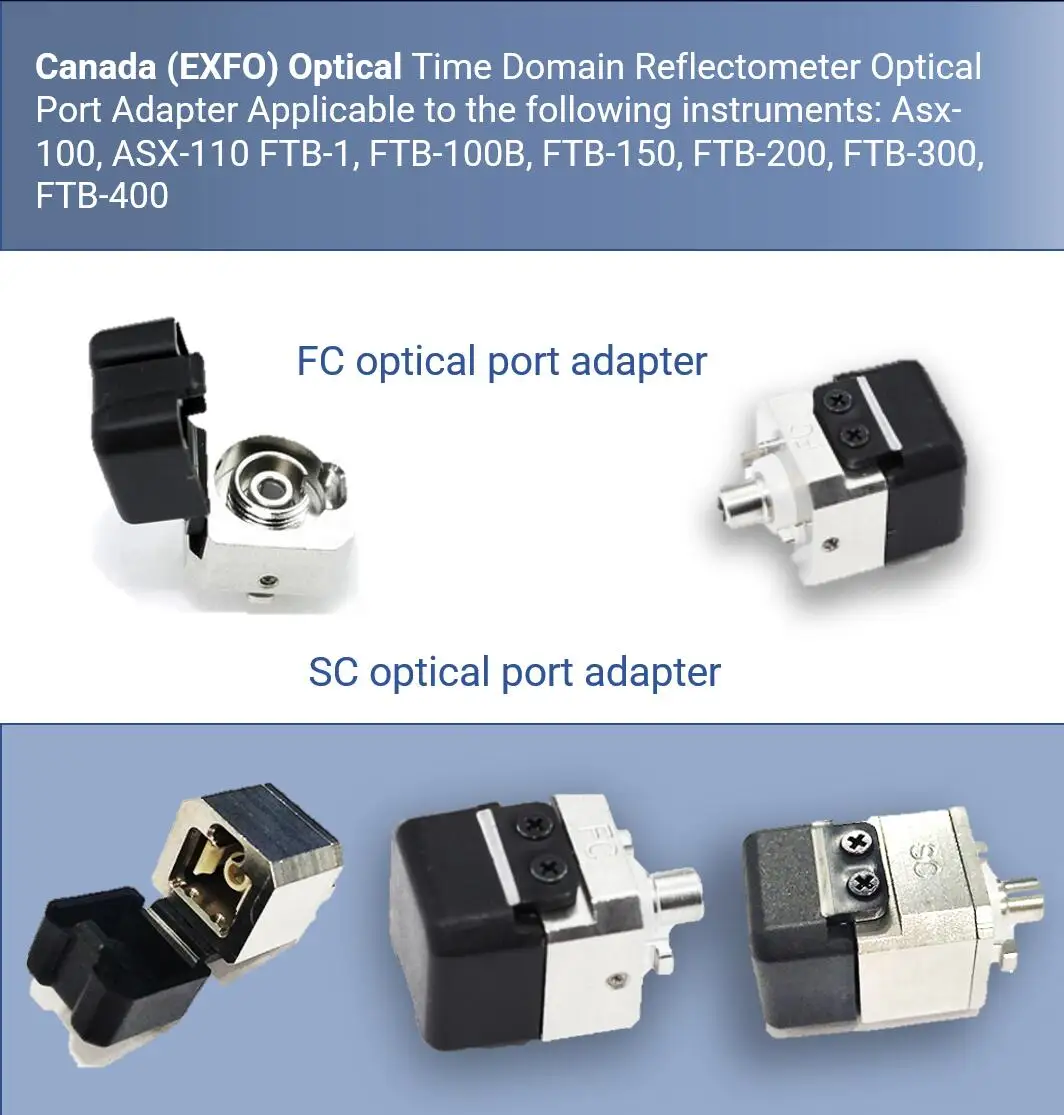

FC/SC Adapter

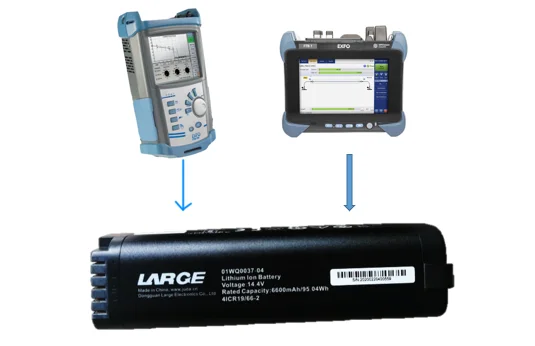

Battery:
