Textile folding and rolling machines, fabric double fold and fold rolling machine with book form

Product Overview

Description

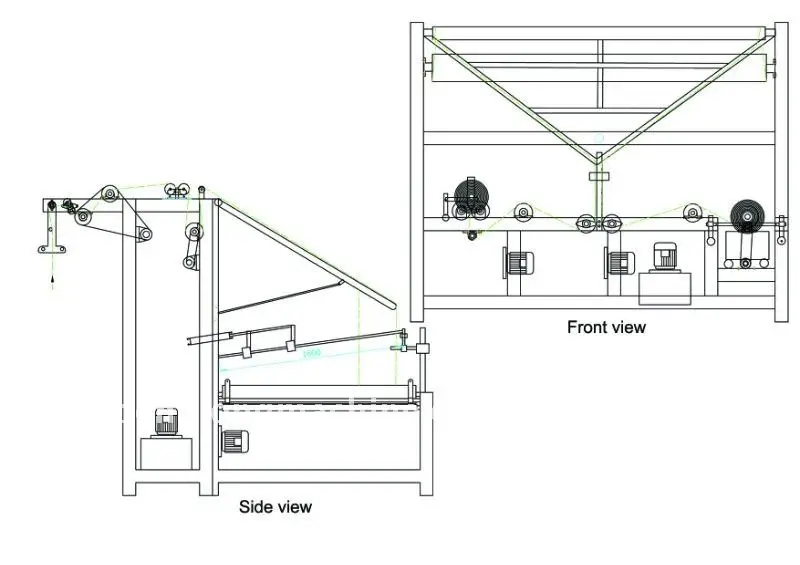

 PL-G  Cloth Folding and Rolling Machine



Usage

PL-G Automatic Fabric Folding and Rolling Machine is with high speed and efficiency, this unit is suitable for suiting and plain weaving fabrics. Fabrics will be rolled up after folding.Fabrics will be discharged automatically after they are rolled up. Fast and convenient for operation as well as saving time.

Characteristics

1. Automatic Fabric Folding and Rolling Machine is equipped with three sets of photoelectric-hydraulic tracking system.

2. Triangular folding frame is madeAutomatic Fabric Folding and Rolling Machineis of stainless steel pipes.

3. Speed is adjustable by inverters, forward or reverse running.

4. Fabric will be wound on cylinder paper core or paper cardboard.

5. Equipped with counter which can record the length of the fabric.

Technical Parameter

1	Working Width	1800mm~2400mm(other sizes available)
2	Motor	inverter 3HP×4P×1set. (Brake attached)
3	E.P.C Edge-aligning system	1/2HP×4P(2 sets twin edge alignment M/C, 1 set single edge alignment M/C)
4	Winding Speed	30~120 yards/min
5	Operating Space	2350mm(L) ×2250mm(W) ×2600mm(H) (1800mm)
6	Packing Size	2450mm(L) ×2350mm(W) ×2700mm(H) (1800mm)





Automatic Fabric Folding and Rolling Machine
