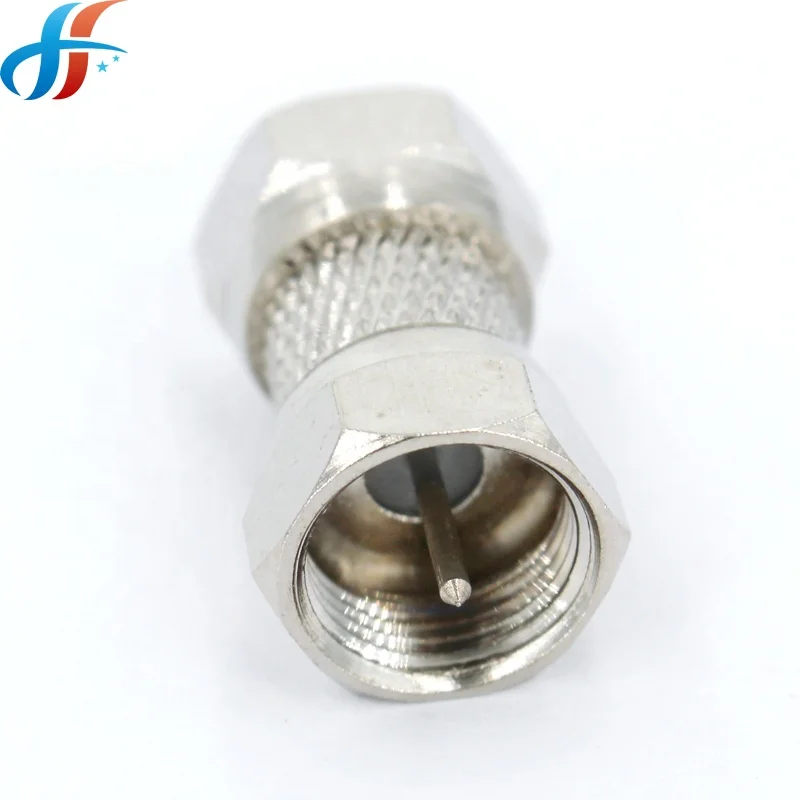

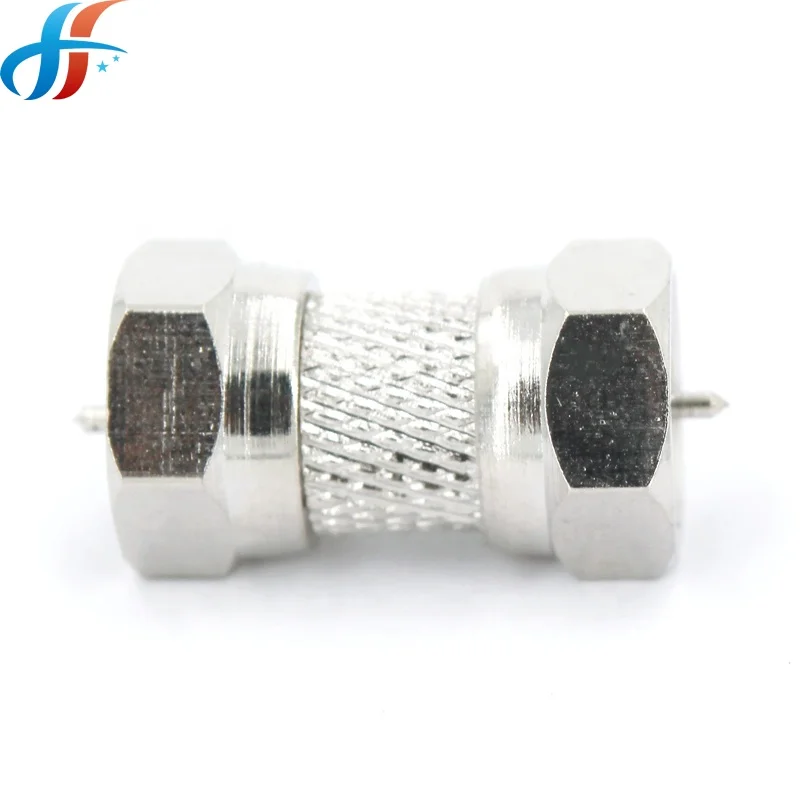

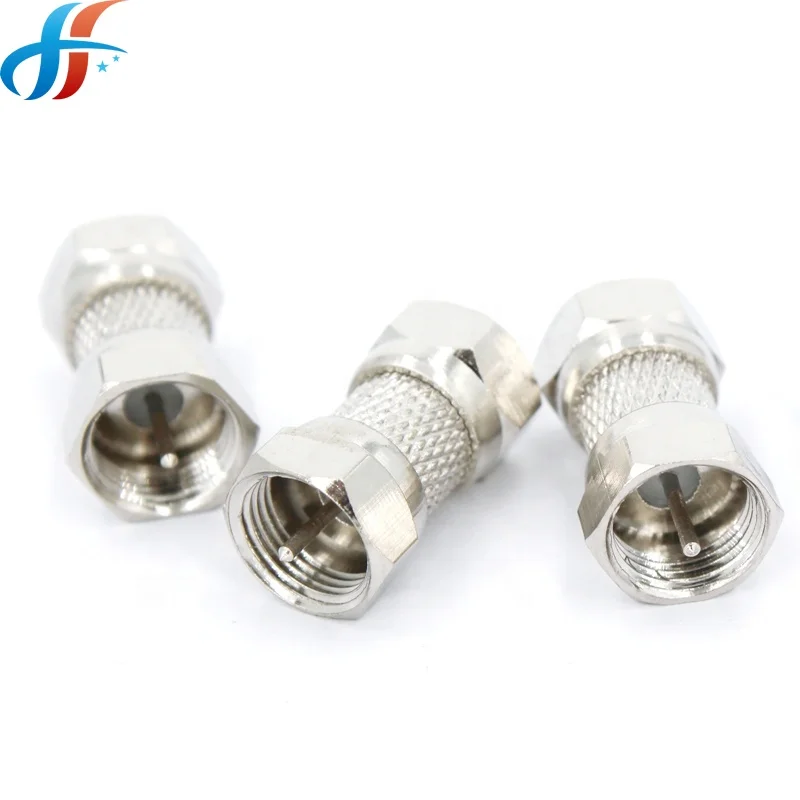

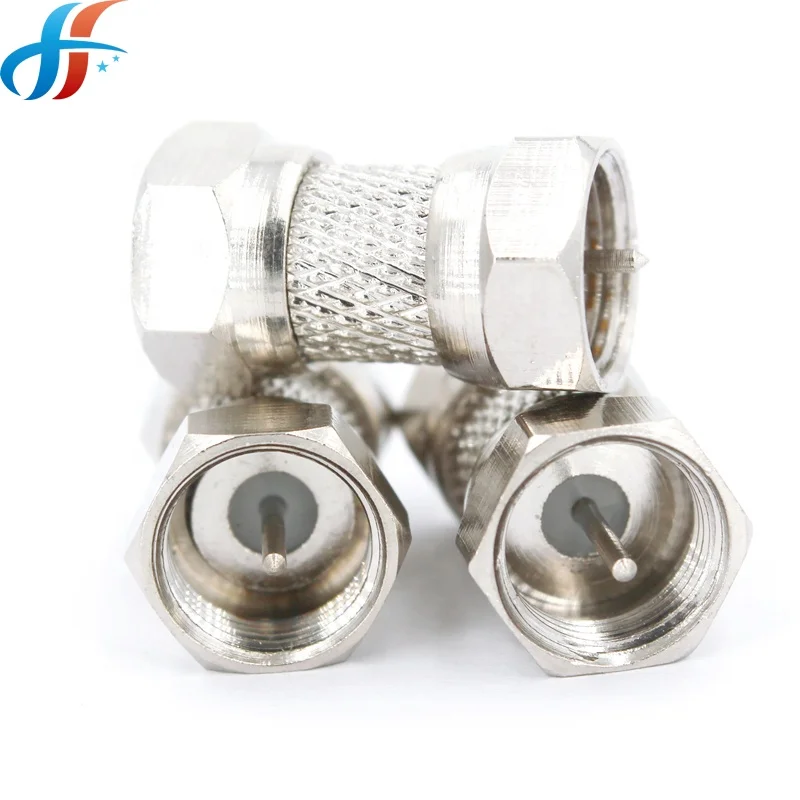

big nut F male to male double head RF coaxial F connector adapter

F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less, and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV, MATV,CCTV and related consumer television products.

F connectors are available in a limited selection to fit various cable sizes.

TECHNICAL CHARACTERISTICS
Temp. range.................. ....-40~ +60 ℃
Impedance.................... ...75Ω
Frequency Range..............DC~1GHz
Working Voltage............. ...170V max
Withstand Voltage......... .....500V rms

Contact resistance
Center Contact..............≤10mΩ
Outer Contact...............≤5mmΩ
Insulation resistance ......≥1000 mΩ
VSWR Straight...............≤1.20
Right angle?................≤1.30
Durability(mating)............500 (cycles)

MATERIAL & PLATING
Shell ..............Brass ................Nickel-plated
Contact pin ........brass.................gold -plated
Elastic contact.... beryllium ............gold or silver-plated
Insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated

1. How about your lead time?
A: it depends on order quantity. Usually 15-45 days.

2.How can we get a sample.
A: Free sample, Freight collected by your side.

3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.

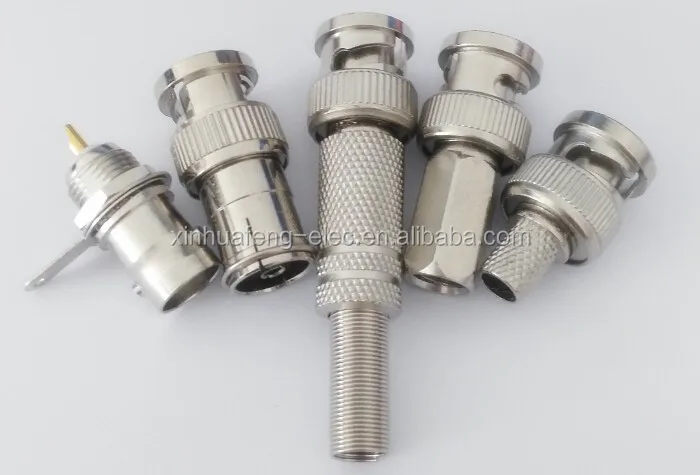

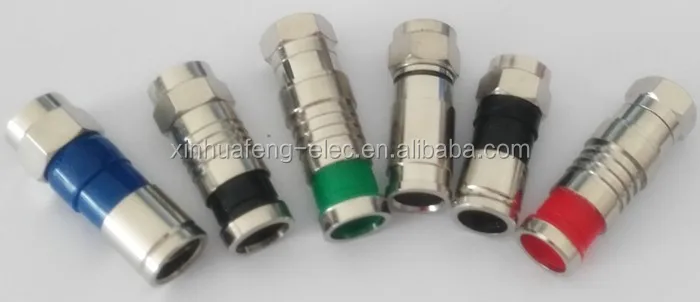

ZHENJIANG XINHUAFENG ELECTRONICS CO., LTD  is a professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.
