pool solar heater solar poolheizung solar heating for swimming pool

Product Overview

Description

Quick and easy self-assembly

Gain up to 4 degree for 9m3 (2400 Gallons) thanks to solar energy!

Must be connected to the pool filter pump (minimum flow rate of 2m3/H)

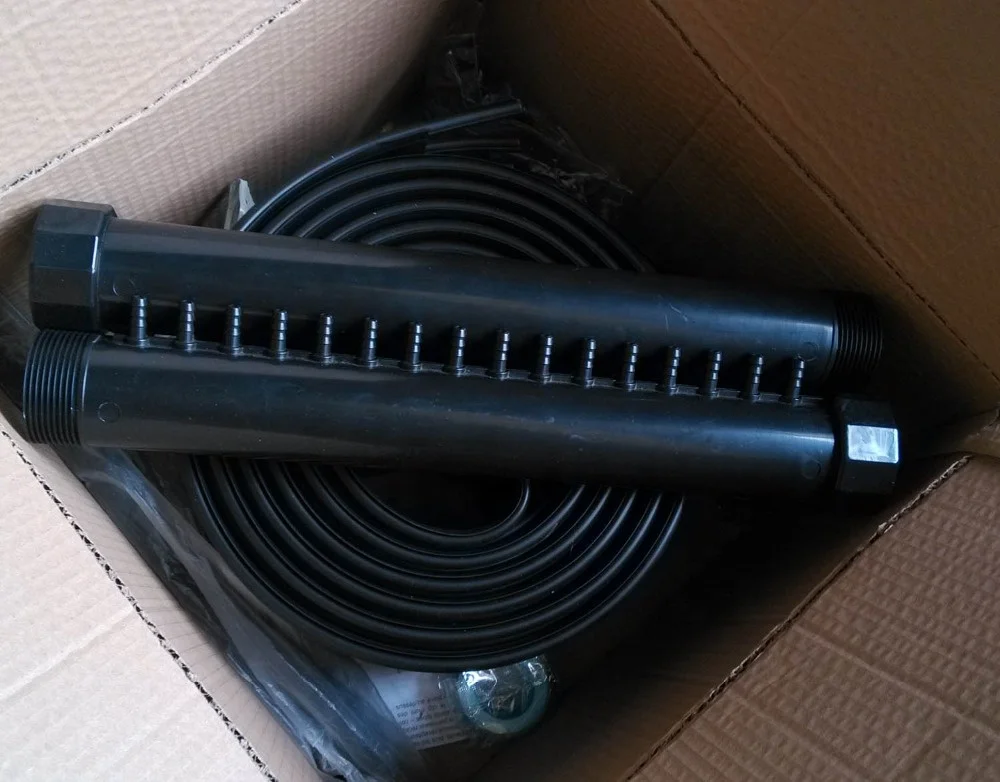

Supplied with swimming pool hose adaptors for 32 or 38mm (1 1/4” and 1 1/2”) + manifolds with 1 1/2” for rigid PVC pipe.

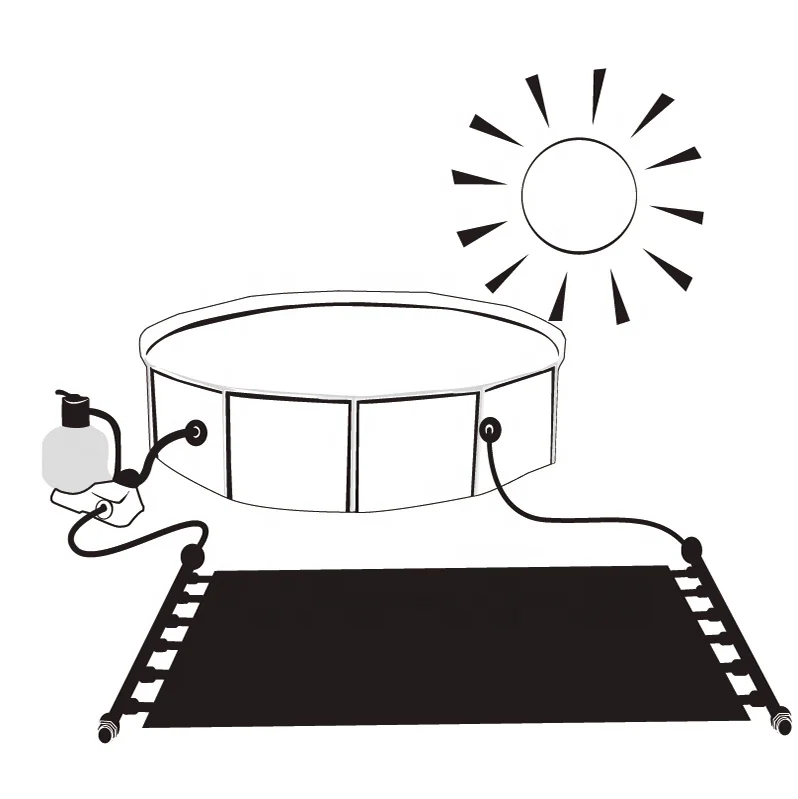

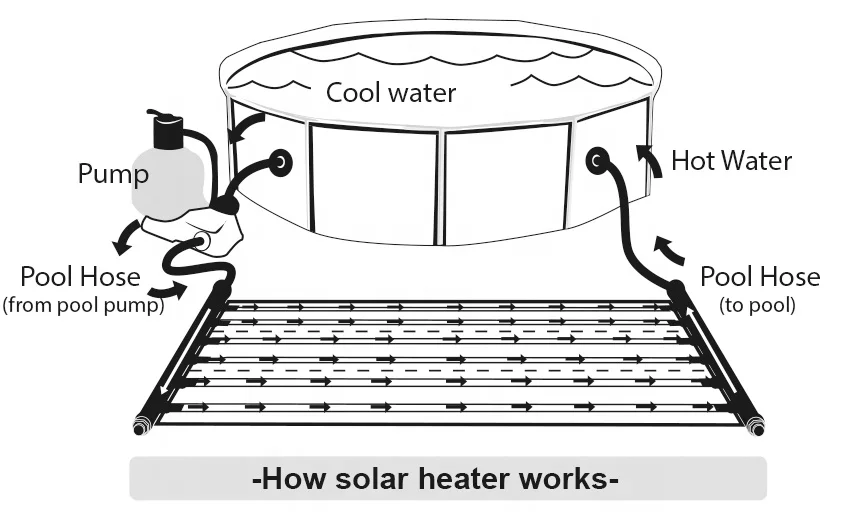

When exposed to the sun, the black surface of the collector panel gradually heats up the pool water.

Fits into your exisiting pool filter system.  Works with 2m3/h pump minimum (9GPM).

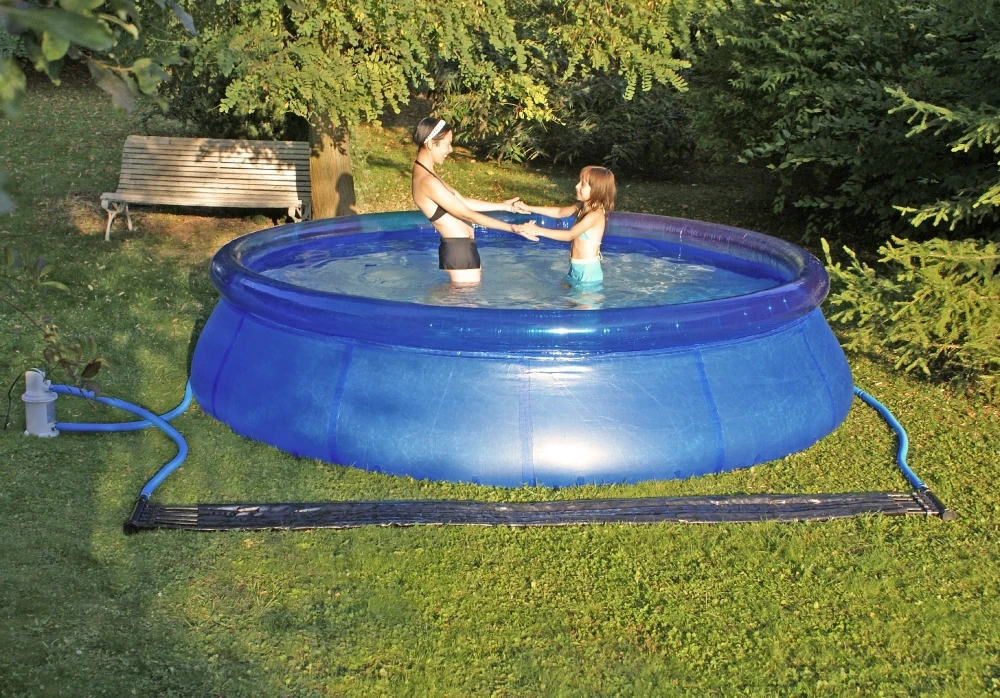

As it is made out of flexble materials, the solar heater can be installed flat or curved slightly to fit the contours of the ground.

Collector panel measurements 3.50m x 0.35m

Depending on where you want to install the solar heater, you may need additional coupling hoses (not supplied) between the filter system and the collector panel, or between the collector panel and the pool.



GW: 3.5 KGS

NW: 3.0 KGS

Container loads:

1242pcs/20ft

2484pcs/40ft

2898pcs/40HQ
