Yatour yt m07 iphone/android mp3 адаптер для автомобиля cd плеер

Product Overview

Description

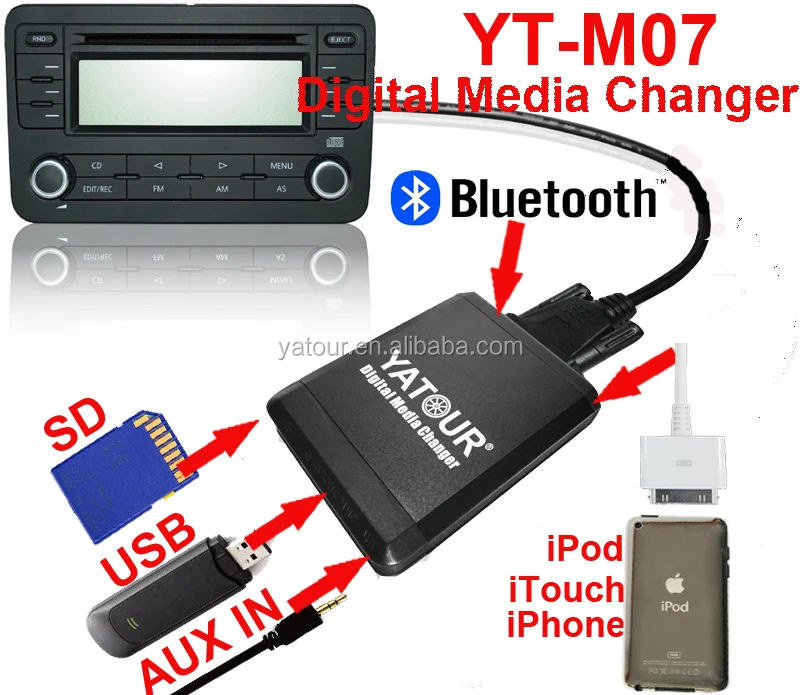

Yatour yt-m07 iphone/android mp3 adapter for car cd player

* Features:

* Support USB / SD / AUX IN / Ipod / Iphone /Itouch;

* Deliver Original CD quality sound through CD Changer port ;

* Plug and Play ;

* Directly control by car radio panel ;

* Supports last position memory(LPM) ;

* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed

* Optional Bluetooth function support.



 *Specifications :

Voltage input:11v~14.6v DC	Operational current: 400mA
Standby current : 5mA	Operating Temperature : -35 °C~+85 °C
DAC resolution : 20bit	Total harmonic distortion : 0.05%
SN ratio : 90dB	Frequency response : 20Hz-20KHZ



*Compatible car :



PS: For you choicing the right one , please contact us for further detailed vehicle models.

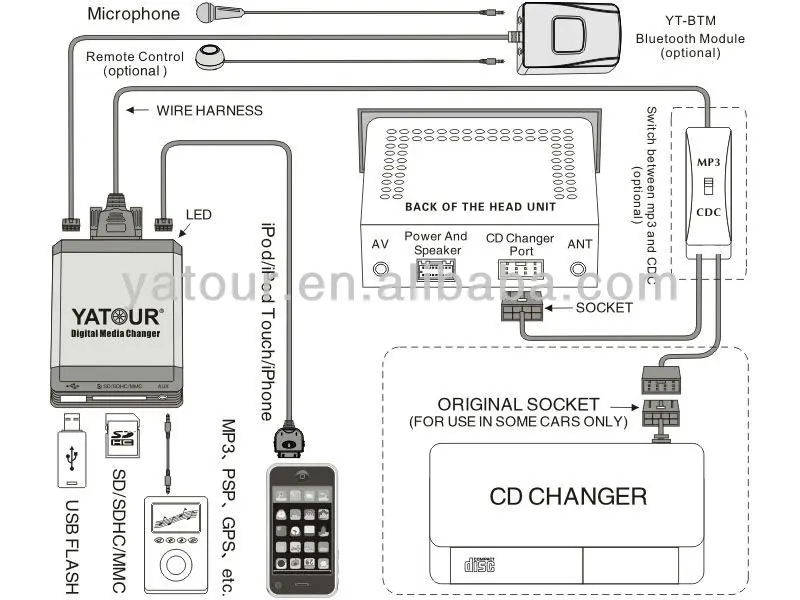

* Installation Diagram:

This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.

  Note :  Mp3 / CDC Swith cable is optional , available for some vehicles only.





*How to save music into folders :

1. Name folders as CD01 ,CD02 ,CD03...etc

2. The naming of songs is unrestricted .

3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .

4. Support mp3 / wma .



Below is showing example .

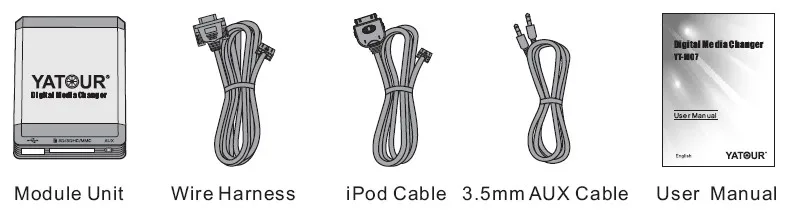

* Accessories:



*Package:

• Standard packing box : 210 x 150 x 60 mm

• Half-size packing box : 142x 96 x 64 mm

• Module weight : 80g

• Gross weight : 260g~440g .
