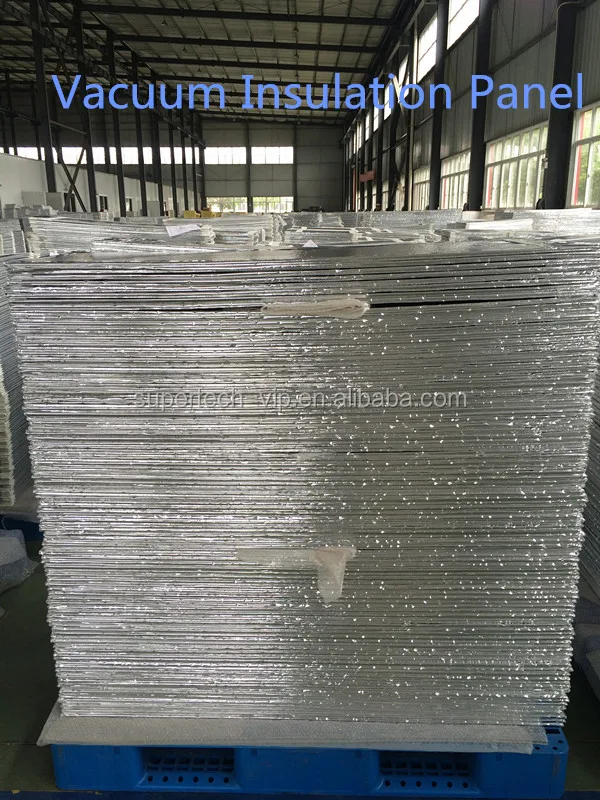

Vacuum Insulation Panel with Super Tech Getter
- Category: >>>
- Supplier: Fujian Super Tech Advanced Material Co. Ltd.
Share on (60327057993):
Product Overview
Description
| Maximum Size | 1800mm(length)*800mm (Width) |
| Thickness Range | 5mm-35mm |
| Diameter of fiberglass | 6~11 micron (which conform to the European regulations) |
| Size tolerance | Length:±5mm,Width:±5mm,Thickness:±1-1.5mm |
| Life time | 10-15 years |
| Core Material | highly refined micro-fiberglass |
| Thermal Conductivity | (EXW)lower than 0.0022w/m.k as upper (ambient temperature 24℃,relative humidity50%, R more than 36/inch) |
| Density | about 240-300kg/m3 |
| Internal Vacuum | lower than 1Pa |
| Maximum Compressive Strength | 200kPa |
| Operating Temperature | -70℃ ~ 80℃ (Maximum 120℃, less than 15min) |
| Packing | Paper carton with foam and air bubble film |
Packaging & Shipping
Company Information
Fujian Super Tech Advanced Material Co., Ltd. is completely concentrated on investment, development and manufacturing Vacuum Insulation Panel.
Super Tech has become one of the biggest VIP suppliers in the world. Without any capacity constraint, it has the ability to enlarge its Production Capacity at any time to meet the customers'requirements.
Basing on the technology of China National Space Administration (NASA). And with R&D technical experts who participated in designing, researching and developing the vacuum space capsule serial projects for aerospace, i.e., ShenZhou Spacecraft, Changzheng Rocket etc. Super Tech is powerful in vacuum technic, production technology, heat transferring and new materials.
Our Services
We regards the quality as the first priority. All the Super Tech VIP panels must have been strictly 100% tested before shipment.
We can guarantee the VIP panels 100% tested and intact before shipment. If there are defective VIP panel, we provide the service of replacement. Besides, We also provide the technical supports.
