Chinese CETC41 AV6418 OTDR 1310 1550 1625nm VFL power meter LinkMap PON optical time domain reflectometer
- Category: >>>
- Supplier: Beijing W&f Technology Co. Ltd.
Share on (60327106491):
Product Overview
Description
Chinese CETC41 AV6418 OTDR 1310 1550 1625nm + VFL +power meter + LinkMap PON optical time domain reflectometer
Product Summaries:

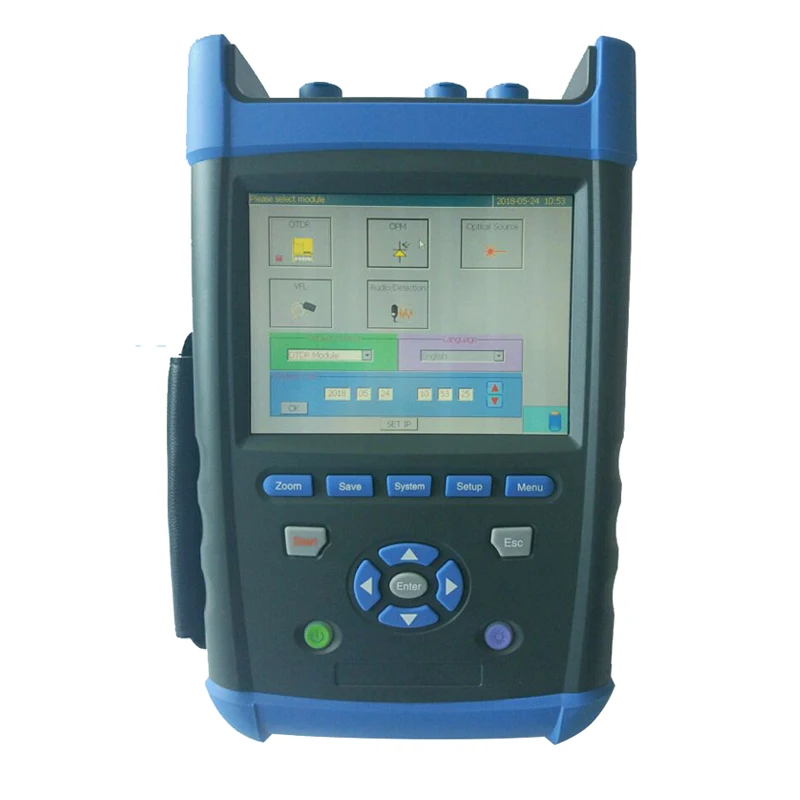

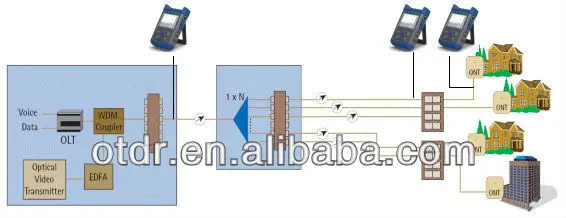

AV6418 OTDR is a high performance measuring instrument with multifunction designed for testing FTTx network. It’s mainly used to measure the physical characteristics of optical fiber under test, such as the length,the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It's widely applied in the manufacture, construction and maintenance in optical fiber communication system.
Features:
- Handheld,lightweight and convenience for carrying
- 45dB high dynamic range
- 1m extra-short event dead zone
- 0.05m high distance resolution,128k sampling points

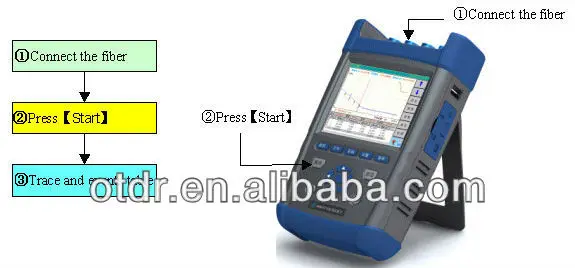

- Fast auto measurement,one-button operating
- Test up to four wavelengths with a single unit
- Communication light check automatically
- Remote function via Ethernet
- Double USB interfaces, supporting USB stick and printer and direct cable download to PC vi ActiveSync
- Supporting Bellcore GR196 file format in writing or reading
- Built-in lithium battery with high capacity for over 8 hours of operating life
- Visible fault locating (VFL) and optical power meter
- Universal FC/PC,FC/SC,FC/ST connector type, it's convenient for surface cleaning
- Unique function of updating application software on-line, returning to factory is unnecessary
Spec.
Dynamic range | Please refer to "OTDR modules specifications" |
Distance uncertainty | ±(0.75m + sample space + measurement distance×0.003%)1 |
Sampling resolution | 0.05,0.1,0.2,0.5,1,2,4,8,16m |
Distance range | 0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km(SMF); |
Pulse width | 5,10,30,80,160,320,640,1280,5120,10240,20480ns |
Loss threshold | 0.01dB |
Sampling points | Up to 128k |
Linearity | 0.05dB/dB |
Loss resolution | 0.001dB |
Memory capacity | ≥800traces(build-in), ≥65500traces(2GB SD storage) |
Group refractive index setting | 1.00000 to 2.00000 (0.00001steps) |
Distance unit | km,m,kft,ft |
Display | 640×480, 6.5 inch TFT-LCD (touch screen) |
Interface | USB, Min-USB, Ethernet, earphone, SD |

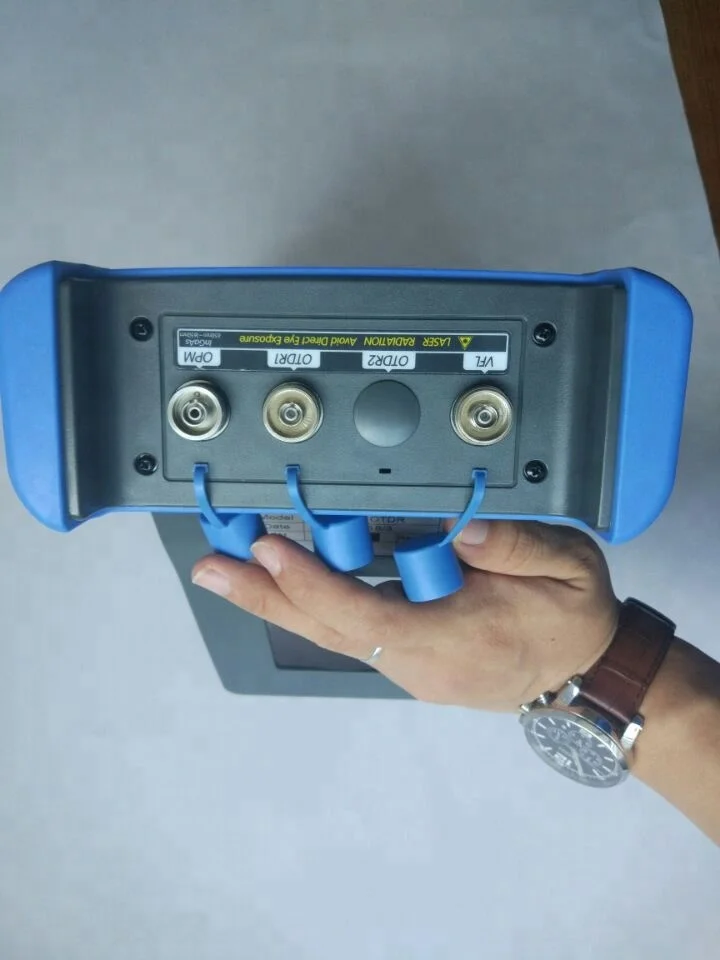

Optical connector | FC/SC/ST (universal connector) |
VFL | 650nm±10nm,2mW(typical);CW/1Hz |
Optical Power Meter | Wavelength range: 1270nm to 1700nm Measurement range: -60 to +3dBm Measurement accuracy: 5% ( -10dBm, CW) |
Power supply | AC adapter 100 to 240V, 50/60Hz, 1.5A DC:19V±2V(2A) Built-in Lithium battery: 4400mAh, operating time ≥8 hours 2 |
Language | User selectable: simplified Chinese, English, Russian, Korean etc.. (please contact CETC 41st for others) |
Environment | Operating temperature: -10 to 50°C(charging:5 to 40°C) |
Dimensions | 295×186×75(mm) |
Weight | 2.5kg Approx. |

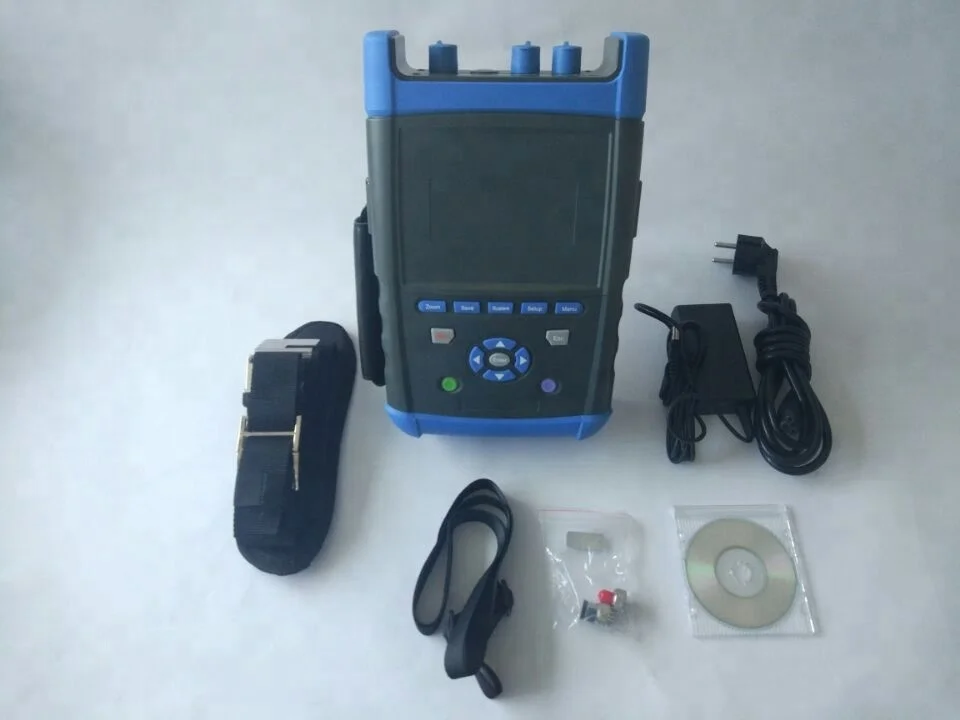

Standard accessories:
NO. | Name | quantity |
1 | Power line | 1 |
2 | AC/DC adapter | 1 |
3 | Quality certification | 1 |
4 | User manual | 1 |
5 | Trace analyzingAV6418 software(CD) | 1 |
6 | Hard Carrying case(Including gallus) | 1 |
7 | Special gallus of instrument | 1 |
