Product Overview
Description
Low Output Speed Concrete Vibrating Shaft
Description

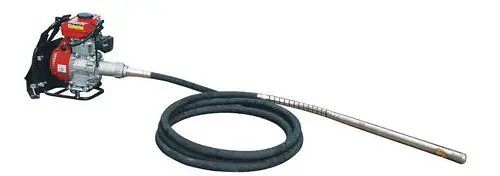

CONMEC vibrator pokers, using the pendulum principle, 3000rpm of the drive unit translates via the flexible shaft into 12000 vibrations per minute in the poker head. The low output speed ensures high reliability and extended service life, can be used with electrical motor and powerful engines.
Technical Specification
Model | Vibrator Head | Vibrator | Frequency | Dia. Of | Dia. Of | Net Weight with |
Dia.*Length mm | Amplitude mm | Hz | Flexible Hose mm | Flexible Shaft mm | 6m Hose kg | |
CVP28 | 28*580 | 0.80 | 200 | 30 | 10 | 14.7 |
CVP32 | 32*583 | 0.82 | 220 | 30 | 10 | 15.0 |
CVP38 | 38*580 | 1.20 | 200 | 30 | 10 | 15.6 |
CVP45 | 45*583 | 1.20 | 200 | 32 | 12 | 18.6 |
CVP50 | 50*583 | 1.20 | 200 | 36 | 12 | 20.2 |
CVP60 | 60*577 | 1.25 | 200 | 36 | 12 | 21.0 |
Main products:
concrete cutter series,edging/walk-behind/ride-on power trowel series,tamping rammer,vibratory truss screed,surface finishing screed,scarifying machine,gasoline water pump,drum roller,vibratory plate compactor,etc.
Application
Our products are widely used in municipal conservation, road construction, building construction, flooring treatment(epoxy floor, wear-resistant floor) and other fields.
