CHTC JOVE rotary drilling rigs for foundation piling
- Category: >>>
- Supplier: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.
Share on (60327201690):
Product Overview
Description
rotary drilling rigs for foundation drilling
Product Description
JVR360D rotary drilling rig parameters:
| Model | JVR400D Rotary Drill Rig |
|---|---|
| Max. output torque(KN.m) | 360 |
| Max. drilling depth(m) | 98 |
| Max. drilling diameter(mm) | 2500 |
| Engine brand | CAT |
| Engine model | C-13 ETF |
| Engine power(KW) | 305 |
| Undercarriage model | CAT345D |
| Traction force(KN) | 710 |
| Drilling speed(rpm) | 6/24 |
| Max. crowd push force(KN) | 365/365 |
| Stroke of sledge(mm) | 10000 |
| Main winch pull(1st layer) | 320 |
| Main winch wire rope dia.(mm) | Φ36 |
| Max. main winch line speed(m/min) | 65 |
| Aux. winch line pull(1st layer)(KN) | 120 |
| Aux. winch wire rope dia.(mm) | Φ20 |
| Aux. winch line speed(m/min) | 75 |
| Overall width in drilling position(mm) | 4400/26288 |
| Overall L/H/W transport position(mm) | 18699/3000/3304 |
| Total weight (t) | 108 |
JVR400D rotary drilling rig Features
• Main winch located at the bottom of the drilling mast which offer good angle foe checking line’s work. Unique design in the roll could prolong the use life of the steel line and also enhance the construction safety. Excellent design in pulley could adjust the steel line in the best position and also enhance the reliability.
• Supercharging technique make the crowd pull force reach 44T and its crowd stroke reach 14m. This design can meet many kinds for construction methods.
• Original CAT374D engine and up structure. The crawler could adjust between 2900mm and 4500mm. The customers could backward the counterweight and increase its weight also for improving the stability and reliability.
• Key part in the hydraulic system is similar to CAT hydraulic loop. Advanced main & auxiliary hydraulic system realizes flow allocation & sensitivity loading according to the operation demand and also the drive function. These features offer more reliable performance in the construction process.

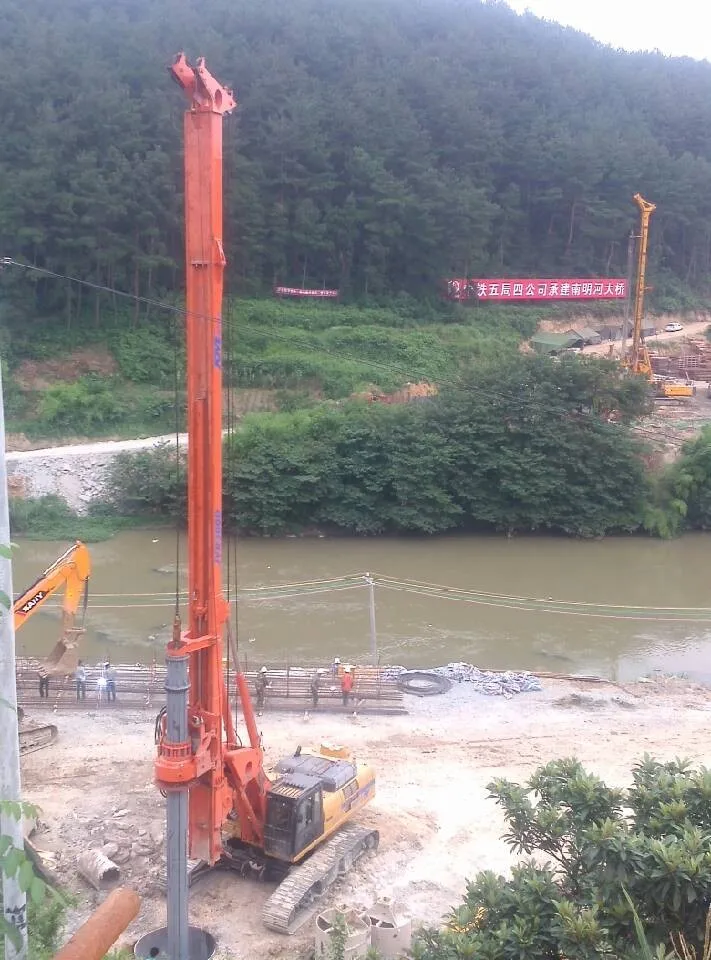

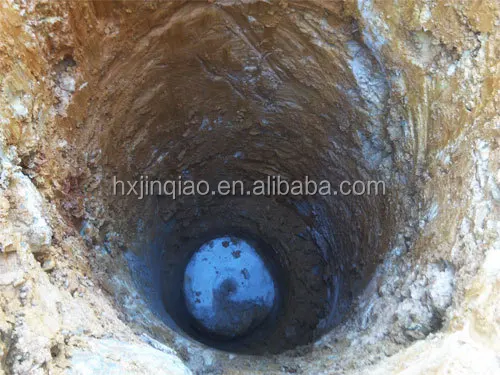

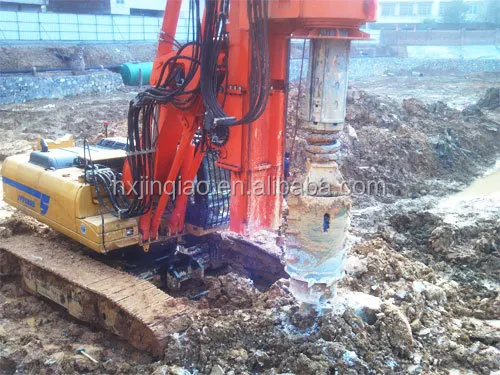

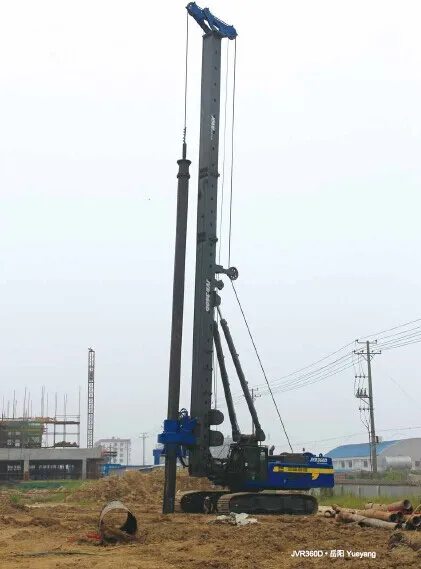

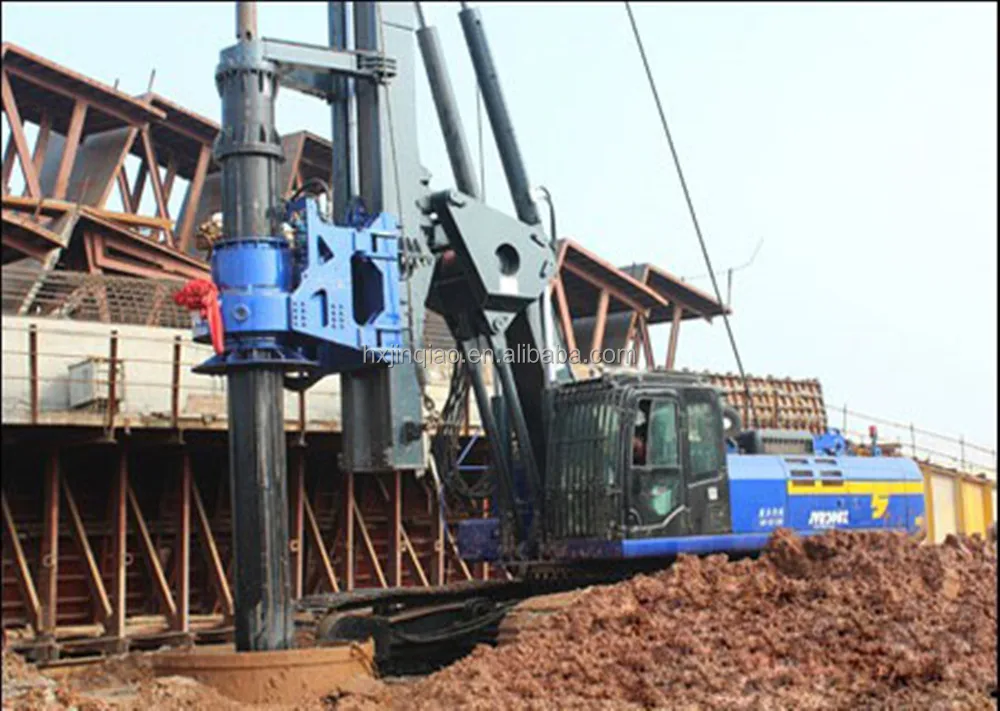

JVR400D rotary drilling rig Construction Cases
Our Services
Service Tenet
Perfect aftersales service system is the firm guarantee to maintain the brand image. We will build perfect aftersales service system and provide optimal aftersales service for each product. Mutual development and perfection is our aftersales service tenet.
Delivery Inspection
When the customer has finished the purchase process, our service staff will provide maintenance and operation training, and the warranty sheet should be faxed to CHTC JOVE.
Regular Check
We provide regular check for all our products respectively at the 50, 500, 1,000, 1,500, and 2,000 hours. And the service staff will make thorough inspection and repair for the equipment according to the follow-up visit to the customers.
Warranty service
As for the service range, please refer to the Warranty Manual. We carry out the 24-hour service principle, i.e. we will solve the problems or replace the damaged parts in 24 hours. We will solve the problem thoroughly and ensure that it does not need the secondary repair.
Our service staff will fill in the service report and fax it to the service department in 24 hours.
Parts inventory
Each dealer will reserve some parts inventory according to their sales condition and all the parts are provided by CHTC JOVE.
Cross-region service
When the equipment needs to work in other regions that is out of the reach of the designated dealer, the dealer will inform the factory to arrange other dealers to make the follow-up services.
Return visit
The service staff needs to establish detailed customer files and pay a return visit to the customer each week to learn about the equipment condition.
Company Information
We are agent of CHTC JOVE. You can get the high quality rotary driliing rig with favorable price!
Xuzhou Hengxing Jinqiao Machinery Technology Co.,ltd is located in Tongshan high-tech development zone,Xuzhou city of Jiangsu province, which is the capital of China construction machinery and with beautiful environment and convenient transportation.
Since establishment, we has always followed our survival principle that "strives for the survival by quality, development through reputation", and "your demand is our demand".
