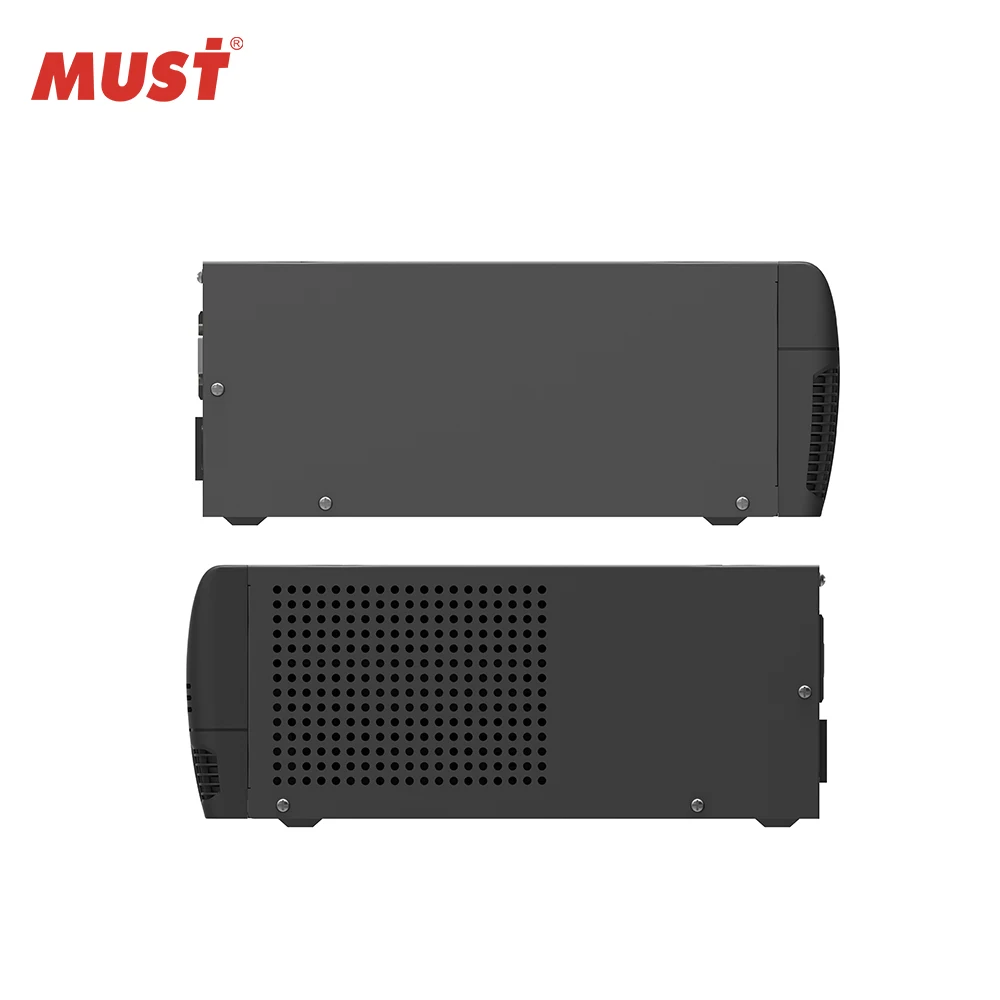

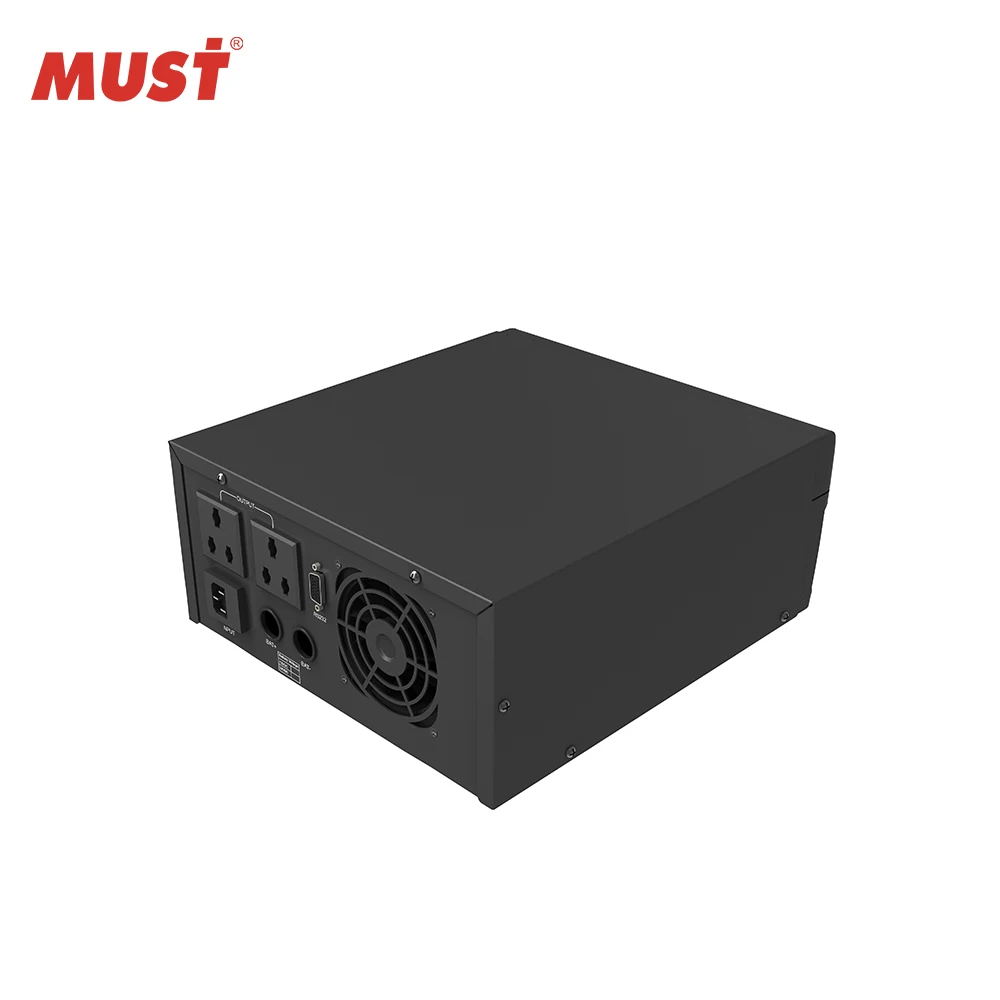

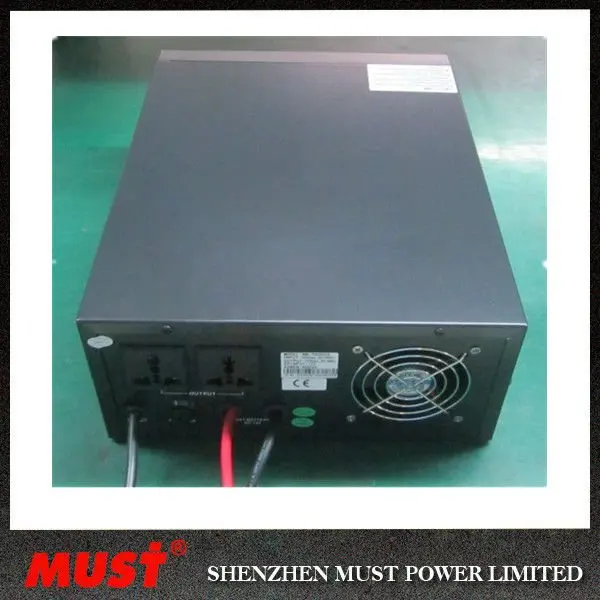

Pure sine wave 20000 watt inverter with AVR function
- Category: >>>
- Supplier: Shenzhen Must Power Limited
Share on (60327572584):
Product Overview
Description
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624
Pure sine wave 20000 watt inverter with AVR functionProduct Description
Specifications:
1.dc/ac car inverter
2. 500-1000w
3.output 220V/50hz
4.capacity:500W-1000W

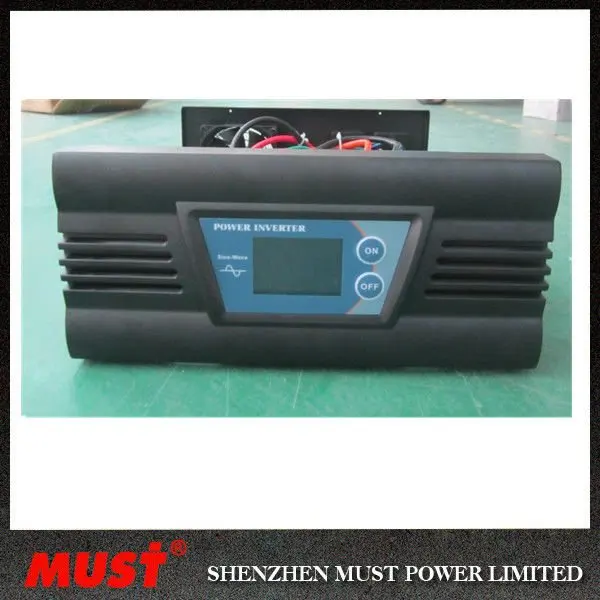

5.LCD/LED optional
Main features:
1.Extremely low return noise and no disturbance to talking quality.

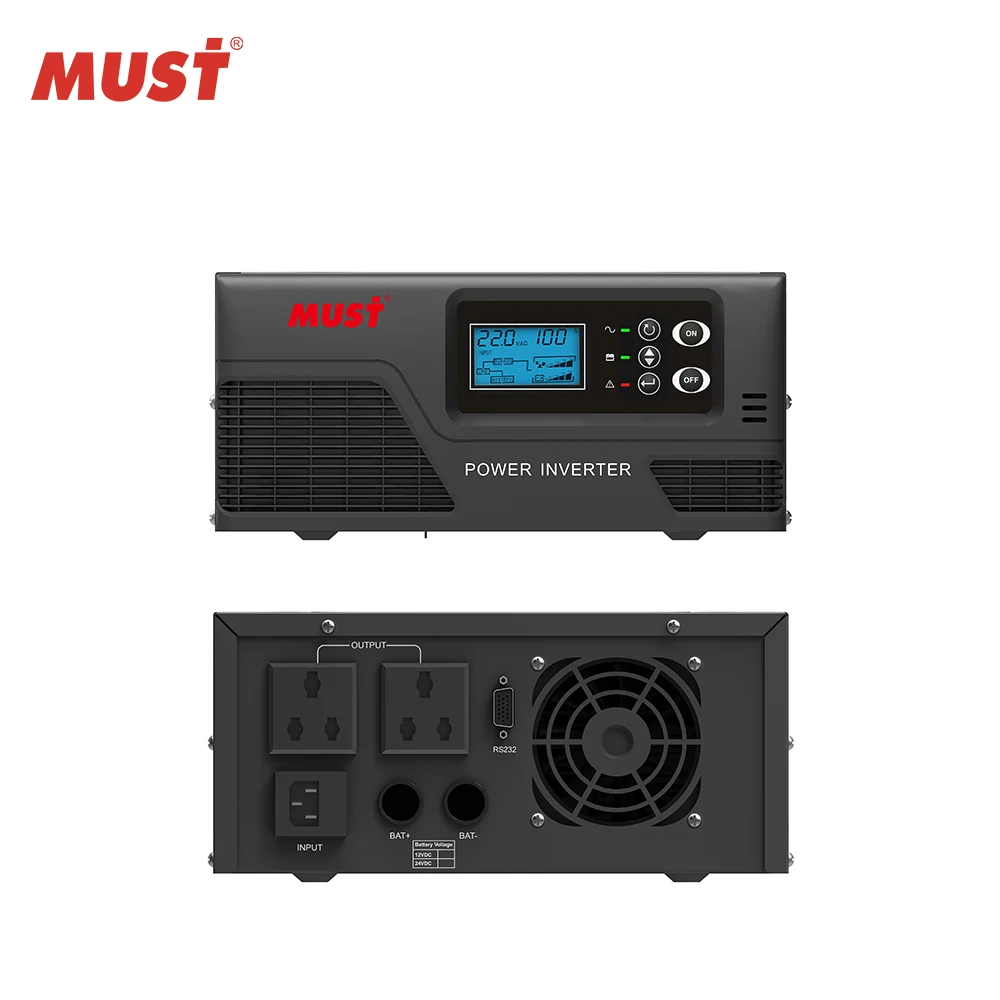

2.Use-friendly interface, LED simulative display and computer screen display of inverter operation status.
3.RS232 port, smart power management software, automatic file saving and shutting down at power abnormalities.
4.Special charging system design for better protection of battery life.
5.Short circuit, overload, over voltage and low battery protection.
6.Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
With standard on-line structure (three ports)and can be used as UPS. Specification
Technology Specification:
| MODEL | 115V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at | 1000VA /600W;2000VA / 1200W | 1KVA /0.6KW;1.5KVA/0.9KW;2KVA / 1.2KW | |
| nominal inputs | 3000VA / 2250W;5000VA/3500W | 3KVA /2KW;5KVA/3.5KW;10KVA/6KW | |
| Output Voltage | 100V/110V/115V/120V Selectable | 200V/220V/230V/240V Selectable | |
| Voltage Waveform | Pure Sine wave | ||
| Crest Factor | 3:1 | ||
| Output Frequency | Auto Select for 50/60Hz | ||
| (Synchronized to Mains) | 47Hz ~ 55Hz for 50Hz nominal 56Hz ~ 65Hz for 60Hz nominal | ||
| Regulation (Nominal) | ±10% typical of nominal voltage | ||
| Regulation | ±3% of selected output voltage (adjustable with the | ||
| (Battery mode) | remote set-up software) | ||
| Transfer time | Blackout 3ms typical Brownout 1ms typical Battery mode to Normal mode??1ms typical | ||
| Over current protection | Over load alarm level 100% ~ 120% Over load shutdown level 120% ~ 190% (Adjustable by using the remote set-up software) | ||
| INPUT | |||
| Nominal Voltage | 100V/110V/115V/120V Selectable | 200V/220V/230V/240V Selectable | |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing | ||
| Efficiency (Normal mode) | 97% | ||
| Noise Filtering | Full time EMI/RFI filtering | ||
| Over current protection | Re-settable over current protector 500VA ~ 5000VA | AC Fuse 1000VA/1500VA Re-settable over current protector from 1.5KVA to 10KVA | |
| Voltage Range | 75V ~ 155V | 145V ~ 310V | |
| AVR Range(2 Bucks, 2 Boosts) | Enhanced Buck: +28% of selected nominal voltage Buck mode: +10% of selected nominal voltage Boost mode: -10% of selected nominal voltage Enhanced Boost: -25% of selected nominal voltage | ||
| Surge Protection | 500VA/1500VA 216 Joules 1500VA~5000VA 424 Joules | 500VA/1500VA 220 Joules 1500VA~10000VA 834 Joules | |
| BATTERY | |||
| Battery type | Lead-Acid 50Ah to 500Ah (Recommended) | Lead-Acid 50Ah to 500Ah (Recommended) | |
| Voltage | 500VA/800VA/1000VA: 12Vdc | 500VA/800VA/1000VA: 12Vdc | |
| 1500VA/2000VA: 24Vdc | 1500VA/2000VA: 24Vdc | ||
| 3000VA/5000VA: 48Vdc | 3000VA/5000VA/10kAV: 48Vdc | ||
| Typical backup time | No Limit | ||
| Charging method | Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged. | ||
| Maximum charging current | 1500VA/15A ;2000VA/20A ; 3000VA/20A ; 5000VA/20A | 1500VA/15A ;2000VA/20A ; 3000VA/20A ; 5000VA/20A | |
| Average charging | Quick charging mode:14V maximum. | ||
| voltage for each battery | Trickle charging mode:13.5V (adjustable with the remote set-up software) | ||
| Protection | Over current protection & Over charging voltage protection (SCR control) Thermal protection (CPU control) When temperature inside the unit is over 45 °C, charger will stop charging for 2 minutes followed by an 2 minutes charging. The cycle will be repeate | ||
| Monitoring | Smart monitoring & warning for failed battery or open-circuit battery.
| ||
Packaging & Shipping
Company Information
![Y]``_]AUX%OHU8KHNOM)SH](http://g03.s.alicdn.com/kf/HTB1b7i2JXXXXXcdaXXX760XFXXX0/200574837/HTB1b7i2JXXXXXcdaXXX760XFXXX0.png)
Our Services
Payment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
Samples and OEM
Samples are Available for Testing and Market Test. OEM is welcomed for us.
1-Year Warranty on MUST POWER Products
MUST POWER provides a 1-year limited warranty (“Warranty”) against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).
Guides and After-service Consultancy
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily.

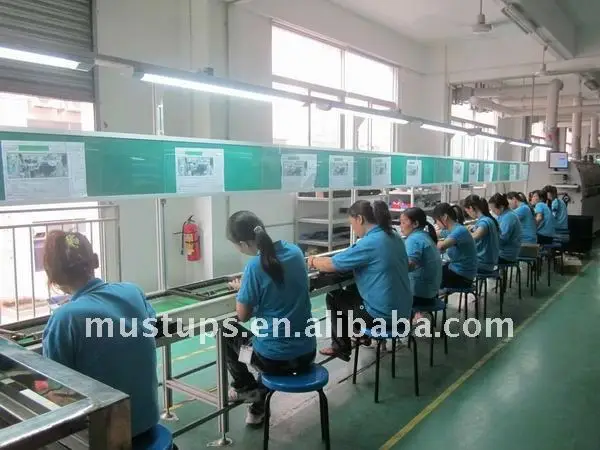

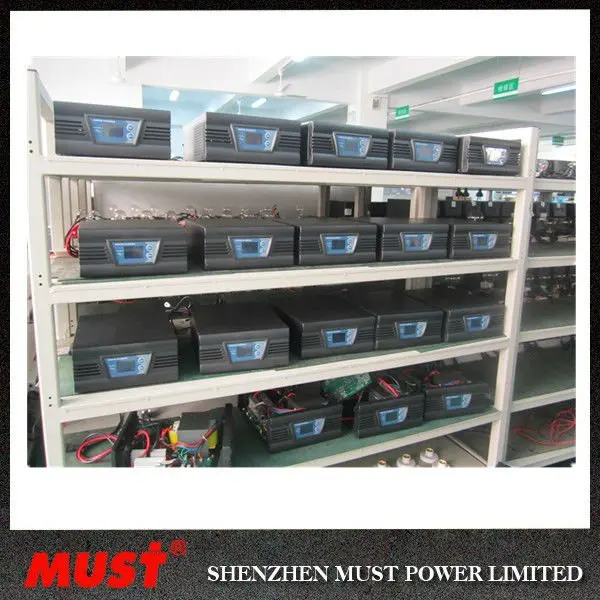

Goods and Clients in Exhibitions and in Factory
