High pressure steam pressure reducing valve
- Category: >>>
- Supplier: Hangzhou Worldwides Valve Co. Ltd.
Share on (60327717077):
Product Overview
Description
Product Description
| BASIC DESIGN |
 | LY963/663Y Steam Pressure Reducing Valve
*Available sizes: DN80(3") up to DN250(10")
*Available rating: PN100 to PN420, Class 600# to 2500#
|
| All Design for Most Critical Steam Working Conditions |
 | Forged Full Machined Body Design To suit the high pressure and temperature conditions, the LV963/663Y PRV uses forged material for body construction, compare with casting body, forged full body has better mechanical property and strength endurance, able to handle thermal fatigue critical for reliable service, ensure the safe, trouble-free performance during the continuous operation. | |
 | Pressure Seal Construction Pressure seal construction is adopted for body-bonnet joints, seals performance improves as the internal pressure in the valve increases, maintains tightness regardless of thermal transients. | Pressure reducing valve
|
 | Pilot Plug Design Pilot plug design, means in the closed position, the main plug within the valve is unbalanced with full steam pressure acting on top. Combined with the actuator thrust this creates an extremely high seat contact and ensures a very tight shut off. | |
 | Very Tight shut-off The Seat surface is treated with hard stellite faced, the import | |
 | Radiator Structure Design To suit the high pressure and temperature conditions, the LV963/663Y PRV uses forged material for body construction, compare with casting body, forged full body has better mechanical property and strength endurance, able to handle thermal fatigue critical for reliable service, ensure the safe, trouble-free performance during the continuous operation. | |
 | Multihole Cage Design The Multihole cage guided trim is capable of managing large pressure drops and reduces the negative effects of erosion, cavitation, and noise. With the different working condition, the cage can be custom-designed with flow characteristic including of equal-percentage and linear to obtain the highest accuracy of desired steam pressure | |
COMBINED AS PRESSURE REDUCING DESUPERHEATER SYSYEM |
LY963/663Y pressure reducing valve can be used independently, or it can be assembled as main part of pressure reducing desuperheater for pressure reduction which gives higher performance under critical working conditions.
PRESSURE REDUCING DESUPERHEATER SYSTEM
|  |

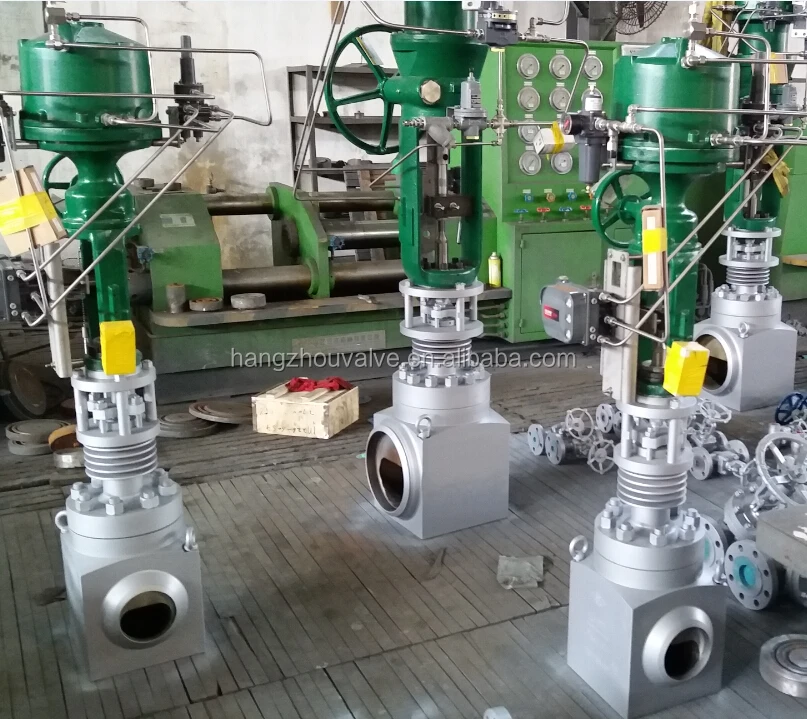

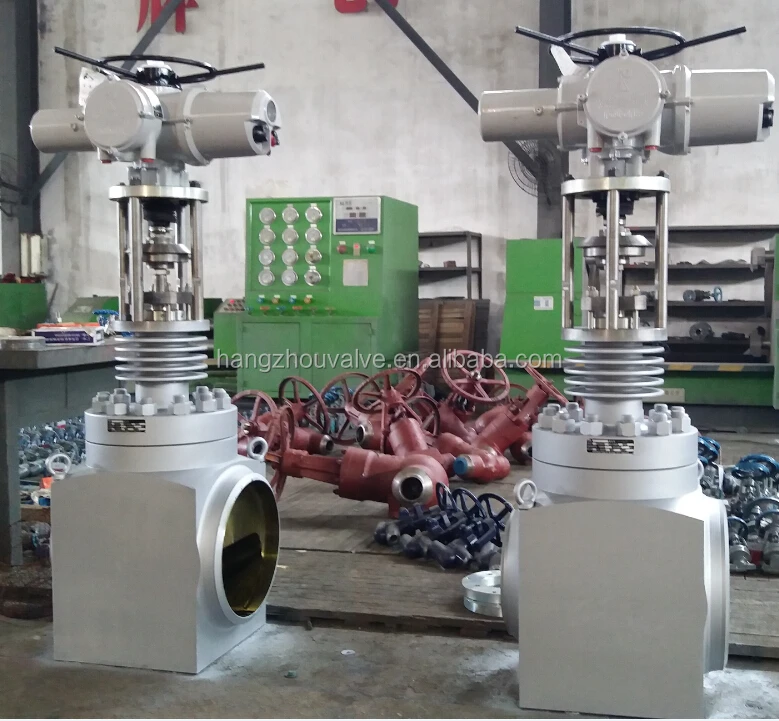

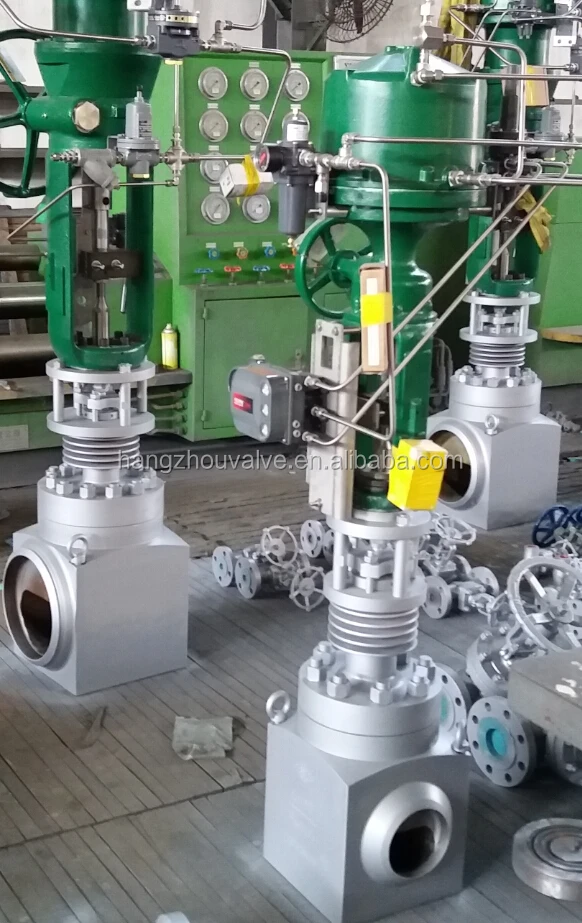

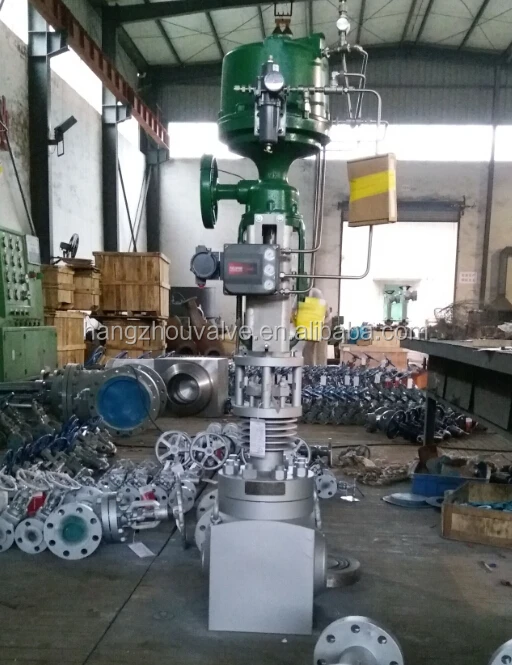

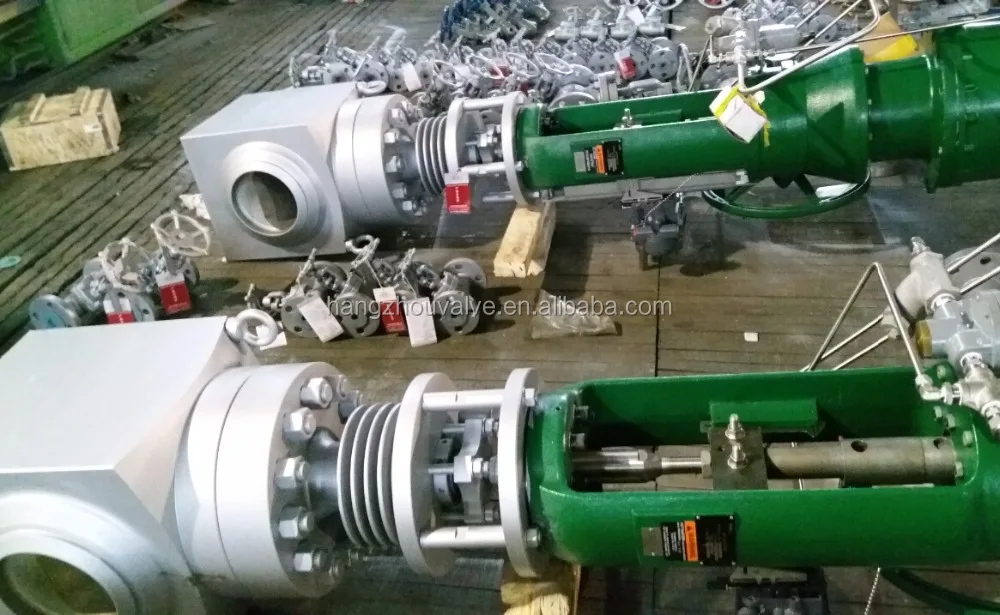

Delivery Photo
| REAL PHOTO 100% |
Vital to the safe and efficient operation of a power plant, our valve has been designed for ultimate reliability with excellent operation performance. With different conditions, we offer customized solutions with total system to ensure the most critical and demanding services of high pressure and temperature porpose.
|
Quality Control
Throughout the years, HZVALVE has developed its Quality System which is an integral part of our manufacturing policy. Our primary goal is to provide products that meet and exceed market standards. In this sense, HZVALVE is an ISO-9001 Audited and Certified Company that has achieved major certifications worldwide. Our system consists of a rigorous quality control as well as the selection of raw materials from approved vendors. Control over our manufacturing process is vital. Serial numbers allow HZVALVE to monitor and trace fabrication processes along with the materials of components. |
|
