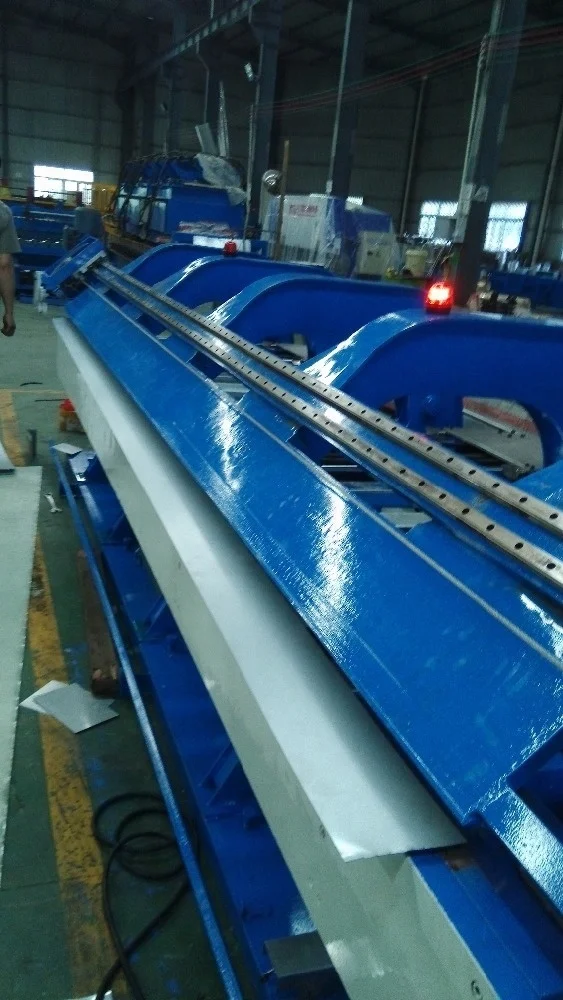

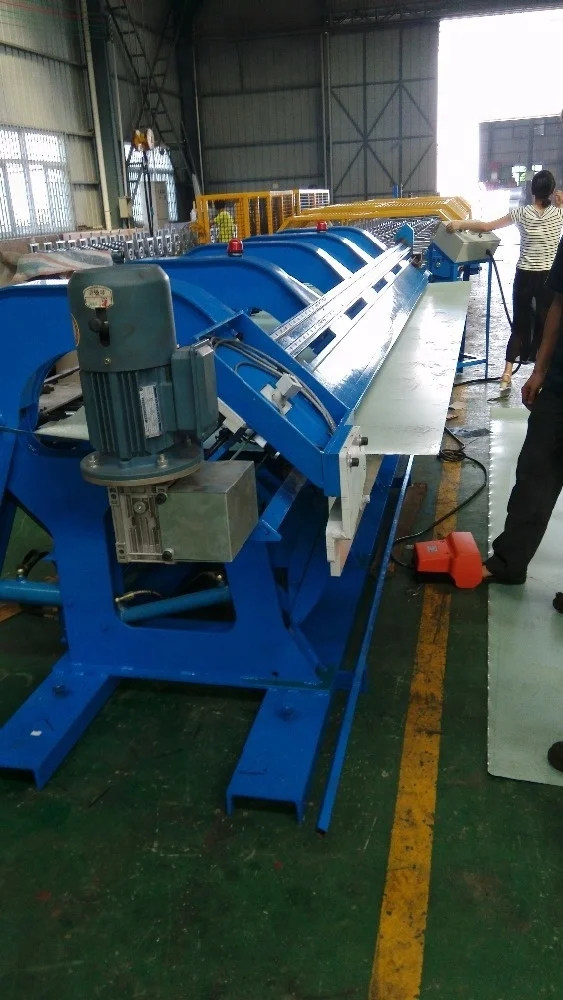

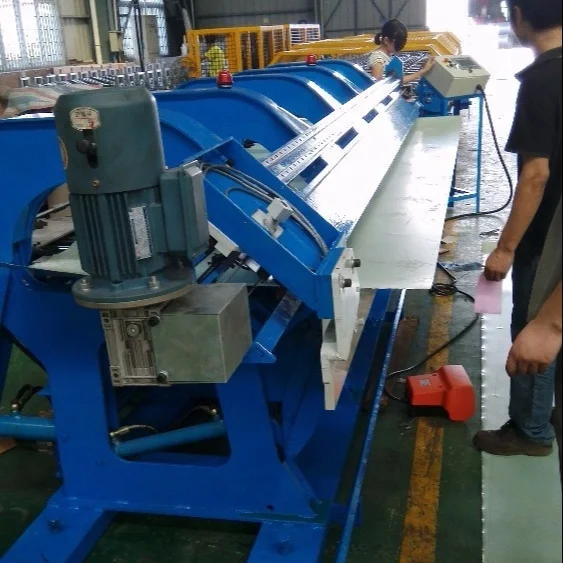

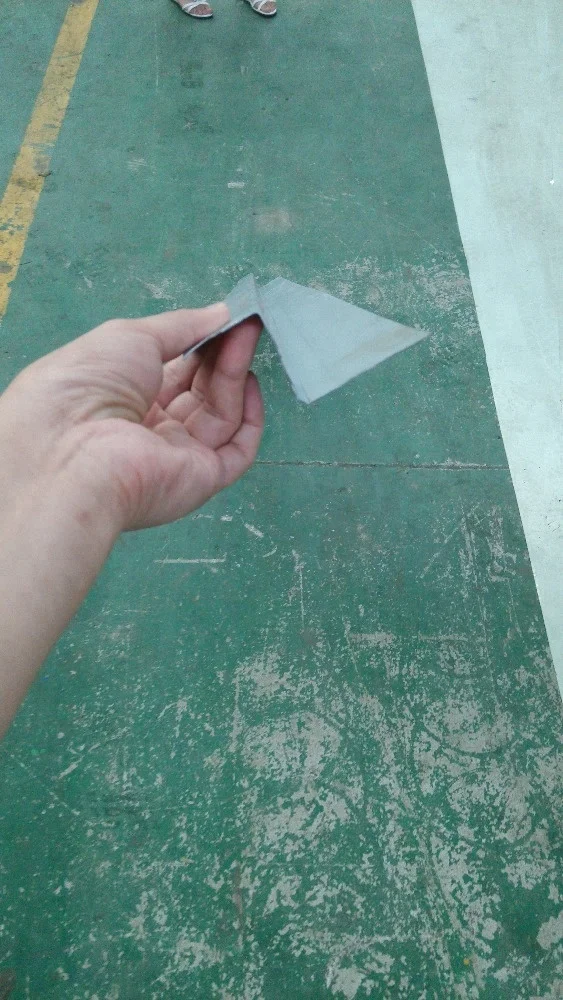

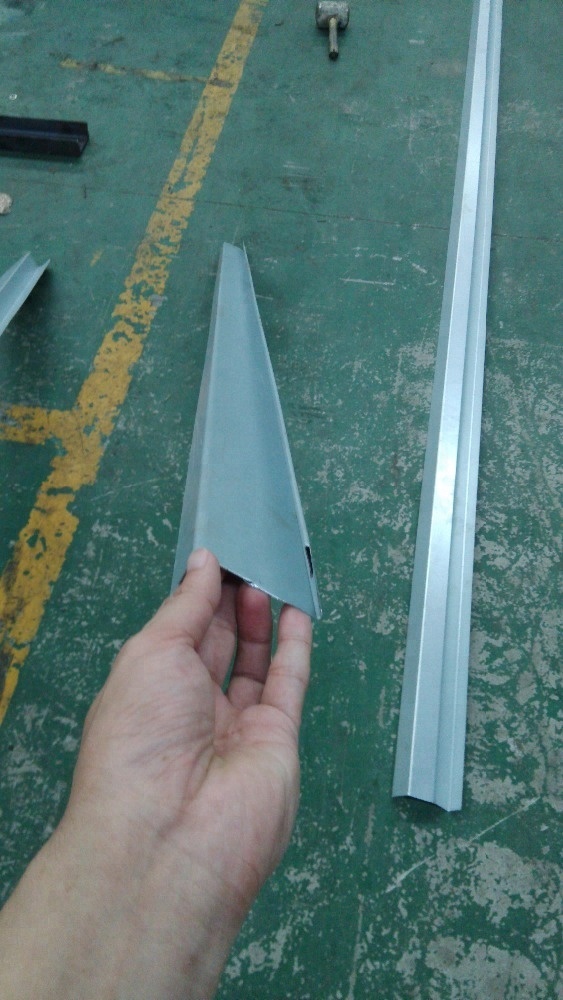

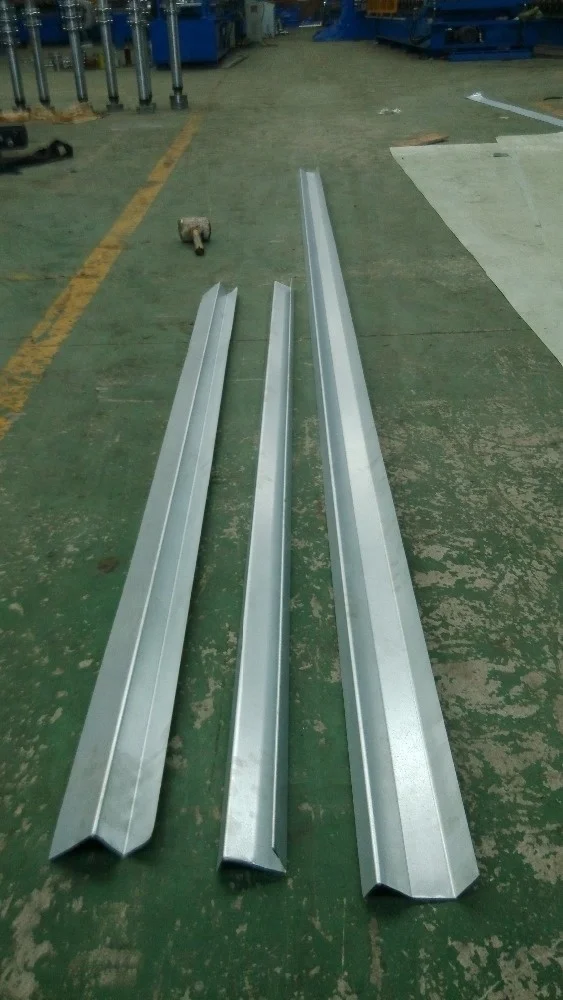

CNC slitting folding machine

General Parameter

1)For Steel sheet; Aluminum; Stainless steel

2)Thickness: Max.1.0mm

3)Feeding width: Max. 1000mm

4)Driven by Servo motor, pump motor: 0.82KW

5)Working length: 4000mm

6)Press clamp:5 units

7)Weight:Approx. 3000 Kg

8)Pressing power:pump motor for hydraulic station7.5KW(Located inside)

9)Bending range:0-125 degree

10)        Depth of throat:1000 mm(Max. working width of material in clamp)

11)        Hinge:5 groups

9) Total power:9.42KW (7.5KW+1.1KW+0.82KW)
10)Outline dimension(Length×Width×Height):5800×1700×1500 (For reference only)

Slitting Device

1)     Type Of Blade : Slitting wheel
Diameter:80 (Enough)
Material:Cr12MoV

2)     Drive system:Motor driving, 1.1KW
Guiding device:Steel rope circling

3)     Slitting speed:Approx.0.8m/s

Slitting distance: Through steel rope circulation.

Bending & Slitting Device

1)     Max. Bending thickness    1.0mm

2)     Max. Bending length        6000mm

3)     Max. Slit thickness          1.0mm

4)     Min. folding dimension       TBC

Hydraulic power pack

1)Capability:Max.16MPA

2)Capacity of oil tank: 170L

3)Power source:Hydraulic

PLC Control System

1)System:Siemens PLC Control

2)Numerical control locating system:Siemens PLC Control

3)Operating table:Touch Screen

4)Angle programmer:Encoder test

5)Slitting control:Manual

6)Emergency stop: e-stop button+ e-limit+ foot switch (right heavily)
