ST D monoblock standard centrifugal motor pump
- Category: >>>
- Supplier: Umex (Ningbo) Imp. & Exp. Co. Ltd.
Share on (60328093799):
Product Overview
Description

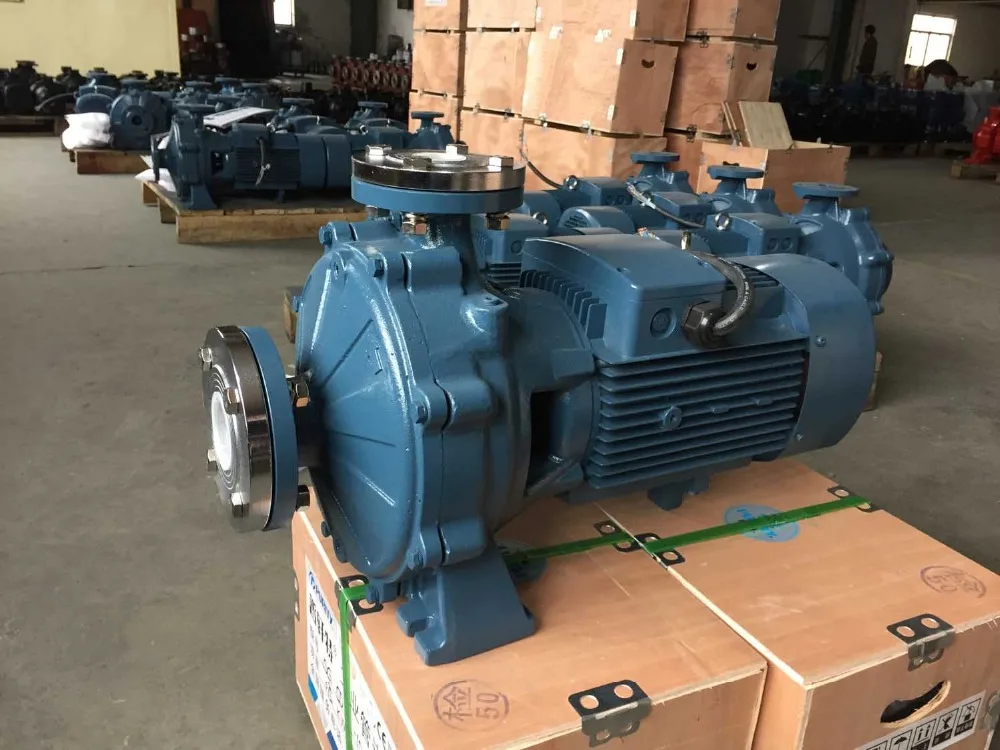

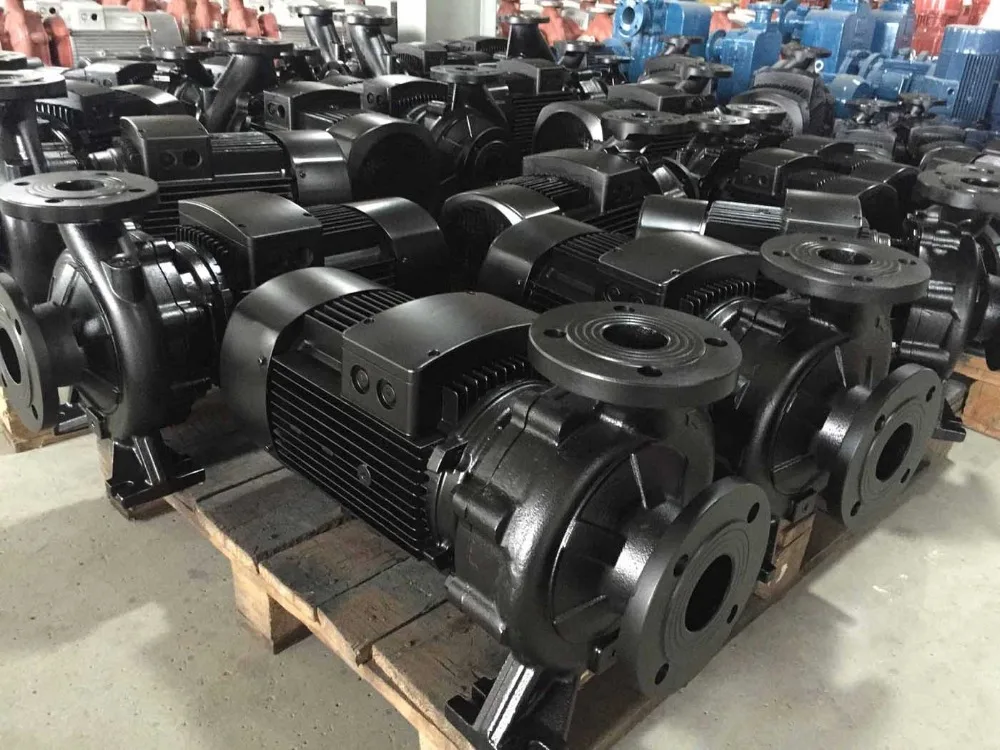

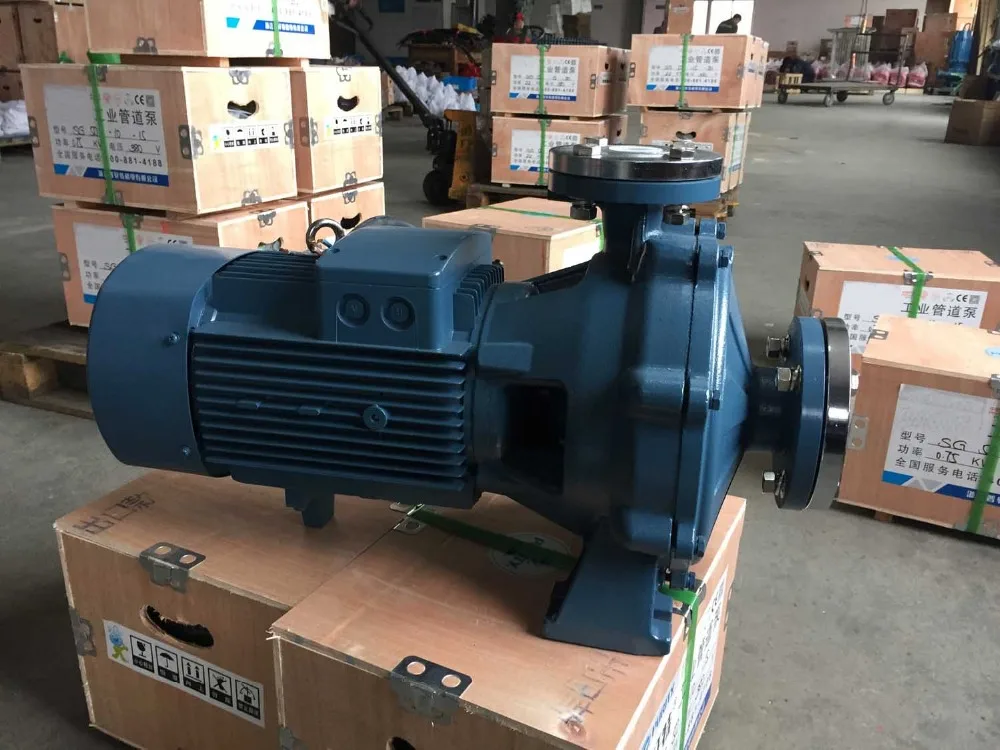

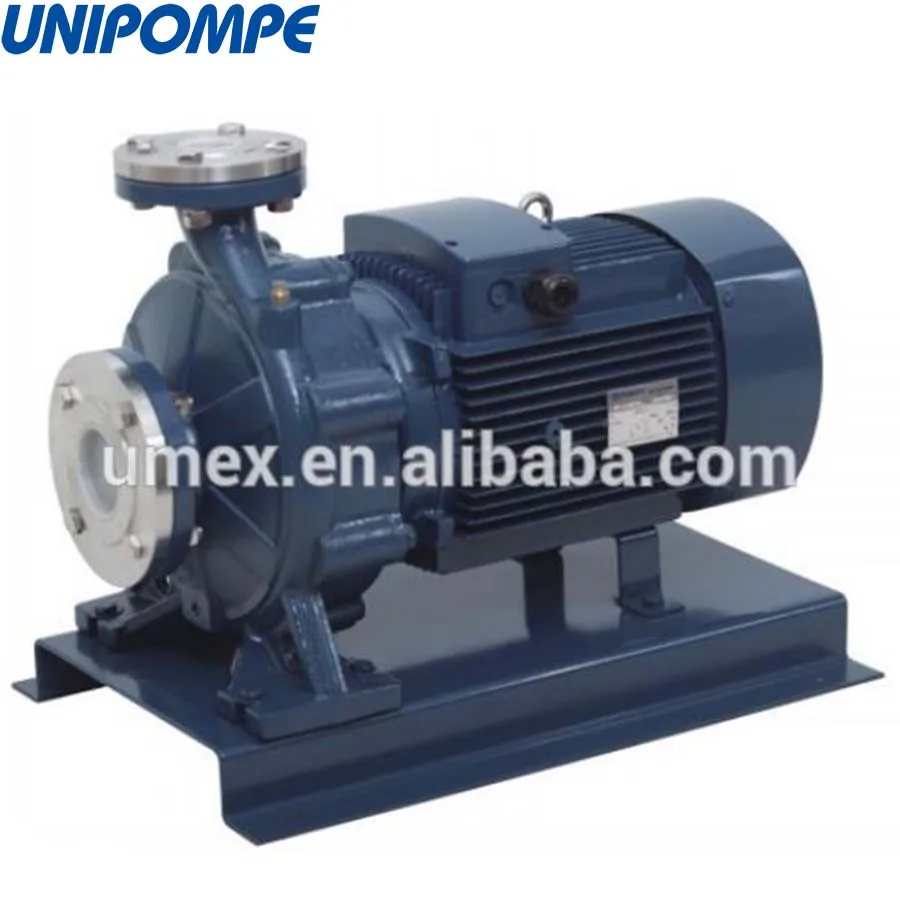

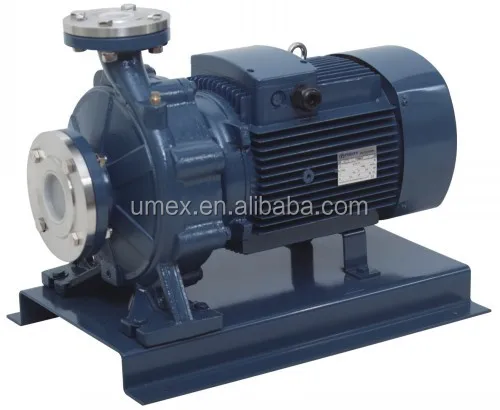

ST-D series monoblock standard centrifugal motor pump
Product Description
8Two –pole induction motor (n=2850rpm)
8Insulation Class B /F
8Protection grade IP44 /54
8Flow rate up to 6000 l/min (360 m3/h)
8Head up to 99.5m
8Power up to 55KW
8Diameter up to 100mm
8Manometric suction lift up to 8m
8Liquid temperature between -10 °C and +120°C
8Environment temperature between -10 °C and +40°C
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: Brass
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing: NSK, C&U, or local quality.
1. For clean non-aggressive liquids without brasives
2. Water supply 3. Cleaning sets 4. Pressure boosting 5. Firefighting sets
6. Irrigation 7. Industrial applications 8. Water circulation in climatisation sets
9. Agricultural applications
Technical parameters
WARRANTY: 2 YEARS (according to our general sales conditions)
| Type | Power | Perform | In×Out | Impeller | Weight | Diameter | |||
| Q | H | ||||||||
| Mono-phase | Tri-phase | kw | hp | m³/h | m | mm | kg | cm | |
| 32-125/7 | 32-125/7 | 0.75 | 1 | 12.5 | 13.5 | 50×32 | SS304 | 27/24 | 47*21*36 |
| 32-125/11 | 32-125/11 | 1.1 | 1.5 | 17 | 16 | 50×32 | SS304 | 28/25 | 47*21*36 |
| 32-160/15 | 32-160/15 | 1.5 | 2 | 15.5 | 21 | 50×32 | SS304 | 38/34 | 48*26*40 |
| 32-160/22 | 32-160/22 | 2.2 | 3 | 18.5 | 26 | 50×32 | SS304 | 43/39 | 48*26*40 |
| 32-160/30 | 32-160/30 | 3 | 4 | 19.5 | 28 | 50×32 | SS304 | 54/50 | 61*27*45 |
| 32-200/30 | 32-200/30 | 3 | 4 | 19.5 | 30 | 50×32 | SS304 | 56/52 | 61*27*45 |
| - | 32-200/40 | 4 | 5.5 | 24 | 32 | 50×32 | SS304 | 53 | 61*27*45 |
| - | 32-250/55 | 5.5 | 7.5 | 15 | 47 | 50×32 | Cast iron | 66 | 67*34*52 |
| - | 32-250/75 | 7.5 | 10 | 15 | 55 | 50×32 | Cast iron | 73 | 67*34*52 |
| - | 32-250/110 | 11 | 15 | 15 | 82 | 50×32 | Cast iron | 95 | 67*34*52 |
| - | 32-250/55D | 5.5 | 7.5 | 18 | 68 | 50×32 | Double SS | 73 | 67*34*52 |
| - | 32-250/75D | 7.5 | 10 | 19 | 80 | 50×32 | Double SS | 80 | 67*34*52 |
| 40-125/11 | 40-125/11 | 1.1 | 1.5 | 25 | 11 | 65×40 | Cast iron | 30/27 | 54*24*36 |
| 40-125/15 | 40-125/15 | 1.5 | 2 | 39 | 14 | 65×40 | Cast iron | 33/29 | 54*24*36 |
| 40-125/22 | 40-125/22 | 2.2 | 3 | 36 | 16.5 | 65×40 | Cast iron | 38/34 | 54*24*36 |
| 40-160/30 | 40-160/30 | 3 | 4 | 29 | 24 | 65×40 | Cast iron | 52/48 | 62*27*41 |
| - | 40-160/40 | 4 | 5.5 | 35 | 29 | 65×40 | Cast iron | 50 | 62*27*41 |
| - | 40-200/55 | 5.5 | 7.5 | 29 | 39 | 65×40 | SS304 | 66 | 68*30*45 |
| - | 40-200/75 | 7.5 | 10 | 35 | 46 | 65×40 | SS304 | 73 | 68*30*45 |
| - | 40-250/92 | 9.2 | 12.5 | 28 | 54 | 65×40 | Cast iron | 100 | 82*34*50 |
| - | 40-250/110 | 11 | 15 | 31 | 60 | 65×40 | Cast iron | 116 | 82*34*50 |
| - | 40-250/150 | 15 | 20 | 35 | 70 | 65×40 | Cast iron | 146 | 82*34*50 |
| 50-125/22 | 50-125/22 | 2.2 | 3 | 50 | 12 | 65×50 | Cast iron | 45/41 | 60*26*40 |
| 50-125/30 | 50-125/30 | 3 | 4 | 55 | 15 | 65×50 | Cast iron | 54/50 | 64*26*40 |
| - | 50-125/40 | 4 | 5.5 | 60 | 18 | 65×50 | Cast iron | 52 | 64*26*40 |
| - | 50-160/55 | 5.5 | 7.5 | 50 | 27 | 65×50 | Cast iron | 64 | 67*29*45 |
| - | 50-160/75 | 7.5 | 10 | 60 | 32.5 | 65×50 | Cast iron | 71 | 67*29*45 |
| - | 50-200/92 | 9.2 | 12.5 | 48 | 41 | 65×50 | Cast iron | 90 | 82*34*45 |
| - | 50-200/110 | 11 | 15 | 60 | 45 | 65×50 | Cast iron | 106 | 82*34*45 |
| - | 50-250/150 | 15 | 20 | 50 | 60 | 65×50 | Cast iron | 145 | 83*34*50 |
| - | 50-250/185 | 18.5 | 25 | 55 | 68 | 65×50 | Cast iron | 153 | 87*34*50 |
| - | 50-250/220 | 22 | 30 | 60 | 75 | 65×50 | Cast iron | 183 | 89*34*50 |
| - | 65-125/40 | 4 | 5.5 | 62 | 16 | 80×65 | Cast iron | 56 | 68*30*45 |
| - | 65-125/55 | 5.5 | 7.5 | 74 | 19 | 80×65 | Cast iron | 68 | 68*30*45 |
| - | 65-125/75 | 7.5 | 10 | 85 | 23 | 80×65 | Cast iron | 74 | 68*30*45 |
| - | 65-160/92 | 9.2 | 12.5 | 62 | 30 | 80×65 | Cast iron | 90 | 83*30*49 |
| - | 65-160/110 | 11 | 15 | 74 | 33 | 80×65 | Cast iron | 106 | 83*30*49 |
| - | 65-160/150 | 15 | 20 | 85 | 38 | 80×65 | Cast iron | 134 | 83*30*49 |
| - | 65-200/150 | 15 | 20 | 62 | 44 | 80×65 | Cast iron | 140 | 83*34*50 |
| - | 65-200/185 | 18.5 | 25 | 74 | 50 | 80×65 | Cast iron | 145 | 88*34*50 |
| - | 65-200/220 | 22 | 30 | 85 | 54 | 80×65 | Cast iron | 185 | 90*34*50 |
| - | 80-160/110 | 11 | 15 | 130 | 22.5 | 100×80 | Cast iron | 113 | 79*34*50 |
| - | 80-160/150 | 15 | 20 | 145 | 27 | 100×80 | Cast iron | 143 | 79*34*50 |
| - | 80-160/185 | 18.5 | 25 | 160 | 31 | 100×80 | Cast iron | 150 | 89*34*52 |
| - | 65-250/220 | 22 | 30 | 62 | 60 | 80×65 | Cast iron | 195 | 89*34*50 |
| - | 65-250/300 | 30 | 40 | 74 | 72 | 80×65 | Cast iron | 201 | 101*38*56 |
| - | 65-250/370 | 37 | 50 | 85 | 83 | 80×65 | Cast iron | 347 | 101*38*56 |
| - | 80-200/220 | 22 | 30 | 130 | 42 | 100×80 | Cast iron | 194 | 90*38*56 |
| - | 80-200/300 | 30 | 40 | 160 | 50 | 100×80 | Cast iron | 200 | 97*38*56 |
| - | 80-250/370 | 37 | 50 | 130 | 63 | 100×80 | Cast iron | 330 | 97*38*58 |
| - | 80-250/450 | 45 | 60 | 145 | 70 | 100×80 | Cast iron | 416 | 100*38*58 |
| - | 80-250/550 | 55 | 75 | 160 | 82 | 100×80 | Cast iron | 480 | 118*38*58 |
Production Flow
Certifications
FAQ
Q1.What will you do for after sale?
A: We will follow up and await your feedback after we delivery the goods to you.
Q2.Why did you choose us?
A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps and pump fittings.
Q3.How does your factory do regarding quality control?
A:Quality is priority, and we will do 100% quality inspection before shipment.
Q4.Can we use our own logo and design?
A: Yes, you can. We'll produce pump on your brand and according to your design.
Q5.What's the delivery time of your products?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your purchasing quantity and production season.
