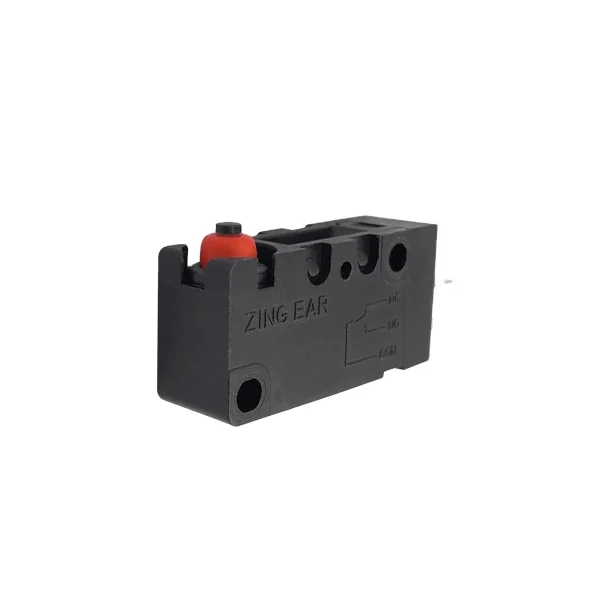

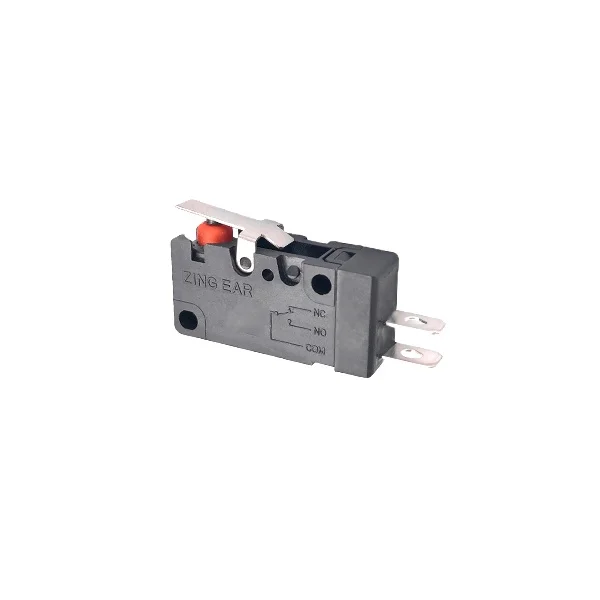

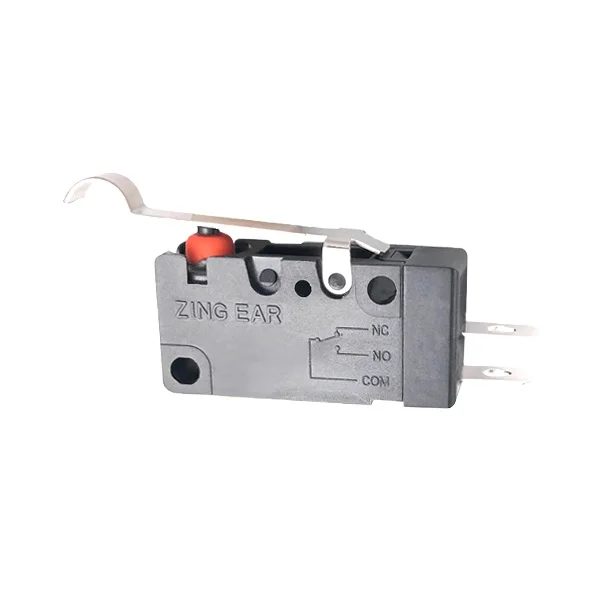

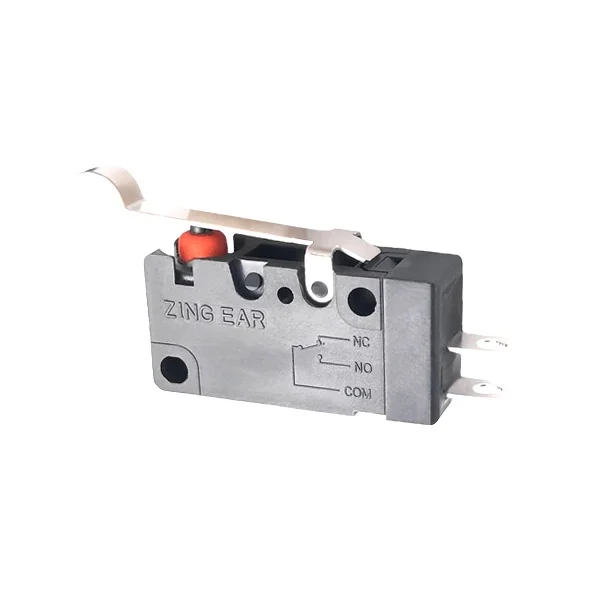

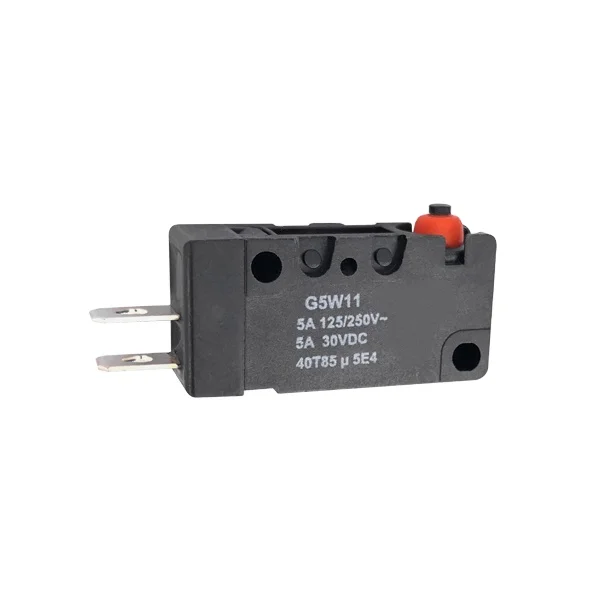

Roller type rubber sealed micro switch t85 5e410a 250v ac waterproof micro switch
- Category: >>>
- Supplier: Huizhou Greetech Electronics Co. Ltd.
Share on (60328117888):
Product Overview
Description
Products Description
Rating | W1 | ENEC 0.1A 48VDC,0.1A 125/250VAC,40T85,5E4,μ UL 0.1A 48VDC,0.1A 125/250VAC,T85 | |
W2 | ENEC 5A 48VDC,0.1A 125/250VAC,40T85,5E4,μ UL 5A 125/250VAC,5A 30VDC,T85 | ||
W3 | ENEC 10(2)A 125/250VAC,0.5A 125VDC,0.25A 250VDC,40T85,μ,2e4 UL 10.1A 1/10HP 125/250VAC,0.5A 125VDC,0.25A 250VDC,T85 | ||
Operating frequency | Electrical | 10~30 time/min | |
Mechanical | 60 times/min | ||
Contact resistence | With terminal type | 50mΩ Max | |
with wire type | 100mΩ Max(Depend on the length of the wire) | ||
Insulation resistance | at 500VDC 100MΩ Min | ||
Dielectric Strength | Between terminals | AC ,1,000RMS(50-60HZ) 1 min | |
Between terminals and housing | AC ,1,500RMS(50-60HZ) 1 min | ||
Storage Temperature | -40℃+85℃ | ||
Storge Humidity | 85% RH Max | ||
Protection grade | With terminal type | IEC IP67(Exclude terminal) | |
with wire type | IEC IP67 | ||
Electric-shock safeguard | Class II | ||
Life | E-life | 2E4~10E4 cycles(depends on P/Ns) | |
M-life | (60 times/min) over 500,000 cycles 1,000,000 cycles 60 cycles/min) | ||
Unit Net Weight | Approx. 7g(with terminal type and without lever) | ||
