Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000

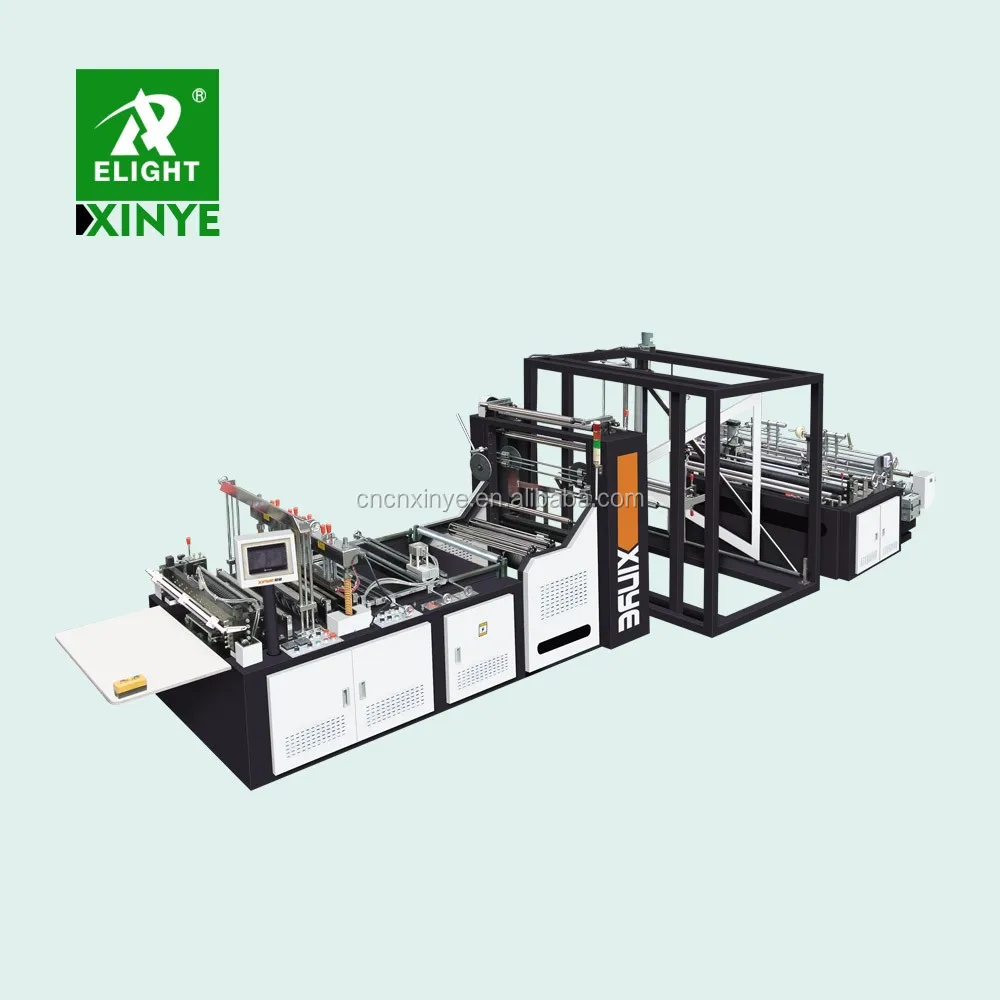

Automatic Non Woven D cut and T shirt bag making machine
- Category: Packaging Material Making Machine >>>
- Supplier: Ruian Xinye Packaging Machine Co. Ltd.
Share on (60328309161):
Product Overview
Description

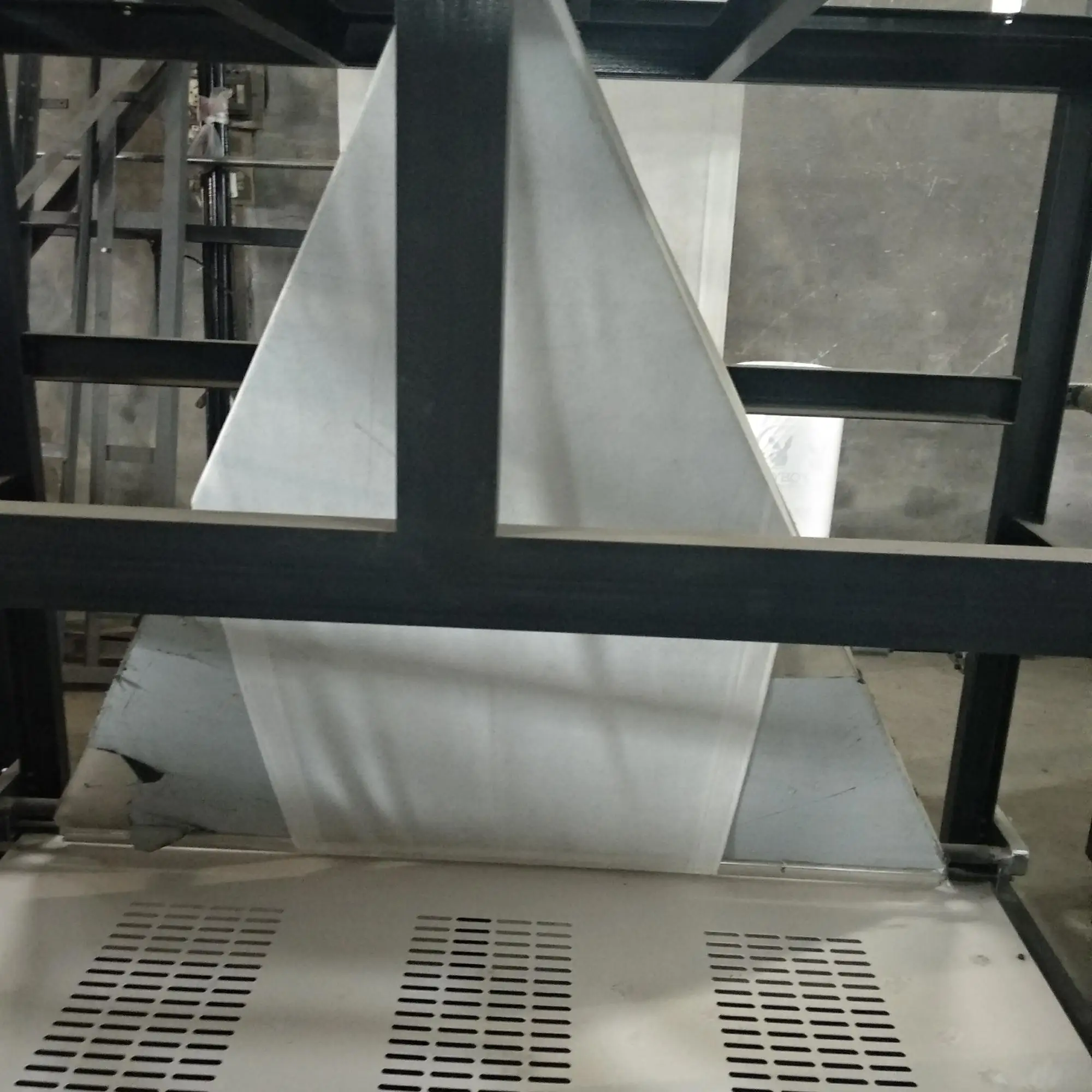

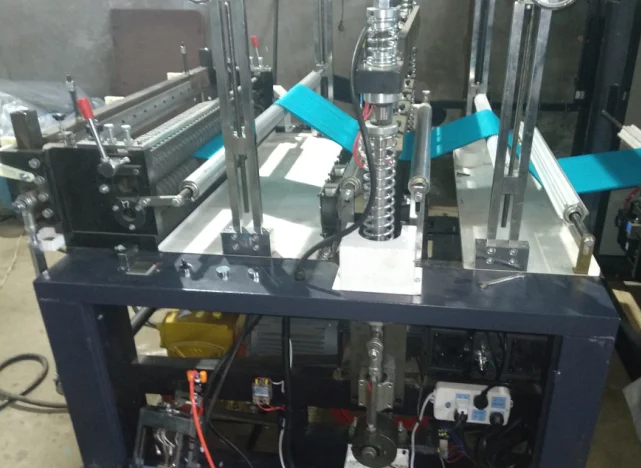

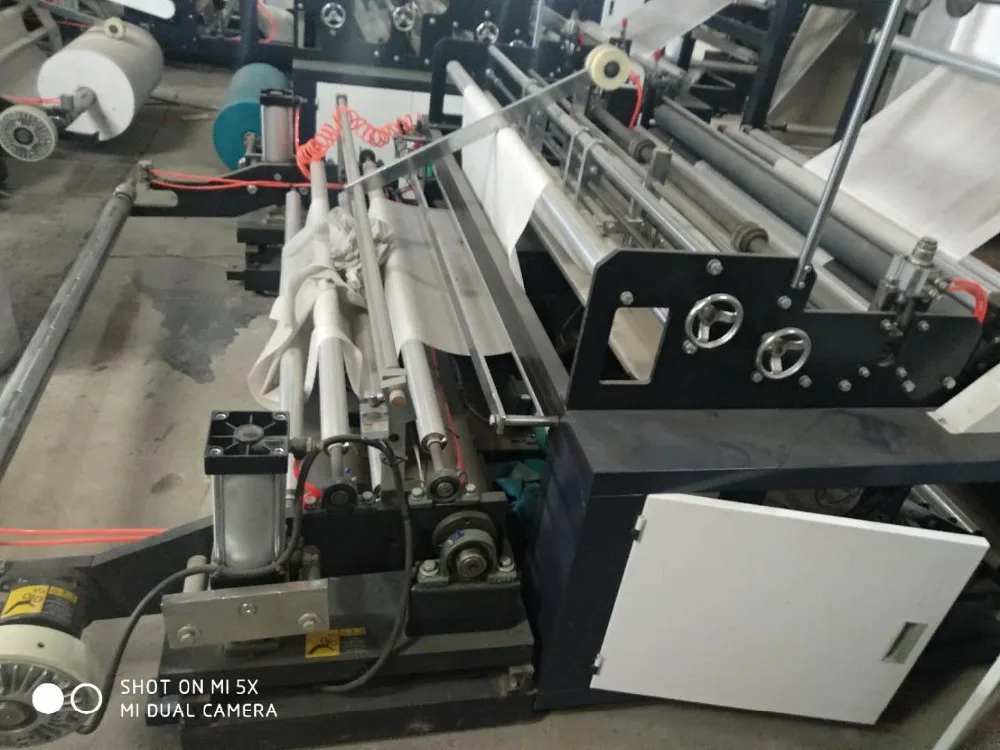

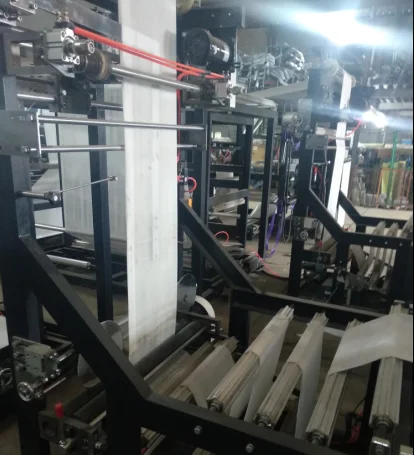

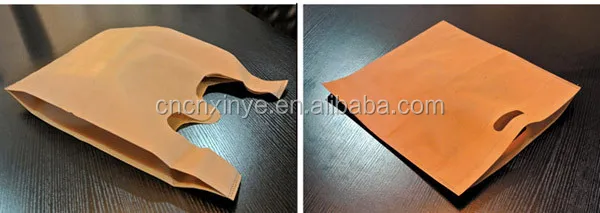

Machine and End Product Show
Product Description
1.USE:
This machine applies for nonwoven materials. It can make many kinds of bags such as vest bags, loop handle bags, flat bags, box bag, and ribbon*through bags for shoes and purse etc. It is equipped with computer touch screen, step motor to control the length and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well*sealed and nice*cutting with high speed and efficiency. It is an ideal environmental protection bag making equipment.
2.Main technical Variables:
| Model | XY-600 | XY-700 | XY-800 |
| Bag Width | 100-800mm | 100-800mmv | 100-800mm |
| Bag Length | 220-550mm | 220-650mm | 220-750mm |
| Speed | 40-120pcs/min | 40-120pcs/min | 40-120pcs/min |
| Total Power | 9.5kw | 11.5kw | 11.5kw |
| Air Pressure | 1.2M3/min, 0.8Mpa | 1.2M3/min, 0.8Mpa | 1.2M3/min, 0.8Mpa |
| Power Supplier | 380V,50Hz,3phases 4 lines | 380V,50Hz,3phases 4 lines | 380V,50Hz,3phases 4 lines |
| Overall Size | 7.4x1.5x1.9M | 7.5x1.7x2.1M | 7.5x1.9x2.3M |
| Weight | 2500kg | 3000kg | 3500kg |
3. Functions
A. Ultrasonic Welding. There are 5 sets of ultrasonic in total.
1. Main Ultrasonic: 2 sets.15Khz, 2600KW.
2. Vest bag side sealing ultrasonic: 1 set , 20 Khz,1500KW.
3. Bag mouth ultrasonic: 2 sets. 20Khz, 1500KW.
B. Punching Function: There are two puncher devices in total.
1. D-cut bag Punching device.
2. Vest bag punching machine
C. Stepping Motor control length Function.
D. Automatic tension control function.
E. Automatic Stopping Function.
F. Fold-up function
G. EPC (Computer correction) function.
H. Feeding Displacement Correction Function
I. Manual Cutting, Punching, Welding position adjustment Function.
J. Heating Function. Main Motor Heating Knife.
K. Cutting Function. Cold Knife.
L. Automatic Air Cylinder Feeding Function .
M. Automatic Air Cylinder Lock and Clamp Function.
N. Inverter Control Speed Function. Main Motor, And Feeding Motor.
O: PLC Control Function4. Process
A. D-cut bag Process
Material Roll Unwinding – Edge Correction – Bag Mouth Folding – Bag Mouth Ultrasonic Welding (2 ultrasonic) – Folding Up –Bottom Folding(Option) – D-cut Punching – Bag Side Ultrasonic Welding ( 2 ultrasonic) – Stepping Motor Length Control – Cold Knife Cutting – Collection.
Bag Width: 100-800mm
Bag Length: 220-550mm
Bottom Folding: 0-100mm
Speed: 40-120pcs/min (It depends on the bag size)
B. U-cut bag Process
Material Rolling Unwinding – Edge Correction – Bag Mouth Folding – Bag Mouth Ultrasonic Welding ( 2 ultrasonic) – Folding Up – Side Folding( Option) – Side Ultrasonic Welding ( 1 ultrasonic ) – Printing Mark Tracking(Option) – Bag Top And Bottom Ultrasonic Welding (2 ultrasonic ) – Stepping Motor Length Control – Cold Knife Cutting – Automatic Puncher for W or U punching – Conveyer Belt Collection
Bag Width: 220-550mm
Bag Length: 100-800mm
Gusset: 0-100mm
Speed: 40-120pcs/min (It depends on the bag size)

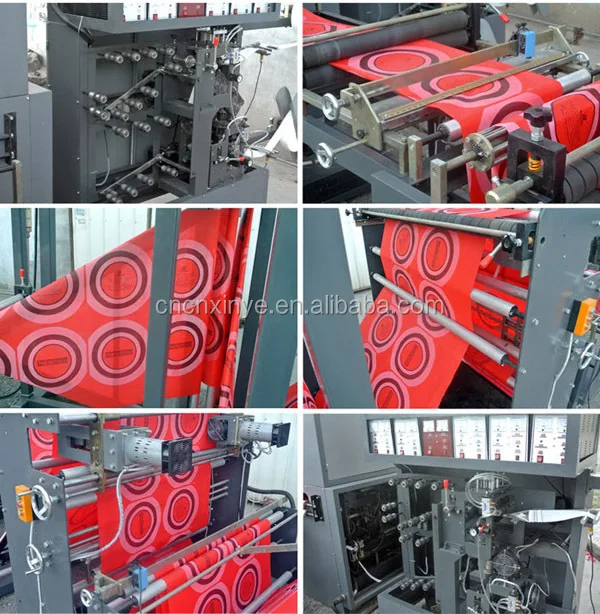

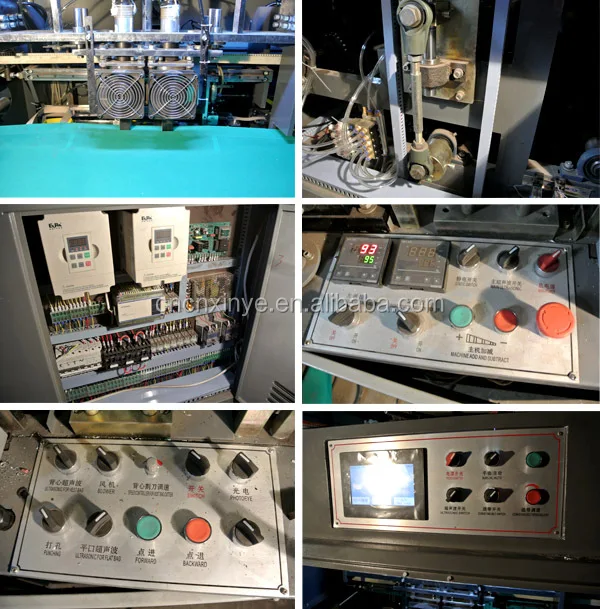

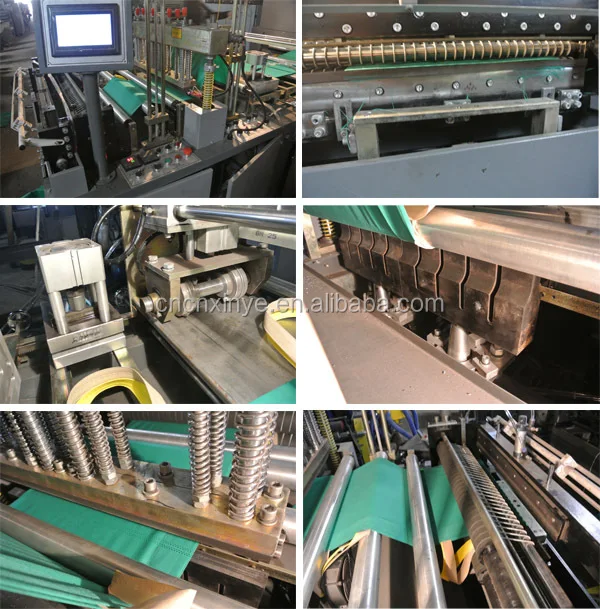

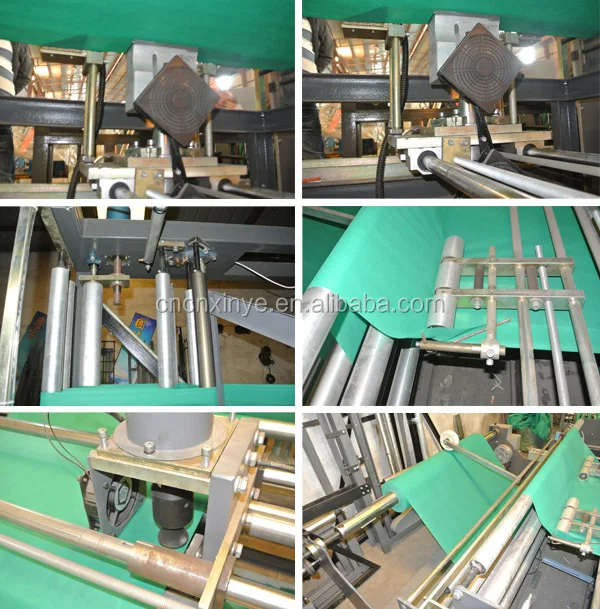

MACHINE PARTS:
CERTIFICATES:

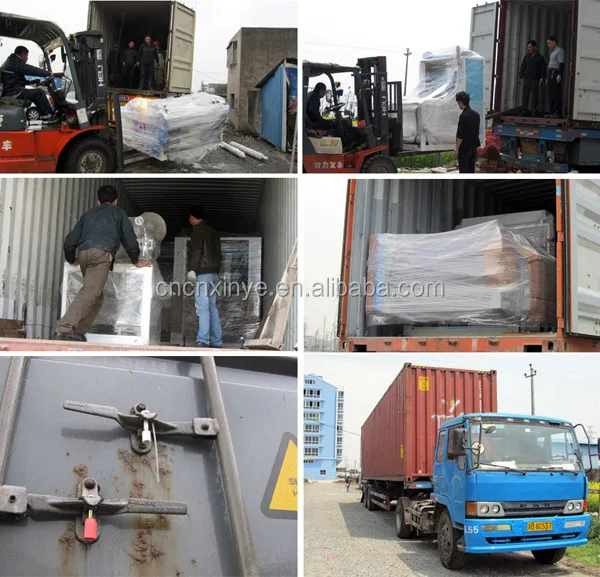

Packaging & Shipping
The machine main parts willl pack with plastic air bubble film, important parts (such as ultrasonic, sevro motor and so on) will pack in wooden box. The machine need 20GP Container.
Company Information
OUR OFFICE :
EXHIBITIONS:
Our Services
Installation Services:
Installation Services are available with all new machine purchases. We will provide the technical knowhow for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After Sales Service:
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems.
Also we offer one year guarantee period.
