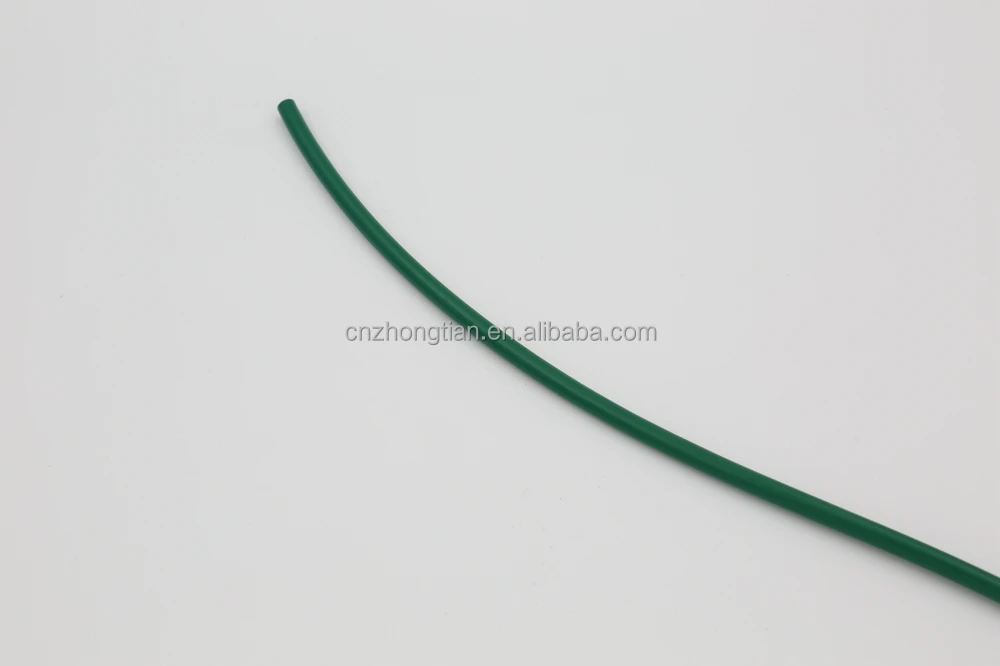

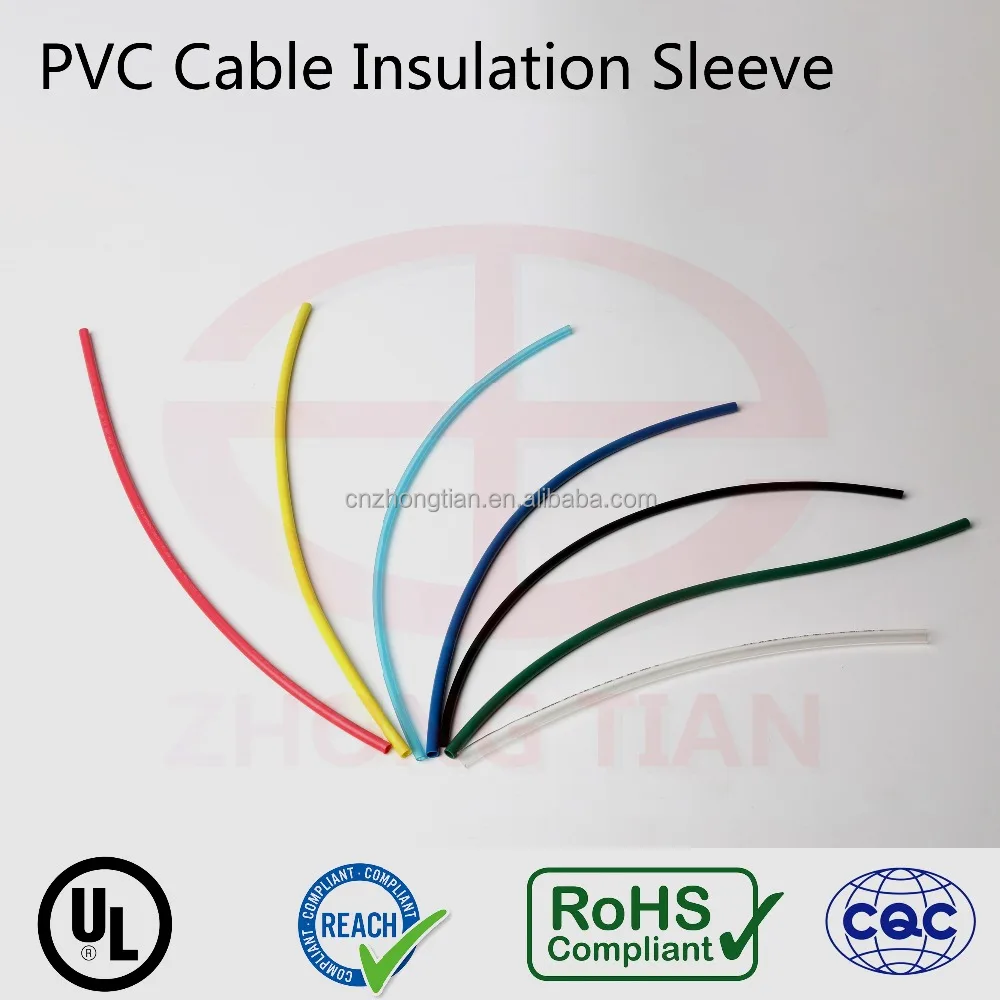

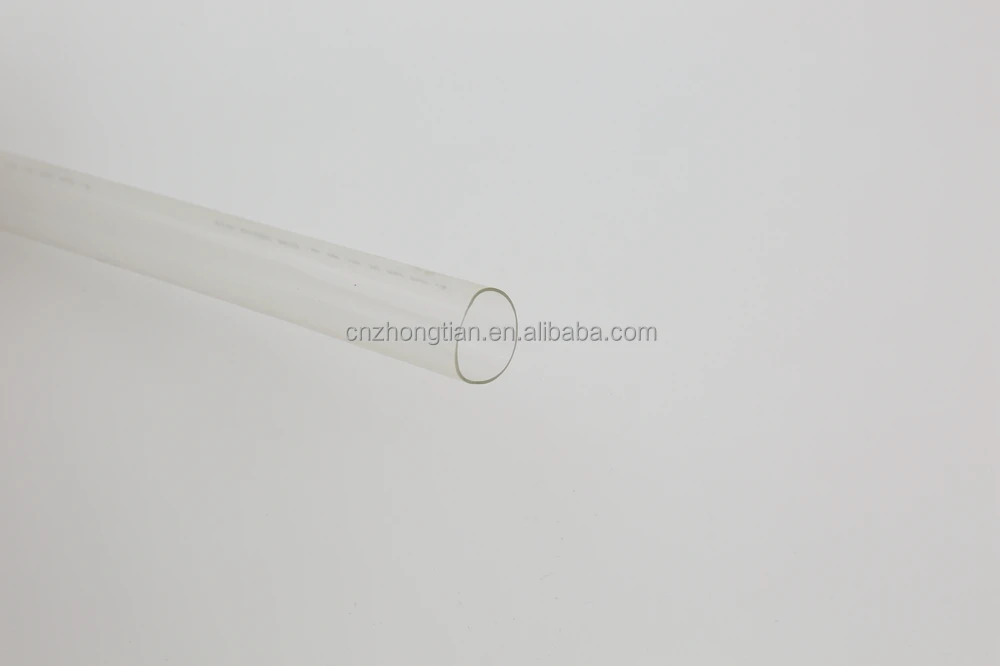

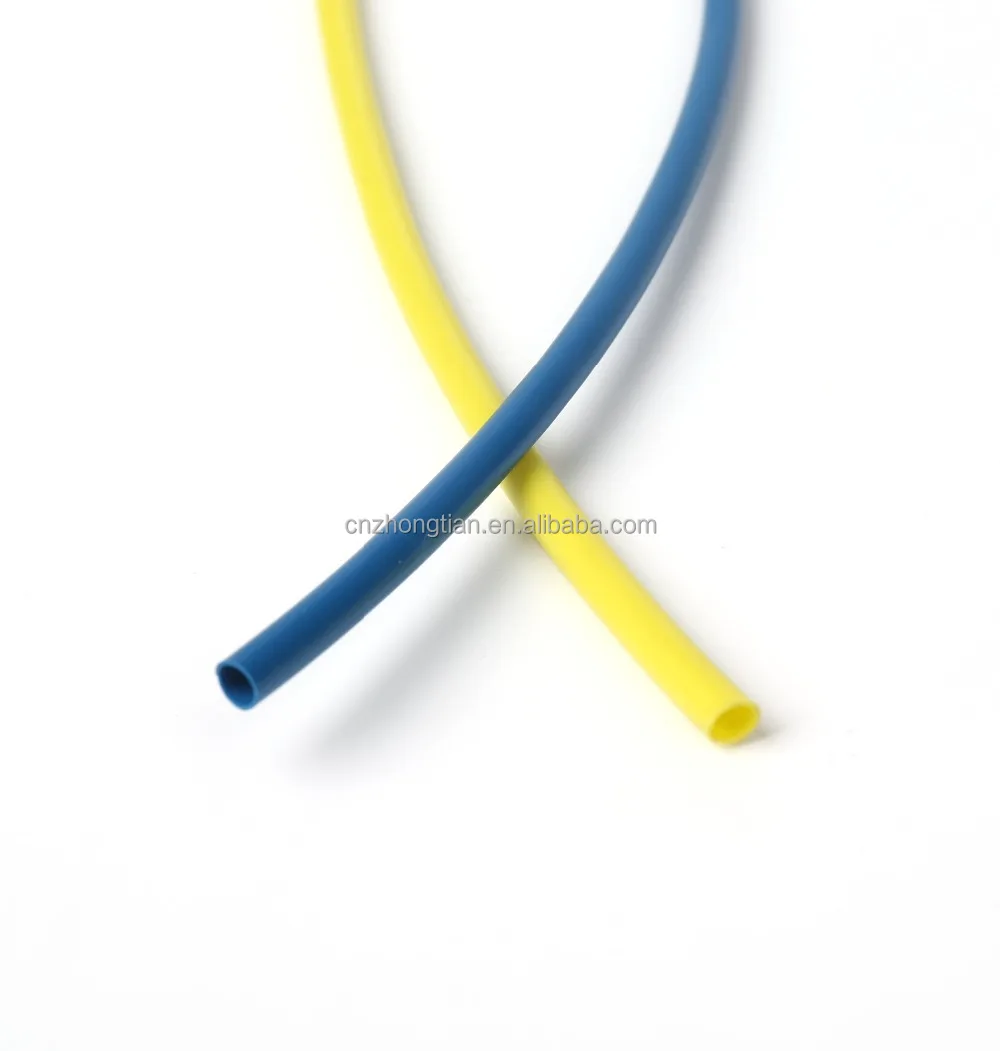

Customized Soft PVC tubing for cable and wiring harness





![]() | Inner Dia(mm) | Tolerance(mm) | Thickness(mm) | Tolerance(mm) | |
| φ1.5 | ±0.2 | 0.3-3 | <0.3 | ±0.03 | |
| φ2 | |||||
| φ3 | |||||
| φ4 | +0.3 -0.2 | ≥0.3≤0.5 | ±0.05 | ||
| φ5 | |||||
| φ6 | |||||
| φ7 | +0.4 -0.2 | >0.5≤1.0 | ±0.08 | ||
| φ8 | |||||
| φ9 | |||||
| φ10 | |||||
| φ11 | +0.5 -0.2 | >1.0 | ±0.1 | ||
| φ12 | |||||
| φ13 | |||||
| φ14 | |||||
| φ16 | +0.8 -0.3 | ||||
| φ18 | |||||
| φ20 | |||||
| φ22 | +1.0 -0.5 | ||||
| φ24 | |||||
| φ26 | |||||
| φ28 | |||||
| φ30 | |||||
| >φ30 | |||||
| Any dimension & color can be customized. |
Application
Soft Vinyl Tubing are mainly used for the insulation and mechanical protection of electrical cables.
Property
| Material | Soft PVC/Vinyl |
| Dielectric Strength | 20 kV/mm |
| Tensile Strength | 24 N/ mm² |
| Elongation Rate | 300% |
| Operating Temperature | –20 °C → +105 °C |
| Flame Resistance | UL VW-1 |
| Available Inside Diameter | 1.5 mm - 45 mm |
| Wall Thickness | 0.3 mm – 3 mm |
| Color Fastness | Standard 6 |
| Hardness Shore A | 77 |
Packing
The vinyl tubing is twined by nylon film then put into the carton.
Meters per roll vary with the inner dia & thickness. Pls consult us before you place the order.

Shipping
Any shipping method is available including courier & forwarder.

Why choosing us?
Zhongtian Products Overview
1. What certificate do you have for your products?
Our products are compliant with REACH, RoHS & UL 94V-0 Flammability standard. Our UL was obtained in 2002, and our last REACH and RoHS tests were done in Jan 2015 according to the latest standards.
Here are the details:
UL certificate #: E206666
REACH Test Report by CTI, Report #: ECL01H002970002
RoHS Test Report by CTI, Report #: ECL01H001493002
2. Can you name a few of your customers ?
We are a verified vendor of Panasonic, Mitsubishi, Samsung, LG, GREE, Midea etc.
3. What is your sample policy ?
We can offer our standard products for free. We are also able to prototype new products.
4. How is your quality compared with other Chinese products ?
Quality is the most important factor that sets us apart from Chinese competition. We carry out strict quality control throughout the whole production process.
We test all raw materials to assure the compliance with REACH and RoHS. And we implement 5S management in our factory and we test 100% products before shipment.
In most cases, it is not difficult to distinguish ours from competing ones from the workmanship.
5. What color do you offer ?
We can offer visually any color, if you want any special color, just let us know the pantone number.
6. What is the MOQ of your order ?
For inventory, the MOQ is 100 pcs(depending on the models). Pls email us about MOQ for customized products.
We offer OEM for our customers.
7. What is the payment terms ?
Generally, we accept T/T 30% in advance, 70% balance before shipment. We also accept Paypal, Western Union and MoneyGram for small orders.
8. What is your lead time of your pvc pipe thread fitting end cap with UL REACH certificate ?
5 work days for regular products. Inventory will be shipped out upon payment, and customized products will be shipped as negotiated.
Contact Us
Joe Huang
Area Sales Manager
Zhejiang Zhongtian Electrical Jacket Co., Ltd
Add: Lianchitou, Beibaixiang Town, Yueqing, Wenzhou, Zhejiang, 325603, China
Tel: +86 577 57150136
Fax: +86 577 62966586
www.pvczt.com
Email: joehuang(@)pvczt.com
