KONTED V10 портативная ультразвуковая Ветеринария для беременных
- Category: Ultrasonic, Optical, Electronic Equipment >>>
- Supplier: Beijing Konted Medical Technology Co. Ltd.
Share on (60329532138):
Product Overview
Description
KONTED V10 pregnancy portable ultrasound veterinary
www.konted.cn
Features
V10 have the similar Technical Specifications with V5plus ,But ut have a bigger screen and it is waterproof.
- Excellent control of body weight, the total weight (including battery) no more than 950g, more portable handheld work
- Good shell reinforcement design ,the products can adapt to the farm and wild and rugged working environment
- Excellent display technology, which can adapt to both the weak light and bright light image display performance.
Specifications
Technical Specifications Of The veterinary Ultrasound Scanner V10
Brief introduction: | Image smoothing, filtering, edge enhancement, frame correlation, linear interpolation and other processing, the image is crisp and clear, high resolution. Measured for distance, perimeter, area, obstetric and etc. Individually adjustable near field, far field gain (5 stage adjustable). Single-B display, continuous real-time status in the field of vision to move the function. With display playback, gamma correction, histogram and other image processing functions. With built-in memory, and has an external USB interface, the built-in memory data transfer to PC. Light weight and convenient. | |
Standard configuration | -Main Unit - AC adapter - battery -3.5MHz convex probe -powder wire -250ml couplant -Manual/ technical instructions -bag with strap | |
Options: | -7.5MHz linear probe -6.5MHz rectal probe -5.0MHz micro-convex probe -Video printer -Video wire | |
Technical specification | Monitor size | 7”-TFT |
Display mode | B, B+B, B+M, M, 4B | |
Image gray scale | 256 | |
Scan range | convex array | |
Scan lines | 512 lines/ frame | |
Frame rate | 30 frame/second | |
Digital scan converter | 512x512x8bits | |
Body marks | ≥15 | |
Multi-frequency | 2MHz-10MHz | |
Memory capacity | ≥2GB | |
Video output | PAL | |
Size | 216mm(L) x 147mm(W) x 27mm(H) | |
Net weight | 900G | |
Battery | 3000Mah/7.4V | |
Battery continuous work | ≥3hours | |
Warranty: | Any quality problems, it can be replaced within 2 years and life-long service. | |

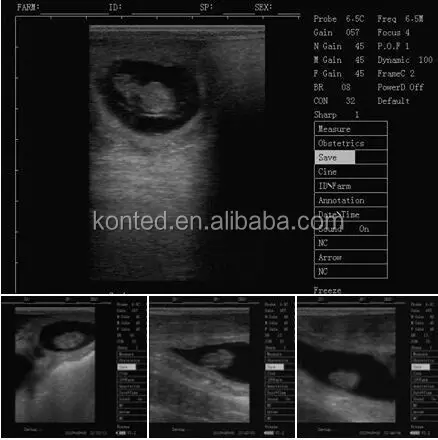

Images Of The veterinary Ultrasound Scanner V10
Application Of The veterinary Ultrasound Scanner V10

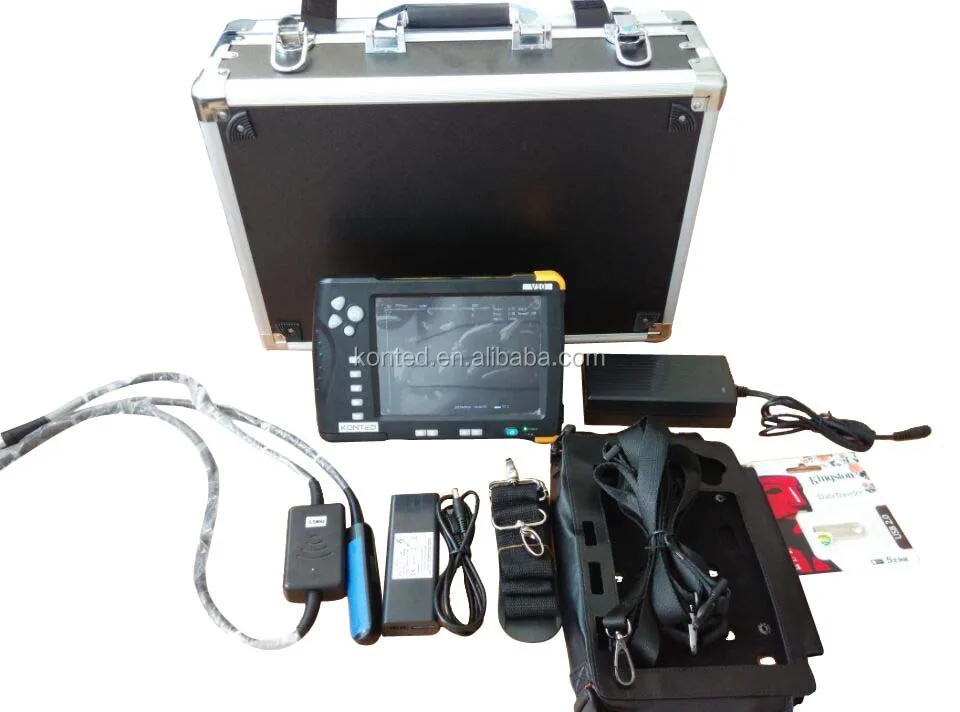

Product Show
Standard Configuration: Host, convex probe, built-in battery, power adapter, bag.
Optional: Linear probe, Micro-convex probe, Rectal probe, Backfat probe.
Product Line
Certifications
Packaging & Shipping
Packing: standard export carton.
Shipping: DHL, TNT, UPS, Fedex, ARAMEX, etc
