660mm width Rubber Cutting Machine Hydraulic Rubber Cutting Machine Tyre Cutter with CE

Product Overview

Description

XQL-80/160New 660mm width Rubber Cutting Machine/Hydraulic Rubber Cutting Machine / Tyre Cutter



Hydraulic Rubber Cutting Machine

660mm width Rubber Cutting Machine

hydraulic rubber cutter machine

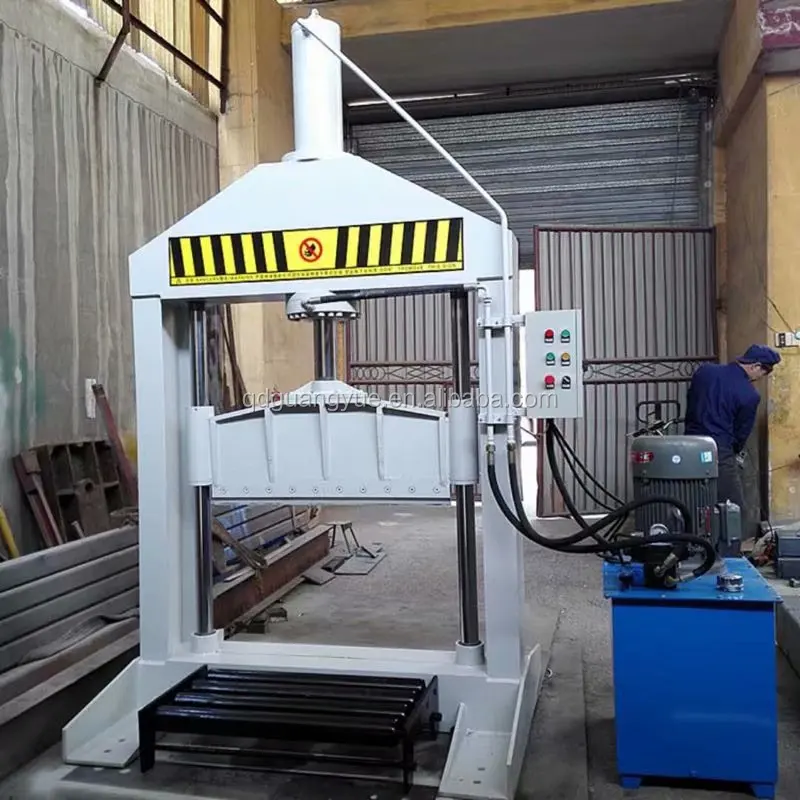

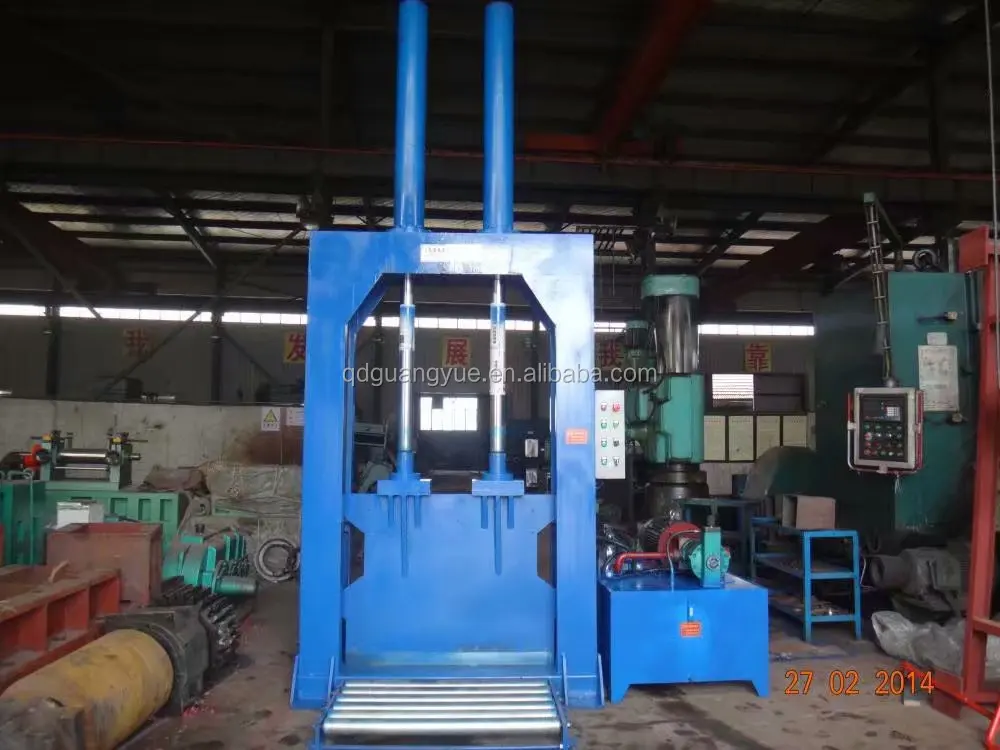

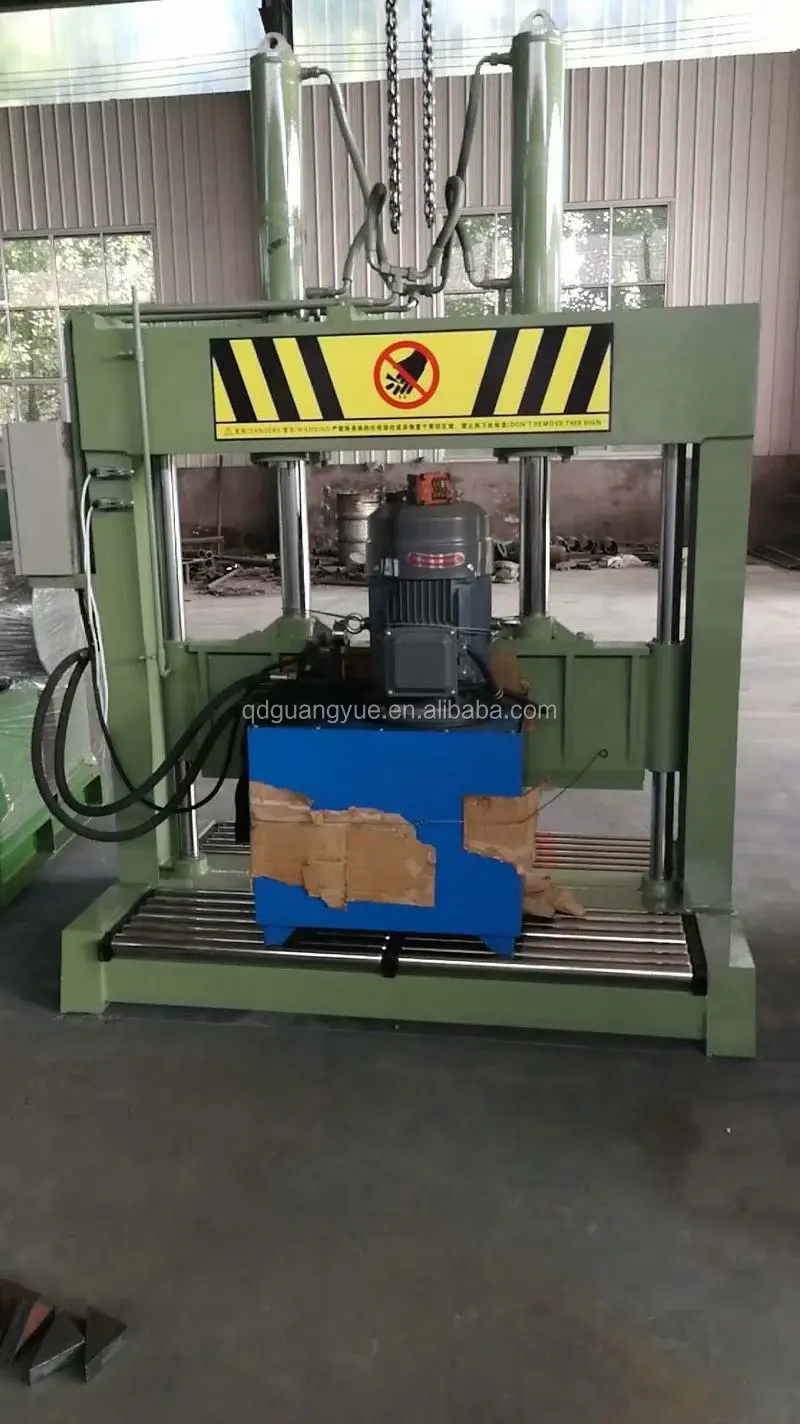

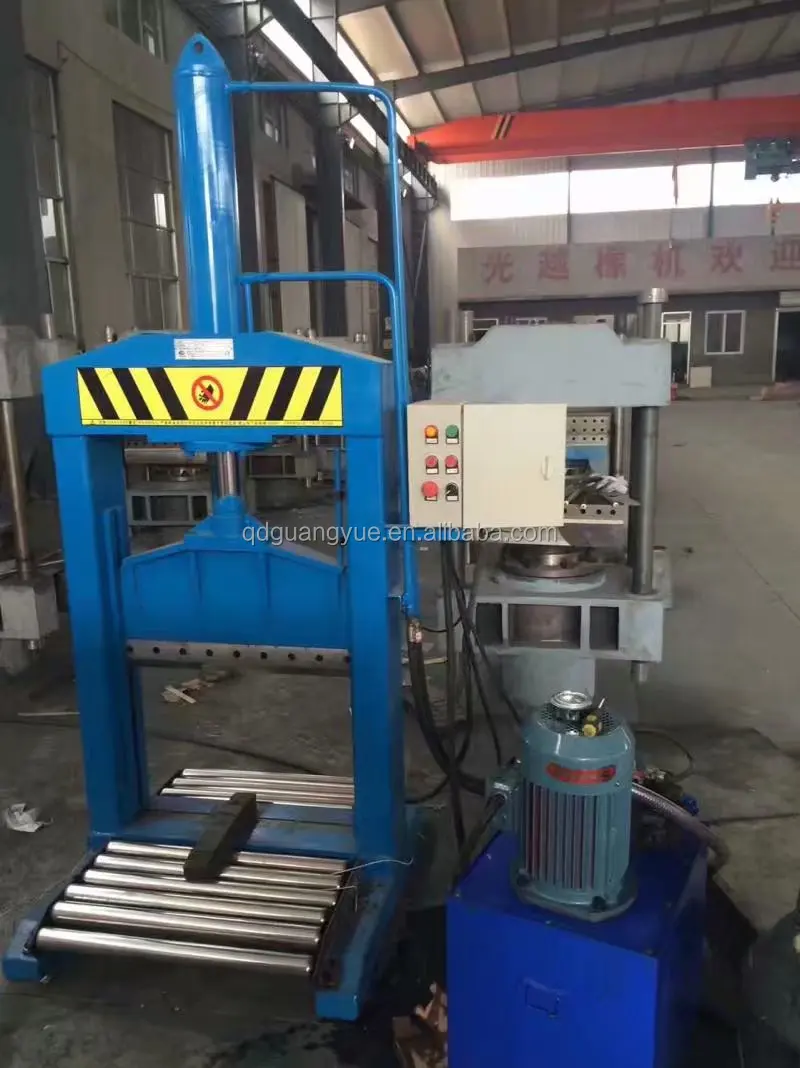

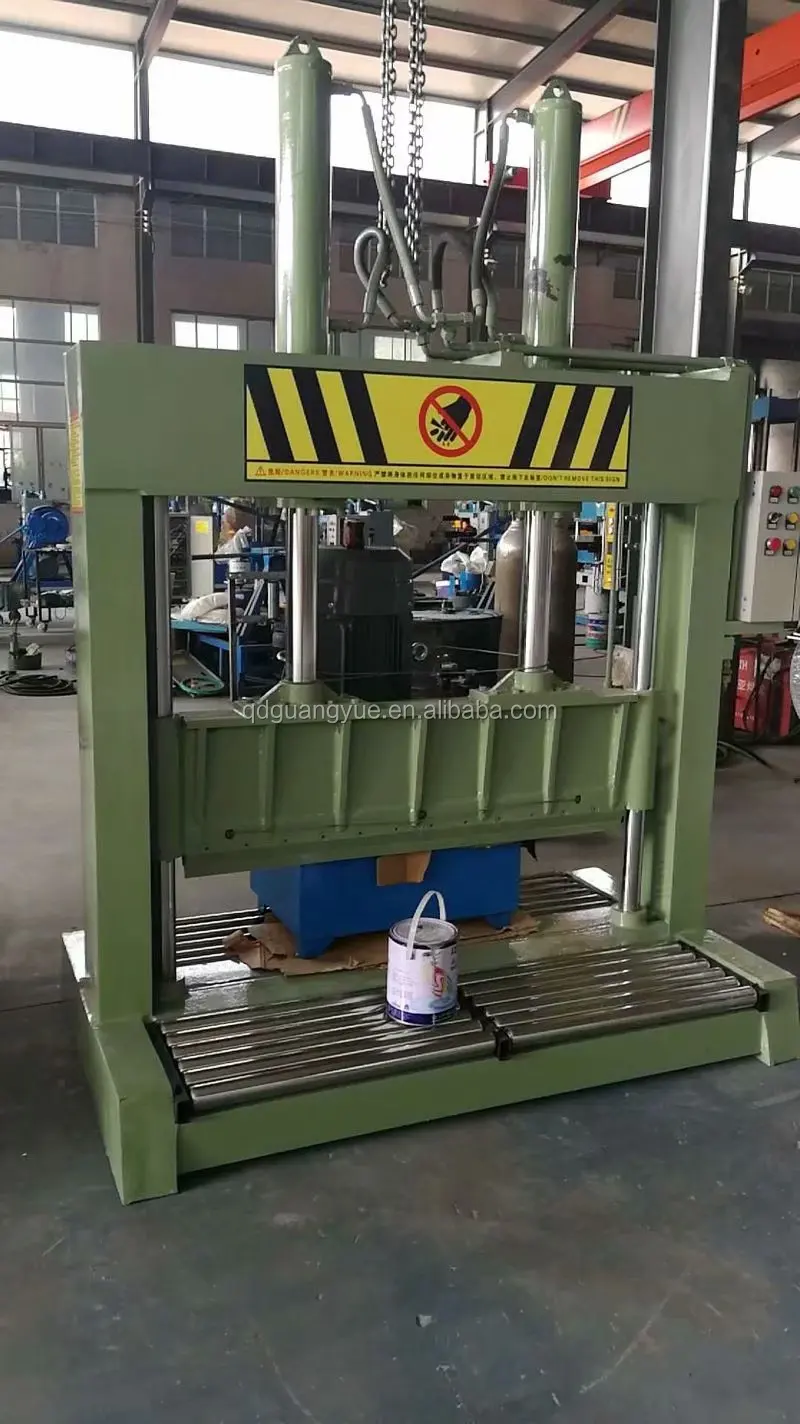

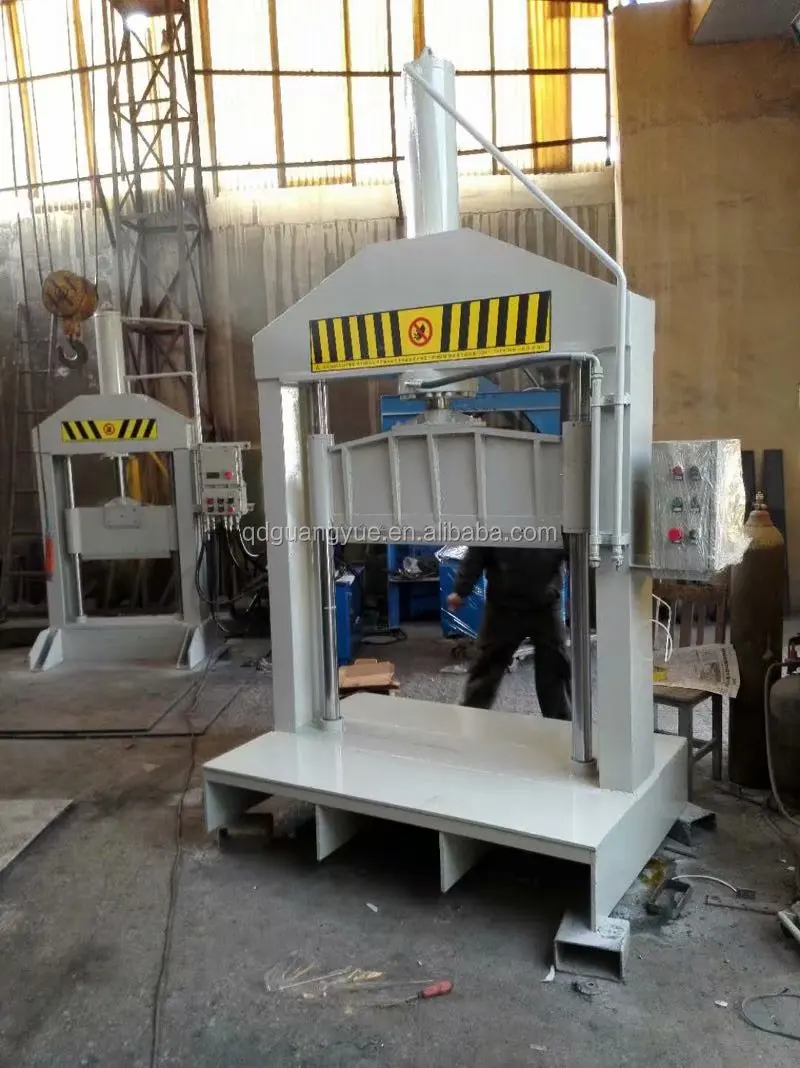

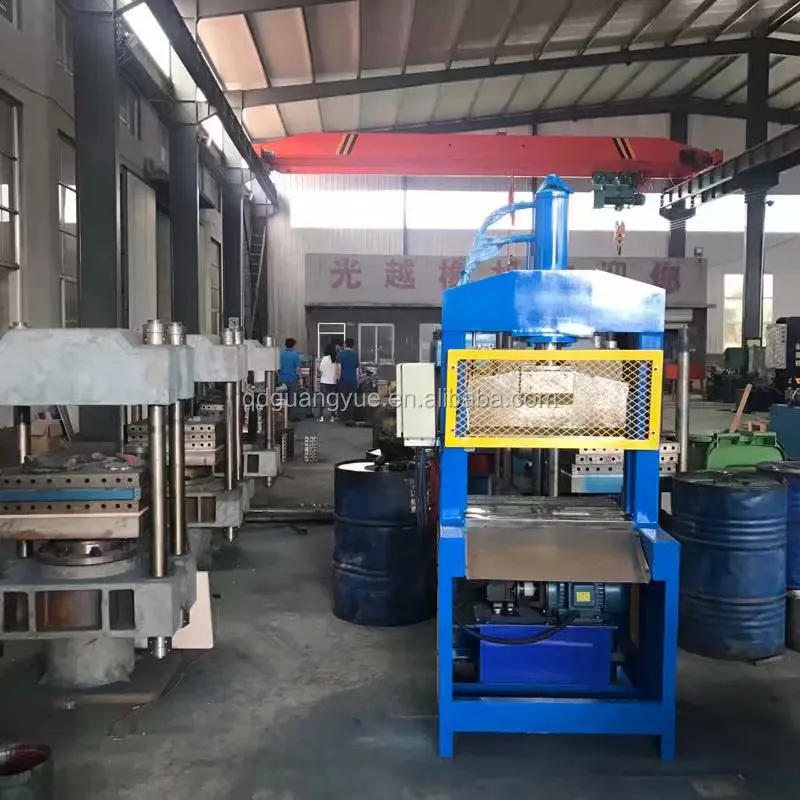

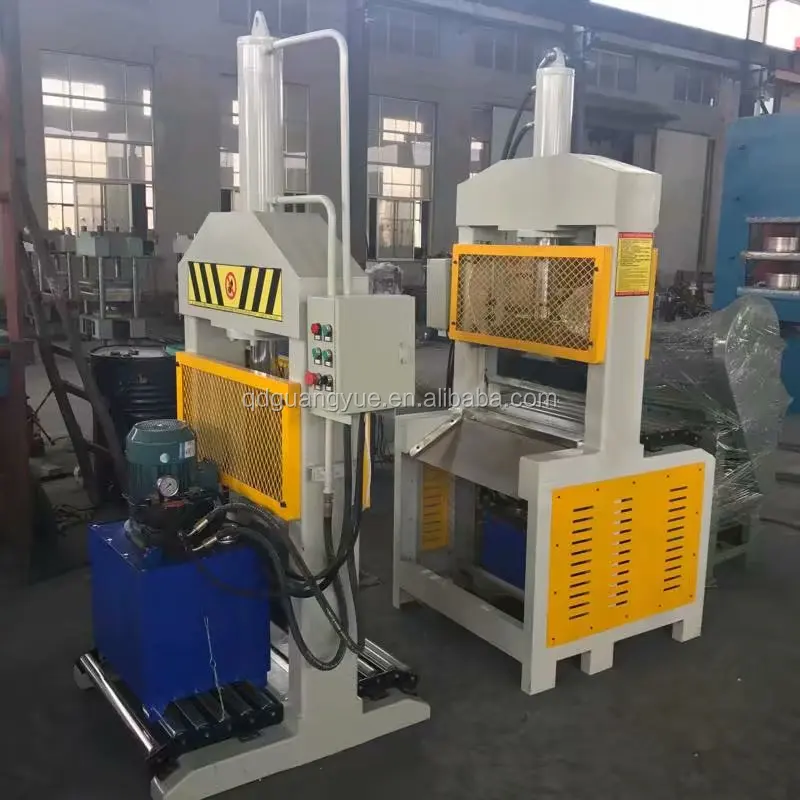

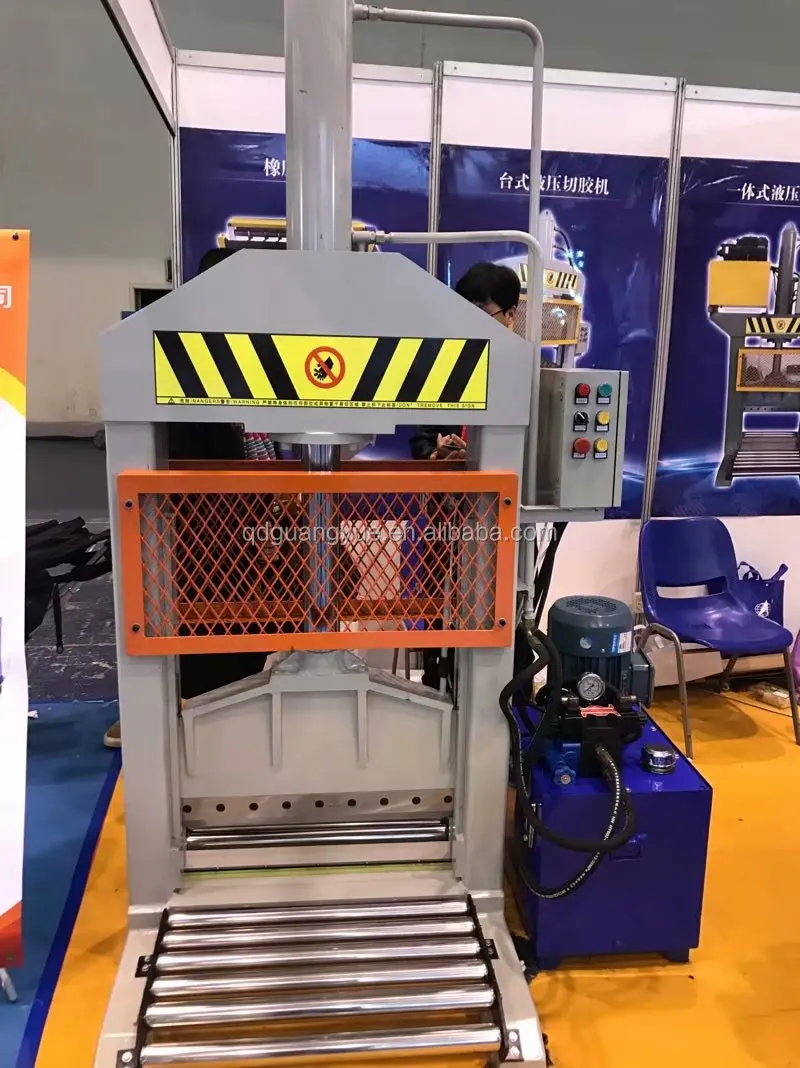

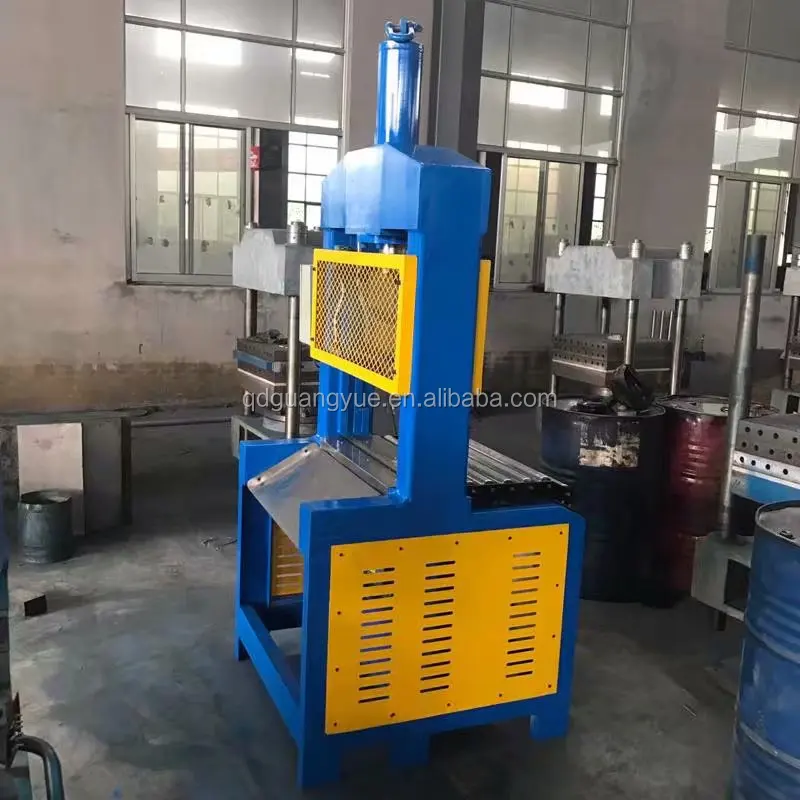

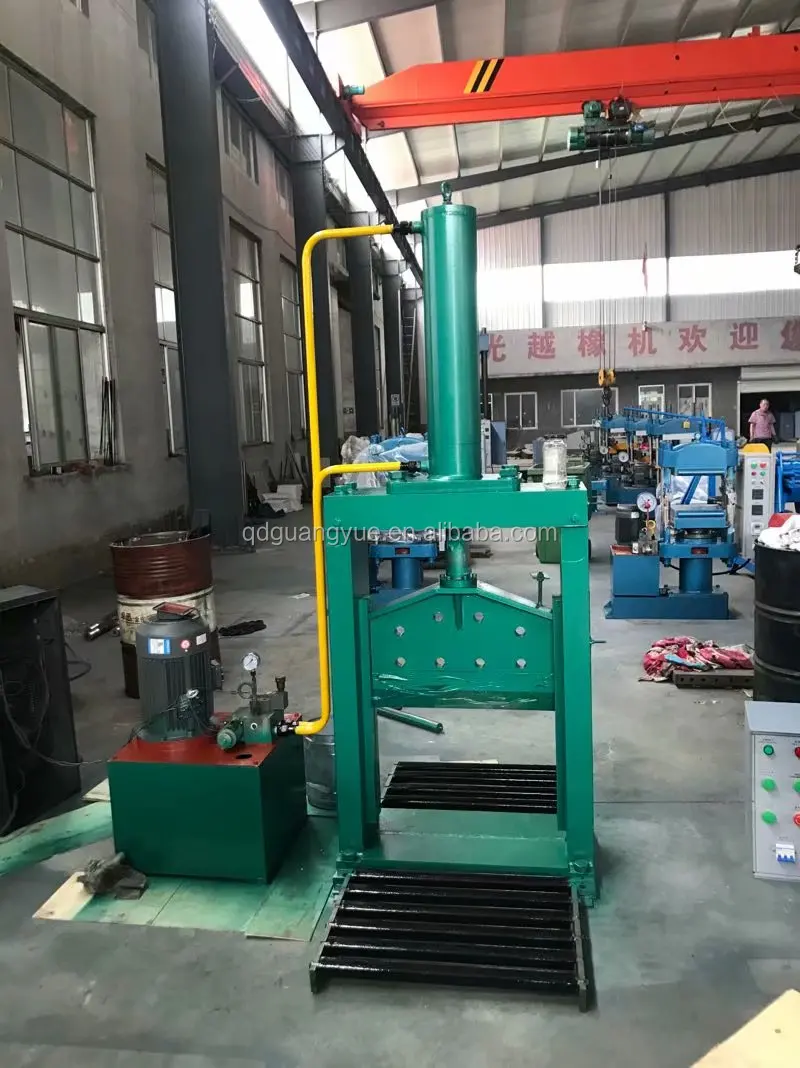

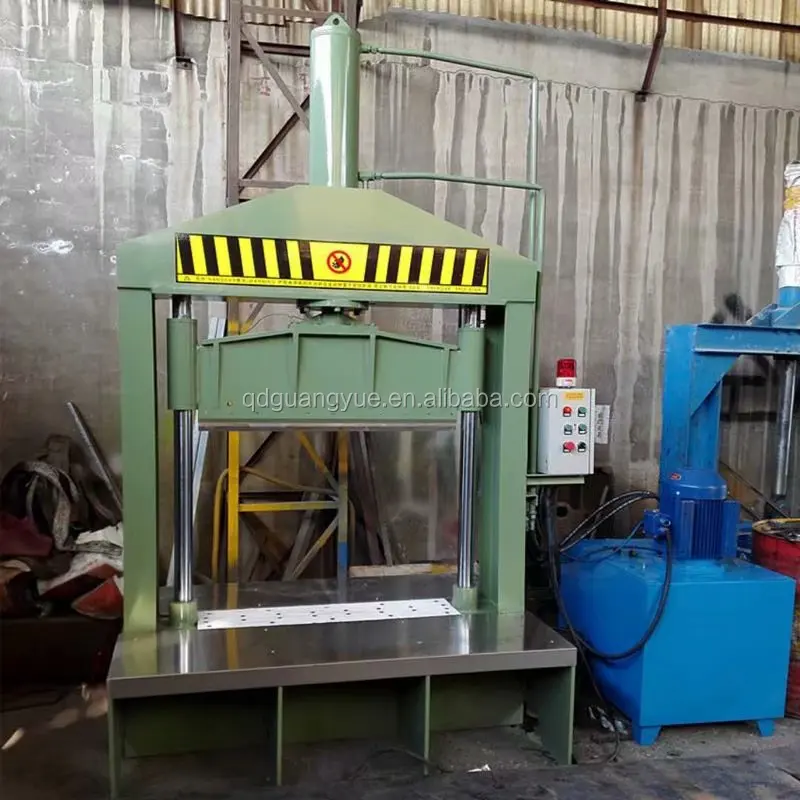

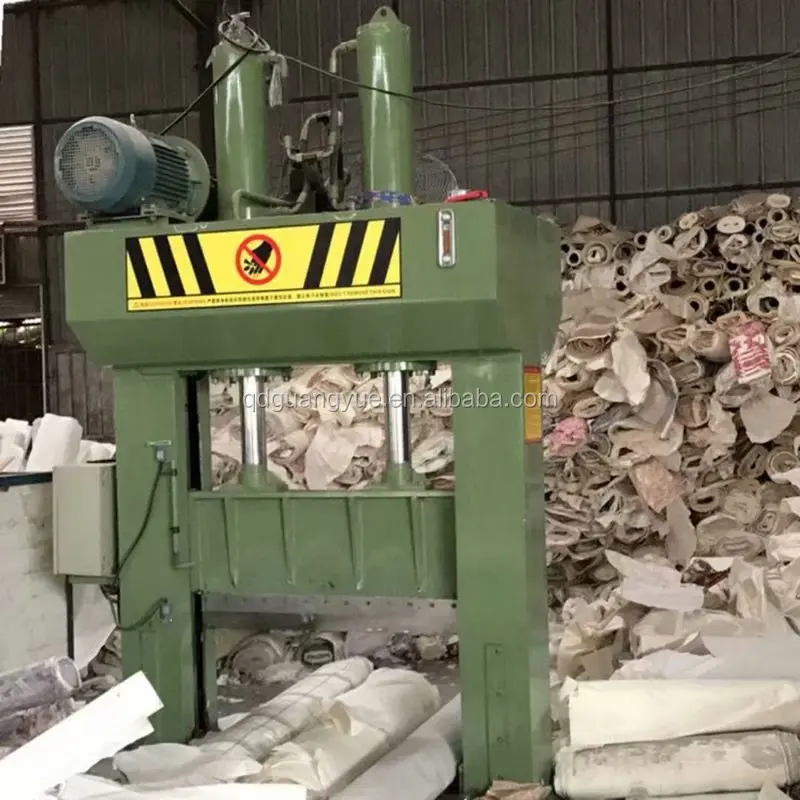

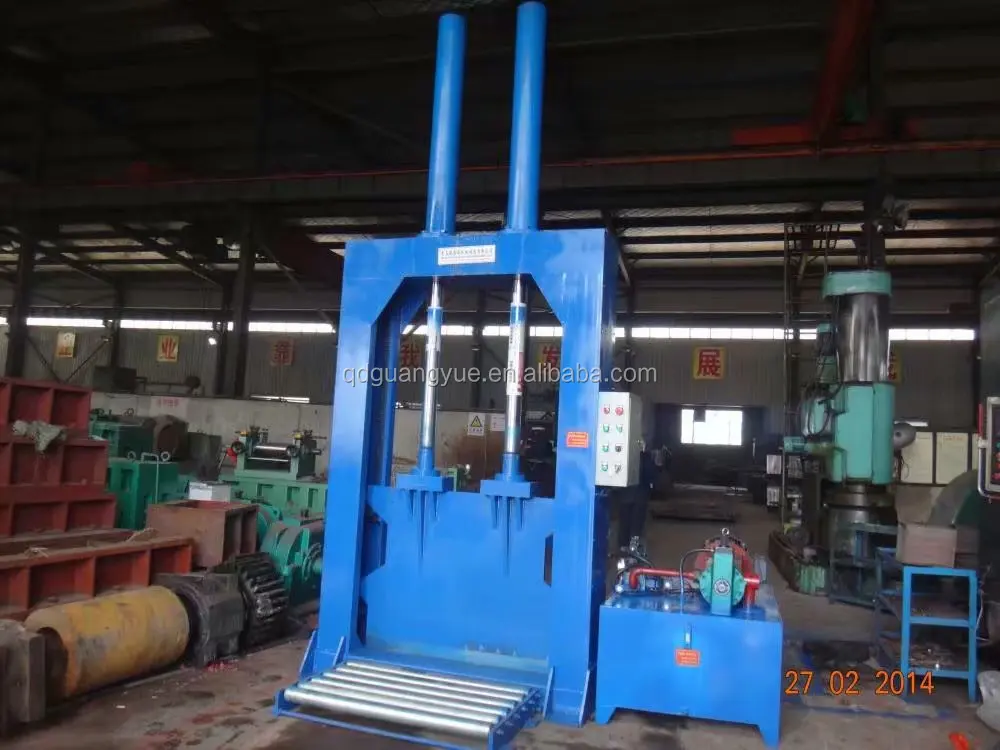

     The rubber cutting machine/bale splitter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially near the internal mixer to cut small piece of rubber and other materials.



It mainly consists of rubber knife, frame, oil pump, base, auxiliary table, hydraulic system and electric system.





Model		XQL-660	XQL-760	XQL-1000
Cutting width(mm)		660	760	1000
Knife stroke(mm)		680	680	680
Total pressure(KN)		80	125	200
Cylinder diameter(mm)		150	150	150
Stroke taken time(s)		16~25	16~25	16~25
Motor power(kw)		5.5	5.5	5.5
Overall dimension(mm)	L	1900	2000	2240
	W	720	720	720
	H	2580	2580	2580
Weight(ton)		1.1	1.5	2.0
