Valve Seat Cutting Machine/valve seat boring machine/cylinder head machine TQZ8560
Produt Description

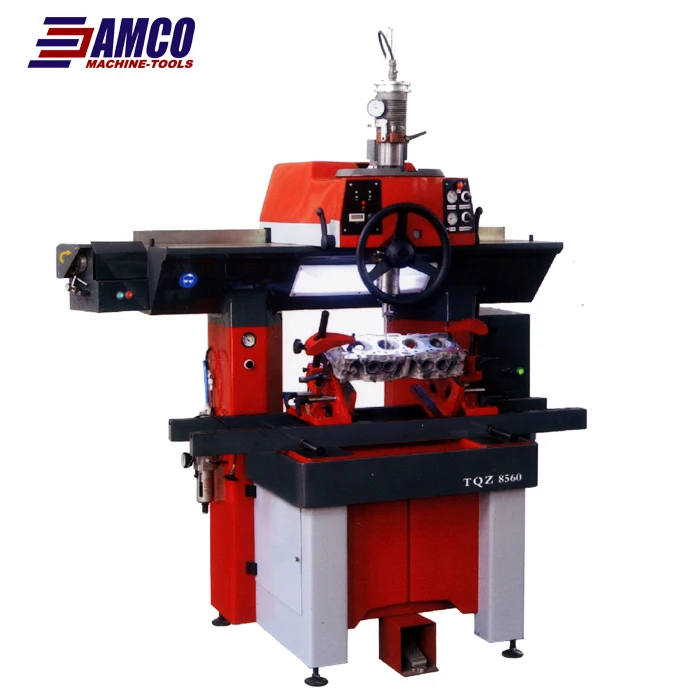

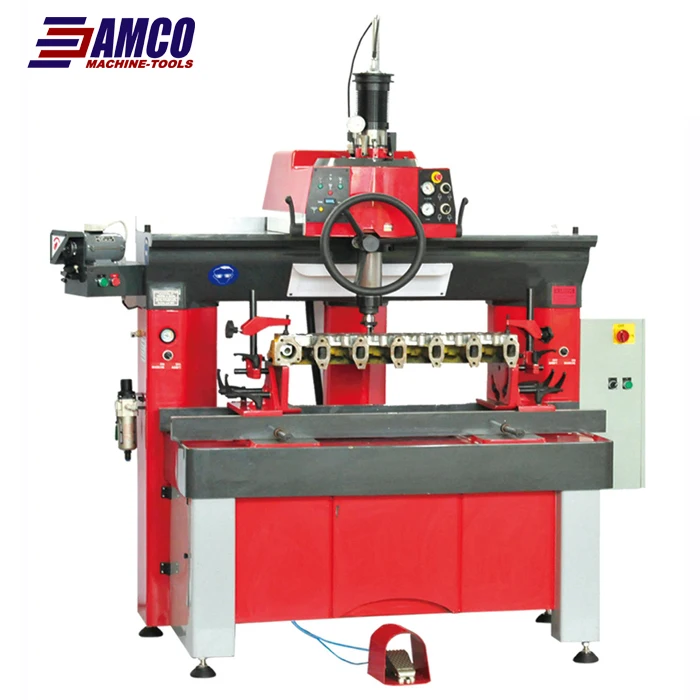

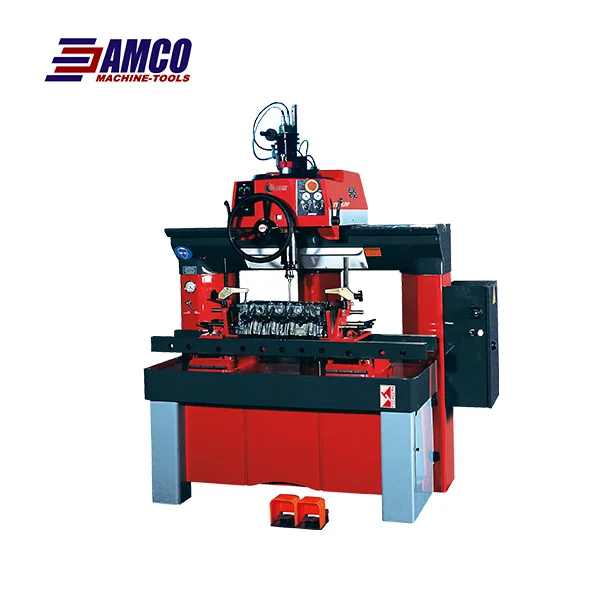

Valve Seat Cutting Machine/valve seat boring machine/cylinder head machine TQZ8560
TQZ8560 is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc. The machine features are air-floating, vacuum clamping, high positing precision, easy operation. The machine is set with grinder for cutter and vacuum check device for workpiece.
Machine Features:
1. Air floating, auto-centering, vacuum clamping, high accuracy 2.Frequency motor spindle, stepless speed 3.Regrinding cetter with machine grinder 4.Rupply vacuum test device for checking the valve tightness 5.Widely used, rapid clamping rotary fixture 6.Supply all kinds angle cutter according order
Main Specifications
Model
TQZ8560
Spindle travel
200mm
Spindle speeds
30-750/1000rpm
Boring rang
F14-F60mm
Spindle swing angle
5°
Spindle cross travel
950mm
Spindle longitudinal travel
35mm
Ball seat move
5mm
Angle of clamping device swing
+50°:-45°
Spindle motor power
0.4kw
Air supply
0.6-0.7Mpa;300L/min
Max. Size of cylinder cap for repairing
1200/500/300mm
Machine weight(N/G)
1050KG/1200KG
Overall dimensions
1600/1050/2170mm
