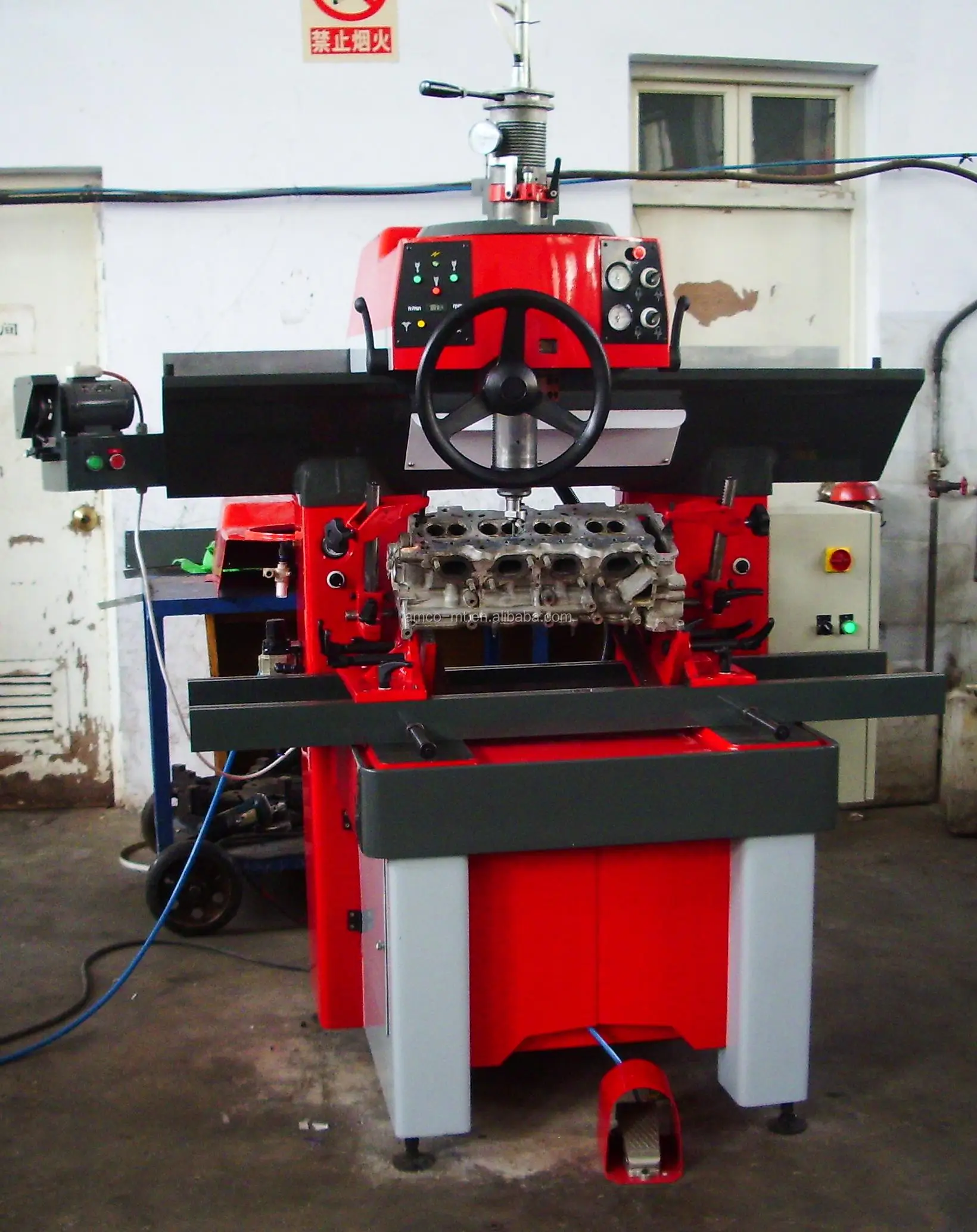

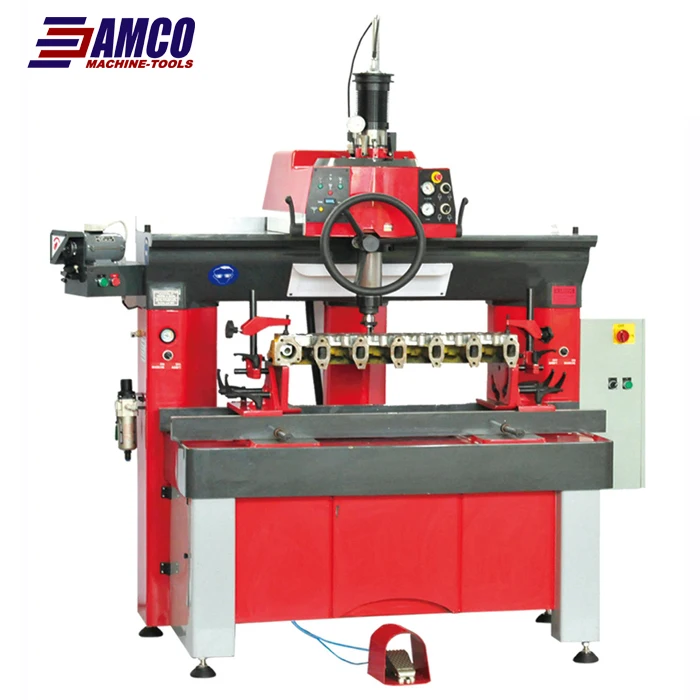

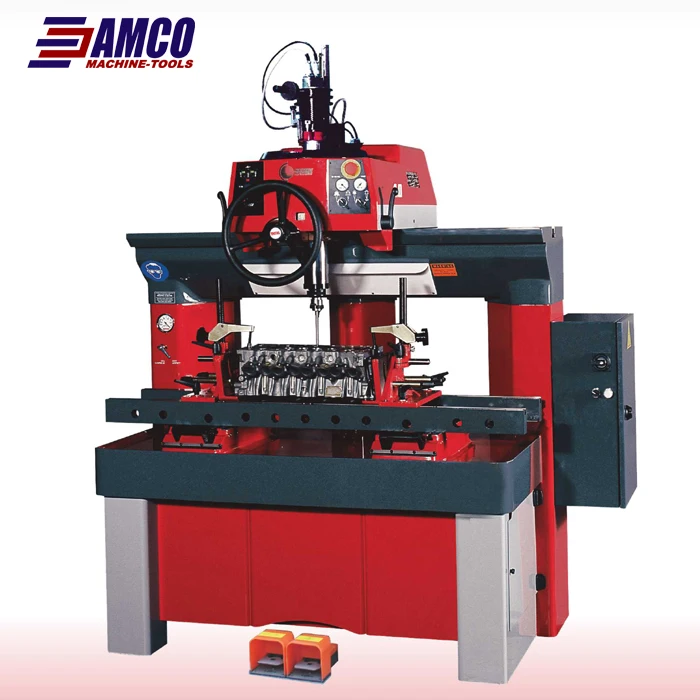

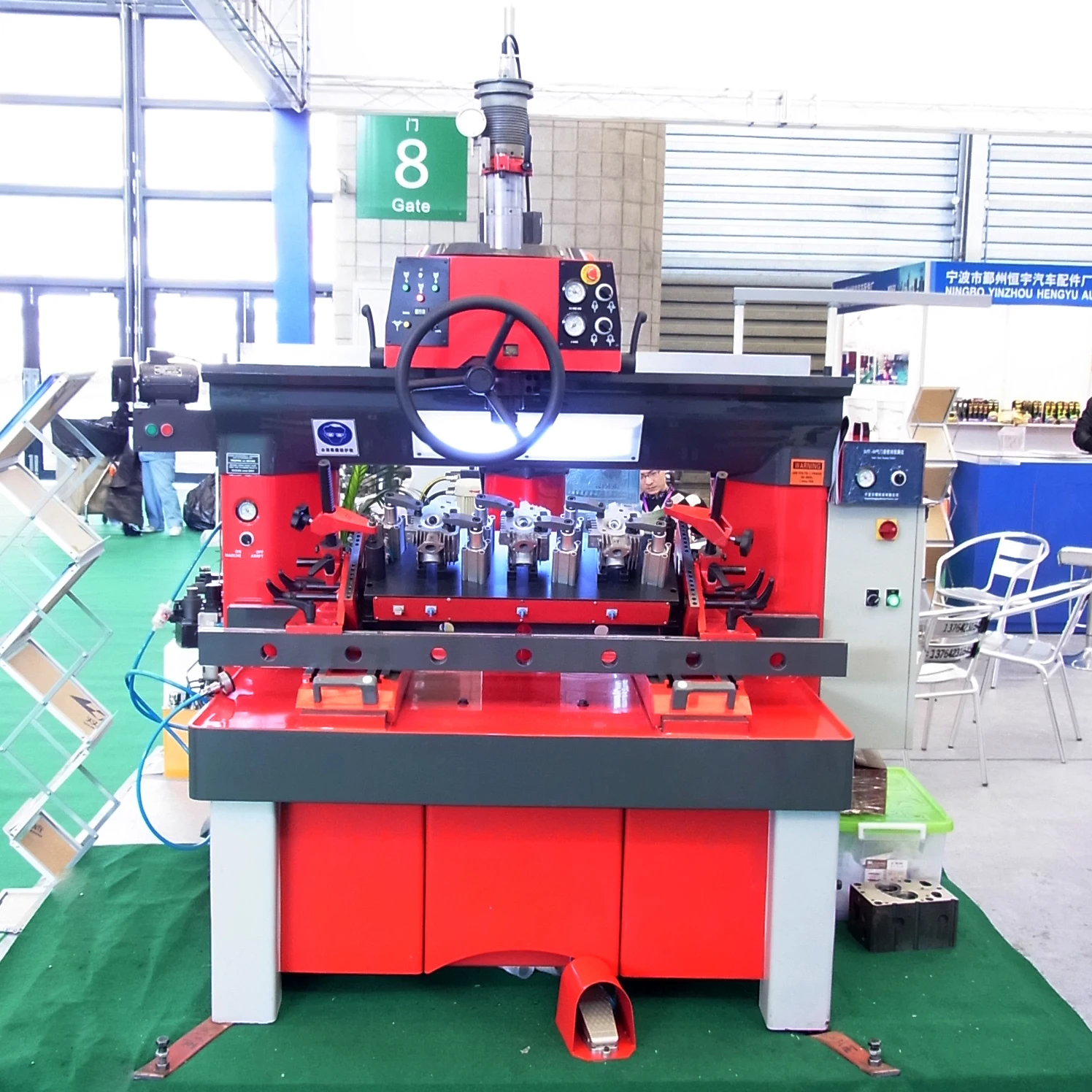

Valve Seat Boring Machine TQZ8560

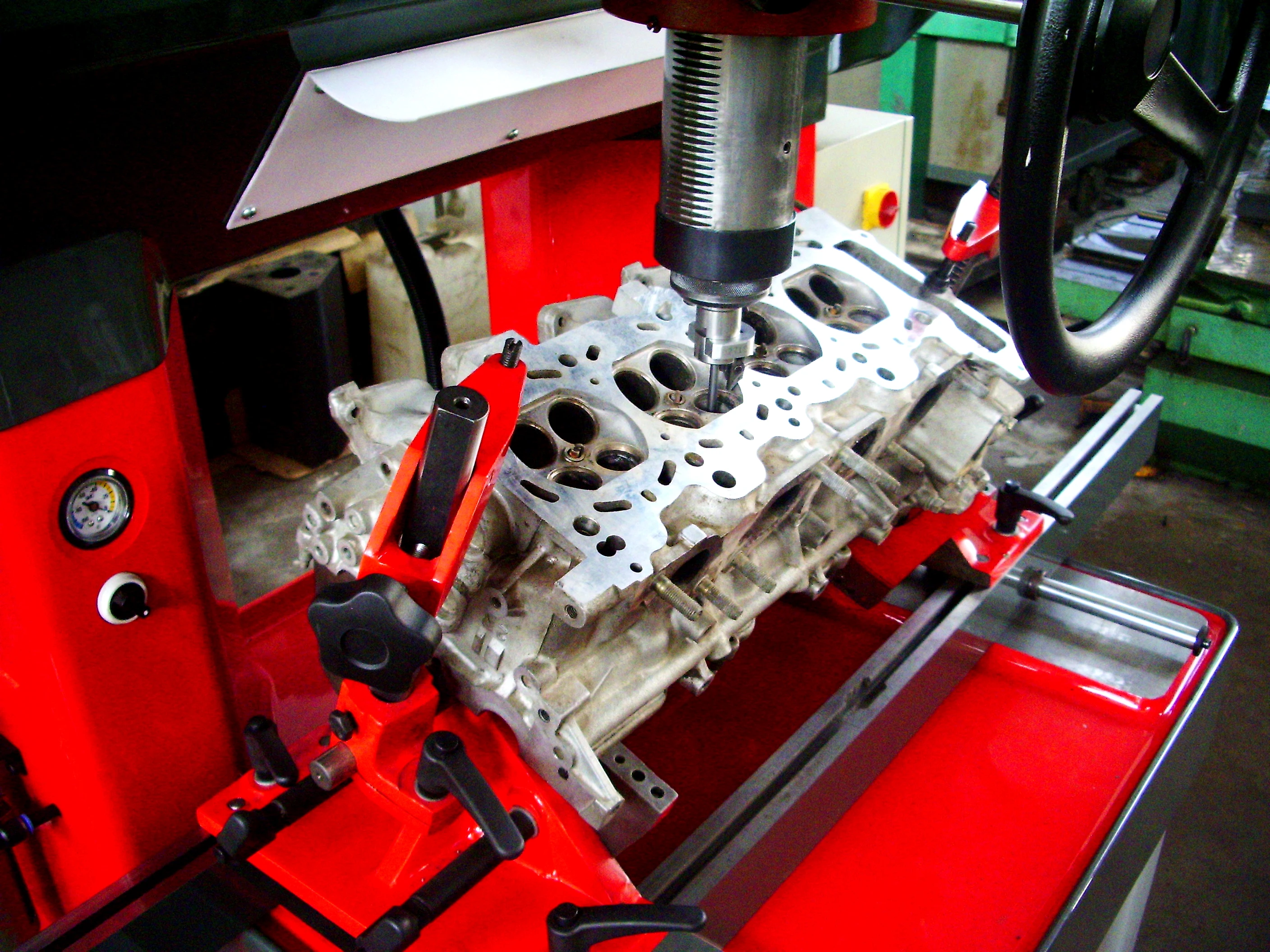

TQZ8560 is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc. The machine features are air-floating, vacuum clamping, high positing precision, easy operation. The machine is set with grinder for cutter and vacuum check device for workpiece.
Machine Features:
1. Air floating, auto-centering, vacuum clamping, high accuracy
2.Frequency motor spindle, stepless speed
3.Regrinding cetter with machine grinder
4.Rupply vacuum test device for checking the valve tightness

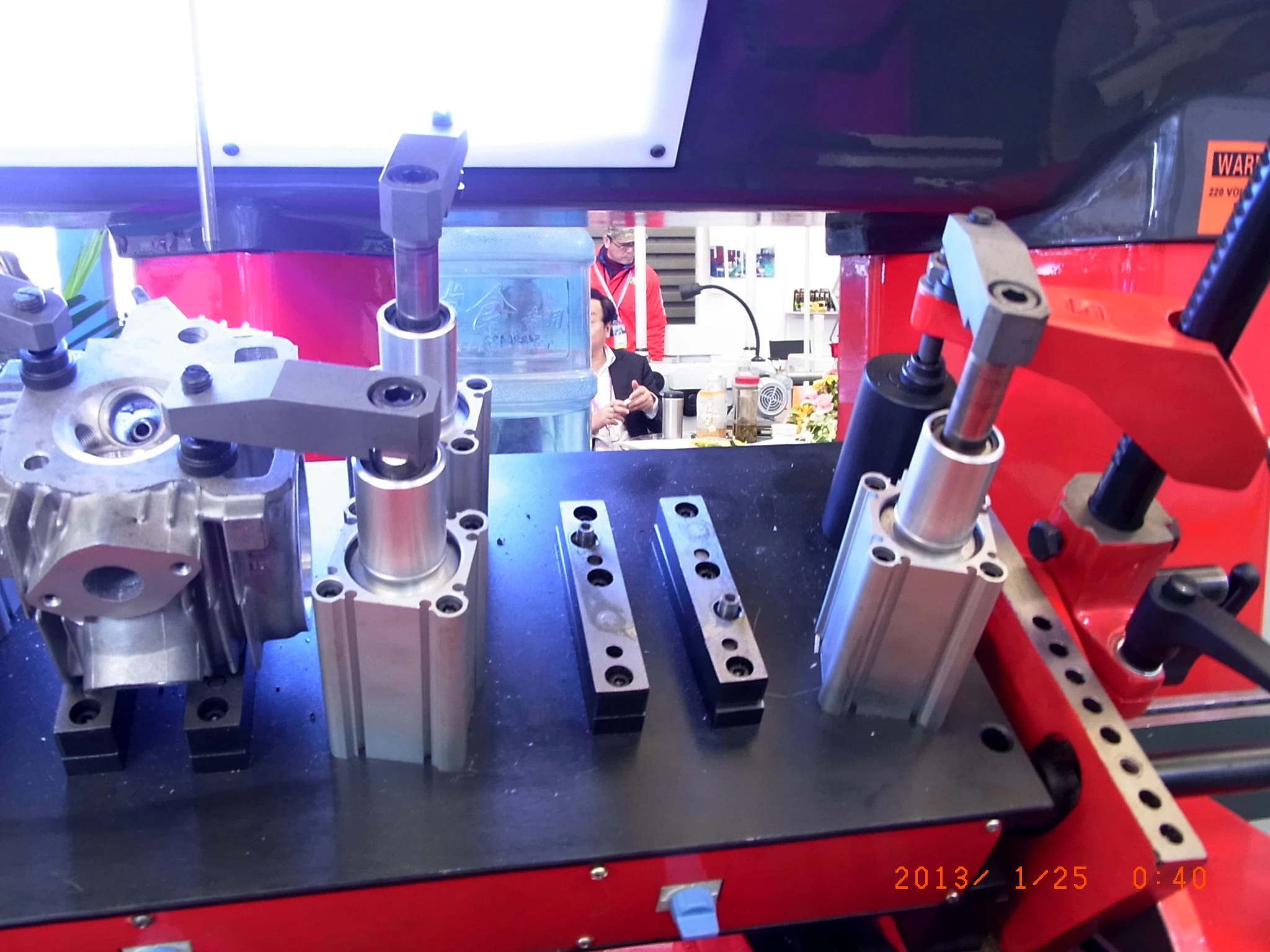

5.Widely used, rapid clamping rotary fixture
6.Supply all kinds angle cutter according order
Main Specifications
Model | TQZ8560 |
Spindle travel | 200mm |
Spindle speeds | 30-750/1000rpm |
Boring rang | F14-F60mm |
Spindle swing angle | 5° |
Spindle cross travel | 950mm |
Spindle longitudinal travel | 35mm |
Ball seat move | 5mm |
Angle of clamping device swing
| +50°:-45° |
Spindle motor power | 0.4kw |
Air supply | 0.6-0.7Mpa;300L/min |
Max. Size of cylinder cap for repairing | 1200/500/300mm |
Machine weight(N/G)
| 1050KG/1200KG |
Overall dimensions | 1600/1050/2170mm |
