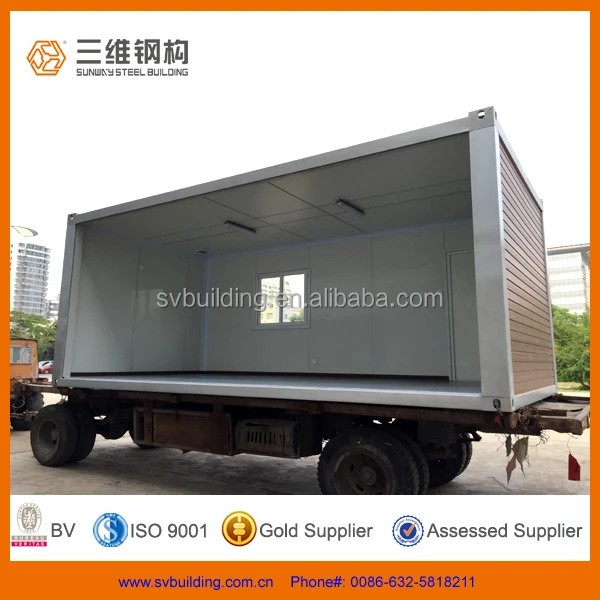

Flat Packed Wild Vacation Container House
- Category: >>>
- Supplier: Shandong Sunway Steel Building Co. Ltd.
Share on (60330424671):
Product Overview
Description
Quick Details
Place of Origin: Tengzhou, China (Mainland) | Brand Name: SUNWAY | Model Number: SSS001 |
| Material: Container | Use: Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Workshop,Plant, School, bank | Size:: Standard 20ft shipping container size:6055mmX2435mmX2790mm |
| Color: White, it can be customized if quality is large | Structure:: Galvanized Steel Frame with Marine Paint | Insulation:: PU, Rock wool or Neopor EPS |
Window:Aluminum or PVC Door:Steel Cleanroom Door | Floor:: Vinyl Sheet on Plywood or Cement Board | Lifespan:: 30 Years Fire Proof:: B1 Grade |
Packaging & Delivery
| Packaging Details: | Packed to 20ft container and shipped as SOC or Load into 40ft HC container with proper packing for each material |
|---|---|
| Delivery Detail: | 15 days upon signing the contract |
Product Description

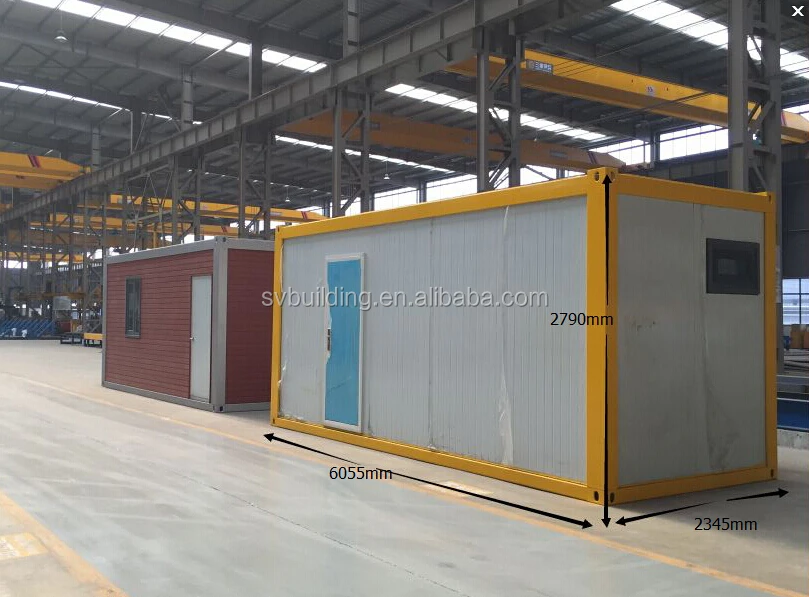

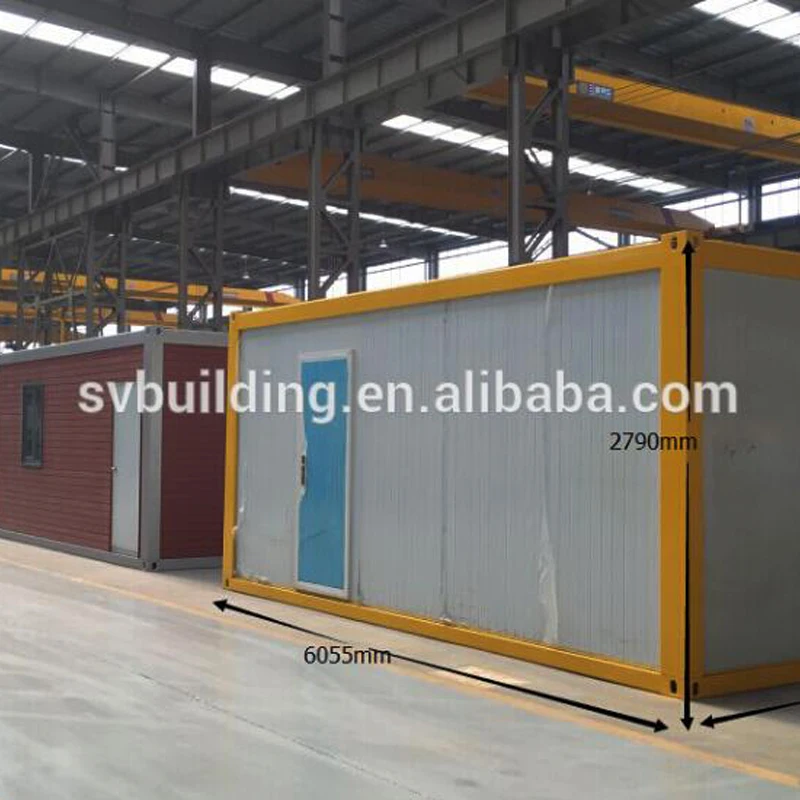

Dimension(mm)&Weight(kg)
Type | External | Internal | Weight (kg) | |||||
Length | Width | Height (package) | Height (assembled) | Length | Width | Height | ||

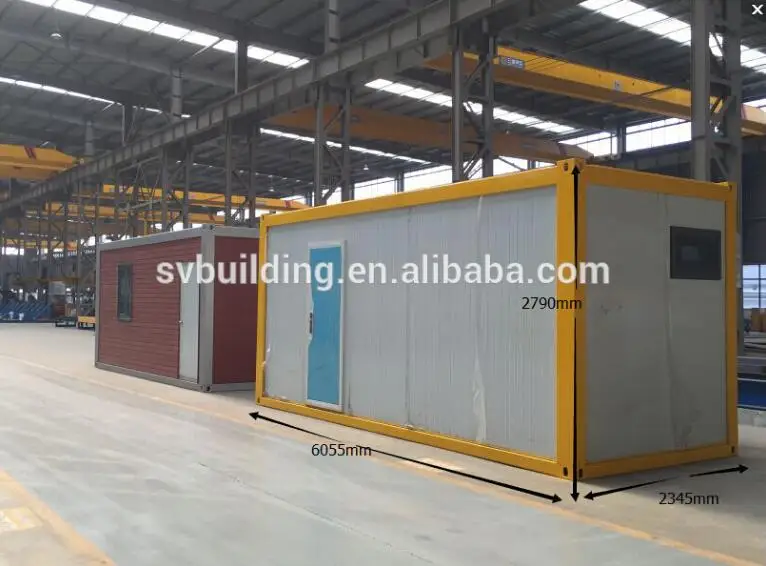

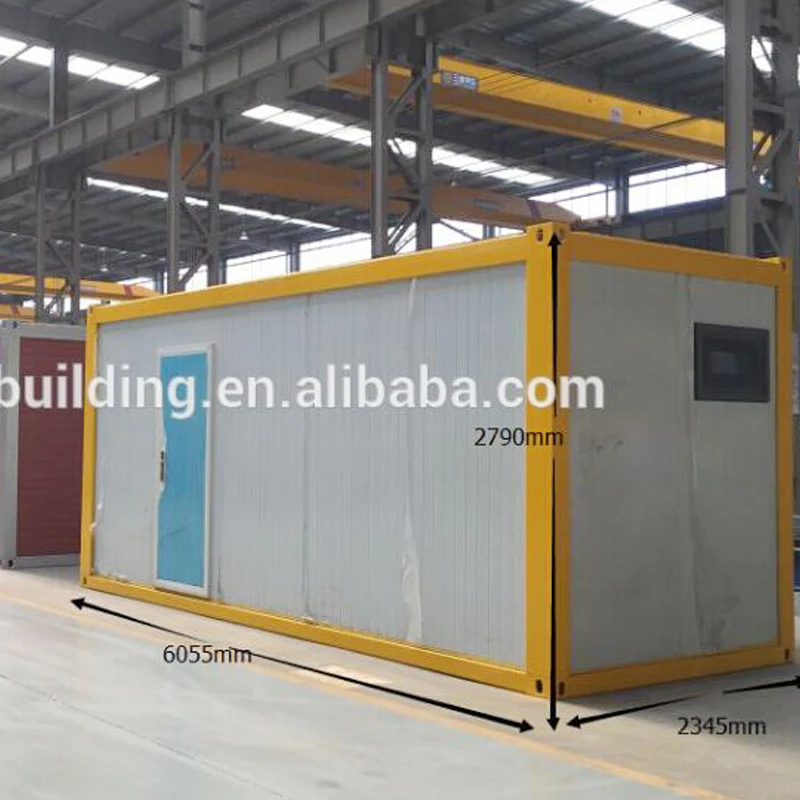

20’ | 6055 | 2435 | 648/864 | 2591/2790 | 5860 | 2240 | 2500 | from 1850 |

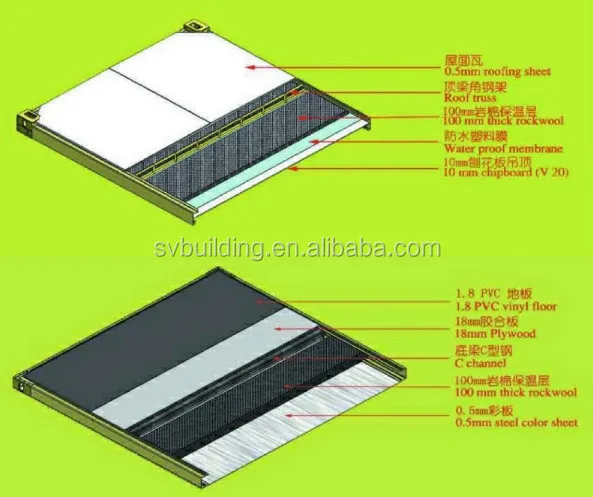

Floor
Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
- 4 corner casts, welded | |
- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm) | |
- steel cross members, thickness=2mm | |
Insulation | - 100 mm thick Rock Wool |
Subfloor | - 0.5mm thick, galvanized steel sheet |
Floor | - 18mm plywood board |
- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Roof
Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
- 4 corner casts, welded | |
- steel cross members, thickness=2mm | |
Roof cover | - 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
Insulation | - 100 mm thick Rock Wool |
Ceiling | - 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
CEE connector | - sunken in frame on short end side |

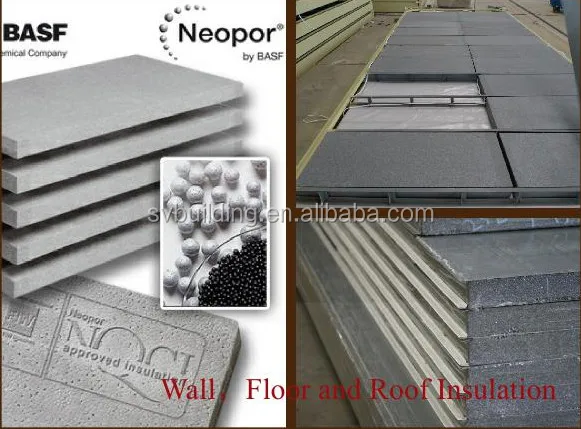

Insulation
Rockwool | - density:120kg/m3 |
- flammability class A- non combustible - smoke density class Q1 - low smoke emission | |
- certificated: CE & GL | |
NeoporR | - density:18kg/m3 |
- flammability class B1- non combustible - smoke density class Q1 - low smoke emission | |
- certificated: CE & GL |
Coatings (Optional)
DecoCoating | Special coating can be applied on top of sandwich wall panel and make the external wall surface looks like plastering finishes or timber finishes. That makes the container house cozy and less industry look. |
WYX}4{5V{F)9~9V)DM_ZVO.jpg" width="700" style="font-size: 11.8181819915771px; float: left;" ori-width="957" ori-height="717"/>
Assembly Process

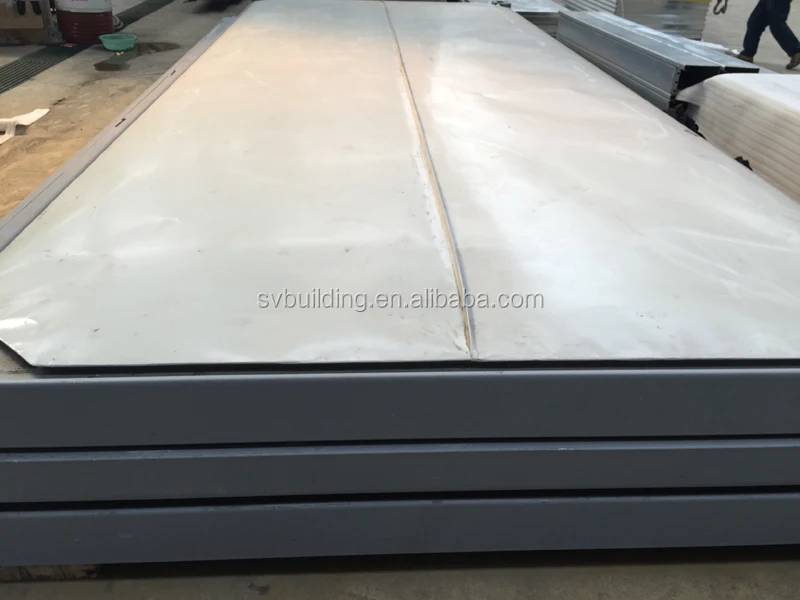

Easy to be Assemble and disassemble. Four workers can complete one unit in half day. Packing and Transportation:

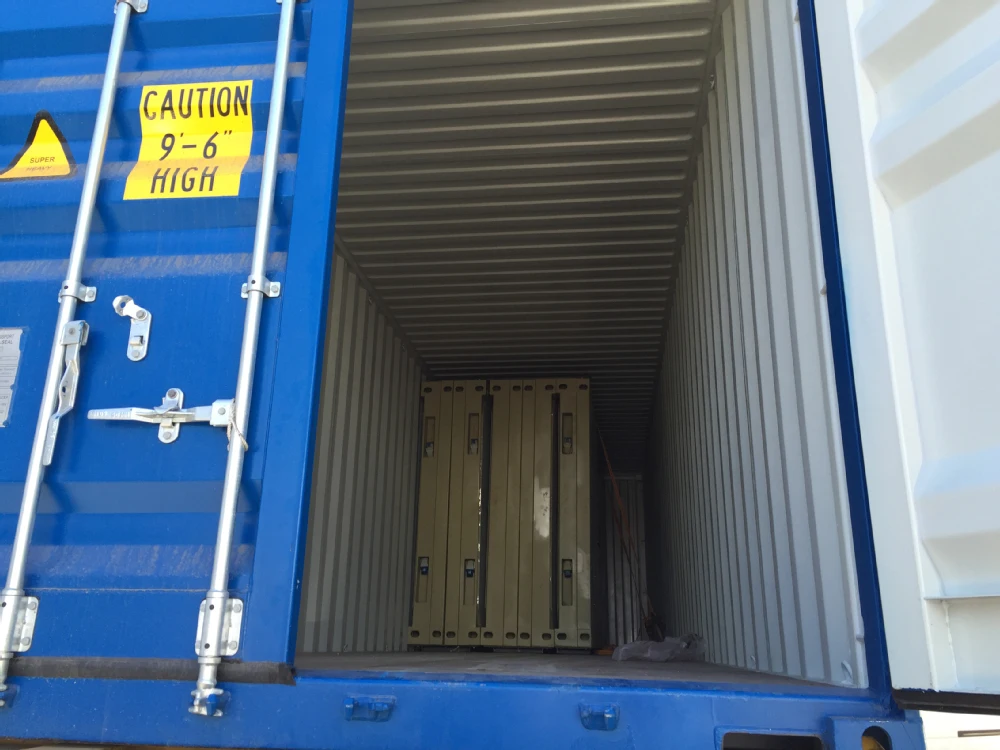

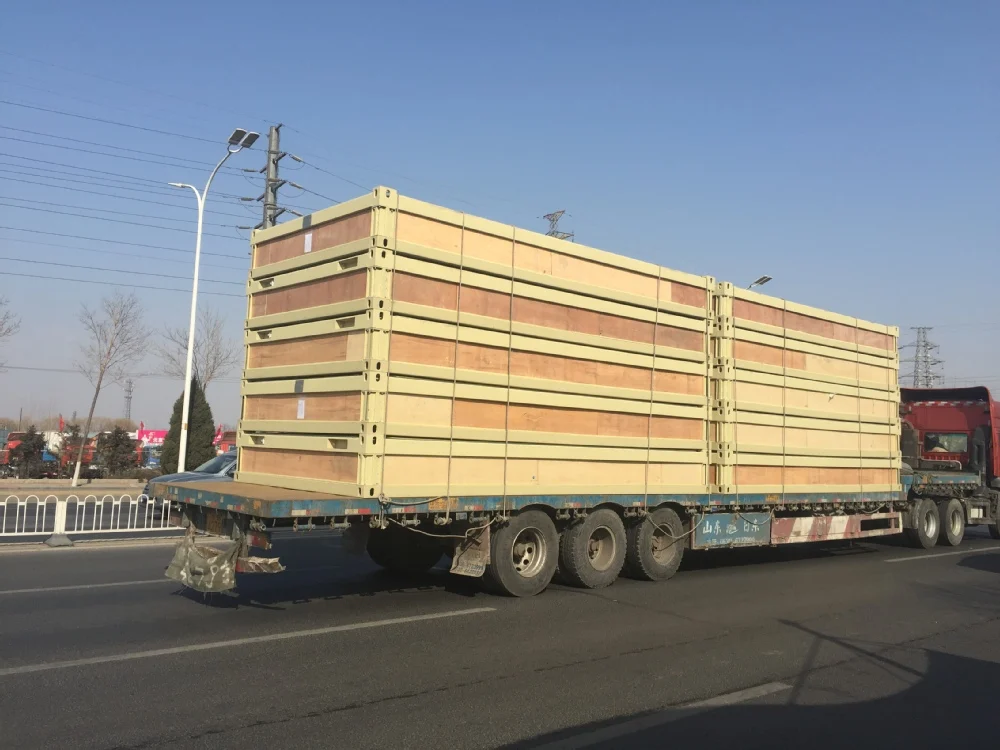

From our factory to overseas client, there are two ways to delivery the houses. If your port can accept SOC (Shipper’s Owned Container), 4 standard cabins can be packed as a 20ft container and shipped naked. If can not, 7standard cabins can be loaded into one 40ft HC.
From the dealer’s workshop to the client’s place, it can be delivered by 6m long truck after assembly. The width and height are within traffic limitation.
 |  |
