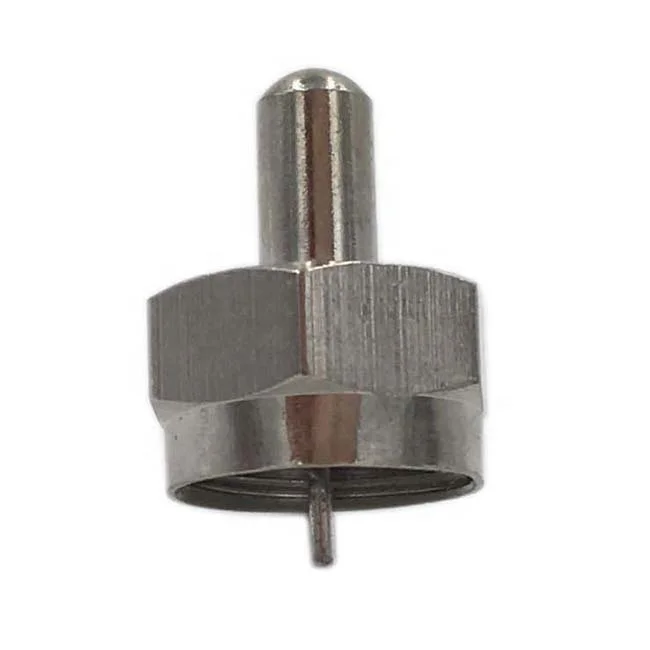

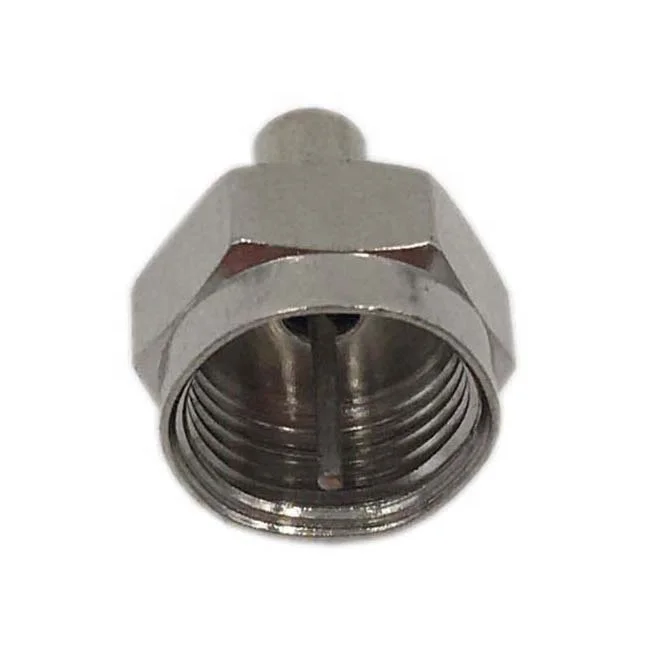

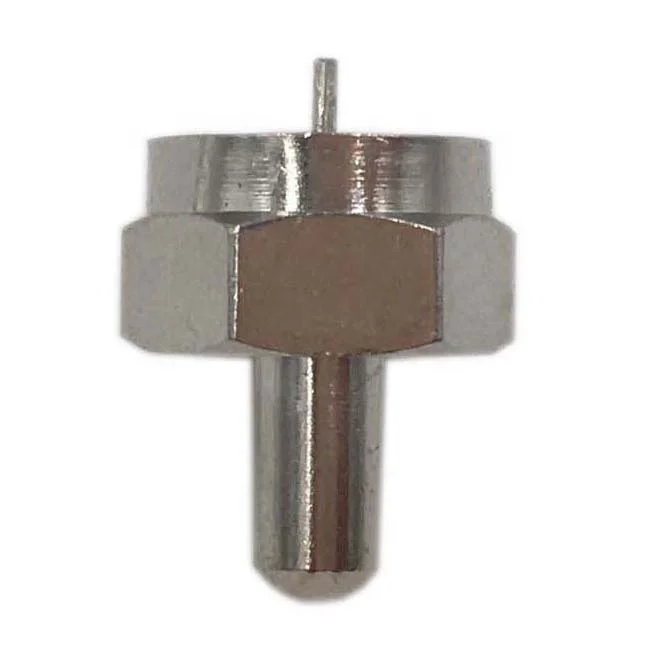

factory direct brass zinc material 75 Ohm F connector Terminator for coaxial cable
- Category: >>>
- Supplier: Zhenjiang Xinhuafeng Electronics Co. Ltd.
Share on (60330446869):
Product Overview
Description
Product Description
F-connector satellite connections are usually located next to each other, a flaw of the F-connector design is its in-ability to stop interference from one connection to another. Most shielded cables will block out this interference but signal strengths can be improved by plugging one of this caps into any unused connections on your devices.
| Temp.range: | -40~+60°C | Insulation resistance: | ≥ 1000 MΩ |
| Impedance : | 75Ω | Withstand voltage at sea level : | 750V |
| Frequency range: | 0~1GHz | Working voltage : | 170V max |
| Center conductor withdrawal force: | ≥0.49N | VSWR : | Straight ≤1.2 Angle≤1.3 |
| Contact resistance: | center conductor ≤6mΩ , outer conductor ≤1mΩ | Durability : | 500 cycles |
F connectors are available in a limited selection to fit various cable sizes.
TECHNICAL CHARACTERISTICS
Temp. range.................. ....-40~ +60 ℃
Impedance.................... ...75Ω
Frequency Range..............DC~1GHz
Working Voltage............. ...170V max
Withstand Voltage......... .....500V rms
Contact resistance
Center Contact..............≤10mΩ
Outer Contact...............≤5mmΩ
Insulation resistance ......≥1000 mΩ
VSWR Straight...............≤1.20
Right angle?................≤1.30
Durability(mating)............500 (cycles)
MATERIAL & PLATING
Shell ..............Brass ................Nickel-plated
Contact pin ........brass.................gold -plated
Elastic contact.... beryllium ............gold or silver-plated
Insulator ..........PTFE or PE
Crimping suite..... copper alloy......... nickel-plated
F Type 75 Ohm Male Terminator Coax Coaxial End Caps TV RF Port Install
F type 75ohm Terminator 75Ω Male Terminal Head Adaptor
F Cap Coaxial Satellite End Connector Cover
F type Male Terminator Plug
FAQ
1. How about your lead time?
A: it depends on order quantity. Usually 15-45 days.
2.How can we get a sample.
A: Free sample, Freight collected by your side.
3.How to contact us?
A: Just send us enquiry online via Alibaba. Our worker will reply you in 24 hours.
Company Information
ZHENJIANG XINHUAFENG ELECTRONICS CO., LTD is a professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.
