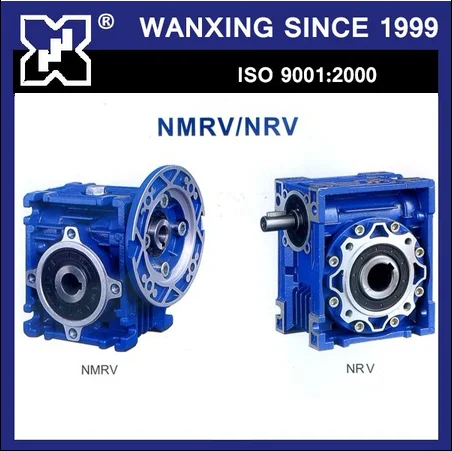

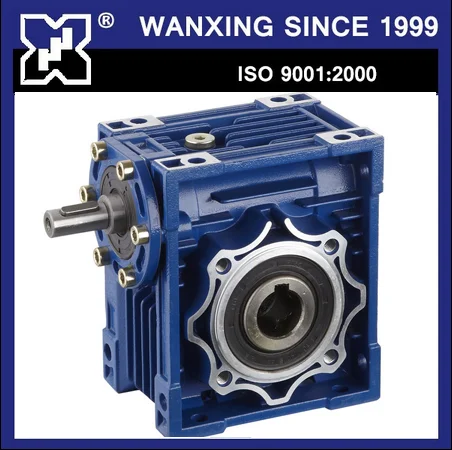

Single Reduction Worm Gearbox In Inch Dimensions Like Motovario
- Category: >>>
- Supplier: Hangzhou Wanxing Reducer Co. Ltd.
Share on (60330677705):
Product Overview
Description
Single Reduction Worm Gearbox In Inch Dimensions Like Motovario
Notes: If you are not sure of the Model, please consult us by message and tell me your motor type. We will give you professional advice. Thanks.
Structure
Product Description
Materials:
Worm: inner is nodular cast iron, outside is #94 bronze
Wheel: 20Crmoti steel (Carburizing)
Output shaft: #45 steel raw materal
Bearing: UBC brand
Housing: aluminum with oven painting for NMRV030-090, cast iron for NMRV110 and 130
Oil seal: SKF AND NAK
Characteristics:
(1)Large output torque
(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation
(4)High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
Technical data:
(1) Iput power:0.06kw-15kw
(2) Output torque:4-2320N.M
(3) Speed ratio: 5/10/15/20/25/30/40/50/60/80/100
Dimension
Mounting Positions
The competitive advantage of product line:
Production Capacity:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Speed Reducers | 10,000 Pieces / Month | confidential |
Export Market Distribution:
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|---|---|
| Foreign Market | USD24,000,00 | 100.0 |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Cutting Machine | GZK423 | 1 | 1.0 | Acceptable |
| CNC Lathe | CNC6130, CNC6150 | 1 | 12.0 | Acceptable |
| Drilling Machine | Z514NA | 1 | 1.0 | Acceptable |
| Cylindrical Grinding Machine | MA1320/750H | 3 | 1.0 | Acceptable |
| Worm Grinding Machine | S7720A | 1 | 1.0 | Acceptable |
| CNC Machine | VM850L | 2 | 1.0 | Acceptable |
| Gear Hobbing Machine | Y3150/3 | 2 | 1.0 | Acceptable |
| Milling Machine | CNC-6020 | 2 | 1.0 | Acceptable |
| Industrial Furnaces | GR650 | 3 | 1.0 | Acceptable |
| Assembling Line | No Information | 1 | 1.0 | Acceptable |
| Spot Blasting Machine | DAFENGWANGDING | 1 | 1.0 | Acceptable |
| Cast Forming Machine | LZ280 | 5 | 1.0 | Acceptable |
Packaging & Shipping
Inner packing: pp bag with carton
Outer packing: Wooden case
Shipment:20days after received the deposit
Company Information
Hangzhou Wanxing reducer Co.,Ltd is established in 1999 and is a professional manufacturer and supplier of NMRV,VF,WP,PLANETARY gearbox/reducer. It is located in Hangzhou City of China,with easy access to air port and sea port.
Our company now opeartes with more than 100pieces of equipment and pass the ISO9001:2000 certification. In order to improve our products,we’ve established a research and development department with experienced technicians. We also take part in some exhibitions such as the Cantan fair,the Hannover Mess.
Certifications
EC Declaration of conformity
Our Services
As a result, we can provise both standard and non-standard NMRV gearboxed to meet customer's requirements.
1.High quality product----Our tenet is "quality first".Good material,precise manufacturing processes
and strict quality control can create excellent quality.
2.Competitive price----We have our own factory,scientific producing,direct-selling.So we can save the cost and supply low price.
3.Professional----Our professional engineer can answer technical questions,help you solve technical problems and help you choose the most suitable product according to your requirements.
4.Delivery fast----We are near port,and we have professional forwarder.Goods can be sent out within 1 to 10 working days based on order quantity.
5.Best service----Answering e-mails or solving questions timely.Delivery and update information on time.
FAQ
1, Q: What's your business type?
A: Manufacturer
2, Q: What's your main products?
A: Power transmission gearboxes and gears.
Such as: industrial HB gearbox, worm/helical/bevel/planetary gearbox, customed gears, etc.
3, Q: What about your warranty?
A:12 to 18 months warranty according to different products and lifetime service.
4, Q: What's your MOQ?
A: 1 piece for different gearboxes.
5, Q: Can you supply customized gearboxes or gears?
A: Yes, we can. Mostly depend on your requirements.
6, Q: What information should be given, if I want to buy gearbox?
A: Gearbox ratio, type, input speed, rated power, Mounting position, More details, better!
7,Q:What about the payment?
A:T/T 30%advance,balance against copy B/L(L/C at sight can be accept)
8,When you can get our reply after inquiry?
A:We have professional team do work for different customers, so you can be sure to get the reply within 24 hours.
Dear friends, if you are interested in any models of us, pls contact us, we will reply you within 24 hours,expecting your mail.
