China Hight Quality Conventional Lathe Machine Price
US $3850-$4520
Share on (60330714441):

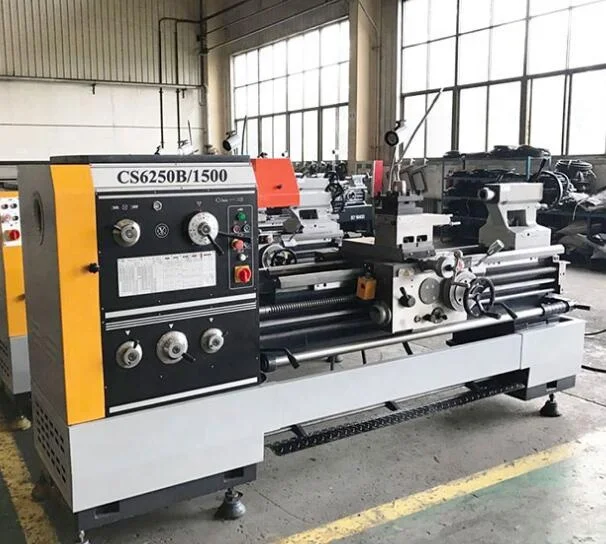

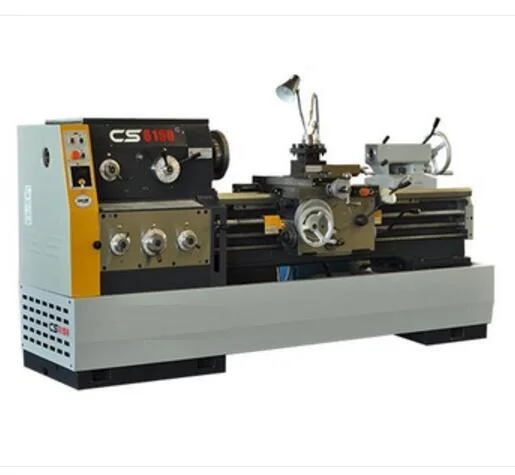

CS6150 horizontal heavy duty metal engine lathe machine with CE
Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
| Item | Unit | Parameter | ||
| CS6150 | CS6250 | |||
| Capacity | Max swing over bed | mm | Φ500 | |
| Max swing in gap | mm | Without gap | Φ710 | |
| Effective length in gap | mm | Without gap | 240 | |
| Max swing over slide | mm | Φ300 | ||
| Max workpiece length | mm | 1000/1500/2000/3000 | ||
| Machine bed width | mm | 390 | ||
| Spindle | Spindle thru-hole | mm | φ52 | |
| Spindle nose | ISO 702/Ⅲ No.6 bayonet type | |||
| Spindle speed | r/min | 24 step 9-1600 | ||
| Spindle motor | kW | 7.5 | ||
| Tailstock | Quill dia./travel | mm | φ75/150 | |
| Taper of center | MT | 5 | ||
| Tool post | Number of station/ | 4/25X25 | ||
| Tool section | ||||
| Feed | Max. Travel of upper toolpost | mm | 145 | |
| Max. Travel of lower toolpost | m/min | 320 | ||
| X-axis feed | mm/r | 93 sorts 0.012-2.73 | ||
| Z-axis feed | mm/r | 93 sorts 0.028-6.43 | ||
| Metric thread | mm | 48 sorts 0.5-224 | ||
| Inch thread | t.p.i | 48 sorts 72-1/8 | ||
| Module thread | πmm | 42 sorts 0.5-112 | ||
| DP thread | DP | 42 sorts 56-1/4 | ||
| Others | Coolant pump motor | kW | 0.06 | |
| Machine length | mm | 2632/3132/3632/4632 | ||
| Machine width | mm | 975 | ||
| Machine height | mm | 1230 | ||
| Machine weight | kg | 2100/2300/2500/2900 | ||
