Product Overview
Description
ball mill grinding mill supplier/cement ball mill for sale
Product Description

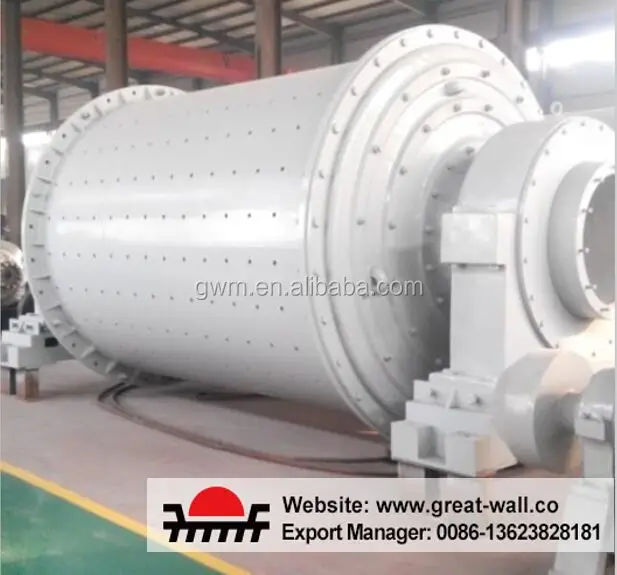

Introduce of ore ball mill machine
Ore ball mill machine is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on. The hollow axis adopts the cast steel and the lining can replace , the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scale board. This machine runs steadily and works reliably. Ore ball mill machine is used to further grind the crushed raw meal to finer powder after crushers break these raw materials roughly to smaller sizes.
Working principle of ore ball mill machine:
1. Ore ball mill machine, a horizontal type and tubular running device, has two chamber. This machine is grid type. The material enters first warehouse spirally and evenly along the input material hollow axis by input material device.
2. In this chamber, there is a ladder scaleboard or ripple scaleboard, and different specification steel balls. When shell rotates and it produces centrifugal force. At this time, steel balls will be carried to certain height and falls down to make the material heavy impact and grinded.
3. After being grinded coarsely in the first chamber, material enters second chamber for regrinding with the steel ball and scaleboard. At the end, the powder is discharged by output material board and the final products are completed.
Application of ore ball mill machine
Ore ball mill machine is a key machine mainly used to process materials from crushing process, and it is widely used in various manufacture industries.Ore ball mill machine is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Ore ball mill machine is widely used in Cement Plant, Clinker Grinding Unit, Quicklime Plant, Thermal Power Plant, Steel Mill, Mining etc.
Features and Advantage of ore ball mill machine
Key equipment to grind crushed materials.
Widely used in powder-making production.
Energy-saving and high capacity.
Specifications of ore ball mill machine
| Specification | Output | Mill rotate speed | Mill entry granularity | Grinding body load | Effective volume | Drive mode | Main motor | Main decelerator | Equipment weight |
| m | t/h | r/min | mm | t | m³ | kW | t | ||
| Φ2.4×7.5 | 21-23 | 20.4 | ≤25 | 37.5 | 29.5 | edge | 475 | CZD80 | 76 |
| Φ2.4×10 | 30 | 20.4 | ≤25 | 50 | 39 | edge | 570 | MBY630 | 94 |
| Φ2.6×8 | 20-24 | 19.57 | ≤25 | 52 | 38.1 | edge | 630 | MBY630 | 97 |
| Φ2.6×9(closed-circuit) | 42 | 19.57 | ≤25 | 58 | 42.7 | edge | 710 | MBY710 | 125 |
| Φ3.0×9 | 28-32 | 18.3 | ≤25 | 78 | 57.4 | edge | 1000 | MBY630 | 150 |
| Φ3.4×7.5 | 60 | 16.9 | ≤25 | 80 | 58 | edge | 1000 | MBY710 | 167 |
| Φ3.8×7.5 | 90 | 17 | ≤25 | 95 | 91.8 | edge | 1600 | JDX900 | 218(excluding motor) |
| Φ4.0×9 | 120-140 | 16 | ≤25 | 140 | 106 | edge | 1800 | JDX1000 | 269 |
| Φ4.6×10+3.5 | 190 | 15 | ≤25 | 190 | 177 | center | 3550 | JS150-B | 352(excluding driving parts) |
| Φ4.6×10.5+3.5 | 210 | 15 | ≤25 | 200 | 185 | center | 3550 | JS150-B | 358(excluding driving parts) |
Packaging & Shipping
Packaging Details: Standard containers, nude packs or in bulks, motors and small parts are packed in wooden cases or as customers' requirements.
Delivery Detail: within 5days for the spot goods, within 10-20 for customized machine.

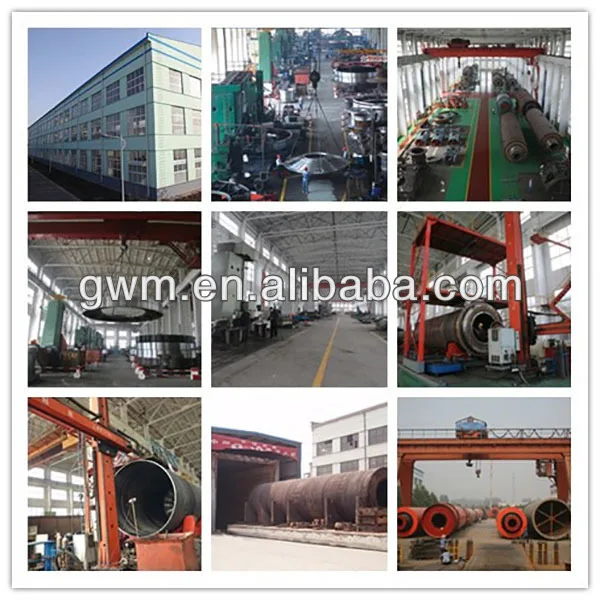

Company Information
Xinxiang Great Wall Machinery Corporation, located at National Sustainable Development Experiment Area, Mengzhuang Town, Huixian City, Henan Province, China, was initially built in 1958 and restructured into limited liability Company from township collective enterprise in 2002.
Our Development History
In 1958, Xinxiang Great Wall Machinery Corporation was established.
In 1971, first Φ1m ball mill in China was produced in Great Wall Machinery, and open the door to cement equipment industry for us.
On April 2011, We established the first slag powder demonstration and training base in China
On April 2011, own designed double slide shoe ball mill won the national practical new type patent.
On February 2012, won the honor of Top 100 Suppliers of China’s Cement Industry in 2012.
On May 2013, the annual 300,000 tons slag powder project for Huaye company went into operation.
In 2002, equipment of 1000t/d new dry process cement line for Henan Meng Electric Group Cement Co., Ltd went into operation.
In 2001, equipment of 1000t/d new dry process cement line for Henan Meng Electric Group Cement Co., Ltd went into operation.
In 1971, first Φ1m ball mill in China was produced in Great Wall Machinery, and open the door to cement equipment industry for us.
In 1958, Xinxiang Great Wall Machinery Corporation was established.
