container crane

Product Overview

Description

Port container packing crane shipping container crane







It is appliceble to load or unload for logistics companies, warehouses, piers, container yards, freight yards, etc.

Product Information:

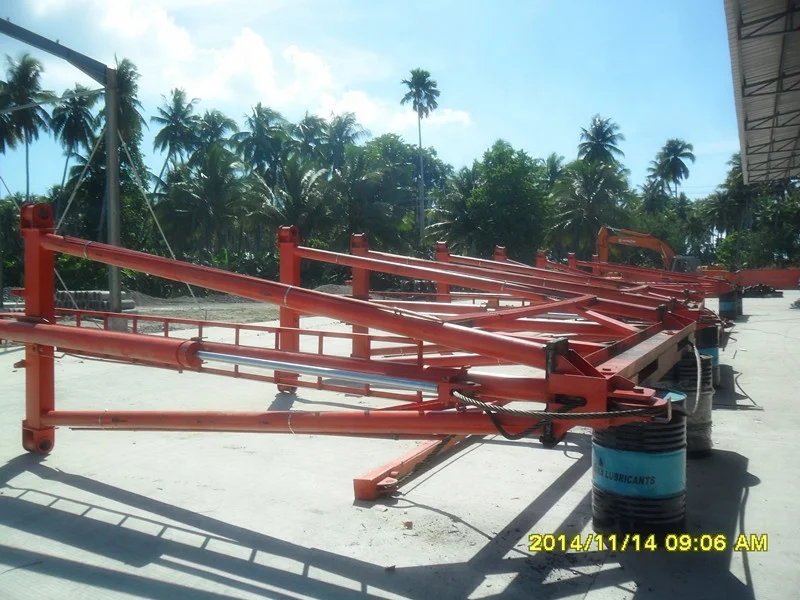

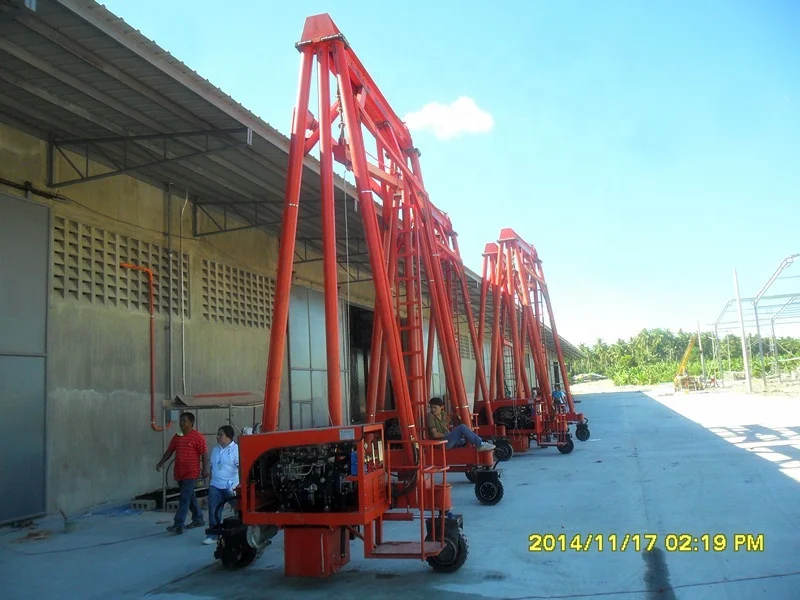

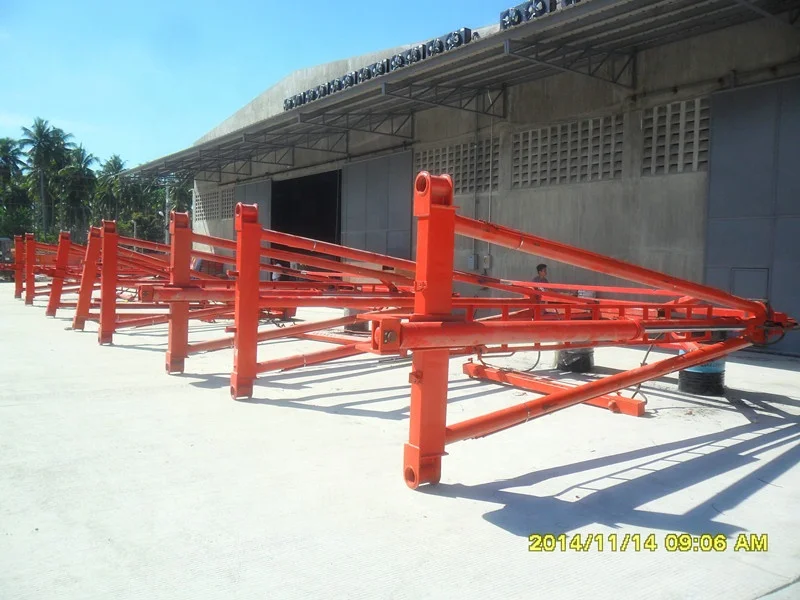

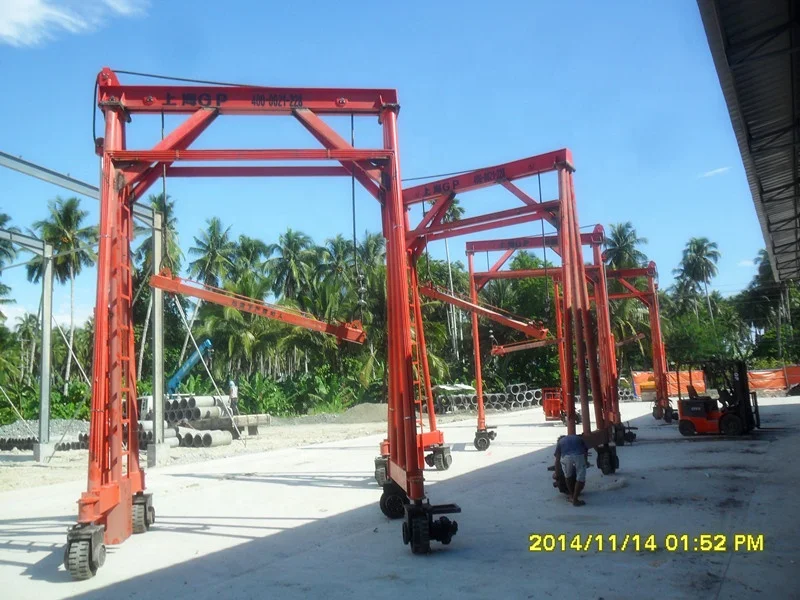

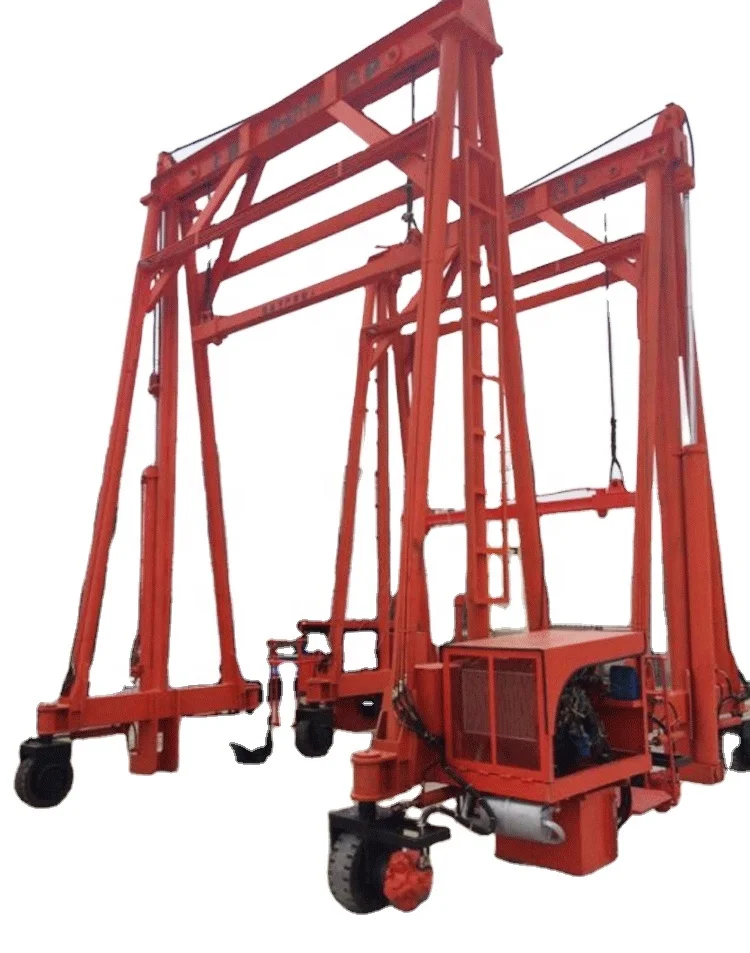

          BSJD360T and BSJD400T mast mobile container crane is specially designed for small and medium size freight yard, her advantage is the lowest operating cost among all kinds of container cranes.



           This equipment is powered with multi-cylinder diesel engine, with good features of low noise and low vibration. Lifting and walking are both controlled by hydraulic system, driving by hydraulic motor.



                 Diameter of lifting cylinder is 200mm, the more the loading capacity, the smaller the pressure of lifting system, it is absolutely steady and safe when lifting and declining, and with high efficiency of loading or unloading.



             Each equipment is composed of two cranes, each crane is an independent motor unit, each motor unit is two-wheel driving(2WD), four-wheel steering(4WD), the max. turning angle is 90 degrees, can steer and shift at any angle.



               With small turning radius, it can be operated flexiblely. And the two motor units both can move freely, the space between also can be adjusted at will, it can be used for lifting various containers.



             This equipment should be used on flat, hardening and no pothole container yards. It is applicable to load or unload for logistics companies, warehouses, piers, container yards, freight yards, etc.



              It is a super quality and competitive price, convenient and practical container lifting equipment.



Specifications of BSJD360T and BSJD400T mast mobile container crane :

Items	Model	Model
	BSJD360T	BSJD400T
Load capacity	36T	40T
Max.lifting height	4700mm	4700mm
Max.lifting speed	0.065m/s	0.065m/s
Engine type	B490G ( Shanghai xinjiang brand )	B490G( Shanghai xinjiang brand )
Engine power/rotate speed	22KW / 2700r/min	22KW / 2700r/min
Max.torque/rotate speed	70.2/1960~2240[Nm/r min]	70.2/1960~2240[Nm/r min]
Max.travel speed	3.5km/h	3.5km/h
Diameter of lifting cylinder	203mm	203mm
Pressure of lifting system	10Mpa	10Mpa
Diameter of steering cylinder	75mm	75mm
Min.turning radius	4500mm	4500mm
Pressure of steering system	15Mpa	15Mpa
Torque of hydraulic motor	949Nm	949Nm
Rotate speed of hydraulic motor	6~400r/min	6~400r/min
Diameter of drive wheel	450mm	450mm
Min.under-clearance	80	80
Suitable carriage height	1.45m/1.75m	1.45m/1.75m
Overall length	4900mm	4900mm
Overall width	2500mm	2500mm
Overall height	6600mm	6600mm
Total weight	7.5T	8.0T
