Parking Guidance System Type car parking guidance
- Category: >>>
- Supplier: Shenzhen Security Information System Technology Co. Ltd.
Share on (60331011701):
Product Overview
Description
| Parking Guidance System Type car parking guidance | ||
| ||
| 1. Descriptions: | ||

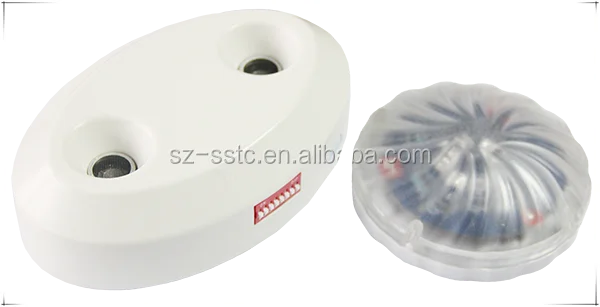

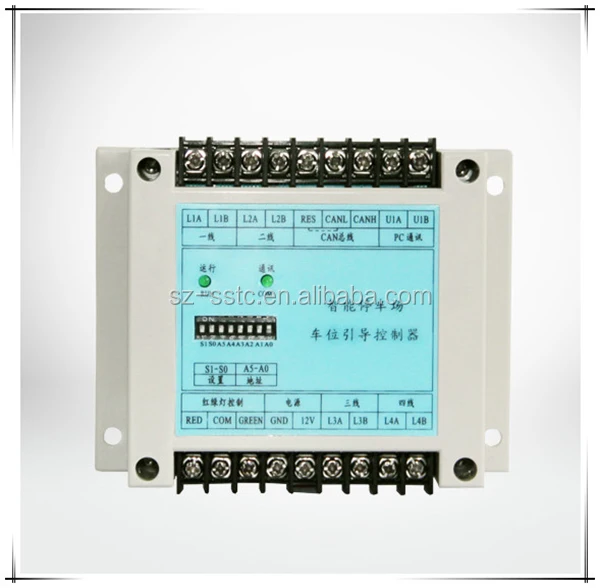

| Parking guidance system is make by ultrasound radar detector installed on above of each car space to detect whether there is a car in park space, the system collect the working status of each detector by the guidance controller. According to the set addresses 0-62#, every guidance controller distinguish their work mode; the host address is 0# (commonly known as data centers), 1-62 is extension address. | ||
| Before the system running, the related configuration information will download to the host by computer, then the system can work independently off from the computer. | ||
| In Online status, the system will provide real-time parking map and provide analysis reports of the parking usage. | ||
| 2. Technical Parameter: | ||
| 1 Working temperature:-20°C-70°C l , Working Power supply: AC 220V/100mA 2, LCD display:128 x 32 dot matrix, gb simplified Chinese or English display (can menu select) l3, CAN interface: safety electrical isolation, communication rate 10 Kbps, the maximum distance 3 km 4, RS485 interface: half duplex, safety electrical isolation, baud rate 9600 BPS 5, Using conditions: Installation in the bins, waterproof, moistureproof, etc. 6, Vehicle detection sensitivity: 0-9 ten levels can be adjusted 7, Most vehicles existing time: 3-255 seconds can be adjusted ,8, Inductance coil range: 80 ~ 300 uh (A, B coil edge to edge apart 0.8 ~ 1 meter or so, circle number by one circle in case they do each other.) 9, Test vehicle speed: 5-80 km/hour 10, wireless networking visible distance: 500 meters 11, Using conditions: only for 2 to 4m trickle. | ||
| 3.Functions & Features: | ||
| 1.Scope: Vehicle counting system, parking spaces guidance system | ||
| 2. Security protection: lightning protection function, anti-polarity power supply function | ||
| 3. Detection range: 30 ° angle, the effective filtering of human interference | ||
| 4. Main purpose: Real-time detection of parking spaces on whether a vehicle is present | ||
| 5. Detection frequency: 40 KHz | ||
| 6. Parking instructions: green without cars or light car | ||
| 7. Communication mode: RS485 bus | ||
| 8. Detection method: Ultrasonic Ranging Radar Principles . | ||
| 9.Standard network parking management software: Chinese/English supported, windows xp/sever2003; | ||
10. Using advanced B/S management mode, visit by browser and can manage automatically (charge, query record, report forms, print and so on), maintain, upgrade, test e.g. by TCP/IP network. | ||
| 11. High Speed: TCP/IP network communication 100MB/S, faster than RS-48: 9600/1024/BS; | ||
| 12. After correct configuation,the controller can work offline independently. | ||
| 4.Solution | ||
 | ||
| 5.Product Show | ||
| ||

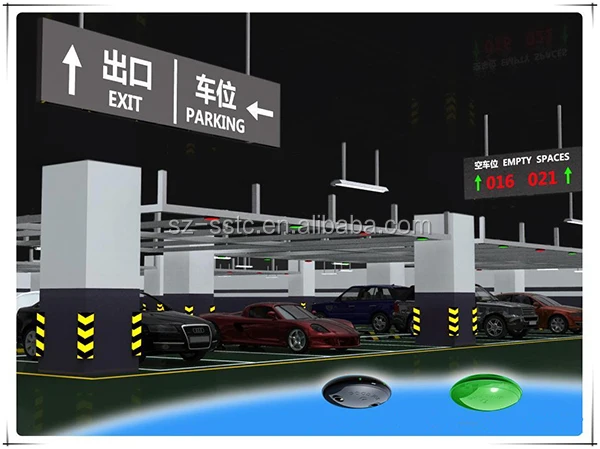

| 6.Application | ||
  | ||
| 7.Standard package | ||
| ||
| 8.Products variety | ||
  | ||
| 9.Our service | ||
| Any inquiries will be replied within 24hours | ||
| Professional manufacturer. Welcome to visit our website: www.sz-sstc.com . | ||
| OEM/ODM available: | ||
| 1) Silk print logo on the products 2)Customized design and color are available. 3) Any idea on the products, we can help you to design and produce. | ||
| High quality, fashion designs,reasonable&competitive price and fast lead time. | ||
| After-sale service: | ||
| 1) All products will be strictly Quality Controlled in house before package. 2) All products will be well packed with wooden case before shipping. 3) All our products have 1 year warranty. The product will be free from maintenance during warranty period. 4) If there is any problem when installing the products,please feel free to contact me. We are here to support you. | ||
| Fast delivery | ||
| Sample order in stock,5-7days for bulk production | ||
| Payment | ||
| We can accept T/T,Western Union,Paypal&L/C | ||
| Shipping | ||
| As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder | ||
| 10.Our advantage | ||
| 1.One-stop procurement service is available. | ||
| 2.Quickest delivery and best aftersales service. | ||
| 3.Veteran technician solves all your problems. | ||
| 4.Passionate and professional sales makes a wonderful team. | ||
| 5.Competitive and reasonable price with high quality products and advanced technology. | ||
| 6.Providing the most professional solution as soon as possible according to your requirements. | ||
| 11. About us | ||
  | ||
| 12.Contact Information | ||
