Factory Supply 120 800KVA UPS 500Kva Online Ups

Product Overview

Description

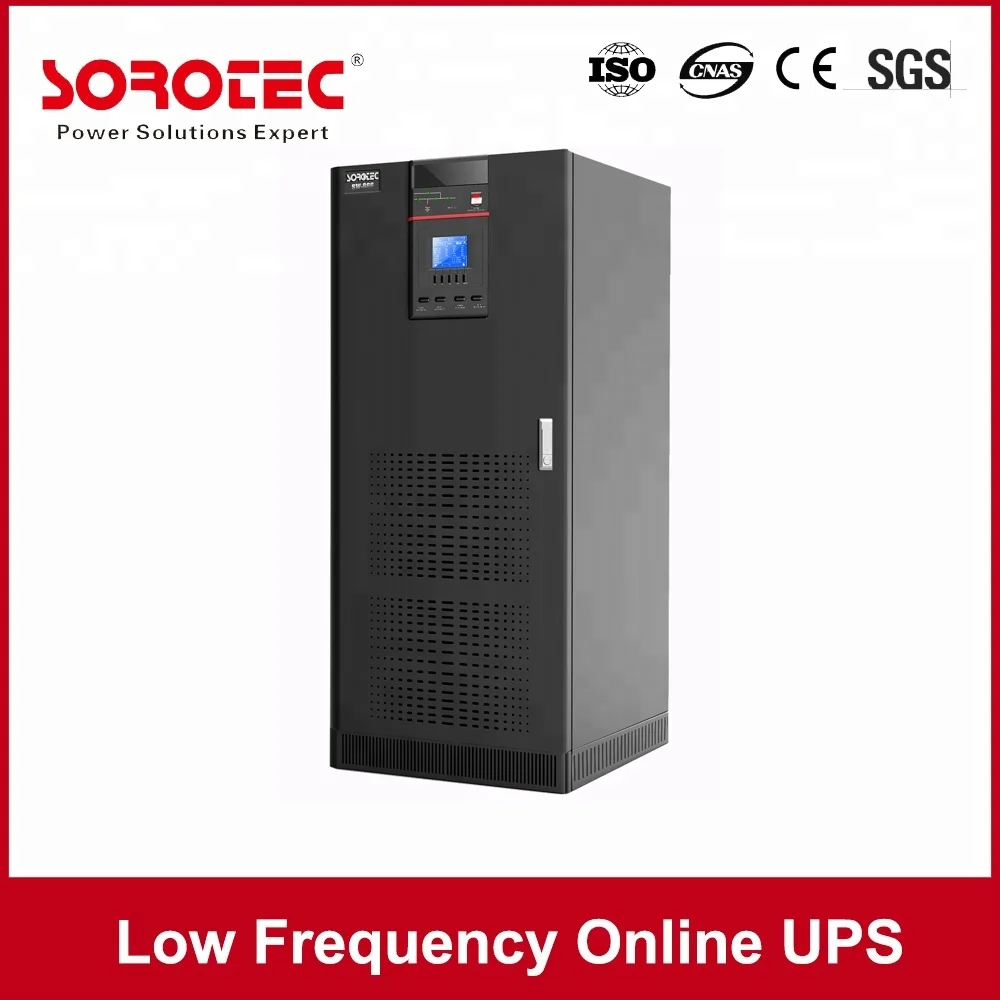

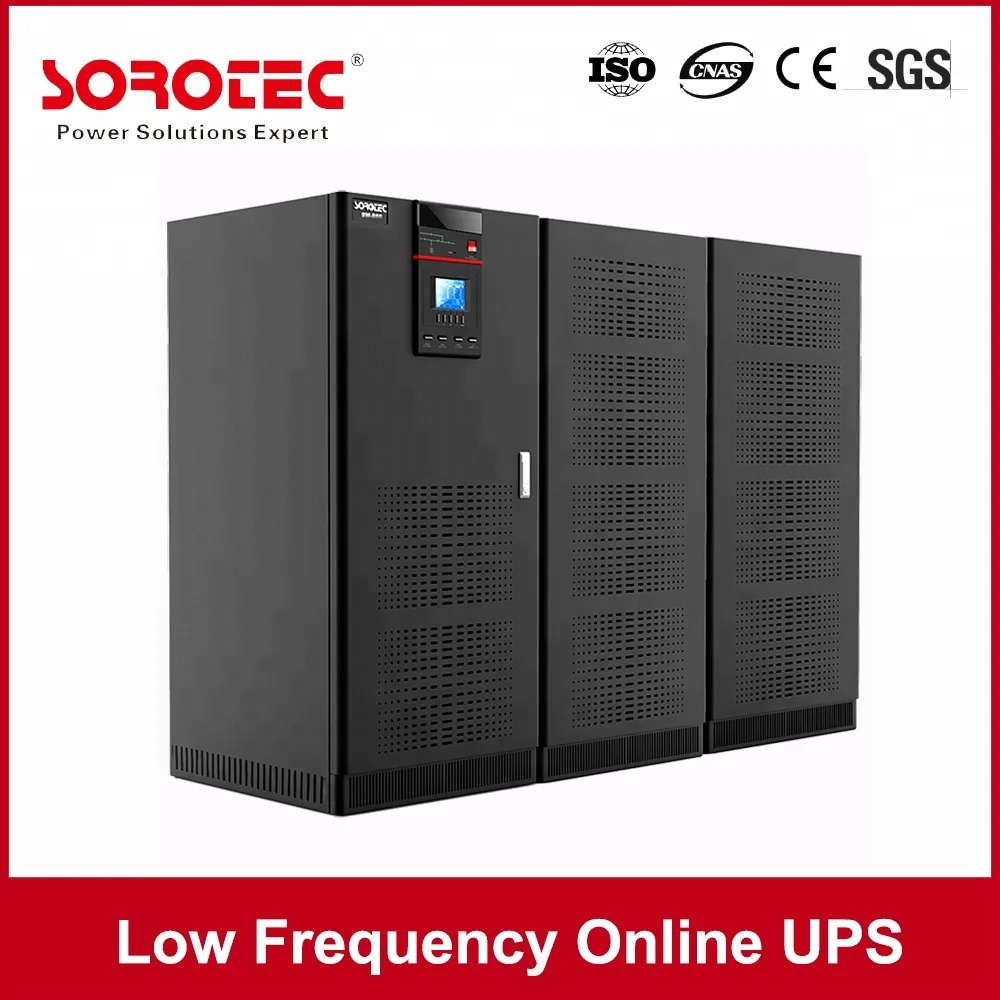

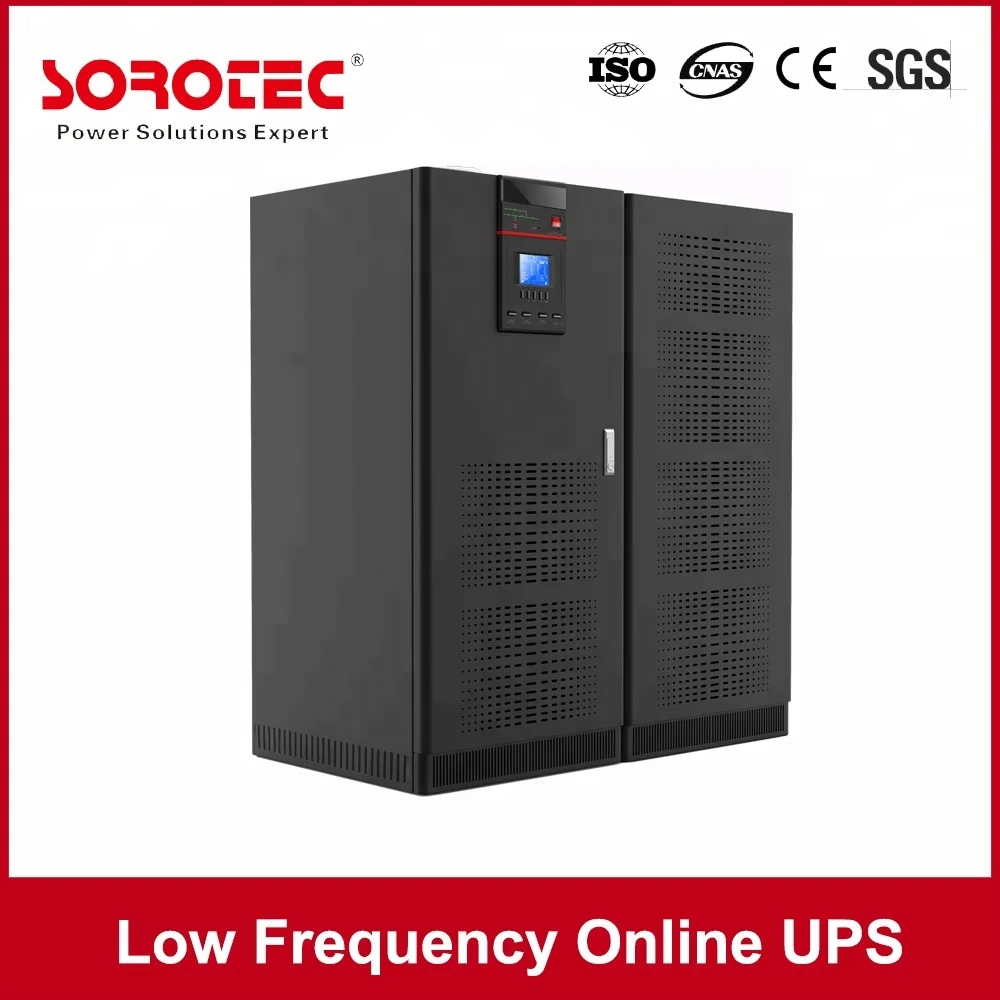

Factory Supply 120-800KVA UPS 500Kva Online Ups

Key Features

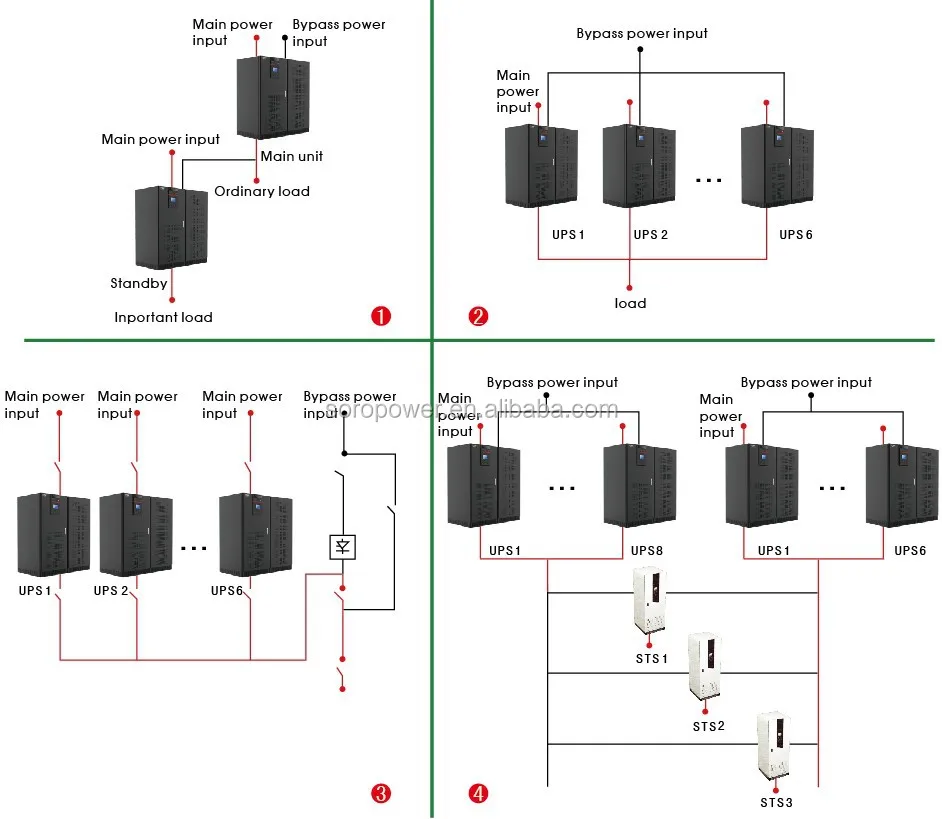

1.0.9 output power factor,UP to 6 units in parallel

2.6-inch extra large LCD that display 12 language( English/Russian/Spanish/French^)
3.The efficiency of the machine is more than 94%, and reach 98% in ECO mode.
4.6th generation DSP control
5.Intelligent battery management: Layered independently-sealed ventilation channel and redundant fan, embedded make it highly efficient to dissipate heat.
6.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions
7.Extra wide input voltage and frequency range make it adapt to severe power grid environment
8.Standard input/output filter improves the system EMC performance
9.Intelligent battery management maintains battery automatically to prolong the battery life



Applications

Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.



PRODUCT SHOW



 High Reliable UPS Power Solutions , 6units For Parallel









Product Descriptions of 500Kva Online Ups



Model		GP9335C
Rectifier Type		6p	12p	6p	12p	6p	12p	6p	12p	6p	12p
Rated Nominal		120KVA/108KW		160KVA/144KVA		200KVA/180KW		300KVA/270KW		400KVA/360KW
Rated input voltage		380/400/415VAC 3-phase 4-wire
Rated frequency		50/60HZ
Input parameters
Input voltage range		±25%
Input frequency range		45Hz~65Hz
Input soft start function		0-100%   5-300settable
Input power factor		>0.98(If harmonic filter is added)
Input harmonic current (THDi)		‹4.5%(If harmonic filter is added)
Bypass
Bypass voltage range		-20%~+15%
Bypass frequency range		50/60HZ±10%
Output parameters
Inverter output voltage		380/400/415VAC 3-phase 4-wire
Voltage stability		±1%(Steady status),±3%(Transient status)
Frequency		50/60Hz
Mains power synchronization window		±5%
Actually measured frequency accuracy (internal clock)		50/60Hz±0.01Hz
Output power factor		0.9(Output 90kW per 100kVA)
Transient response time		<5ms
Inverter overload capability		At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s
		3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds
Short circuit current from inverter
Maximum Bypass capability		1000% for 100ms
	With 100% balanced load	<1°
Phase shift
characteristic	With 100% imbalance load	<1°
	100% linear load	<1%
Total harmonic
Distortion(THDv)	100% non-linear load	<3%
System efficiency (full load)		Up to 94% (inverter efficiency is up to 98%)
Rectifier output parameters
Charger output voltage stability		1%
DC ripple voltage		≤1%
Operating environment
Operating temperature range		0~40°C
Storage temperature		-25~70°C(Without battery)
Relative humidity		0~95% No condensation
Noise (1m)		58-68dB
Protection level		IP20
Standard		Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3





MORE PRODUCTS TO CHOOSE







APPLICATION OF OUR PRODUCT

1. Living house and home building

2. Office building, factory and warehouse

3. Shopping mall, stadium and so on

4. Power station, field operation and some huge engineer construction

5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip





FACTORY SHOW





COMPANY SHOW

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.













TRADE SHOW









WHY CHOOSE US ?



1,QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards.

2,Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.





CERTIFICATIONS







OUR MARKET





PACKAGING

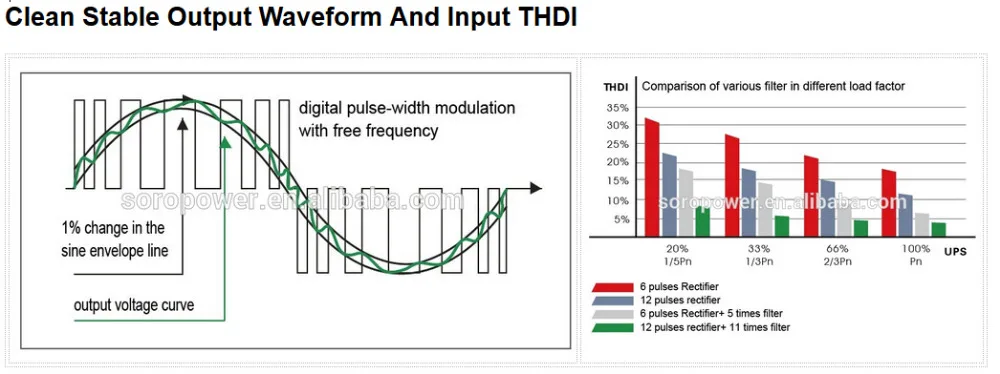

1.Output wave when take the full load

This product provide pure sine wave output when take the resistance load.

  ...................................................................................................................................................

2.About THDI

Because this series product is not rectifier function, so can’t make the THDI when use it.

  ...................................................................................................................................................

3. About service

We are keep the most closely relationship with customers ,In order to satisfy the  customer enjoy the most

perfect after- sales service.

  ...................................................................................................................................................

4.About SORO technology

We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.

  ...................................................................................................................................................
