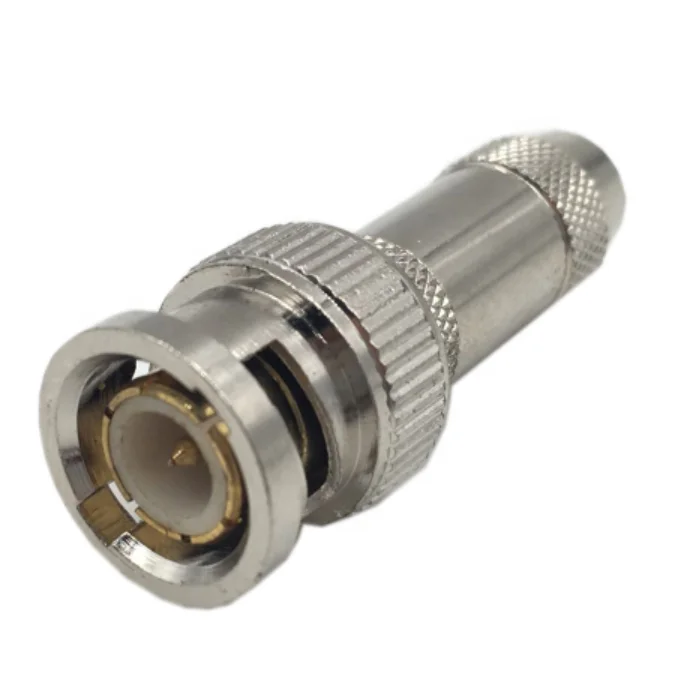

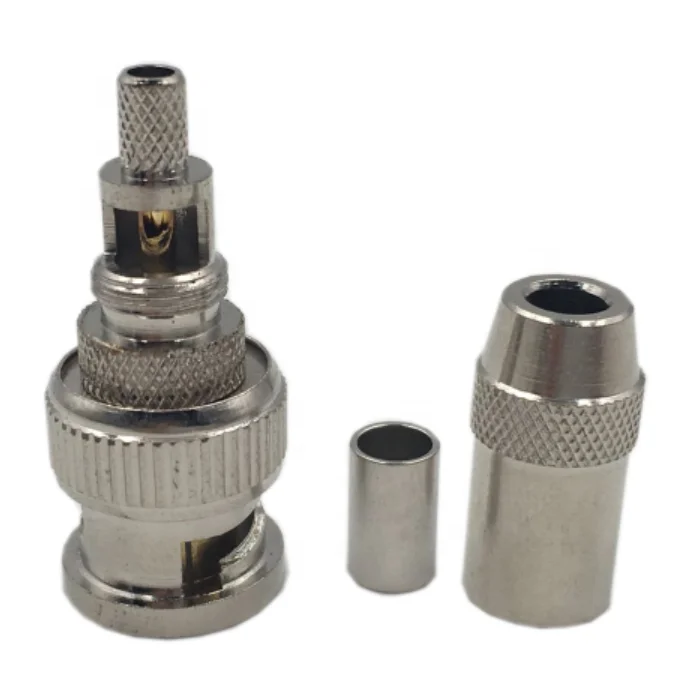

RG58 RG59 RG6 RF coaxial male clamp lock BNC connector adapter for CCTV
- Category: >>>
- Supplier: Zhenjiang Xinhuafeng Electronics Co. Ltd.
Share on (60331063622):
Product Overview
Description
Product Description
BNC connectors are for low power ,quick connect / disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same type connectors of aborad. They are widely used connect of the RF coaxial -cables in electronic equipment and instuments. Characteristic impedance 50Ω , 75Ω
| Temp.range: | -55~+155°C | Insulation resistance: | ≥ 1000 MΩ |
| Impedance : | 75Ω | Withstand voltage at sea level : | 750V |
| Frequency range: | 0~1GHz | Working voltage : | 170V max |
| Center conductor withdrawal force: | ≥0.49N | VSWR : | Straight ≤1.2 Angle≤1.3 |
| Contact resistance: | center conductor ≤6mΩ , outer conductor ≤1mΩ | Durability : | 500 cycles |
Temperature range------ -55~+155°C
Impedance------50 Ω Or 75 Ω
Frequency range (required for the application is 2,4 GHz)-------0~2 GHz
Voltage rating-----------1500V
Contact resistance of center and outer conductor--------center ≤ 1.5 mΩ outer ≤ 1 mΩ
VSWR---------- Straight ≤ 1.22 , Right angle ≤ 1.30
Durability (in cycles)--------500 cycles
Dielectric withstanding voltage------ ≥ 5000 MΩ

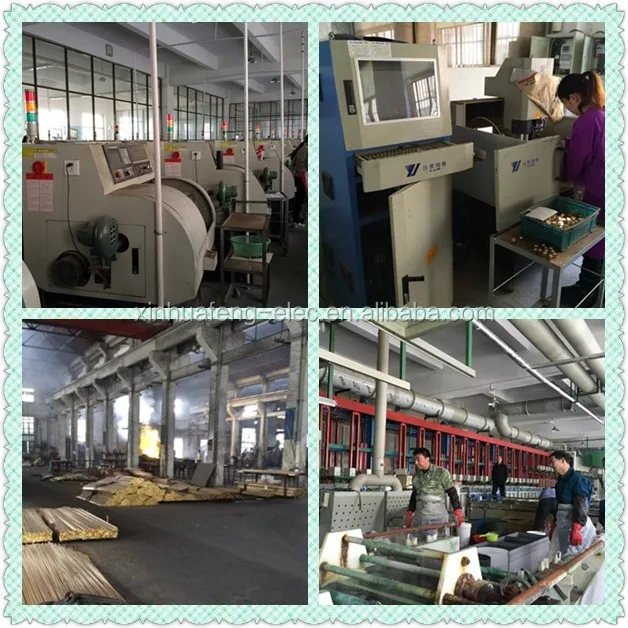

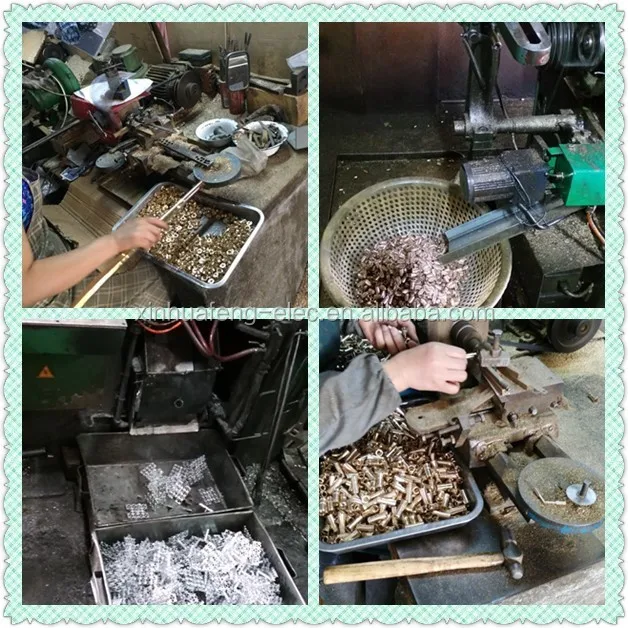

Company Information
We're professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.
