Brand new Automobiles Engine Repair valve grinding machine with high quality
- Category: Boring Machines >>>
- Supplier: Xian Amco Machine Tools Co. Ltd.
Share on (60331144299):
Product Overview
Description

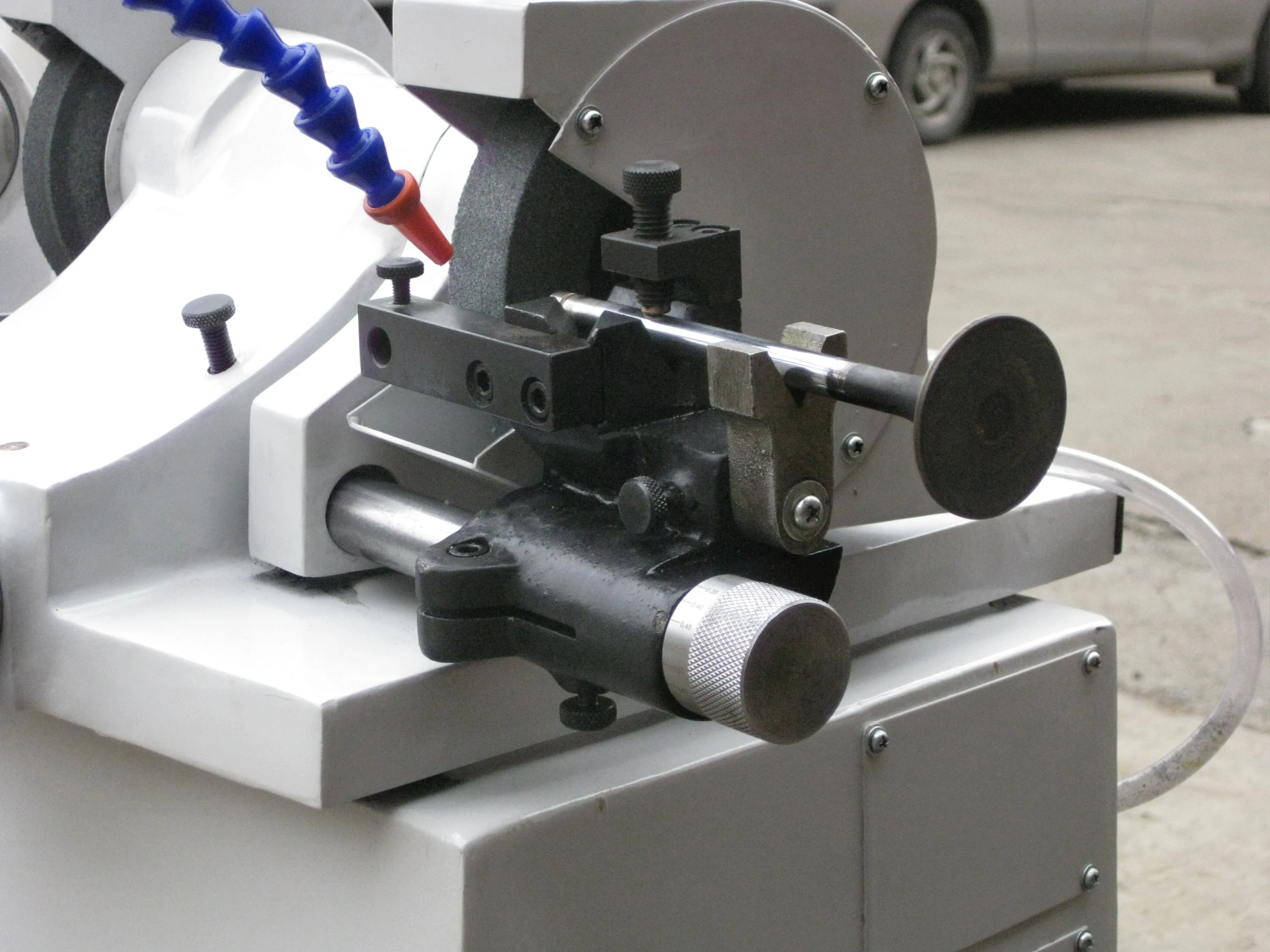

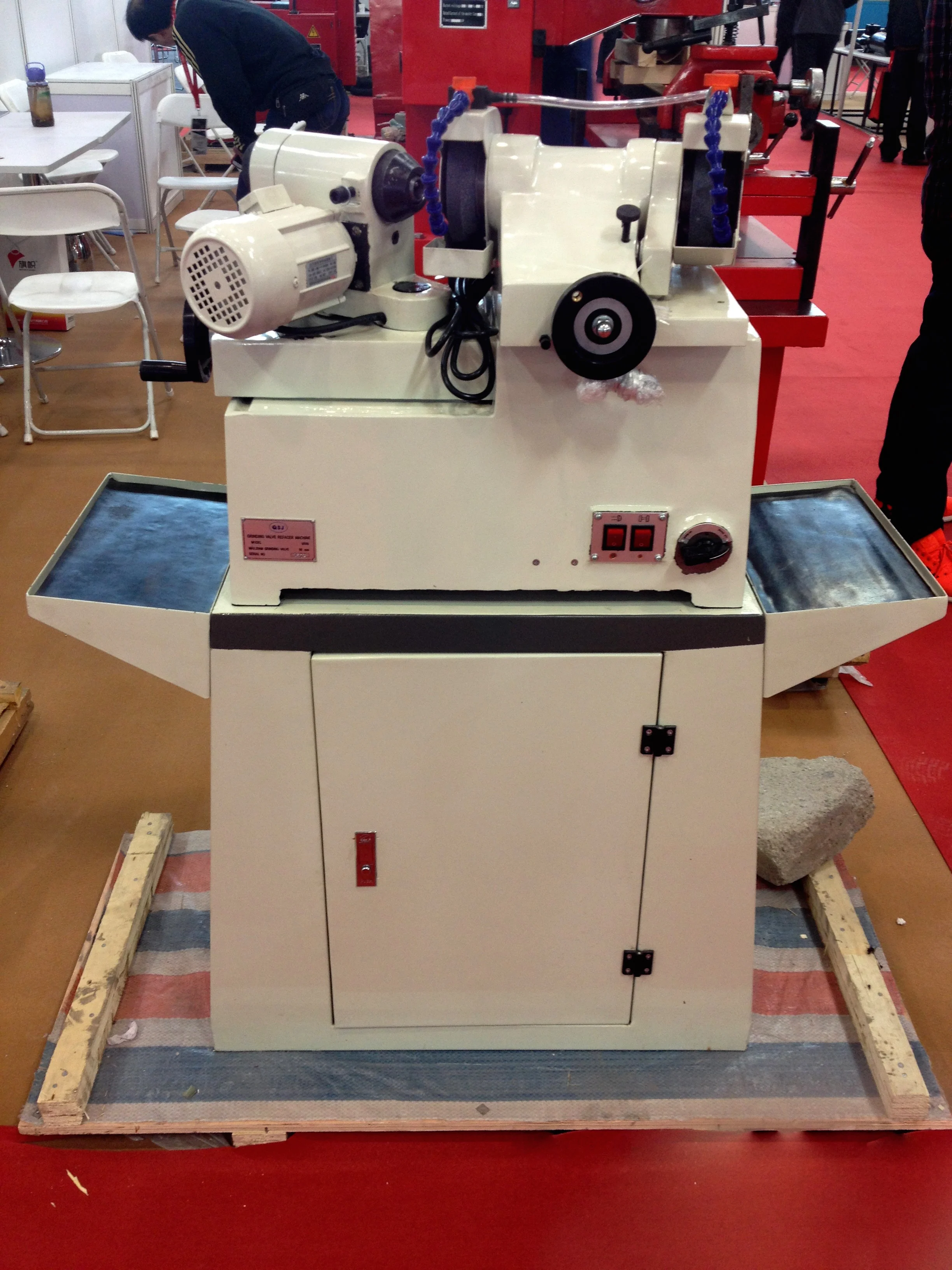

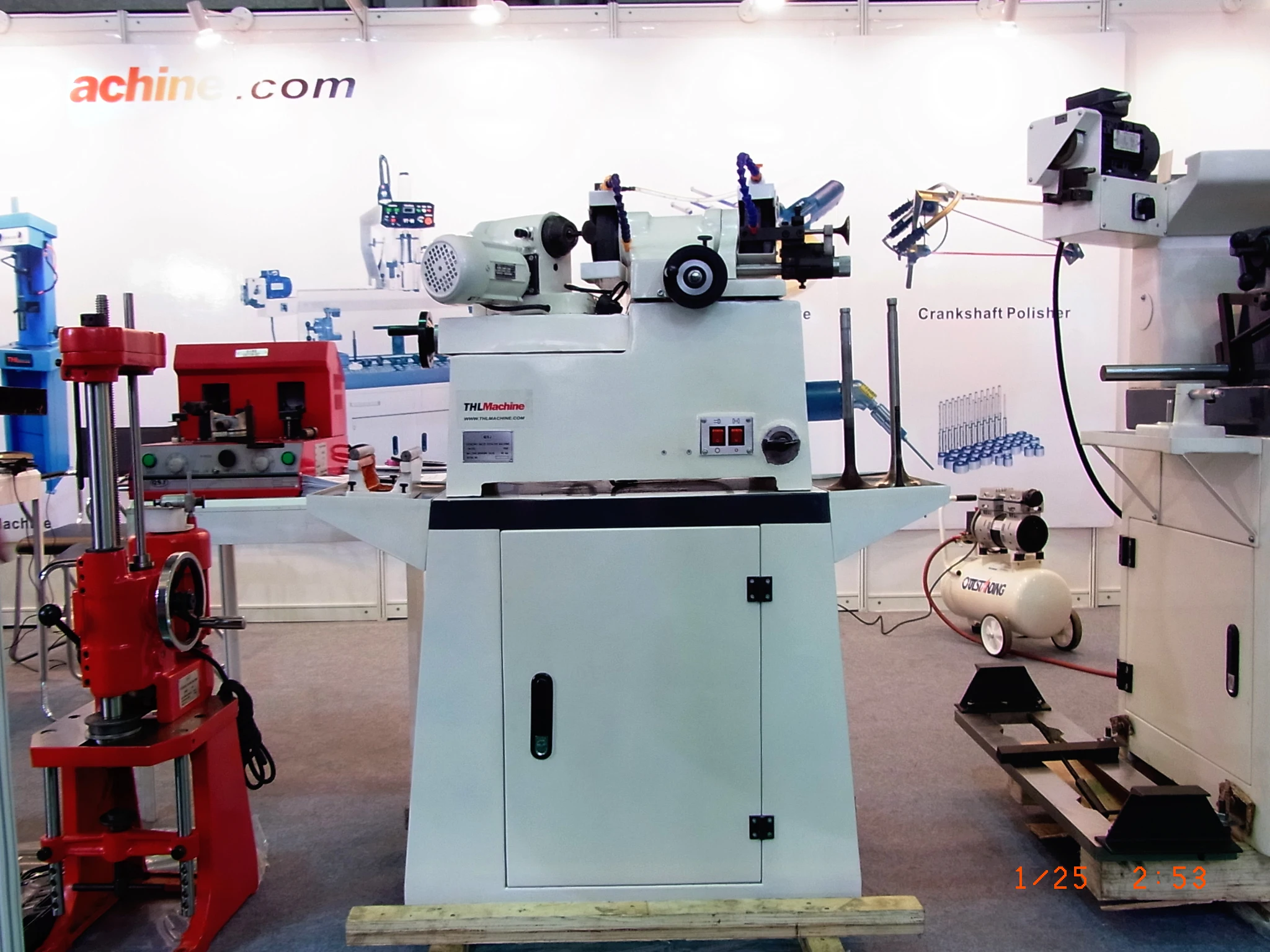

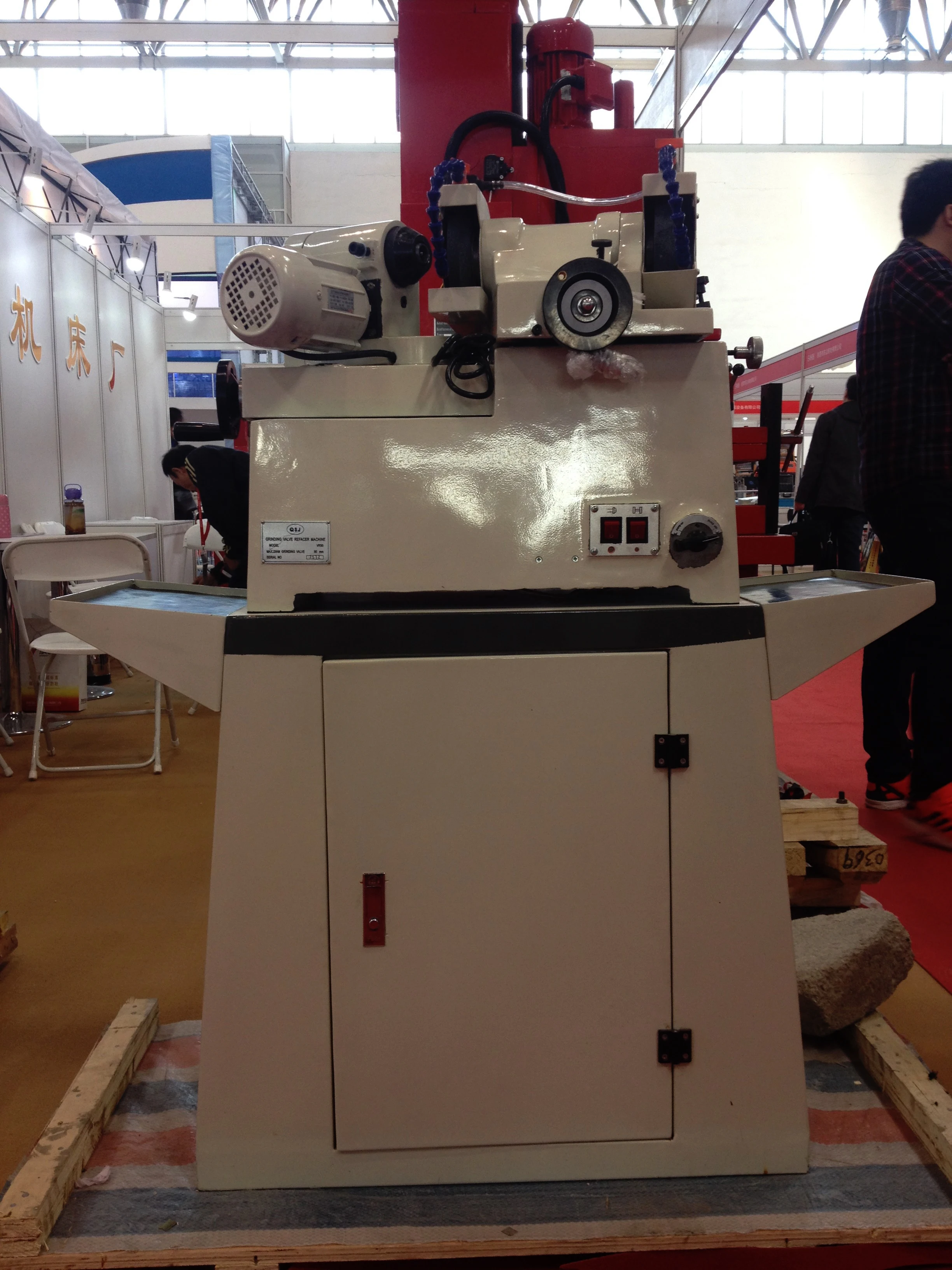

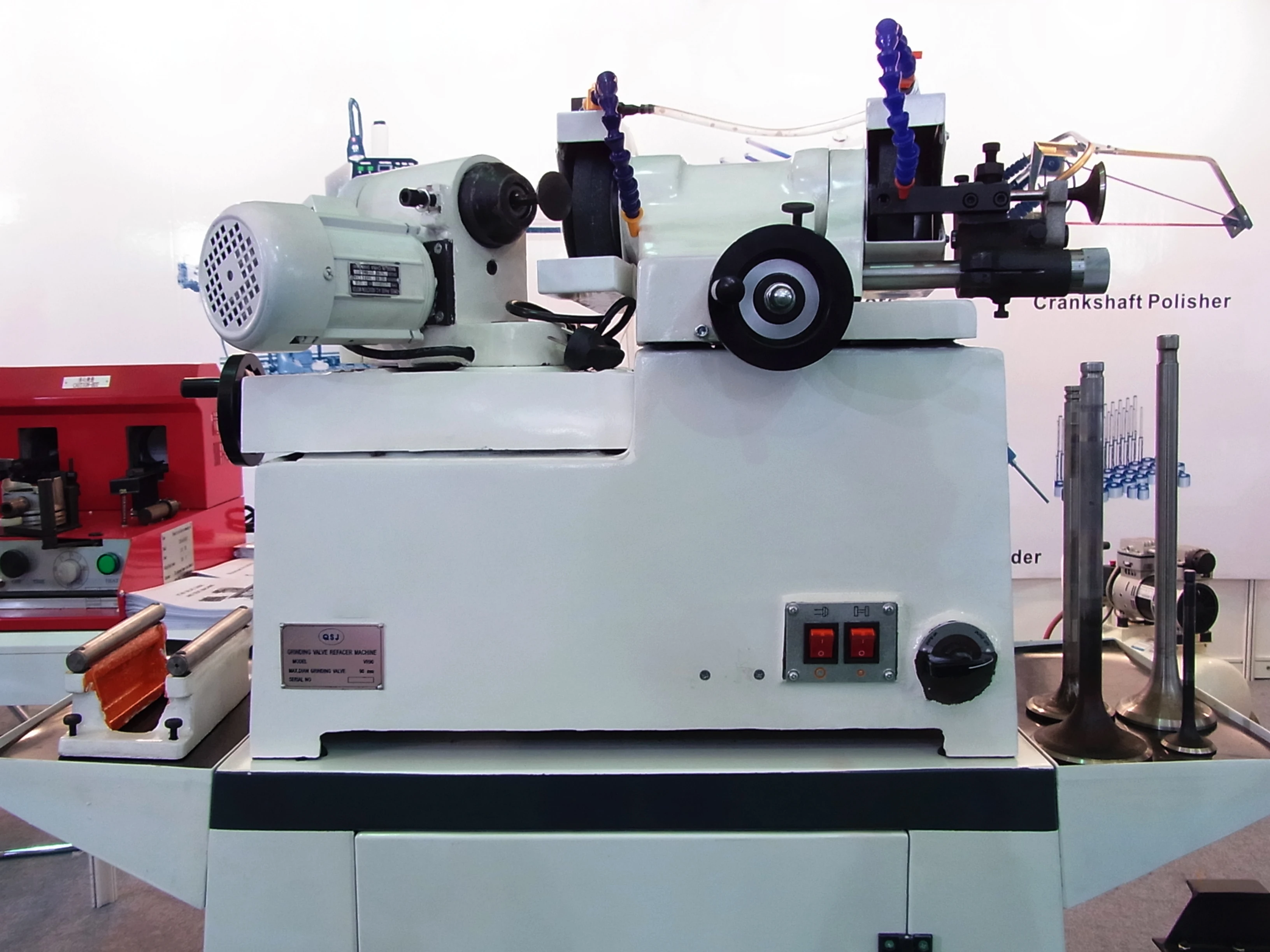

Automobiles Engine Repair valve grinding machine
Automobiles Engine Repair valve grinding machine
Produt Description
Automobiles Engine Repair valve grinding machine
Valve grinder machine Vr90 is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible operation and easy use.
Main Specifications
Model | TVG90 |
Vale Stem Dia. (Min-Max) | 4-14mm |
Valve Head Dia. (Min-Max) | 12-90mm |
Valve Length | 70-290mm |
Angle Grinding Range | 10-54 degree |
Wheel Diameter | 200mm |
Cup Wheel Diameter | 100mm |
Grinding Wheel Travel | 90mm |
Valve Feed Travel | 90mm |
Spindle Motor | 550w 2850rpm |
Valve Driving Motor | 180w 120-750rpm |
Coolant Motor | 100w |
Air Supply | Max.6 bar |
Accessories Detailed
Standard accessories:
SpindleΦ50, SpindleΦ80, Parallel support A, Parallel support B, Boring cutters
Optional accessories
Spindle Φ38, SpindleΦ120, Air –floating V-type cylinder fixture
Packaging&Shipping
Capital market
Certifications
Company
Xi’an AMCO Machine Tools Co., Ltd is a professional company who are specialized in producing, researching and developing and supplying all kinds of Machines and equipments. The products concerned include five series, they are Metal Spinning series, Punch and Press series, Shear and Bending series, Circle rolling series, Other special Forming series.
With several year experience in this field, AMCO machine tools has gained a deeply understanding of the quality of the machine in famous domestic manufacture, it help us to supply the most proper machine according to customer different requirements.
We had passed ISO9001 quality control certificates. All products are produced according to exporting standard and conform to the inspection standard of exported product of the People republic of China. And some products has passed CE certificate.
