Product Overview

Description

UHF USB RFID card reader with complete English SDK,demo software,source code and user manual





Product mode explanation

Model	Interface
WS-UHF5102U	USB



Model:WS-UHF5102U

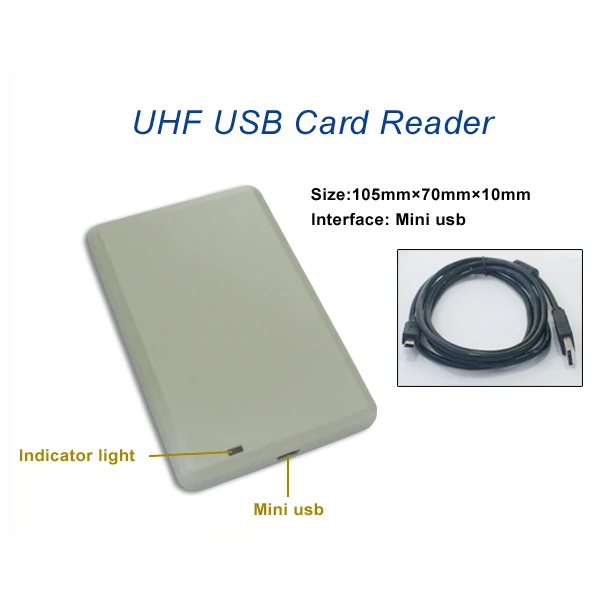

Size: 105mm*70mm*10mm



WS-UHF5102U is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system



FEATURES

1.      Self-intellectual property;

2.      Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3.      902~928MHz,860~868Mhz frequency band(frequency customization optional);

4.      FHSS or Fix Frequency transmission;

5.      RF output power up to 10dbm(adjustable);

6.      No external power source needed;

7.      Built-in antenna with effect distance up to 20cm;

8.      Reading range : 0-50cm

9.      Support USB1.1 interface with VSP(Virtual Serial Port) or HID mode;

10.     Slim outline;

11.   Provide SDK and demo software to facilitate further development.

* Effective distance depends on protocol, tag and environment.



CHARACTERISTICS

l  Absolute Maximum Rating

ITEM	SYMBOL	VALUE	UNIT
Power Supply	VCC	6	V
Operating Temp.	TOPR	-10~+60	℃
Storage Temp.	TSTR	-25~+80	℃



l  Electrical and Mechanical Specification

Under T_A=25℃,VCC=+5V unless specified

ITEM	SYMBOL	MIN	TYP	MAX	UNIT
Power Supply	VCC	4.5	5	5.5	V
Current Dissipation	IC		120	200	mA
Frequency	FREQ	902		928	MHz

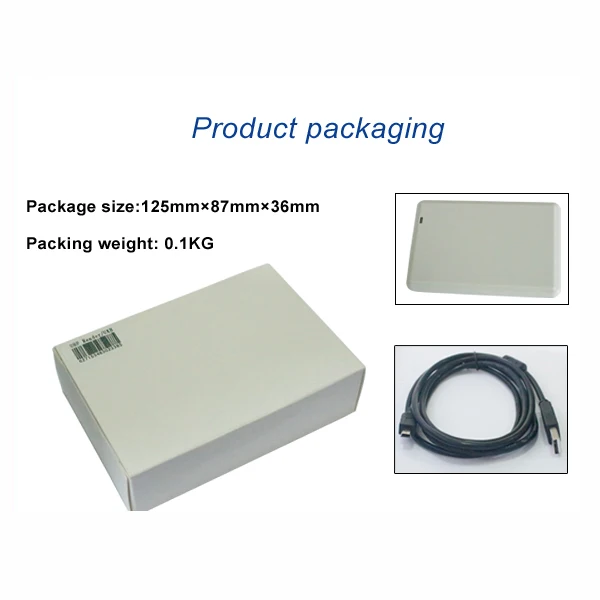

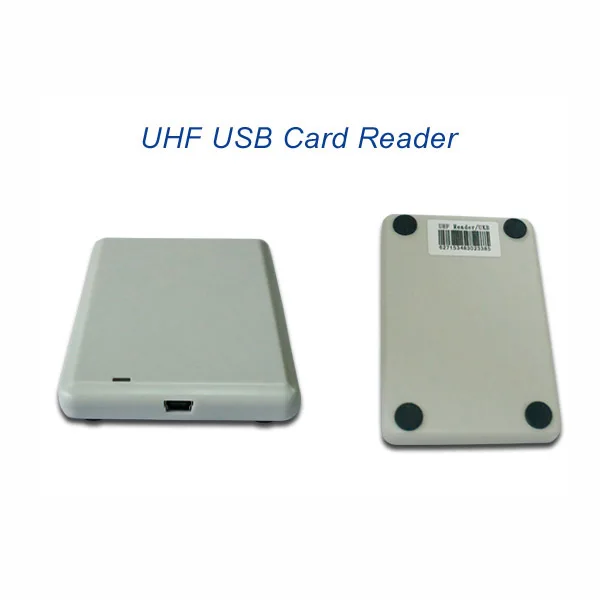

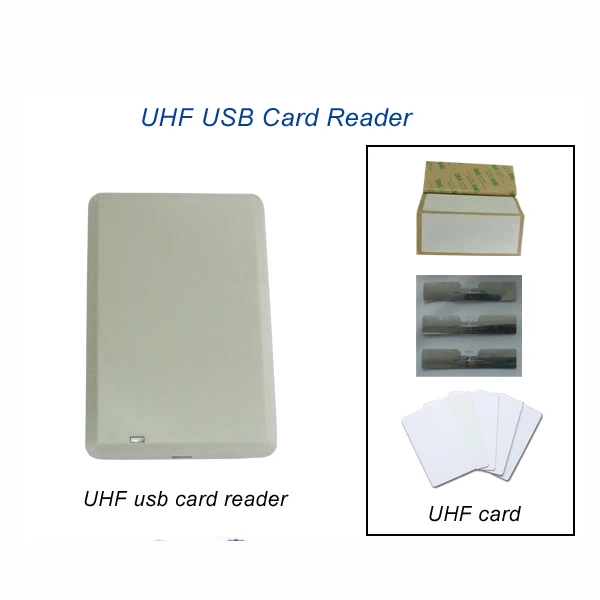

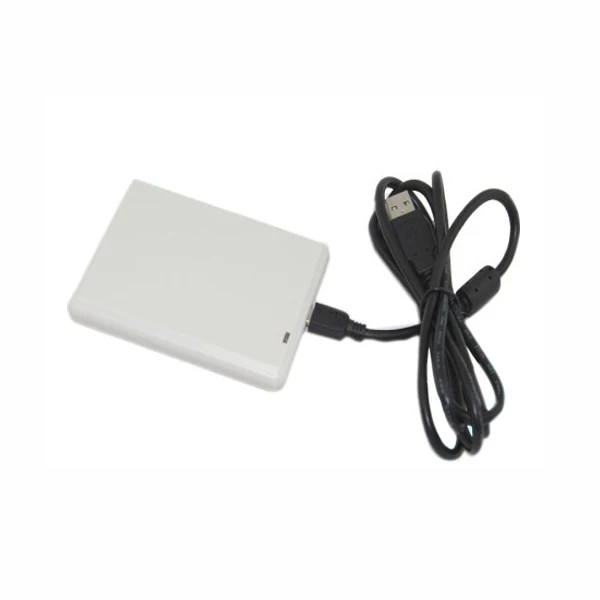

Photos for references
